Granite paving stone stamping machine

Supplier: Xiamen Bestlink Factory Co., Ltd.
Region: Fujian, China
Contact: Mr Richard Chen
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	30 Set/Sets per Month;	Use:	Marble and granite;
Applicable Industries:	Retail,Construction works ;	Voltage:	240V,380V;
blade mould:	40 shapes;	Other name:	Granite paving stone stamping machine;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Brand Name:	BESTLINK;
Packaging Detail:	Granite paving stone stamping machine by wooden case;	Warranty:	1 Year;
Key Selling Points:	Long Service Life;	use:	waster slab cutting;
Place of Origin:	Fujian China (Mainland);	Weight:	500KGS;
Production Capacity:	5000sets per year;	Type:	Stone Cutting Machine;

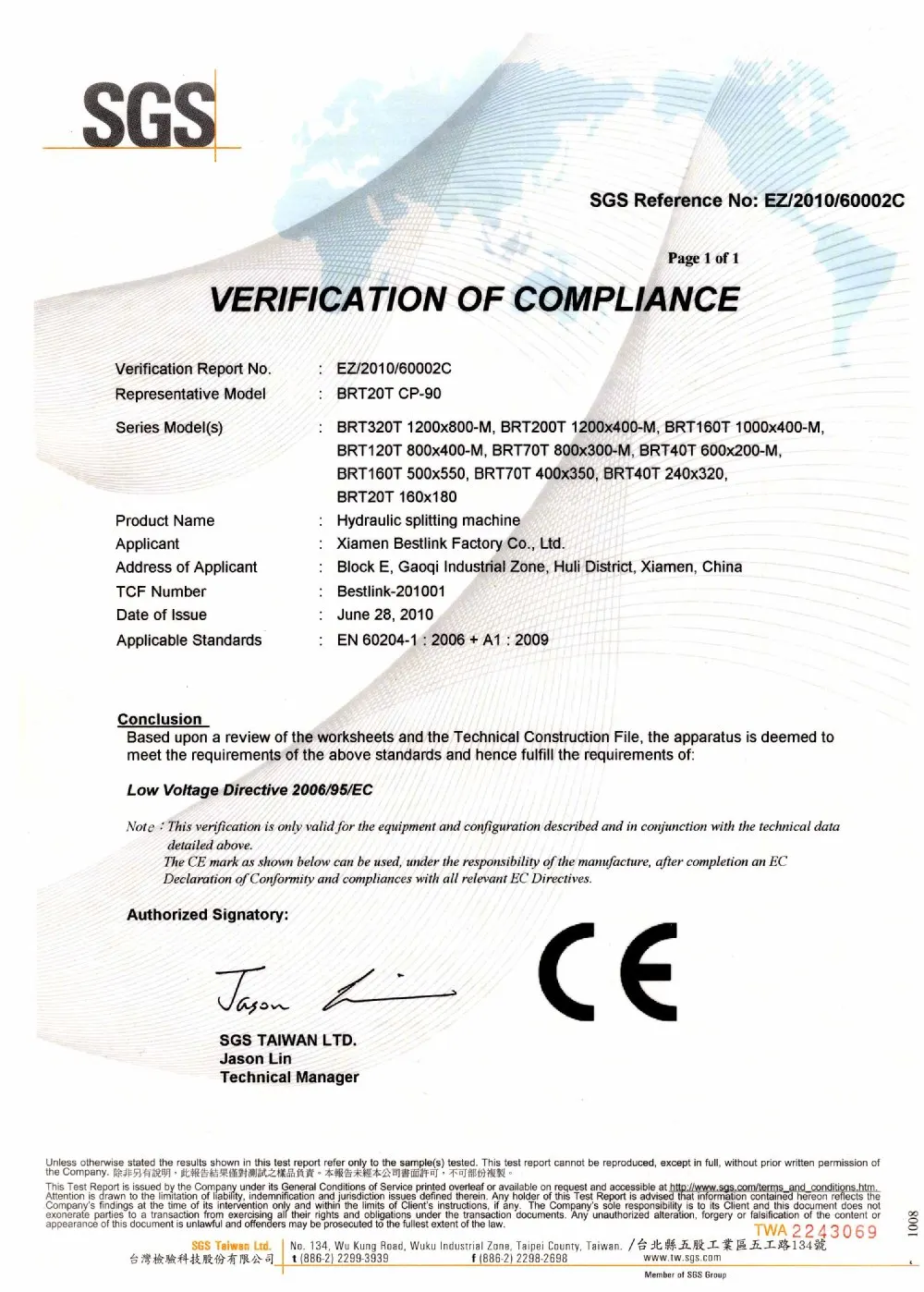

Power(W):	4-7.5KW;	Certification:	CE;

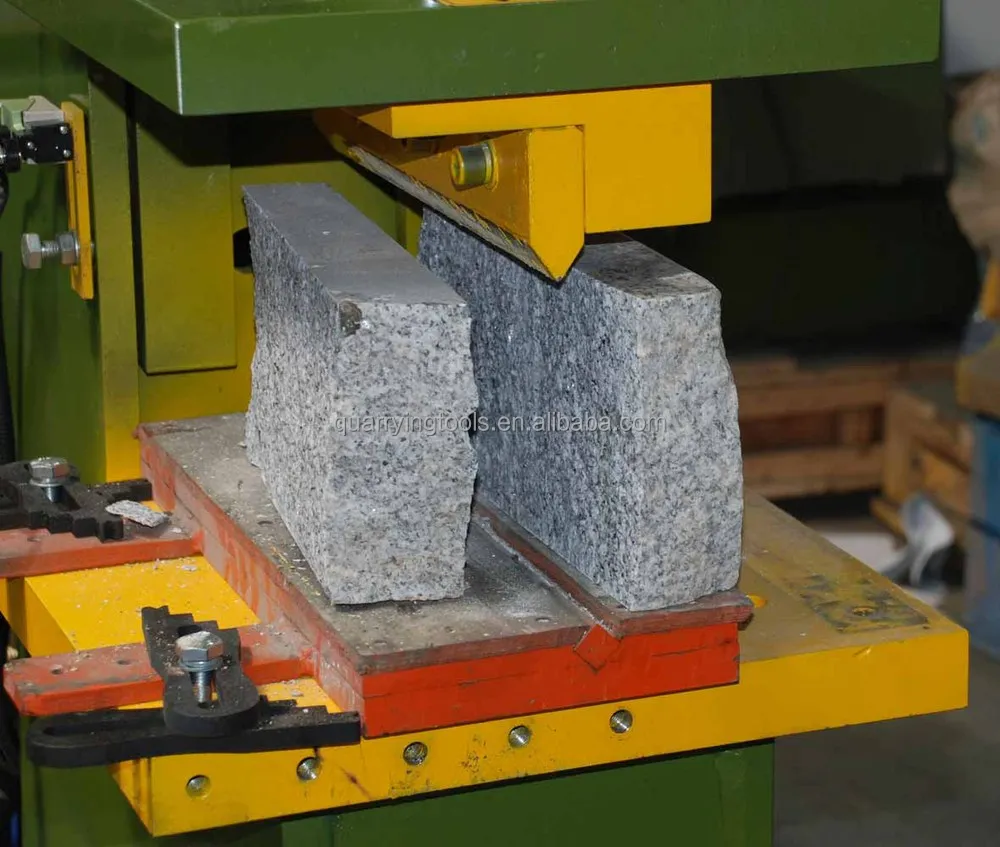

splitting power:	20T and 40T;	After-sales Service Provided:	Online support,Video technical support;
Condition:	New;	Port:	xiamen sea port;
Dimension(LWH):	80100150cm;

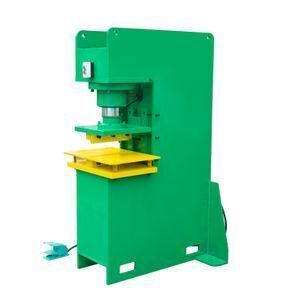

Hydraulic stone stamping machine(stone punching machine)

Products features:

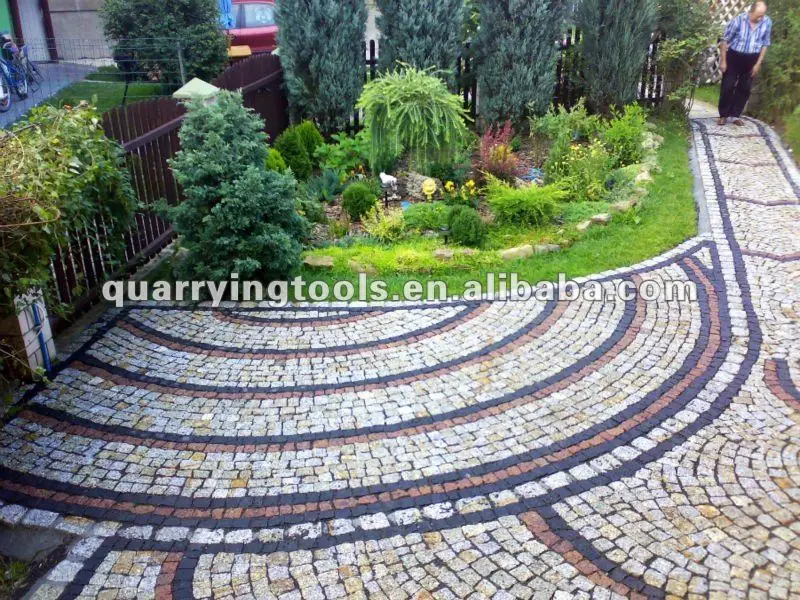

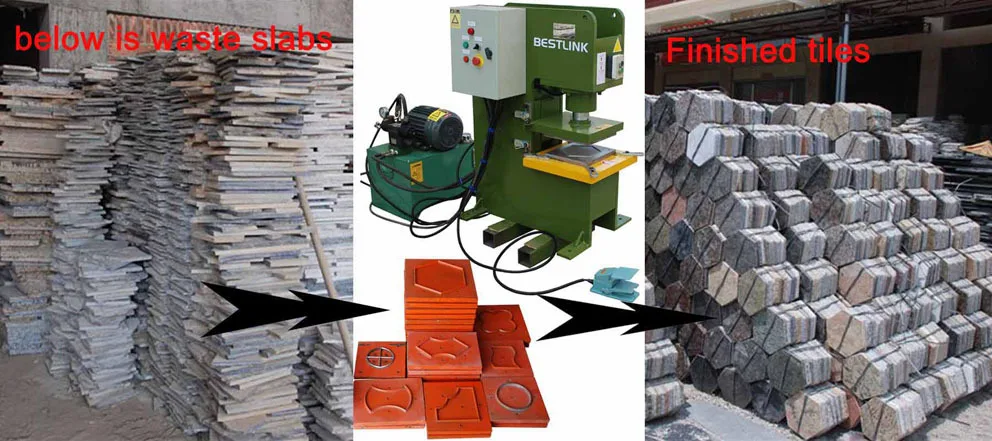

CP90 Stone stamping machine is specially designed for changing the waste or leftovers of slabs or tiles into amazing paving tiles with the designed patterns, providing to the builders for plaza, street, villa and living areas, which save the stone materials and protect the environment.

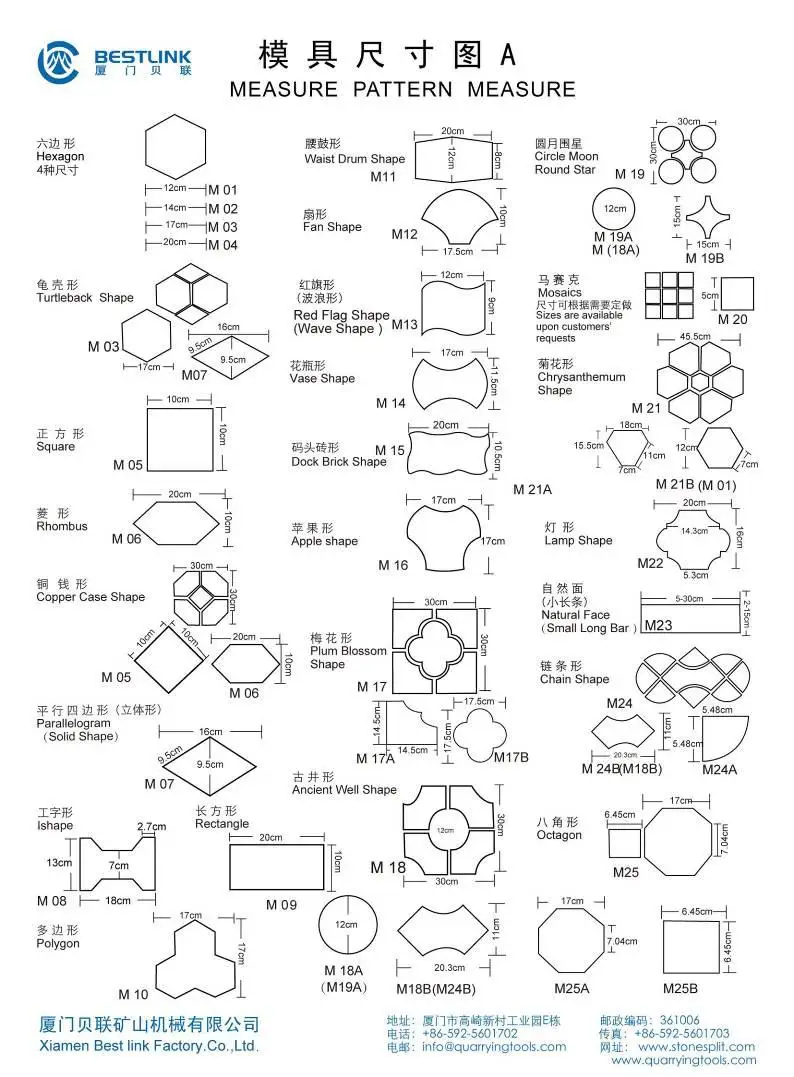

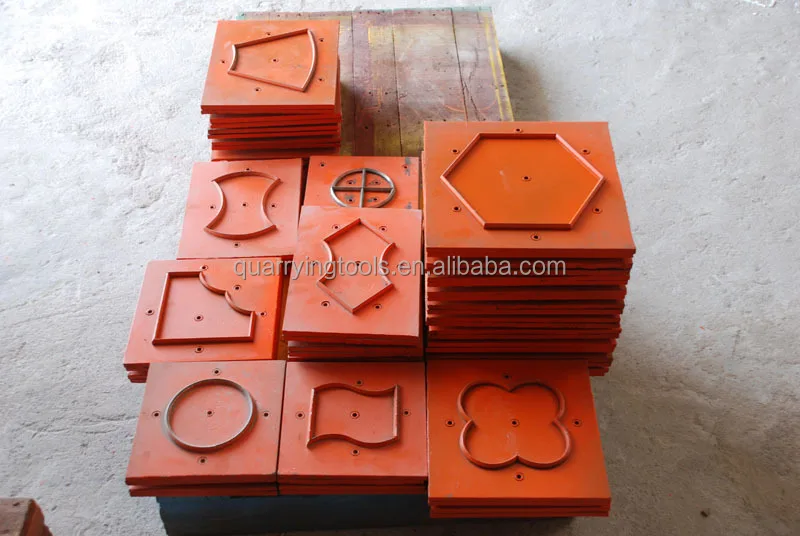

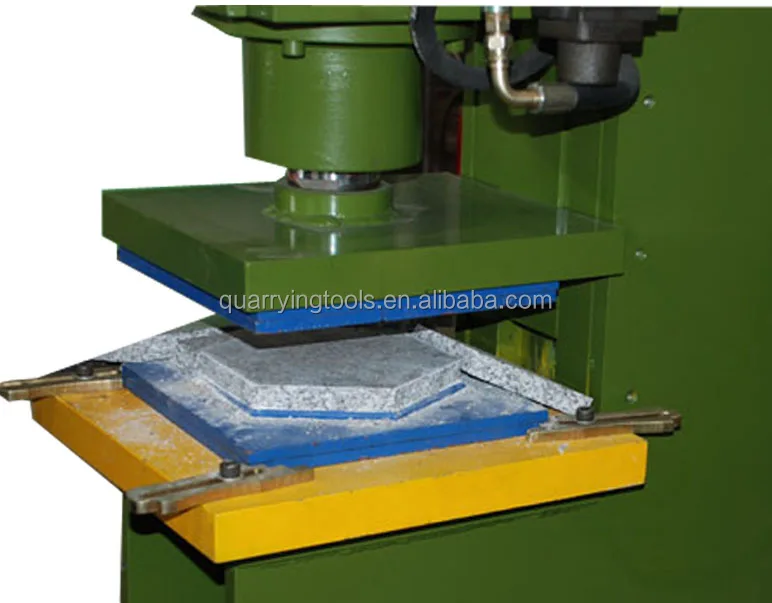

It could stamp more than 40 different shapes by different dies with hydraulic system inside.

The CP-90 stone staming machine have the output around 100m²~120m² per day,certainlly,if the operators have very good experience and skill,the yield will be much more,the machine have very compact structure,it is easily operated and maintained.

Technical data for slab stamping machine:

Model	CP90-20T-A	CP90-40T-A	CP90-20T-B	CP90-40T-B	CP90(40T automatic)
Hydraulic pressure	20Mpa	20Mpa	20Mpa	20Mpa	20Mpa
Splitting power	20T	40T	20T	40T	40T
Electric motor power	4kw	7.5kw	4kw	7.5kw	7.5kw
Max.slab stamping size	30cm×30cm×5cm	30cm×30cm×8cm	30cm×30cm×5cm	30cm×30cm×8cm	30cm×30cm×8cm
Max splitting length	30cm	35cm	30cm	35cm
Max splitting height	1-5cm	5-8cm	1-5cm	5-8cm	1-5cm
Machine size	7086113cm	80100150cm	80100150cm	80100150cm	80100150cm
Weight	420kg	550kg	500kg	580kg	650kg

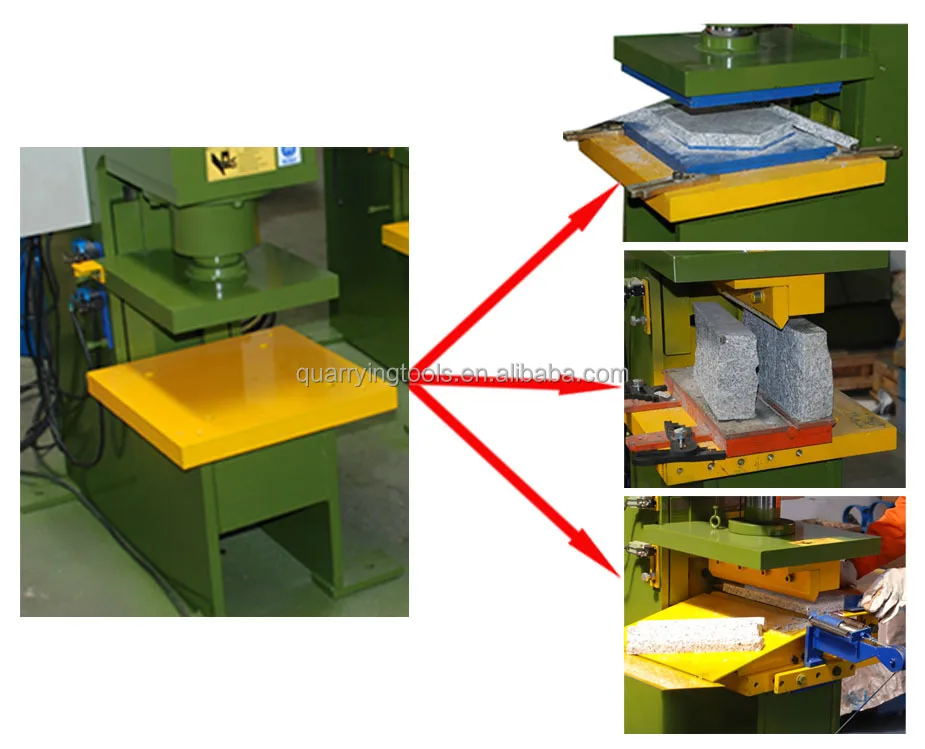

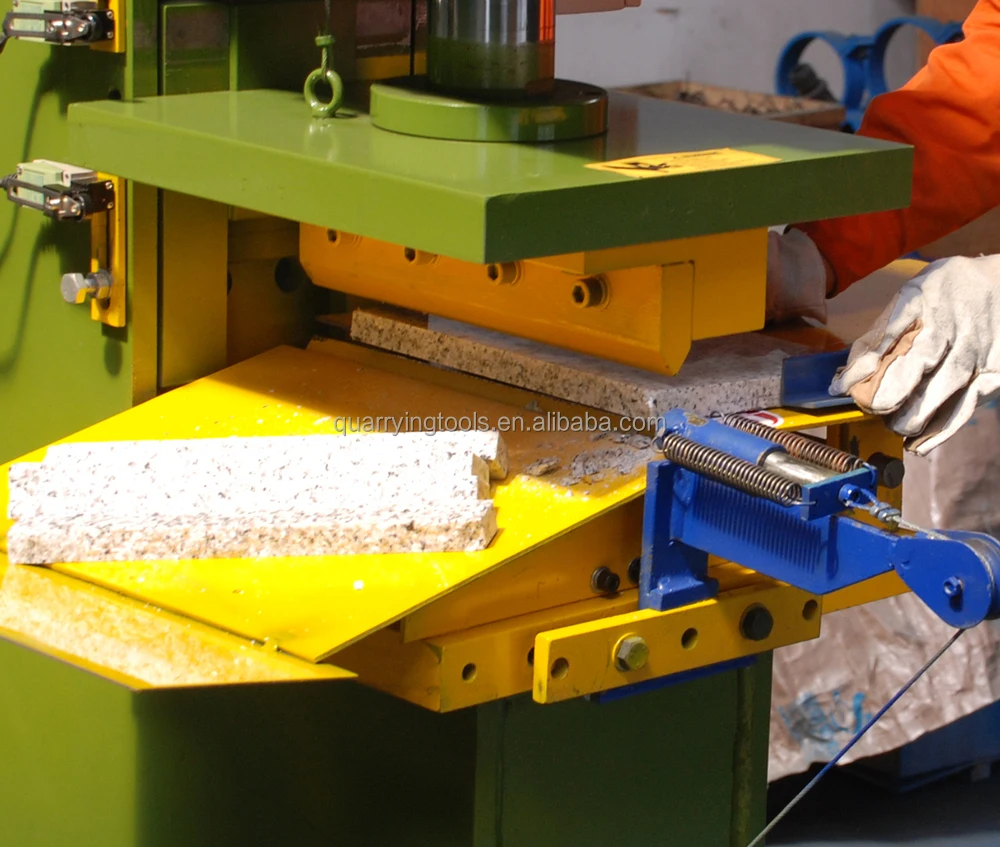

Fuctions	stamping,splitting	stamping,splitting	stamping,cutting, splitting	stamping,splitting, cutting	stamping
