HFJ-26F-2 Duvet making machine,embroidery quilting machine zhenhai
-
Supplier: Langxi Zhenhai Machinery Co., Ltd. -
Region: Anhui, China -
Contact: Ms Chris Wan -
Price: $6000.00 /set -
Min. Order: 1 set
| Number of Head: | Single Head; | Power(W): | 2.0kw; |
| Supply Ability: | 20 Set/Sets per Month for quilting machine; | Delivery Detail: | 20 workdays; |
| Max Sewing Thickness: | 1500gsm; | Moving Style: | Head Moved; |
| Brand Name: | ZHENHAI; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Model Number: | HFJ-26F-2; | Port: | Shanghai port,China; |
| Warranty: | 1 year; | Certification: | ISO9001; |
| Weight: | 1440kg; | Condition: | New; |
| packing dimension: | 3590*760*1770mm(L*W*H); | Place of Origin: | Anhui China; |
| Voltage: | 220v,50hz; | Max Sewing Speed: | 2200rpm; |
| Dimension(L*W*H): | 5000*3420*1780mm(L*W*H); | Packaging Detail: | standard export wooden case; |
| After-sales Service Provided: | Engineers available to service machinery overseas; |
HFJ-F series duvet making machine / embroidery quilting machine zhenhai/high quality quilting sewing machine:
Usages:
Suitable for quilting patterns on duvet, mattress pad, bedcover, garments, etc. Can also quilt on sponge and leather.
Specifications:
1) 19"LCD (SAMSUNG brand) with Chinese and English version. With more than 500kinds of patterns already in the computer; lockstitch, high precision
2) Power supply: 220V, 50Hz, 2kw
3) Automatically stops if thread breaks
4) Automatically stop against malfunction of computer, motor, and display
5) Pattern form: .DST, .DAT
6) USB interface
7) Single stitch length:2-7mm
8) Needle type: DP5 18~22#
9) Max. speed: 2200rpm
10) Max. thickness: 1500 gsm
| HFJ-26F-2 | HFJ-28F-2 | HFJ-30F-2 | HFJ-32F-2 | HFJ-35F-2 | |
| Max quilt size | 2400×2600mm | 2600×2800mm | 2800×3200mm | 3000×3200mm | 3200×3500mm |
| Max needle drop size | 2200×2400mm | 2400×2600mm | 2600×3000mm | 2800×3000mm | 3000×3300mm |
| Machine dimension | 5000×3420×1780mm | 5200×3700×1780mm | 5600×3900×1780mm | 5600×4100×1780mm | 5900×4220×1780mm |
| Thread type | LOCK STITCH | LOCK STITCH | LOCK STITCH | LOCK STITCH | LOCK STITCH |
| Max quilting speed | 2200rpm | 2200rpm | 2200rpm | 2200rpm | 2200rpm |
| Max quilting thickness | 1500gsm | 1500gsm | 1500gsm | 1500gsm | 1500gsm |
| Stitch length adjustment | 2-7mm | 2-7mm | 2-7mm | 2-7mm | 2-7mm |
| Needle model | DP5 18-22# | DP5 18-22# | DP5 18-22# | DP5 18-22# | DP5 18-22# |
| Pattern format | .DAT, .DST | .DAT, .DST | .DAT, .DST | .DAT, .DST | .DAT, .DST |
| USB | YES | YES | YES | YES | YES |
| Thread break detection | YES | YES | YES | YES | YES |
| Monitor | 19" LCD | 19" LCD | 19" LCD | 19" LCD | 19" LCD |
| Voltage | 220V/ 50HZ | 220V/ 50HZ | 220V/ 50HZ | 220V/ 50HZ | 220V/ 50HZ |
| Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Packing dimension | 3590×760×1770mm | 3890×760×1770mm | 4090×760×1770mm | 4290×760×1770mm | 4390×760×1770mm |
| Gross weight/Net weight | 1440kg/1300kg | 1580kg/1440kg | 1660kg/1520kg | 1750kg/1600kg | 1820kg/1700kg |

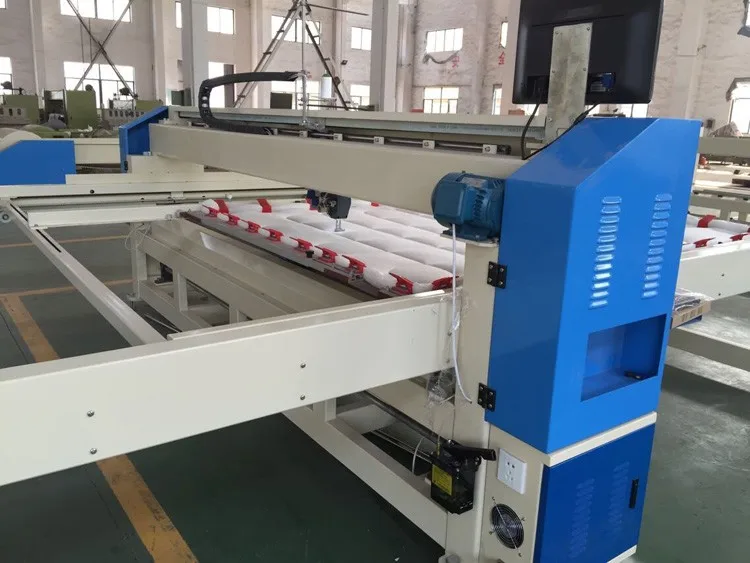

High quality machine head:

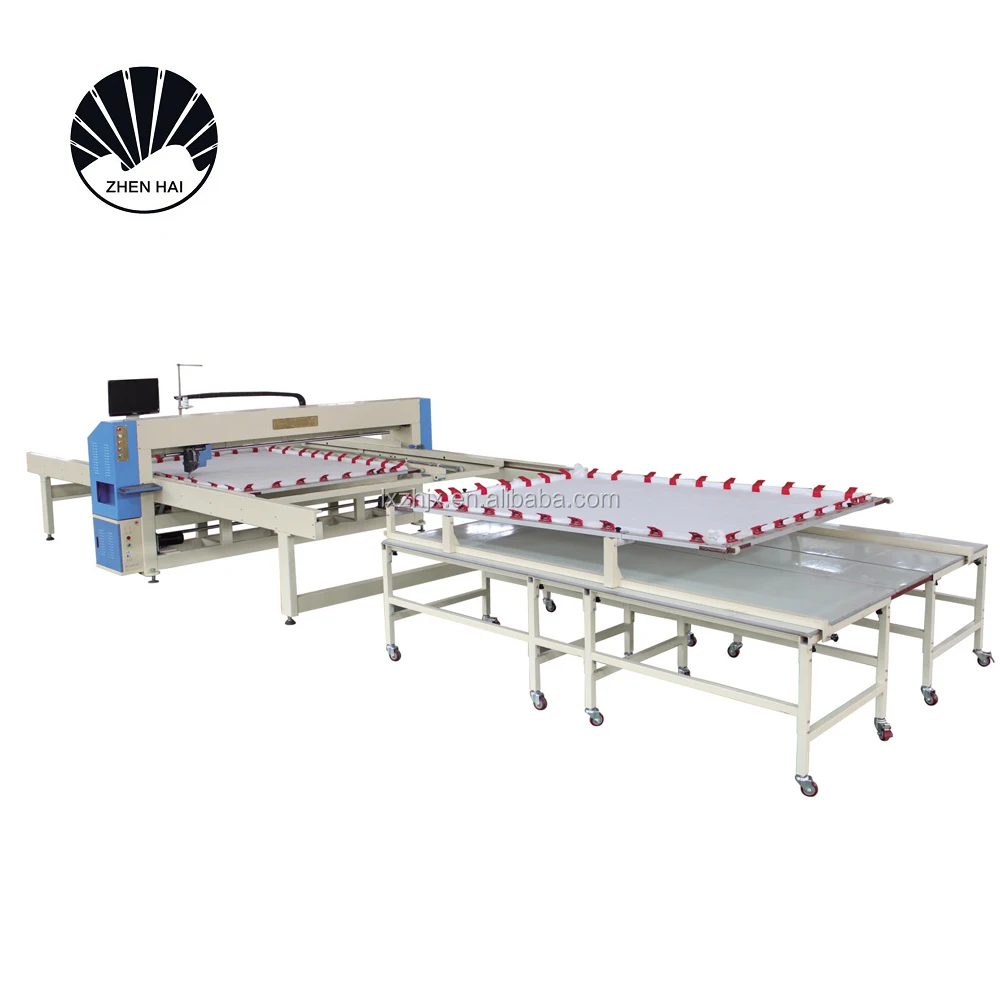

Complete set of quilting machine with worktable:
1, wooden case/polywood case
2, plastic foam packing
3, nude packing
1, Engineers available for overseas service according to request.
2, Any machine from our factory has one year guarantee from BL issued date.
3, 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4, manual book in English version with details.
Langxi Zhenhai Machinery Co., Ltd., with a total area of 20,000 square meters, is a professional textile machinery manufacturer. Our currently available quilting machines, pillow filling machines, compress packing machine, ball fiber machine, nonwoven machines include needle-punched production line, geotextile line, asphalt mixing plant, stiff wadding line, glue-free wadding line, spray-bonded wadding line, quilt wadding line. We also provide technique supports and after-sale services.
Being a company with 20 years of experience in design and manufacturing, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all machines delivered are qualified ones that have already been tested. Our over ten production lines can display the running condition of the machines and the most advanced technology.
We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customers’requirements.
Insisting on the principle of "Every customer is important to our brand and image", we are enjoying good reputations both at home and abroad. Our products have been sold to many countries and regions such as Japan, the Middle East, South and North America,and the Occident. Our brand has become a famous trademark in textile machinery like nonwoven industry field.
We warmly welcome you to contact us for more relative information about our quilting machines and nonwoven machines . We are sincerely looking forward to cooperating with all customers.
Workshop Live Shot:
Outdoor Activities:
Welcome to visit our factory!
1,How to contact you?
You could contact us via TM,wechat, QQ, email or call us directly.
2,Are you factory or trading company?
We are factory with foreign trading property. That is to say,we produce machines and we export to customers by ourself.
3,How many countries have your products been exported to?
Until now our machines have been already exported to more than 100 countries.Welcome to visit us.
4,Which payment term is accepted?
30% in advanced payment by T.T and 70% paid before shipment by T.T.
Welcome for your inspection for the machines before shipment.
5,Can you make speicial voltage of the machines?
yes,usually the machines are made with 380v,50hz,3 phases or 220v,50hz,single phases.If you need special, please inform us and we customize.
