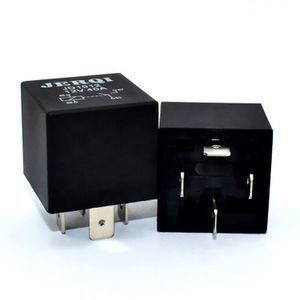

relay manufacturer 1.8W 1A 1B 1C RTT7101 automotive 12v 40a 4P micro auto relay

Product details
Electrical Life:100000 Times;Place of Origin:China;
Rated Current:40A;Package size per batch:15X10X10 cm;
Selling Units:Multiple of 10;Car Make:General motorcycle types;
Brand Name:HUNGSO;Coil Voltage:12/24V DC;
Contact Form:1H 1D 1Z;Coil power consumption:1.8W;
External Dimension:28*28*25mm;OE NO.:jd1914;
Warranty:2;Gross weight per batch:0.4 KG;
Model Number:RTT7101;Contact Material:Silver Alloy;
Color:Black;Voltage:12v, 24v;
Quality:100% Tested;Packaging Detail:25PCS one box 500PCS one carton 17.5kgs per carton;
Terminal Shape:Plug-in;Packing:500pcs per carton;
Product Description

Contact data

Contact arrangement 1A , 1C
 Contact resistance  100mΩ (1A 24VDC)
 Contact material  AgCdO, AgSnO
 Contact rating(Res.load)  40A 14VDC           NO 40A 14VDC/NC 30A 14VDC
 Max. switching power  560W
 Max. switching voltage  30VDC
 Max. switching current  40A
 Mechanical endurance  1*107OPS
 Electrical endurance  1*105OPS
 Insulation resistance  100mΩ (500VDC)
 Dielectric strength between coil&contacts  750VAC 1min
 Dielectric strength between open contacts  500VAC 1min
 Operate time(at nomi.volt)  10ms max.
 Release time(at nomi.volt)  10ms max.
 Shock resistance functional  98m/s2
 Shock resistance destructive

 980m/s2

 Vibration resistance 10Hz - 55Hz 1.5mm DA
 Humidity  98% RH, 40°c
 Ambient temperature -55°c - 85°c
 Termination  QC, PCB Terminal
 Unit weight  Water-proof cover: approx 55g,  Other: approx 35g
 Construction  Plastic sealed, Dust protected



Coil data

+
  Rate voltage VDC Pick-up Voltage VDC Drop-out Voltage VDC Coil Resistance    *(1±10%)Ω Parallel resistance *(1±5%)Ω Equivalent resistance Ω Power consumption W
Water-proof cover  12  7.2  1.2  90  680  79.5  1.6
Water-proof cover  12  7.2  1.2  90  ---  ---  1.8
Water-proof cover  24  14.4  2.4  360  2700  317.6  1.6
Water-proof cover  24  14.4  2.4  360  ---  ---  1.8
Other  12  7.8  1.2  85  680  ---  1.7
Other  12  7.8  1.2  85  ---  75.6  1.9
Other  24  15.6  2.4  350  2700  ---  1.6
Other  24  15.6

 2.4

 350  ---  309.8  1.9
