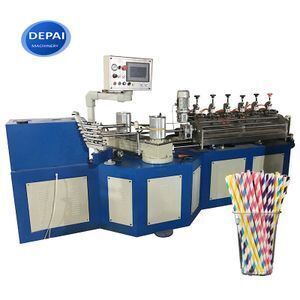

DP-530 Paper Drinking Straw Forming Making Machine

Product details
Warranty of core components:1 Year;Gluing way:Single / double sides;
Video outgoing-inspection:Provided;Voltage:380V;
Cutting way:Round knife;Showroom Location:None;
Power:4 KW;Packaging Detail:High quality sea-worthy wooden cases (30mm thickness) & moisture-proof film, to keep the machine safe to your place DP-530 High Speed Automatic 3 Layers Paper Drinking Straw Forming Making Machine;
Payment Terms:L/C,D/P,T/T;Local Service Location:None;
Core Mould Fixed Way:Flank chuck;Supply Ability:30 Set/Sets per Month;
Application:Making Paper Straw;Weight:2000kg;
Name:Automatic 3 Layers Paper Drinking Straw Forming Making Machine;Winding head:2;
Marketing Type:Hot Product 2019;Core Components:Bearing,Motor;
Machinery Test Report:Provided;Applicable Industries:Food Shop;
Brand Name:DEPAI;Port:NINGBO or any other port in China;
Dimension(L*W*H):4000x1600x1200 mm;Certification:CE;
Number of roller:1-5 lays;Operator:1-2 person;
Place of Origin:Zhejiang China;After Warranty Service:No service;
Tube diameter:5-30 mm;Warranty:1 Year;
Condition:New;Tube Wall Thickness:0.5-2 mm;

You may need these paper straw production line.

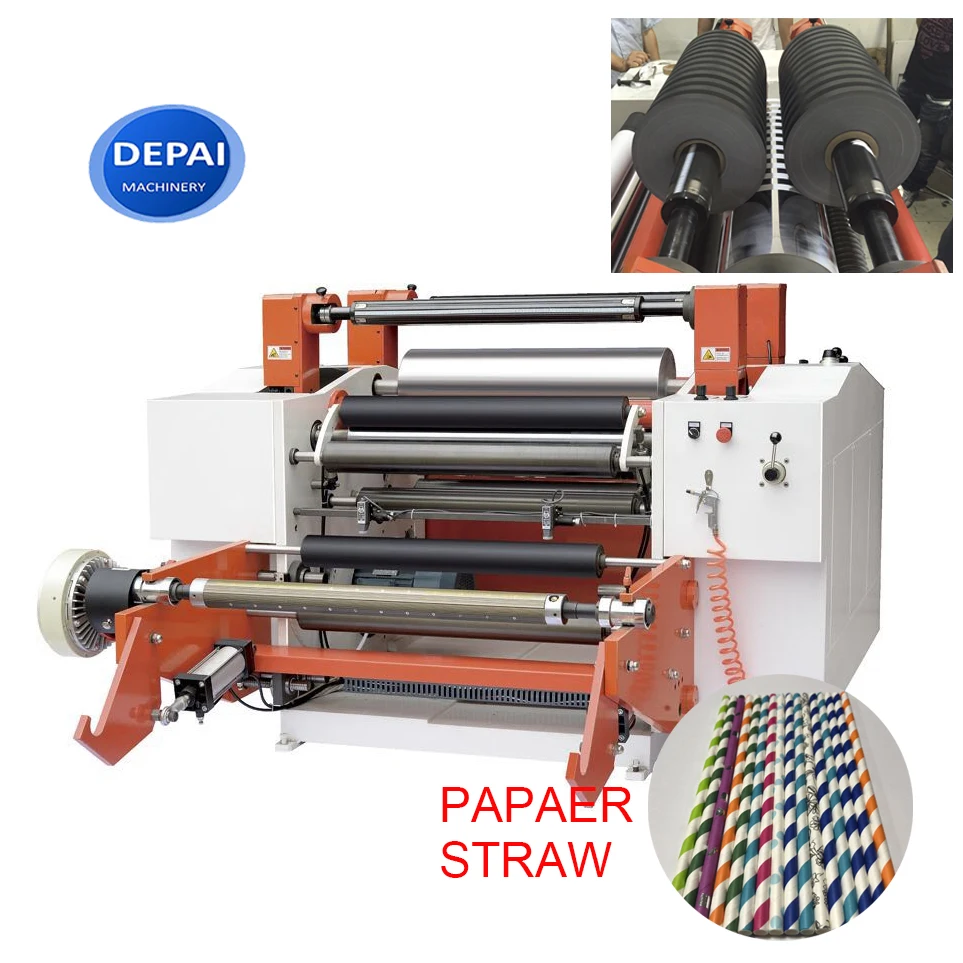

Slitting machine is to slit paper into 13.5mm or other narrow paper roll.

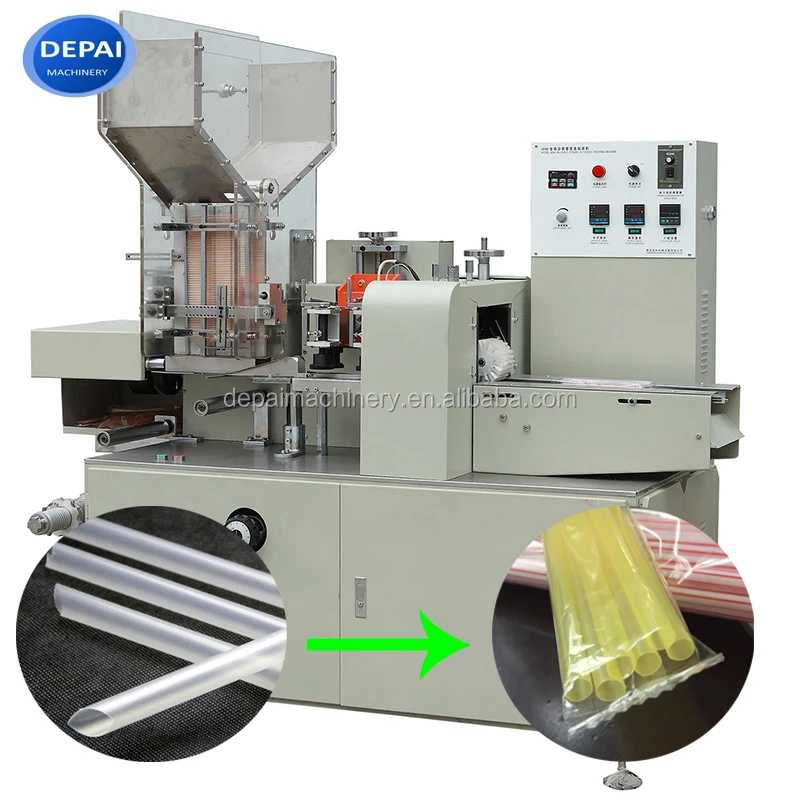

Packing machine is to pack straws with paper or film



If you have interests, pls CLICK these picture to see each machine's details









 DP-530 High Speed Automatic 3 Layers Paper Drinking Straw Forming Making Machine



Product Description



DP-510 & DP-530 PAPER DRINKING STRAW MAKING MACHINE

Paper straw making machine is suitable for making variety package, food, industrial etc.  Small paper tube. Such as paper drinking straw, Ballpoint pen tube, Yarn tube etc.

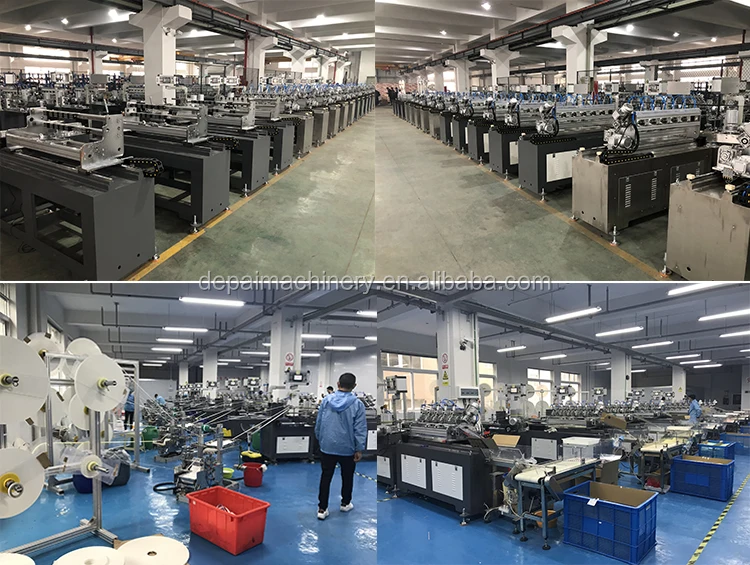

We Not Only Manufacture Straw Machines,

But Also Use Our Own Machines To Make Straws.



You can learn machines usage and see 12-hours machine high-speed operation in our paper straw workshop



Feature





1.Machine adopts PLC control, all data can be display in the touch screen.
2. Numerical control servo motor cutter device, high precision cutting;
3. Automatically cut, automatically fall pipe, automatically change speed and revert;
4. Round knife cutting, incision more smooth, performance more stable;
5. With online multi-cut blades, no need secondary cutting, save labor and time.
6. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;
7. Machine adopts Flange for fix the mandrel.
8. Machine supply of lubricant automatically.





Main Specification





Number of roller 3-5 layer
Tube diameter 5-12 mm
Tube wall-thickness 0.3-1 mm
Cutting Length 100-800mm, Encode Changeable
Winding head 2
Power 7.7KW
(Main motor 3KW; Servo motor 1KW; Frequency Inverter 3.7KW)
Cutter 5 sets
Operator 1-2 person
Winding speed 0-50 M/Min
Speed control Frequency Inverted Control
Working Air Pressure 0.6Mpa
Power Supply 380V/3Phase/50Hz
Measurement 5600*1600*1750mm
Working Space 11000mm * 6000mm*2000mm
Weight 2000kgs







Detailed Images



Straw Making Machine include 5 units:

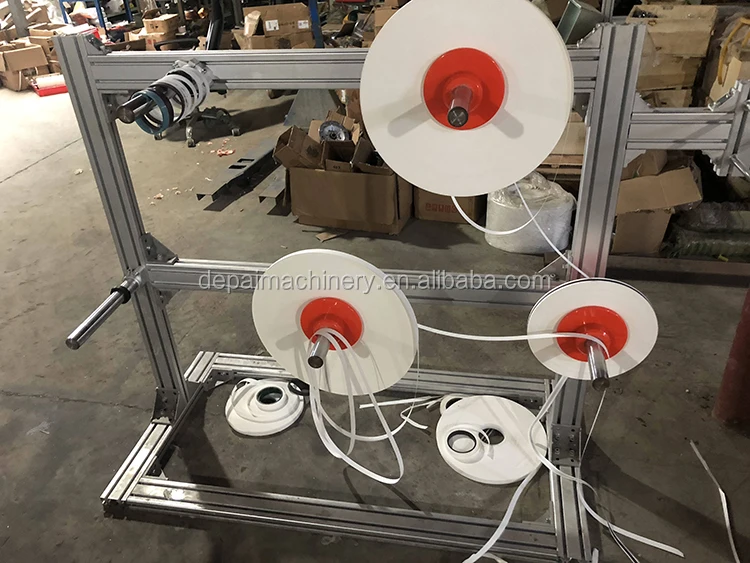

Unwind Unit

We use Aluminum Frame to unwind kraft paper rolls keep paper as food-contact grade.





Glue Unit

1. Glue Middle Layer Kraft Paper(120gsm)

2. Glue Outer Layer Kraft Paper(60gsm)

3. Add Oil On Inner Layer Kraft Paper to Reduce The Friction Between Paper Straw And Mandrel Mold.

4. Motor To Keep Rotation When Machine Stop



Twist Forming Unit

1. The gap and angle between winding head can be adjust by hand wheel

2. 2 pcs Belt are driven by 2-Cylinder Rotation. Each Cylinder Rotation is controlled by triple-phase asynchronous motor and reducer.

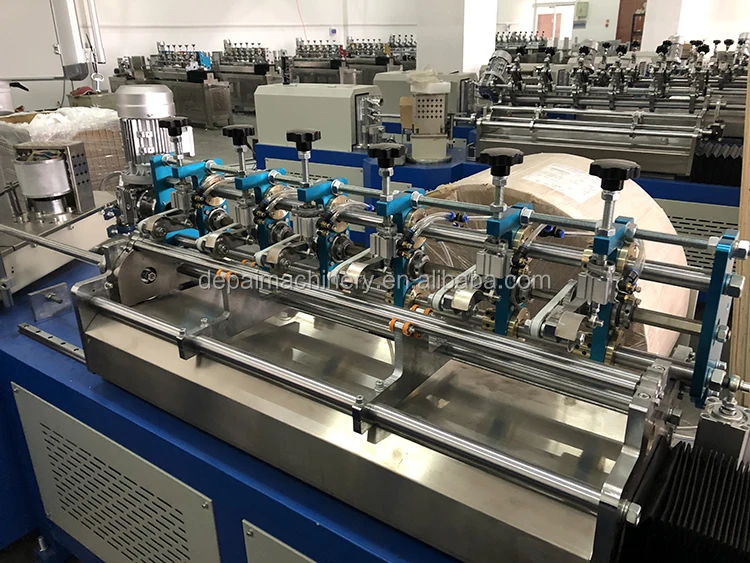

Cutting Unit

1. Knife is all rotary knife. You can choose 5 knife set machine model or 6 knife set machine model.

2. Knife rotation is controlled by triple-phase asynchronous motor and reducer

3. Knife cut down is controlled by air cylinder. All air cylinder component is from AirTAC, TAIWAN

4. We comes with 2 set Core Mold. It directly decide paper straw’s INNER DIAMETER

5. Cutting Knife Belt is Gates Belt imported from, life is 10-time longer than normal belt.

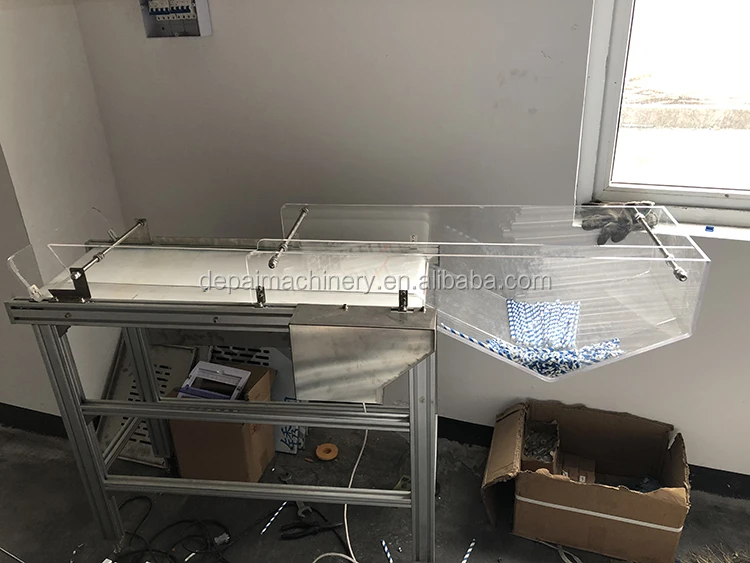

Straw Convoyer Collector, Optional

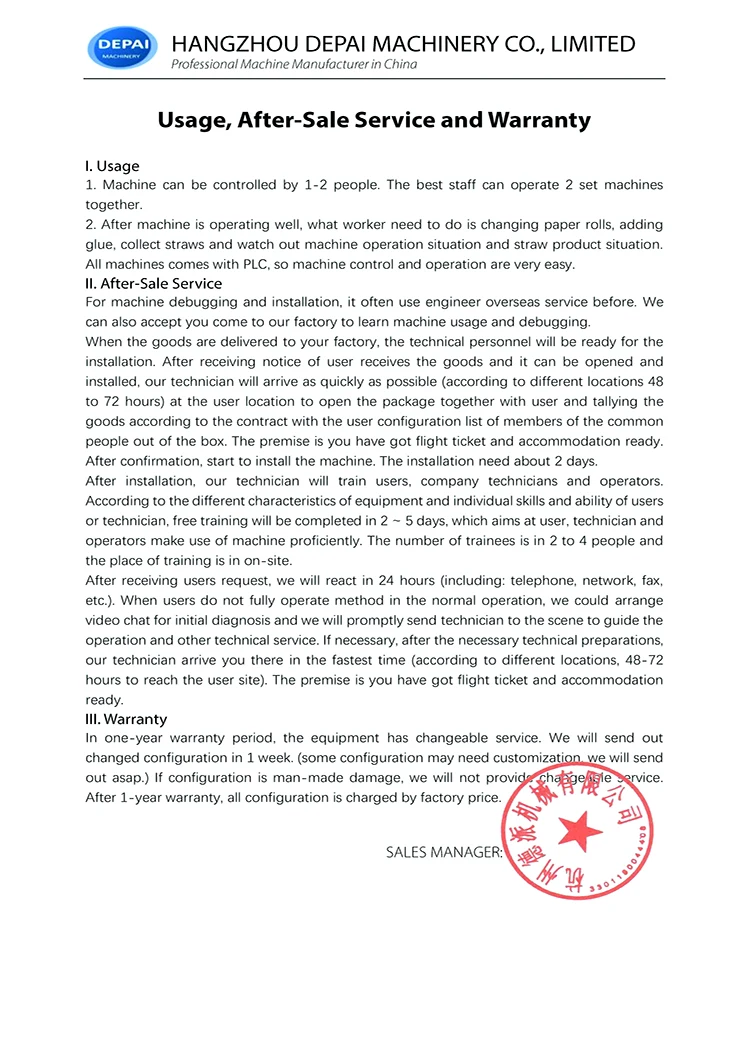

After-Sale Service





Company Information





HANGZHOU DEPAI MACHINERY Co.,Ltd is a professional manufacturer of drinking straw machine for more than 15 years. The company is located in HANGZHOU, capital of Zhejiang province, with excellent geographical location and convenient transportation. Furthermore, the company owns a professional after-sales service team who can provide customers with comprehensive solutions and technical support.
