New Arrival High Efficiency Automatic Cutting Machine YS-100

Product details
Outer size:L360*W300*H350 mm;Place of Origin:Guangdong China;
Packaging Detail:Standard Export Package;Single package size:54X44X50 cm;
Type:Pipe Cutting Machine;Key Selling Points:Competitive Price;
Core Components:Engine;Year:May. 2019;
Showroom Location:None;Dimension(L*W*H):54*44*50cm;
Automation:Manual;Cut Speed:It depen on the cut length,from 50 PCS to 120PCS per minute;
Power Supply:250W;Electrical Source:50/60HZ;
Video outgoing-inspection:Not Available;Local Service Location:None;
Rated Power:250W;Marketing Type:New Product 2020;
Condition:New;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;
Product name:New Arrival High Efficiency Automatic Cutting Machine YS-100;Selling Units:Single item;
Warranty:one year;Brand Name:Willdone;
Weight (KG):30;Warranty of core components:1 Year;
Single gross weight:30.0 KG;After Warranty Service:Online support;
Machinery Test Report:Provided;Voltage:110/220V;
Cut Length:from 0.1 MM to 9999.9MM;Material / Metal Processed:PVC,Plastic;
Cut Width:from 0.1 MM to 100MM;



New Arrival High Efficiency Automatic Cutting Machine YS-100





YS-100

Parameter

Electrical Source

220/110V  50/60HZ

Power

250W

Cut Length

from 0.1 MM to 9999.9MM

Cut Width

from 0.1 MM to 100MM

Cut Speed

It depen on the cut length,from 50 PCS to 120PCS per minute

Net Weight

30KG

Outer size

L360*W300*H350 mm

Packaging detail

Carton or wooden case within foam plastics





Guarrantee:

Three years for the pc board

One year for the machine

Knife can be shaped for free in a year



(The other pattern:YS-100,YS-100W,YS-120,YS-120W,YS-160,YS-160W, YS-200W,YS-250W,YS-300W,the W means high-power)



Characteristic:

1.*English manual and display which is easy to understand

2.*Best service:mother board and system are developped by our own engineer.Best technology support and after sale service will be provided

3.*High speed: It can cut 100~120 cut per minute. (50mm long)
4.*Accuracy: Small cutting length such as 30mm,the error is below 1mm
5.*Cutting type: Cold cutter which is durable or hot knife cutting .
6.*Automatic operation:Easy operating and safety machine. It works automatically only by setting length and quantity
7.*Automatic stop: It stops automatically if materials run out during operation
.8.*There is a pole on the machine which can hold the material roller below 10kg.

9.*Materials Can Cut: pipe,tube,belt, webbing, fabric, cloth, foam,ribbon,plastic,film,label,wire,shrinkable tube,cable ties,silicone tube,pvc tube,wiring,plastic hose pipe,rubberhose,teflon tube,chequered tube,velcro,insulated sleeve,insulation paper,copper foil and so on.



How to choose models:

YS-100 is suitable to cut material width below 100mm

YS-120 is suitable to cut material width below 120mm

YS-160 is suitable to cut material width below 160mm

YS-200W is suitable to cut material width below 200mm

YS-250W is suitable to cut material width below 250mm

YS-300W is suitable to cut material width below 300mm



Some materials with big thickness,will be suitable for our big power machine model:YS-120W,YS-120WH,YS-160W,YS-200W,YS-250W,YS-300W





Application

The cuting machine can cut band,belt,tube, pipe,webbing,wire,tape,cable, sheet,film.



 Tube:  PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Tefln tube, corrugated tube, etc.

Cable: Flat cable,ribbon cable wire,etc

Tape: nickel strap, velcro, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

 Sheet: battory separator, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet,etc

 Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc



Charlotte

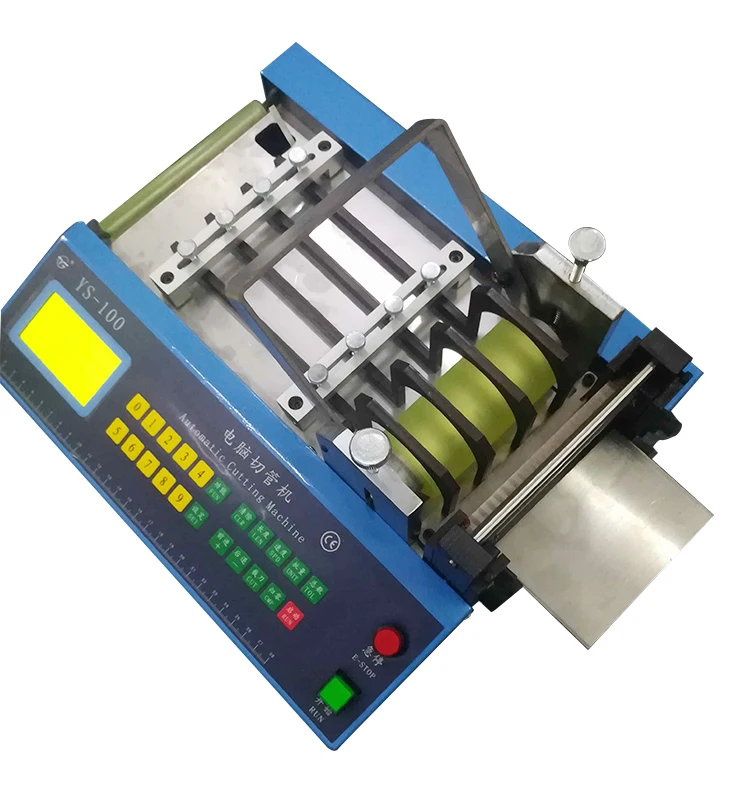

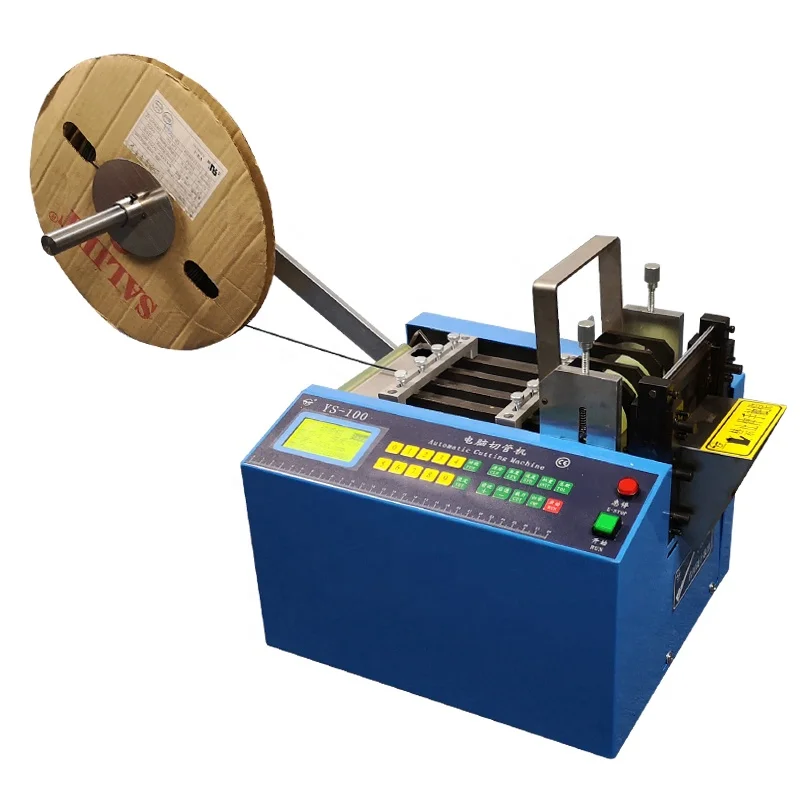

Product picture





Looking For More







Our Services

1.Good quality and competitive price.

2,Any Inquires will be replied within 24 hours.

3,All of our products 100% inspection before shipment, we guarantee to use our products safety.

4,OEM/ODM orders are warmly preferred.

5,We own the best after-sale service.Any problems occur,our team will do our best to solve for customers.

6,Faster delivery, sample order in stock, and 3-7 days after bulk production.
