Standard or Nonstandard: | Standard; | Showroom Location: | Canada,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Thailand,South Korea,Chile,Colombia,South Africa; |
Warranty: | 1 Year; | Port: | Shanghai or Ningbo; |
Name: | DNC Pneumatic Cylinder; | After Warranty Service: | Video technical support; |
Cushion: | Air Buffer; | Packaging Detail: | DNC Pneumatic Cylinder ISO6431 Standard Double Acting Air Cylinder. Each cylinder packed in a single waterproof bubble bag and in a box,finally in a solid carton.; |
Machinery Test Report: | Provided; | Supply Ability: | 10000 Piece/Pieces per Month standard pneumatic cylinder; |
Applicable Industries: | Machinery Repair Shops,Food & Beverage Factory; | Place of Origin: | Zhejiang China; |
Structure: | General Cylinder; | Standard: | ISO6431(ISO15552); |
Marketing Type: | Ordinary Product; | Video outgoing-inspection: | Provided; |
Action: | Double Acting; | Core Components: | Bearing; |
Port Size: | G1/8'' - 1/2''; | Power: | Pneumatic; |
Payment Terms: | L/C,T/T,Western Union,Paypal; | Condition: | New; |
Body Material: | Aluminum; | Warranty of core components: | 1 Year; |
Action Type: | Double Action; | Working Temperature: | 5~60℃; |
Brand Name: | MPM; | Local Service Location: | Canada,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Saudi Arabia,Indonesia,Pakistan,Mexico,Thailand,Malaysia,Australia,South Korea,Chile,Sri Lanka,Ukraine,Nigeria; |
Working Medium: | Filtered compressed air; |

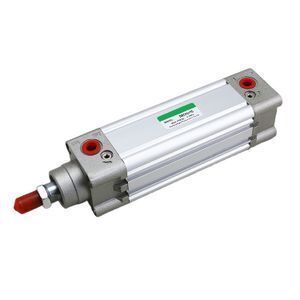

DNC Pneumatic Cylinder ISO6431 Standard Double Acting Air Cylinder
Features:
1. Good replacement for Standard cylinder.
2. Standard design,simple structure,low starting pressure,smooth motion.
3. Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly,safely and with low noise.
4. Using self-lubricating bearing, the piston rod is lubrication free.
5. Precision grinding piston rod to guarantee long working lifetime.
6. With magnet and sufficient fixing style are available.
Specification:
Bore Size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |||||||
Action | Double acting type | ||||||||||||
Fluid | Air(filtered through 40u filter element) | ||||||||||||
Operating Pressure | 0.1~1Mpa(14~145Psi) | ||||||||||||
Proof Pressure | 1.5Mpa(215Psi) | ||||||||||||
Fluid temperature | 5-60℃ | ||||||||||||
Cushion | Adjustable air buffer | ||||||||||||
Cushion stroke(mm) | 27 | 30 | 36 | ||||||||||
Port Size | G1/8'' | G1/4'' | G3/8'' | G1/2'' | |||||||||
Material | Aluminum alloy | ||||||||||||
Mounting Type | DNC | Basic type: FA/FB/CA/CB/CR/LB/TC/FTC/TCM1/TCM2 | |||||||||||
DNCD | Basic type: FA/LB/TC/ETC/TCM1TCM2 | ||||||||||||
DNCJ |
