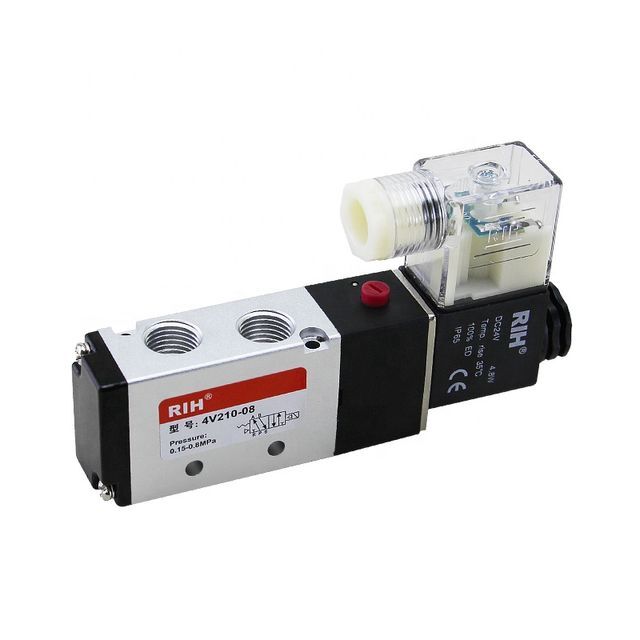

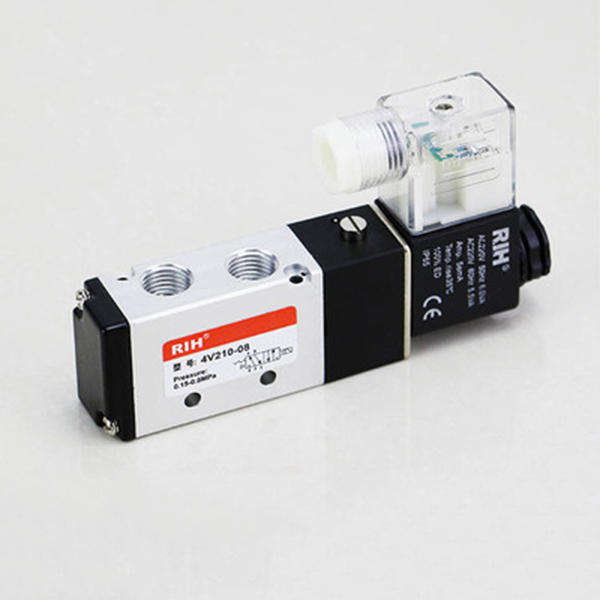

4V210-08 5/2 Way Electric Coil Pneumatic Air Control Solenoid Valve
-
Supplier: Yueqing Rightheight Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Sen Ye -
Price: $4.05 / 2 - 9 pieces
$3.60 / >=10 pieces -
Min. Order: 2 pieces
Product details
| Port size: | Inlet = Outlet = BSP 1/4" | Warranty: | 1 year |
| Packaging Preview: | Voltage: | AC220V, AC110V, DC12V | |
| media: | Air | connect: | internal thread |
| structure: | control | Working pressure: | 0.15-0.8MPa |
| action: | internal pilot | Proof pressure: | 1 MPa |
| Medium temperature: | normal temperature | type: | 2-position 5-way (pass) solenoid valve, solenoid valve, pneumatic solenoid valve |
| Port size: | 1/4" | Packaging Details: | Each is packed in a plastic bag and a box, and then packed in a large carton; 4V210-08 5/2-way electric coil pneumatic air control solenoid valve |
| Gross weight per piece: | 0.250 kg | weight: | 0.2kg |
| brand: | RIH | strength: | electromagnet |
| application: | general | Standard or non-standard: | standard |
| Sales unit: | single product | place of origin; place of origin: | Zhejiang, China |
| model: | 4V210-08 | Custom Support: | OEM, ODM, OBM |
| exhaust vent: | BSP 1/8'' | Single package size: | 20X10X10 cm |

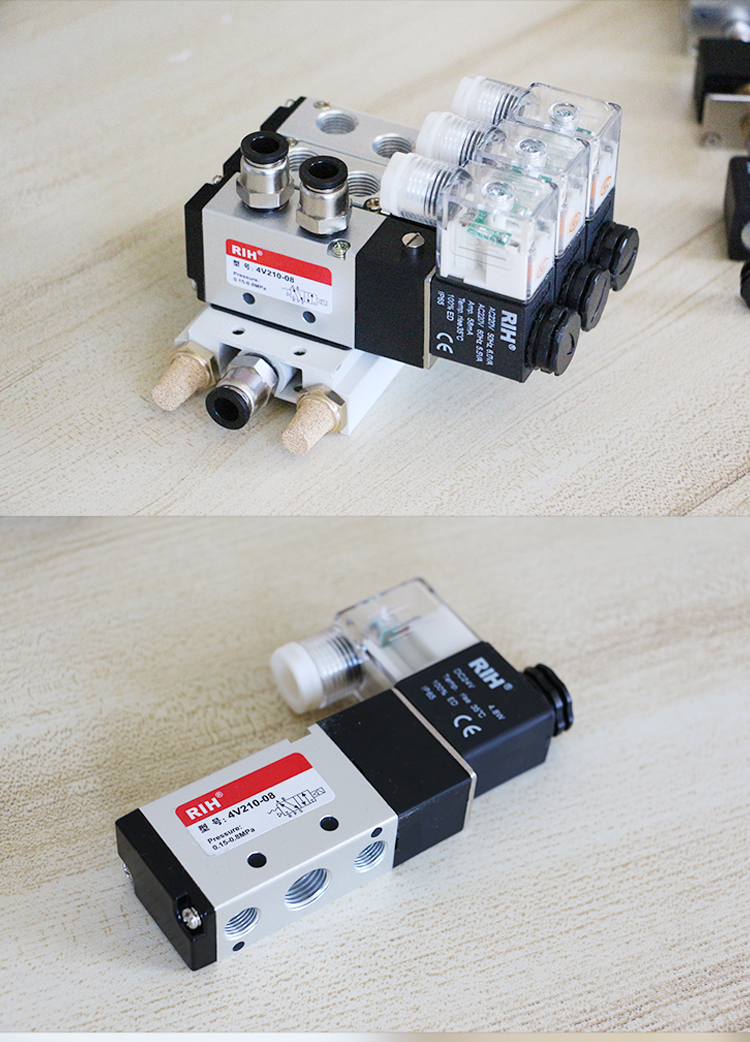

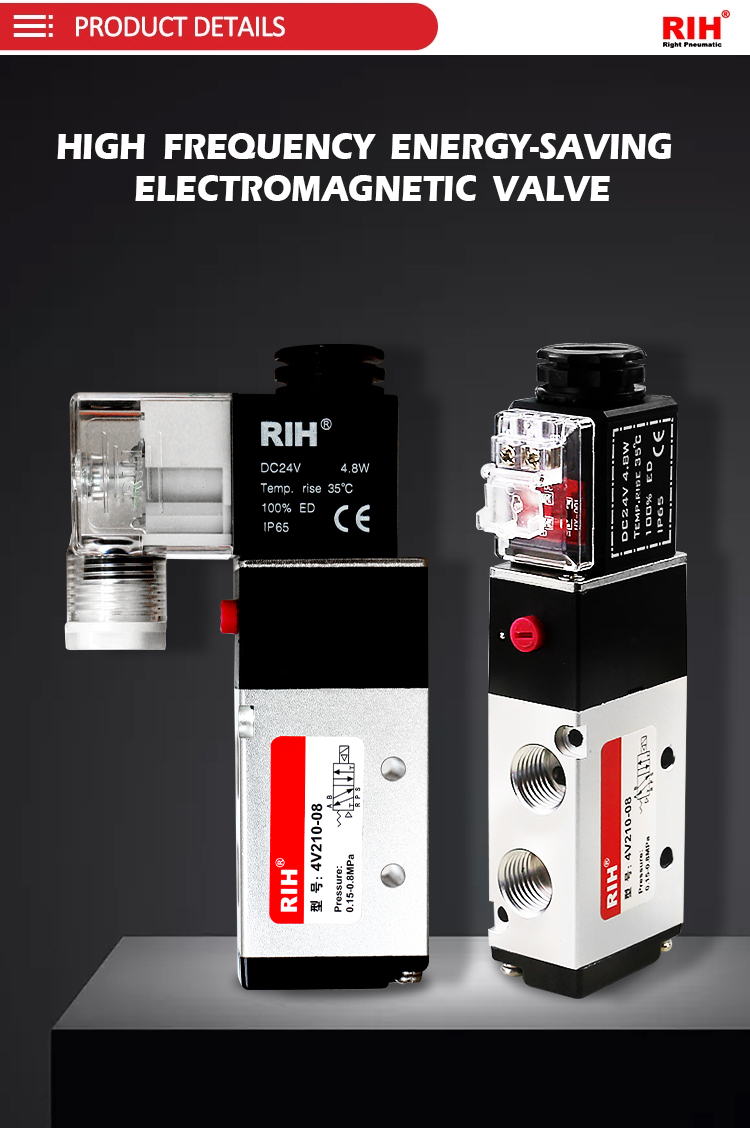

4V210-08 5/2-way electric coil pneumatic air control solenoid valve
Virtual Reality
RIH product details display

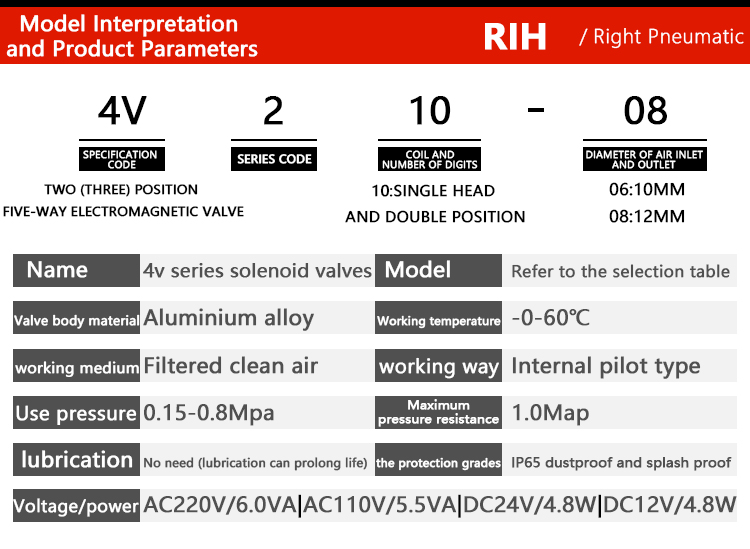

Specification
| ||||||||||||||

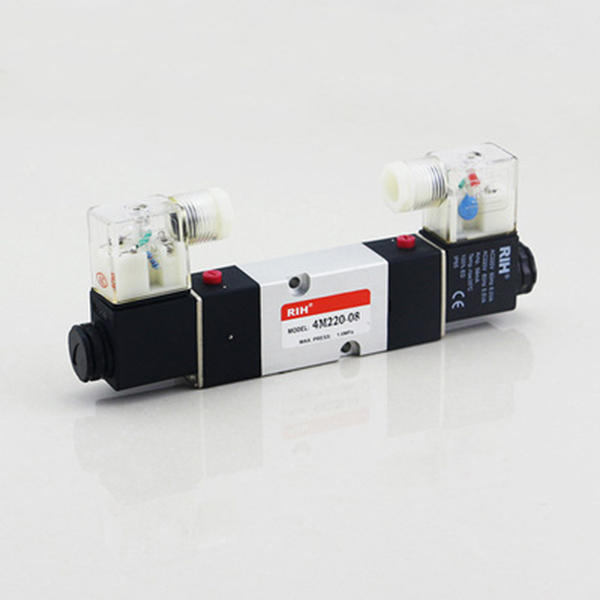

Model | 4M210-08 | 4M220-08 | 4M310-08 | 4M320-08 | 4M310-10 | 4M320-10 | ||||||||
body fluid | Air | |||||||||||||
action | Internal pilot action | |||||||||||||
valve type | 2/5 way | |||||||||||||
Effective area (mm²) | 16mm²(CV=0.89) | 25mm²(CV=1.4) | 30mm²(CV=1.68) | |||||||||||
Port size | Input=PT1/4 Output=PT1/8 | input=output=PT1/4 | Input=PT3/8 Output=PT1/4 | |||||||||||
lubricating | unnecessary | |||||||||||||
operational pressure | 1.5~8.0kgf/cm² | |||||||||||||
proof pressure | 1.2Mpa | |||||||||||||
Ambient and fluid temperature | 5~60°C | |||||||||||||
voltage range | -15%~±10% | |||||||||||||
energy consumption | energy consumption | |||||||||||||
Insulation class | Class B | |||||||||||||
Protect | IP65 (DIN 40050) | |||||||||||||
connect | Lead type or terminal type | |||||||||||||
maximum frequency | 4 cycles/sec | |||||||||||||
Minimum response time | 0.05 seconds | |||||||||||||

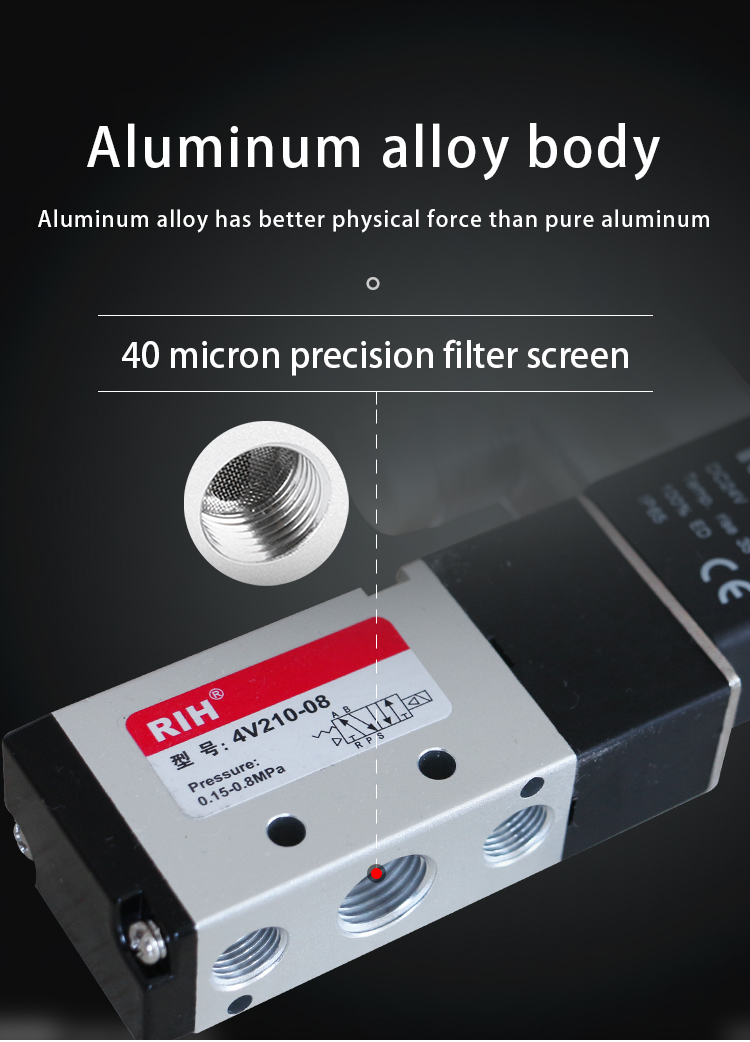

Material of main parts | Body | Aluminum alloy | ||||||||||||
seal | Nitrile rubber | |||||||||||||
RIH main product category display
2W025-06/08
2W040-10

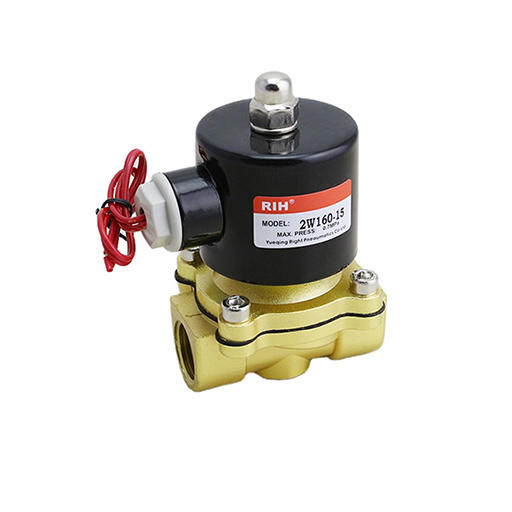

2W160-15/2W200-20
2W250-25
2W350-35/2W400-40
2W500-50

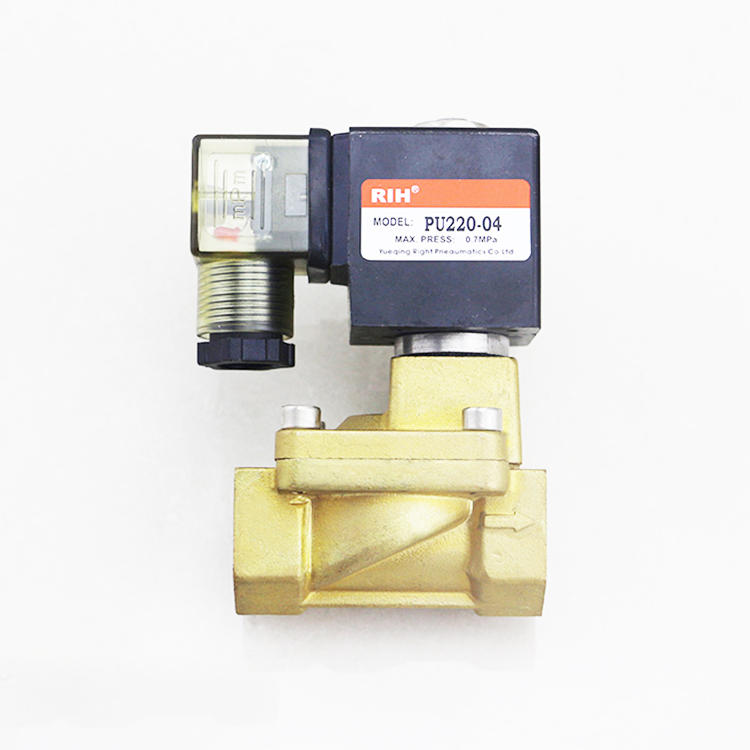

PU220 water solenoid valve

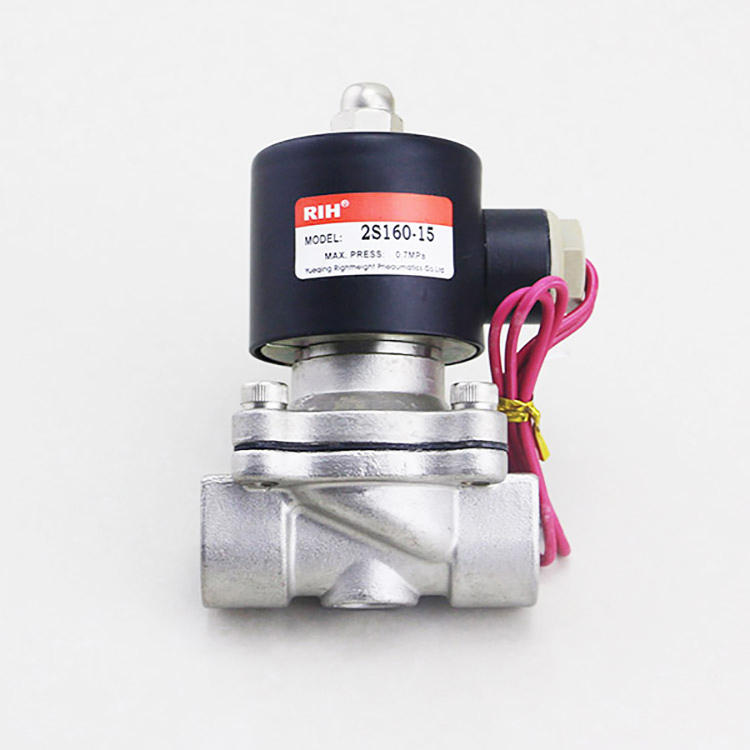

2S water solenoid valve

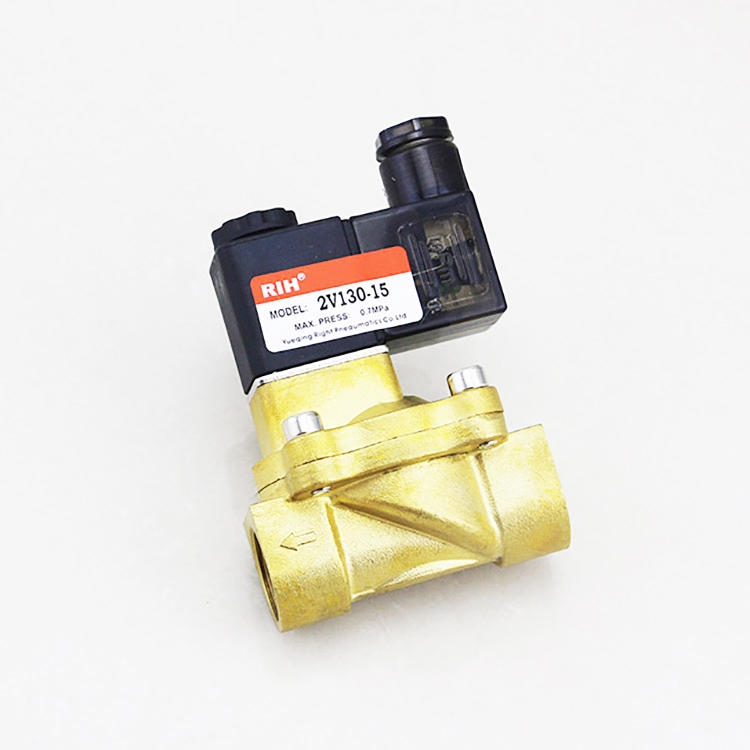

2V130 Two-way solenoid valve

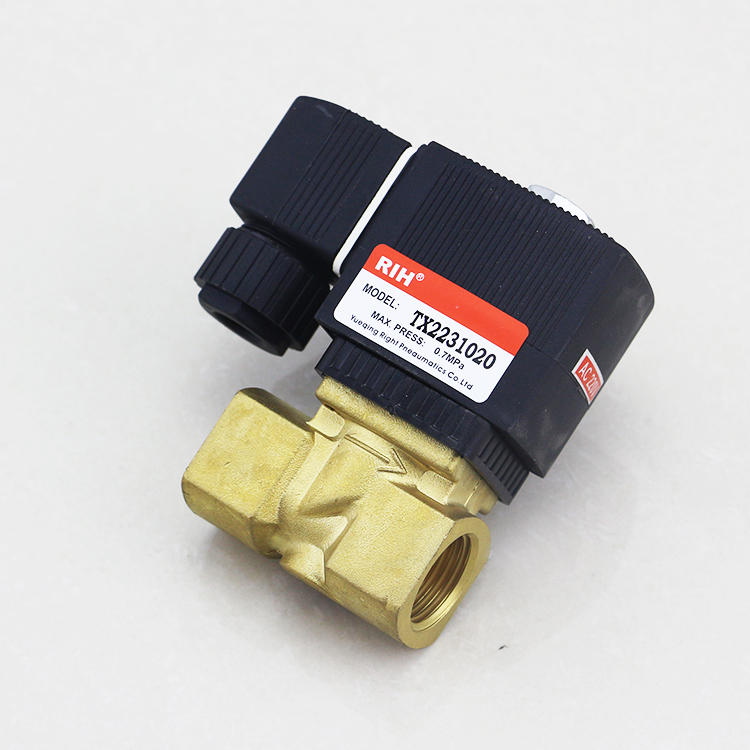

TX Diaphragm Solenoid Valve

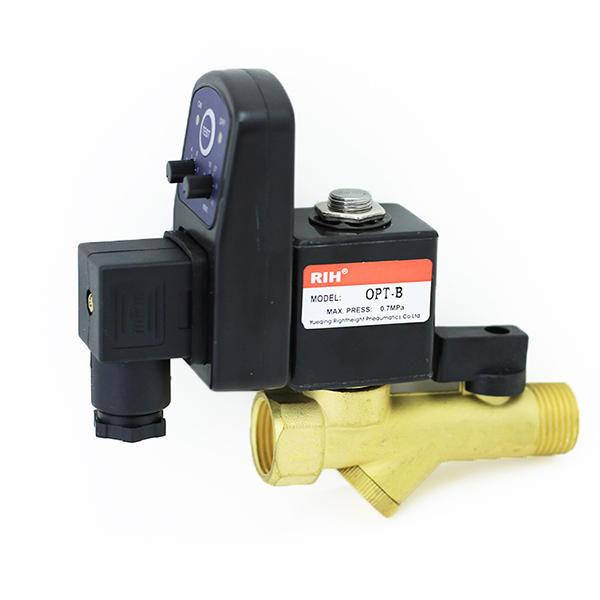

OPT automatic drain valve

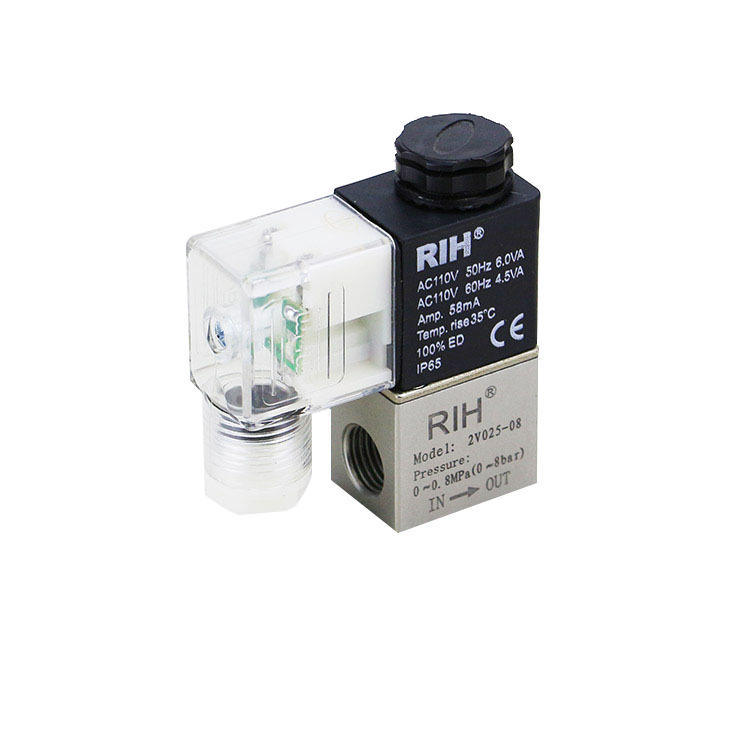

2V025 Air solenoid valve

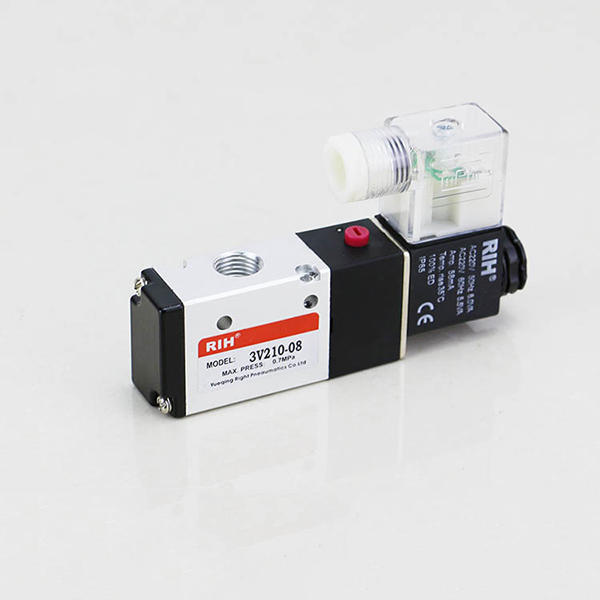

3V Air Solenoid Valve
