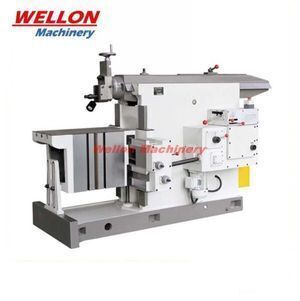

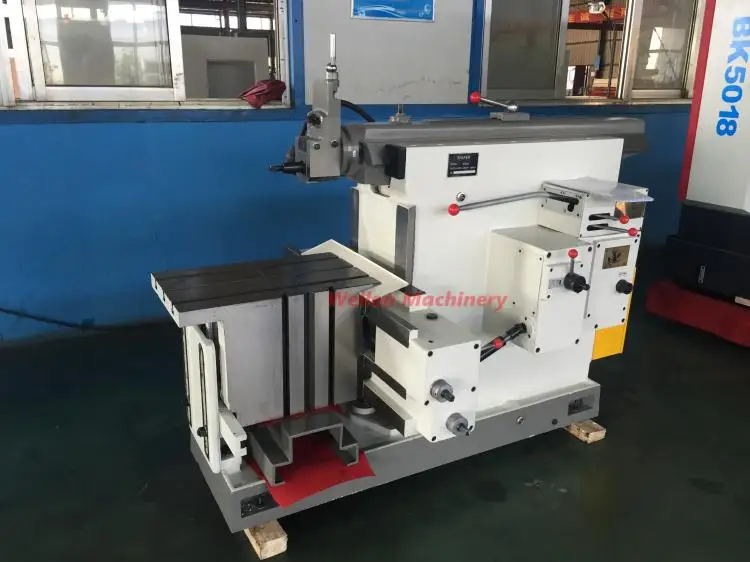

China High Quality Shaping Machine (BC6050 BC6066 BC6085 Shaper Machine)

Click here to contact

Product details

Delivery Detail:	0 days after payment;	Single gross weight:	1,760 KG;
Package Type:	In Plywood Cases;	Selling Units:	Single item;
Weight:	1650/1760;	Dimension(LWH):	216010701194mm;
Condition:	New;	Warranty:	3 years;
Voltage:	As your request;	Power(W):	3/3/5.5kw;
After-sales Service Provided:	Online support,Free spare parts;	After-sales Service Provided:	Overseas third-party support available;
Certification:	CE ISO;	Place of Origin:	Shandong China (Mainland);
Key Selling Points:	Competitive Price;	Maximum cutting length(mm):	500/660/850;
Dimensions of table top(L*W):	440*360;	Brand Name:	WELLON;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;	Single package size:	216X107X119 cm;

Product Description

Main Features:

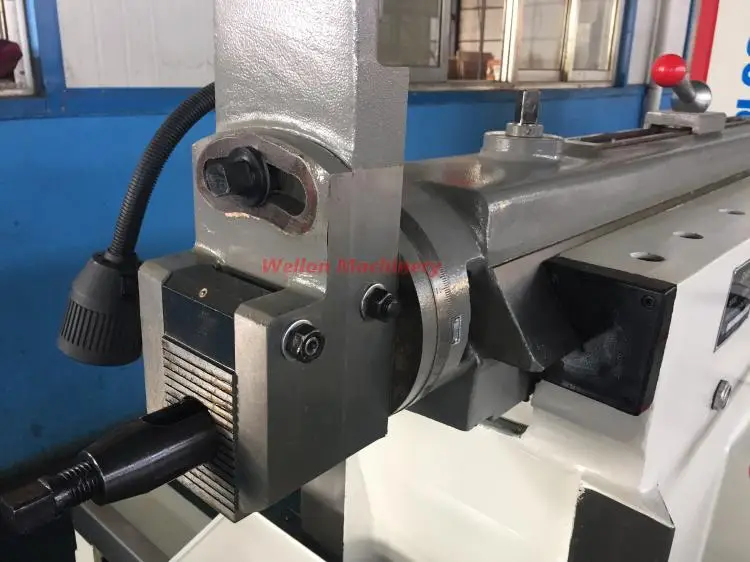

1.The tool post can rotate with more angle in the vertical plane,

2.Manual feeding is available. For tool post.

3.For slotting shaping more economic machining equipment.

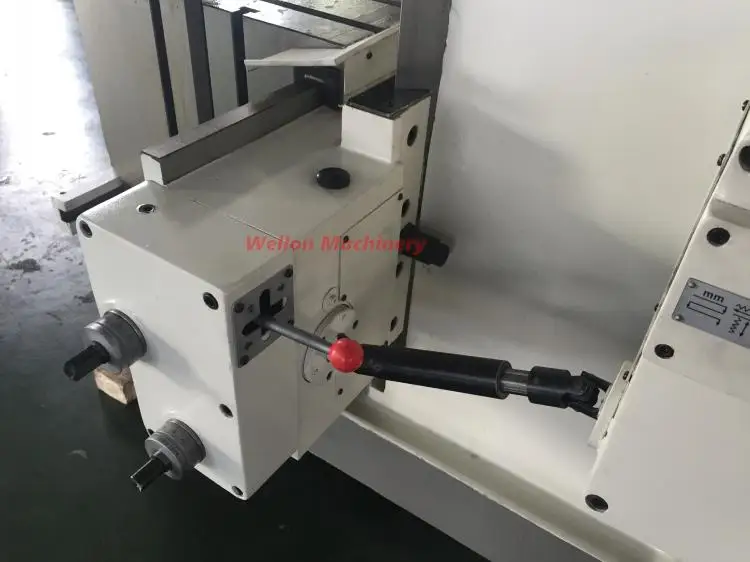

4.worktable feeding on cross and vertical specially for swallow tail machining and channel machining.

5. suitable for single piece or small match production.

Model		BC 6050	BC 6066	BC6085
Maximum cutting length(mm)		500	660	850
Max.range horizontal movement of the table		500	660	710
Max.distance between the ram bottom and table		370	385	400
Max.length of the vertical movement of table		270	360	360

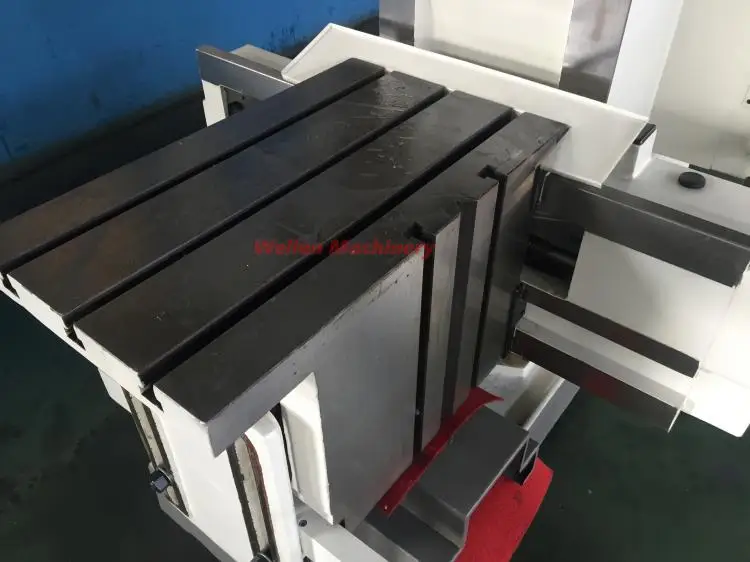

Dimensions of table top(L×W)		440×360	660X400	800X450
Max.stroke length of the toolhead		120	120	160
Max.swivel angle of the toolhead		±60°	±60°	±60°
Max.section of tool(W×T)(mm)		20×30	20×30	/
Number of ram reciprocation per minute		14-80	14-80	17-100
Range of table feed:	horizontal	0.2-0.25	0.4-5.0	0.25-3
Range of table feed:	Vertical	0.08-1.00	0.08-1.00	0.12-1.5
Width of the T-slot(mm)		18	18	22
Power of the main motor		3	3	5.5
N.W/G.W(kg)		1650/1760	1800/1920	2940/3090
Overall dimensions(L×W×H)(mm)		2160×1070×1194	2357×1225×1480	2950x1325x1693
