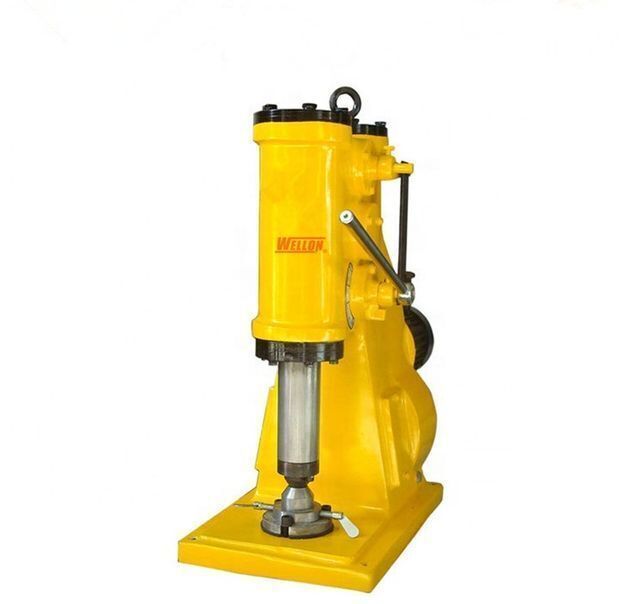

Air Hammer /Pneumatic Forging Hammer(C41-6)

Supplier: Tengzhou Wellon Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Kevin Zhang
Price: $1235.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Model Number:	C41-6;
Port:	Qingdao Port;	Brand Name:	WELLON;
Color:	as customer request;	Rate power:	0.75;
No-Load Speed:	1440rpm;	Place of Origin:	Shandong China;
Voltage:	as customer request;	Supply Ability:	10 Set/Sets per Month;
Overall dimension:	480x340x670;	Type:	Air Hammer;
Packaging Detail:	in plywood case;	Tup axis to hammer body:	100;
Total weight:	126;

Production Details

Air Forging Hammers are widely used for general forging works, such as drawing-out, upsetting, punching, chiseling,forge, welding, bending and twisting. Air Forging Hammer

weighted at 6kg, 16kg, 20kg,25kg, 40kg, 55kg, 75kg ,150kg are best used for art blacksmithing

such as drawingout, upsetting, punching, chiseling, bending and twisting.

Airpower Hammer Machine Best Resin Sand Casting Machine Frame with whole machine life quality

guarantee againest craftsmanship and material defects, with one full year guarantee on small parts and

electrical parts.

Model			Unit	C41-6
Weight of falling parts			Kg	6
Max. hit energy			Kj	0.066
Hit number			min -1	248
Distance from bottom die surface to bottom surface of lead			mm	175
Tup axis to hammer body			mm	100
Dimension of top and bottom die surface			mm
Maximum forge		Round piece	mm
		Square piece	mm
Distance from bottom die surface to base			mm
Motor	Type
	Rate power		kw	0.75
	speed		r.p.m	1440
Overall dimension			mm	480x340x670
Anvil weight			Kg	-------
Total weight			Kg	126
