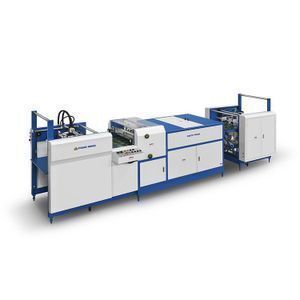

Latest Design SGUV-800B Automatic Whole UV Varnish Machine Water base Coating Machine Glazing Machine with 800*1000mm

Product details
Brand Name:FENGMING;Min. paper size:220*280;
Automatic Grade:Automatic;Place of Origin:Zhejiang China;
Product name:SGUV-650B Automatic UV coating machine;Packaging Detail:normally we use wooden carton, also can do fumigation;
Condition:New;Package Preview:;
Voltage:380V/220V;Weight:3000kg;
Application:Machinery & Hardware;Packaging Type:Cartons;
Single package size:720X150X156 cm;Max. coating width:630mm;
Max. paper size:800*1000;Packaging Material:Wood;
Dimension(L*W*H):7200mm*1500mm*1560mm;Warranty:1 Year,1 Year;
Max feeding Speed:35m/min;Mode of operation:automatic;
Driven Type:Mechanical;Certification:CE Certificate;
After-sales Service Provided:Video technical support,Engineers available to service machinery overseas;Selling Units:Single item;
Paper Thickness:80-200/m2;Single gross weight:3000.0 KG;
Color:You can decide;Type:Coating Machine;
Latest Design SGUV-800B Automatic  Whole UV Varnish Machine  Water base Coating Machine Glazing Machine  with 800*1000mm
Specifications



SGUV800B UV Varnish Machine Automatic UV Coating Machine Water base Coating Machine

Configuration

1.PLC control

2.Two UV lamps, Ten IR lamps

3.Automatic feeding system

4.Automatic paper stacking system

5.Air Knife(Used for thin paper coating)

6. 2.14m dry tunnel

7. can coat both UV oil and water oil

Technical specification

MODEL

SGUV-800B

Max.paper size

800*900mm   800*1000mm

Min.paper size

220*280mm

Max.Coating Width

800mm

Max.Feeder Speed

35m/min

Paper Thickness

80-200g/m²(with air knife)



200-600g/m²

Total Power

26KW

Total Weight

3000kg

Overall Dimensions

7200mm*1500mm*1560mm
