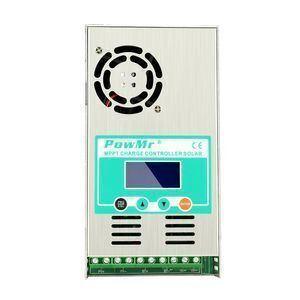

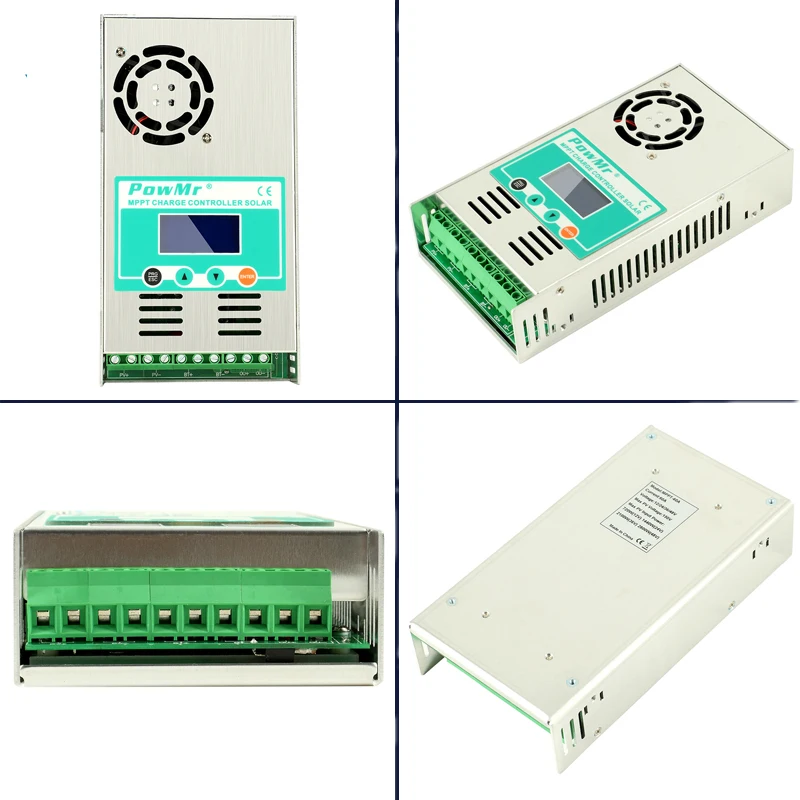

60A 12V/24V/36V/48V Auto Solar Charge Controller for Solar Cell Panel/Power System Regulator PV Home Battery Charger HHJ-60A

Supplier: Shenzhen Hehejin Industrial Co., Ltd.
Region: Guangdong, China
Contact: Mr Rick Zou
Price: $57.89 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	PowMr;	Warranty:	2 Years;
Rated Current:	60A;	Maximum Current:	60Amp;
Weight:	1.3KG;	Certification:	CE/ISO9001;

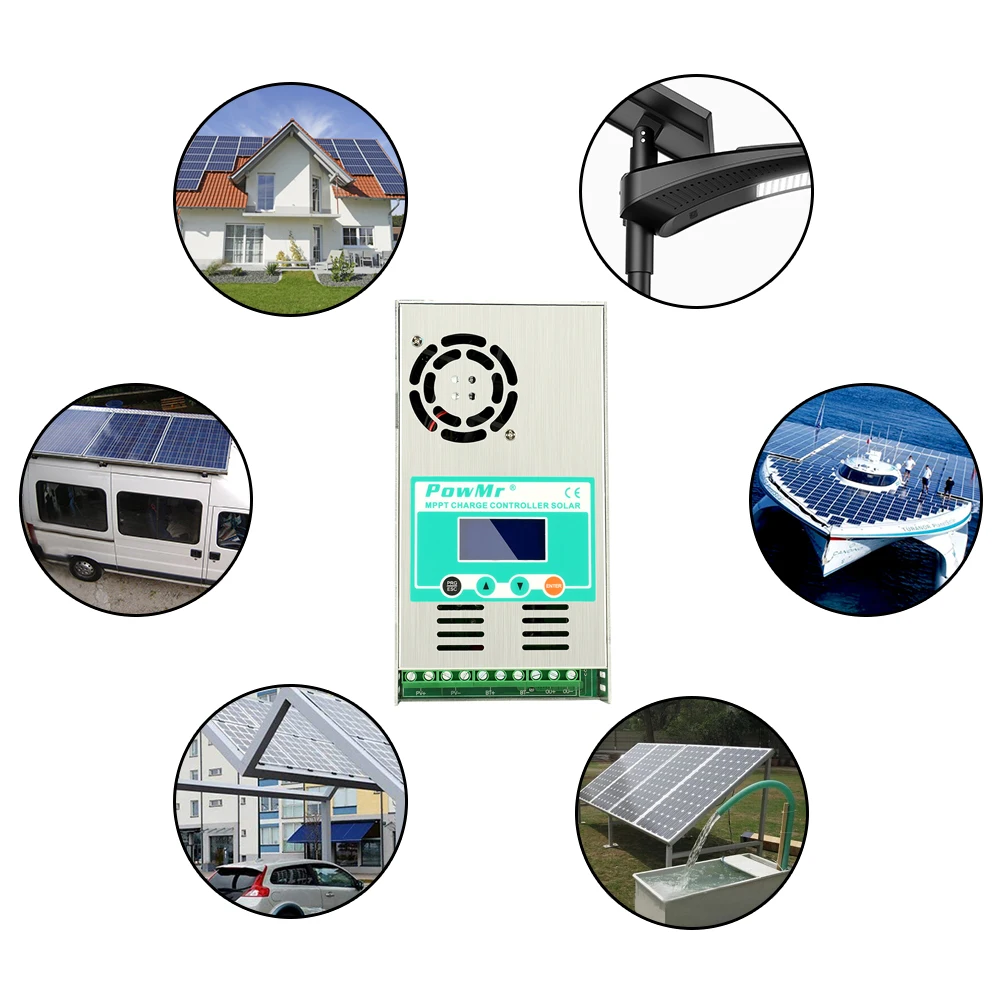

Application:	Solar Power System,Charger Controller,Lighting Controller,Solar System Controller;	Work Time (h):	1-24 Hours Settable;
Charge mode:	MPPT Maximum Power Point Tracking;	Type:	MPPT;
Dimensions (h x w x d):	8.44.51.9cm;	System voltage:	12v/24v/36v/48v Automatic Recognition;
Single package size:	22X12X9 cm;	Model Number:	HHJ-60A;
Product name:	MPPT Solar Charge Controller;	Place of Origin:	China;

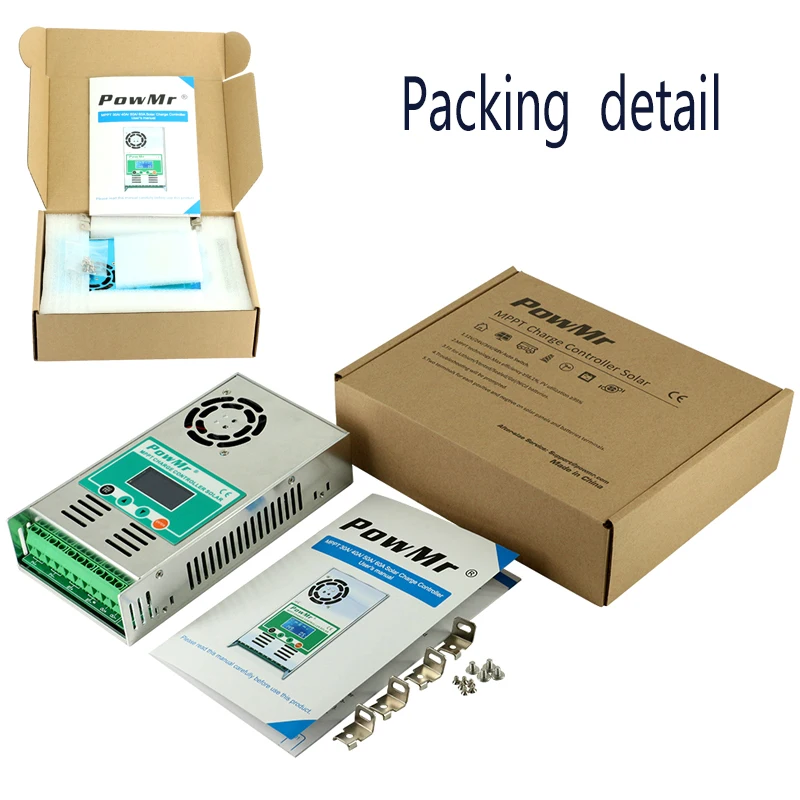

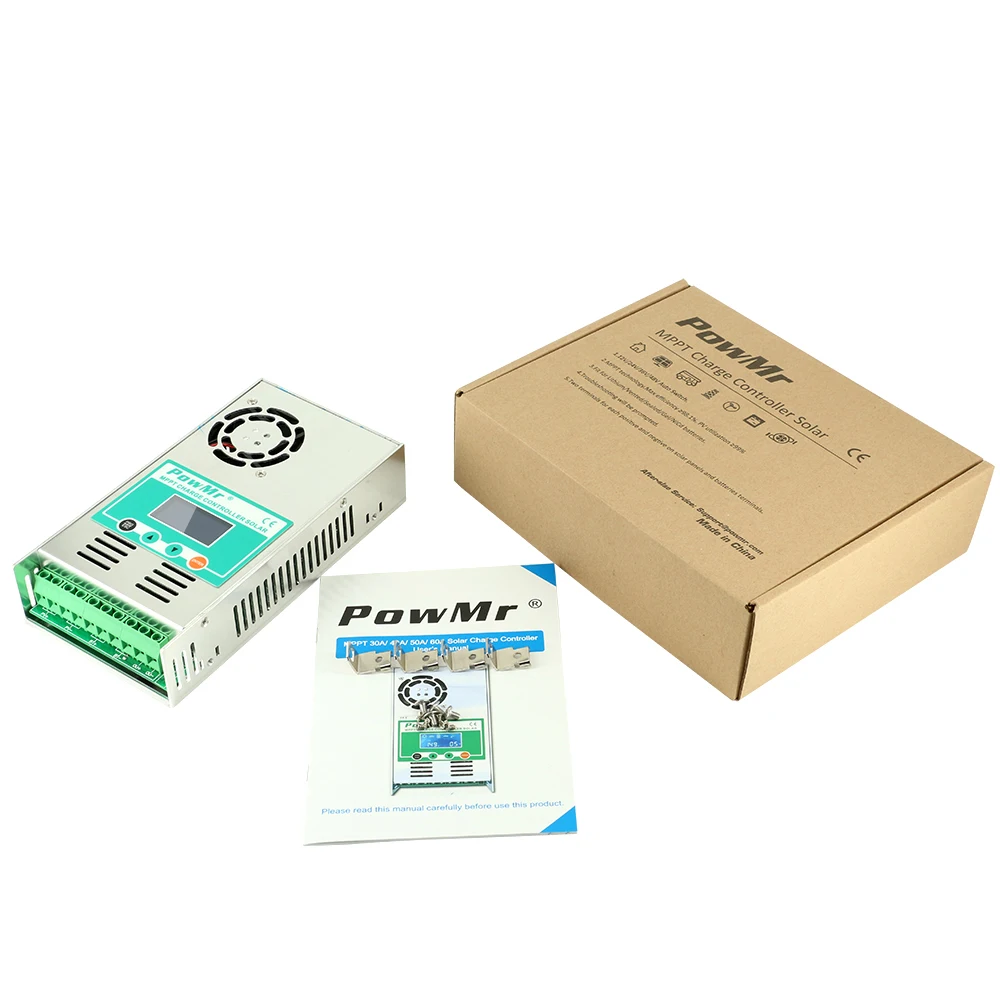

Package Preview:	;	Packaging Detail:	Solar Energy Products Stander Carton Box 1MPPT 60A Solar Charge Controller 1English User Manual 4Corner Connections 4Screws for controller using;
Max PV Voltage:	160V;	Selling Units:	Single item;
Single gross weight:	1.6 KG;	Max PV Power:	2800W;

60A 12V/24V/36V/48V Auto Solar Charge Controller for Solar Cell Panel/Power System Regulator PV Home Battery Charger HHJ-60A

Product Description

100% MPPT controller

Intelligent Maximum Power Point Tracking technology

Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V/36V/48V

Three-stage charging optimizes battery performance

Multi-function LCD displays

Reverse polarity protection of solar panel

Overcharge protection

Can be mounted easily

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

Suggestions

1. Keep controller away from water. Don’t use wet towel to wipe controller.

2. Keep controller in an environmental temperature from -22℃~+55℃. Avoid direct sunlight.

3. Keep good heat dissipation.

4. Use the pure copper wires and connect all polarity correctly.

5. The load output is only for DC load less 5A current.

6. Please don’t set any parameters if you are not professional since the controller can work fine in default condition except lithium battery.

Installation steps

1. The battery voltage should be more than 12V, then the controller can boot up. Install air circuit breaker between controller and batteries. Turn off the circuit breaker, then connect batteries to controller with correct polarity.

2. Install air circuit breaker between controller and PV modules. Turn off the circuit breaker, and ensure the PV polarity correct, then connect wires between PV modules and controller.

3. Turn on the air circuit breaker between controller and batteries.

4. Turn on the air circuit breaker between controller and PV modules.

5. The controller goes into the self-test mode. Its LCD displays the parameters if all is correct. And RUN lamp (under the fan inside of casing) will flash every one second. If the controller is no response, please read full manual again for reinstalling or contact us for help.

Specification

Models	MPPT-30A	MPPT-40A	MPPT-50A	MPPT-60A
Charging mode	3-stage: constant current(MPPT), constant voltage, floating
Battery voltage automatic recognition: 12V Battery	DC9V~DC15V
Battery voltage automatic recognition: 24V Battery	DC18V~DC29V
Battery voltage automatic recognition: 36V Battery	DC30V~DC39V
Battery voltage automatic recognition: 48V Battery	DC40V~DC60V
Overcharging protection voltage	15V	30V	45V	60V
Limited current protection	31A	42A	51A	61A
Max efficiency	≥98.1%
PV utilization	≥99%
Protection function
Temperature protection	75℃
Fan-on temperature	>45℃
Fan-off temperature	<40℃
Properties
Size (mm)	214x115x50
Net weight(Kg)	1.1
Gross weight(Kg)	1.2
Electromagnetic compatibility	Accord to EN61000, EN55022, EN55024
Enclosure	IP21
Environmental temperature	-20℃ ~ +55℃
Storage temperature	-40℃ ~ +75℃
