Freeze Area: | 0.18 m2; | Name: | Factory Price Lab Vacuum Freeze Dryer; |
After-sales Service Provided: | Online support; | Ability to Capture Water: | 6Kg; |
Application: | Chemical; | interlayer spacing: | 70 mm; |
Packaging Detail: | Lab Vacuum Freeze Dryer wil be packed in wooden case or as your requiring; | Installation: | Engineer Guide; |
Port: | Dalian,Qingdao,Tianjin; | Dimension(L*W*H): | W700*D560*H(960+450)mm; |
Brand Name: | ZZKD; | Application: | Medicine Processing,Food Processing; |
Certification: | CE ISO; | No-load Temperature: | <-56℃; |
Type: | Freeze Drying Equipment; | Voltage: | 220V; |
Power(W): | 1300W; | Condition: | New; |
Weight: | 105KG; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Plate Load Capacity: | 2L; | Display: | LCD Display; |
Warranty: | one year; | Place of Origin: | Henan China (Mainland); |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,secure payment, credit card; | Supply Ability: | 500 Set/Sets per Month Factory Price Lab Vacuum Freeze Dryer; |
Characteristics of Lab Vacuum Freeze Dryer |
1.Accord with international standards of Green environmental friendly |
2.7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve |
3. U disk Can storage lyophilized data |
4. Upload software can print curve |
5. Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data |
6.Large opening trap, no coil inside, with samples pre-freeze function |
7.Imported refrigeration compressor, low noise |
8.Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean |
9. Transparent Bell type drying room, secure and ocular |
10.Stainless steel sample holder, common sample plate spacing adjustable |
11.Small size and easy to operate |
12.Nitrogen inflation valve within |
Technical data of Lab Vacuum Freeze Dryer:
Model | 10N | |
Power Supply (V/Hz) | 220/50 | |
Heating Power(W) | 950 | |
Specifications | Gland manifold | |
Freeze Area (m2) | 0.08 | |
Sample Tray Size (mm) | Ø180*3 | |
Plate Load Capacity (L) | 1 | |
No-load Temperature (℃) | <-56 | |
Vacuum Degree(Pa) | <10 | |
Interlayer Spacing (mm) | 70 | |
The Number of Schering Bottles | Ø22mm | 165 |
Ø16mm | 285 | |
Ø12mm | 560 | |
The Number of Multiple Manifold | 8 | |
The Number of Eggplant Shape Bottle | 8 | |
Ability to Capture Water (Kg) | 3 | |
Cold Trap Size (mm) | Ø 215*160 | |
Machine Dimension (W*H*D, mm) | 450*580*380 |

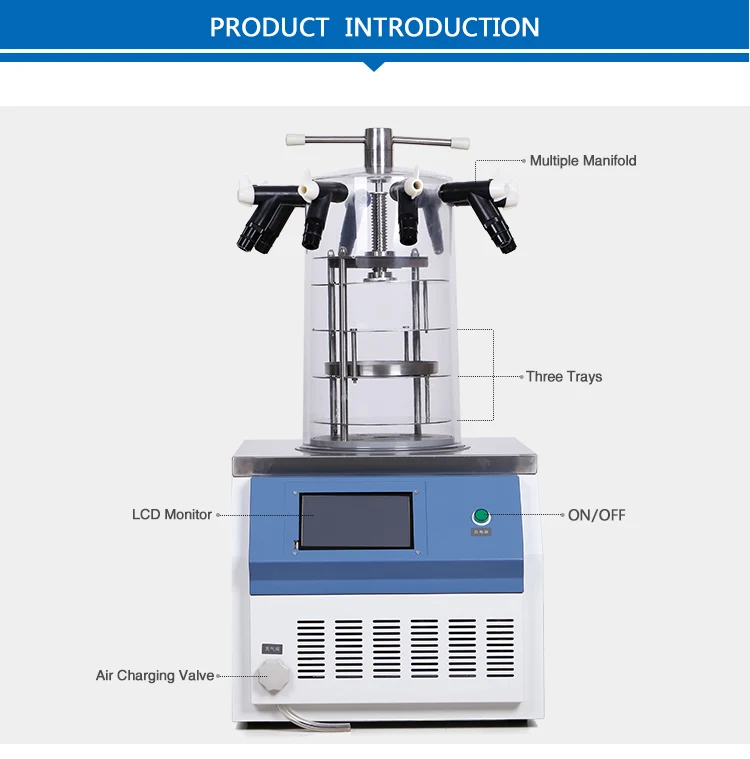

Details Show of Lab Vacuum Freeze Dryer:
Application of Vacuum Freeze Dryer:
1) For fruit
2) For flower
3) For chinese medicine
Packaging
-Export wooden or carton packing
-Both neutral and customized packaging can be available
Shipping
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one
based on your timeline and budget. Also you can definitely choose to use your own shipping agent.
Keda Machinery and Instrument Equipment Co.,Ltd.Our company sells circulating water vacuum pump, rotary evaporator, magnetic stirrer, glass reactor, cooling circulating pumps, oil baths, electric mixers, ovens, water baths, freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and electric experimental equipment sets.With solid strength, reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.
1.What's the minimum order quantity?
One set at present.
2. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
3.How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
4.Can you accept OEM terms?
Sure.
