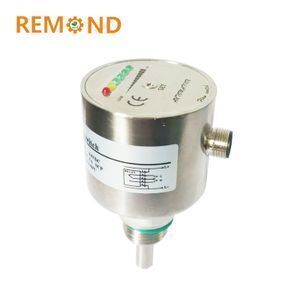

High accuracy stainless steel thermal water flow switch air flow switch

Supplier: Shanghai Lanchang Automation Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms Null Yi
Price: $60.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Response time:	2(2-10)s;	Output:	Relay/PNP/NPN;
Payment Terms:	T/T,Western Union;	Brand Name:	REMOND;
Packaging Detail:	Carton box, each product is individually packaged;	Setting:	Potentiometer;
Thread:	G1/2, G1/4;	Accuracy:	±1~±10cm/s;
Power:	24VDC, 220VAC;	Model Number:	RMD-F1;
Pressure:	100bar;	Media Type:	Liquid;
Port:	shanghai;	Supply Ability:	3500 Piece/Pieces per Month thermal flow switch;
Operating Temperature:	-20 to 80℃;	Flow Rate:	Water:3~300cm/s ; Air:200~300cm/s;
Product name:	air flow switch;	Material:	316L stainless steel;
Place of Origin:	Shanghai China (Mainland);	Flow indicator:	6 LED lamps;

High accuracy 316L stainless steel water flow switch flow sensor

Product Description

Product brief introduction

Thermal flow switch is based on the principle of heat exchange design, probe the built-in heating module as well as the thermal module, heat dissipation of heating module and the flow velocity is closely related to the body. If there is no medium flow in the pipe ,thermal circuit receives a fixed value, when the fluid flows through the probe, thermal circuit receives the signal changes over medium velocity, thermal circuit will convert the temperature difference signals of heating module and thermal module into electrical signals, the processor will convert it into PNP/ NPN/ relay signal output.

Feature

LED indicate the velocity

no moving parts, free maintenance

various length of sensors can be chose

easy to install

various pipes can use only one type of sensor

the set-point can be adjust continuous

almost no pressure loss

protection grade IP67

Water flow sensor technical parameter

Measure range	Water:3~300cm/s ; Air:200~300cm/s ; Oil:3~300cm/s
Accuracy	±1~±10cm/s
Settling time	3 minutes
Pressure	100Bar
Media temperature	-20 to 80℃
Thread	G1/2 ,G1/4 Male thread /M18 Female thread
Output signal	PNP / NPN / Relay
Power	24VDC , 110VAC , 220VAC
Sensor length	15mm , 20mm , 30mm , 40mm , 60mm
Consumption current	<60mA
Setting	Potentiometer
Response time	2(2-10)s
Max.temperature gradient of medium	300K/min
Protect	Reverse / Short / Overload
Protection grade	Ip67
Power connector	M12 connector
Material	Sensor : 316L Body : 316L
Load	Current : 250mA Relay : 30VDC/5A ,110VAC/5A, 220VAC/5A

Detailed Images

Company Information

Certifications

Application

Gas liquid dual use ,it can be used for gas and hydraulic pressure system, circulating water, monitoring of the cutting fluid and lubricant, as well as Idling of pump protection,iron and steel ,metallurgy ,pharmaceutical ,chemical industry, etc.

FAQ

Q: Are you the final manufacturer?

A: Yes, We are manufacturer

Q: Do you offer the OEM order ?

A: Yes, we can offer OEM service and label according to your requirements

Q: How to make payment?

A: We accept T/T , Credit card and West Union

Q: Could we visit your factory?

A: Yes, Sincerely invite you to visit our factory

Q:Do you have any discount?

A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
