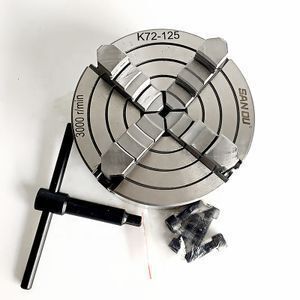

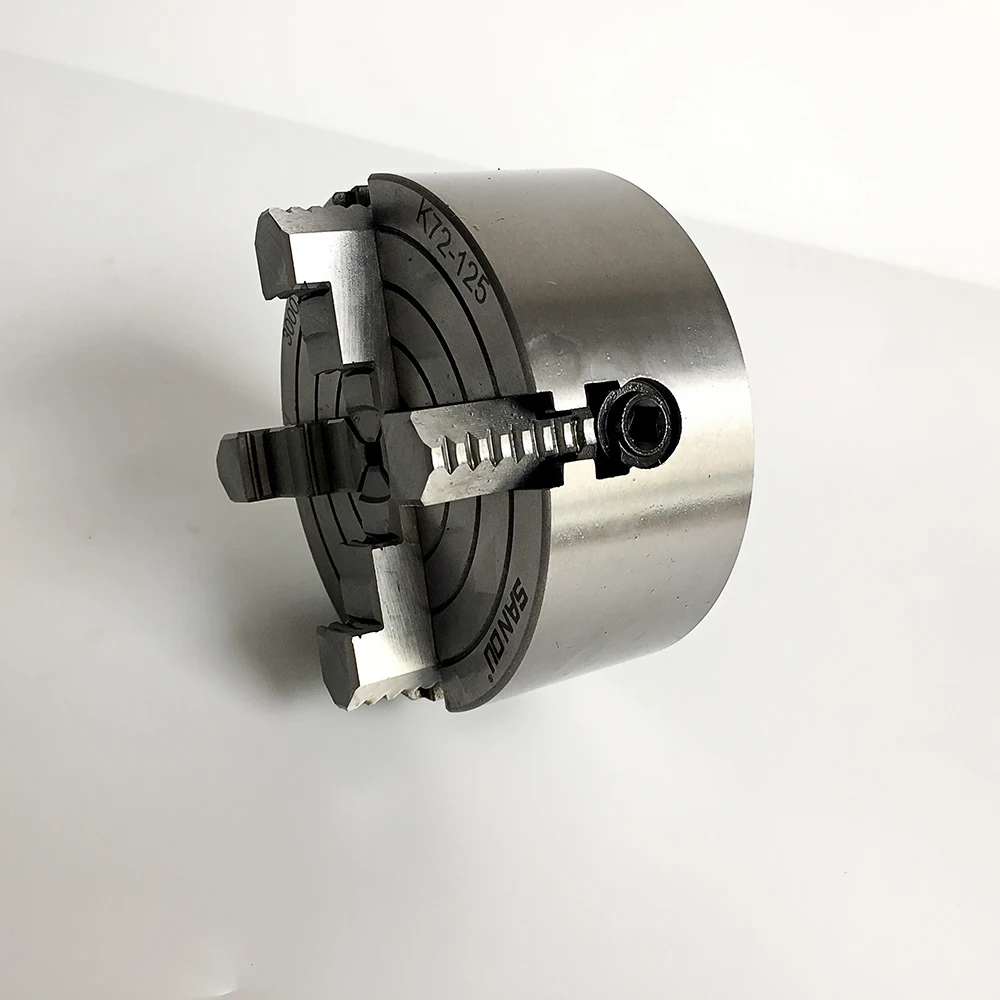

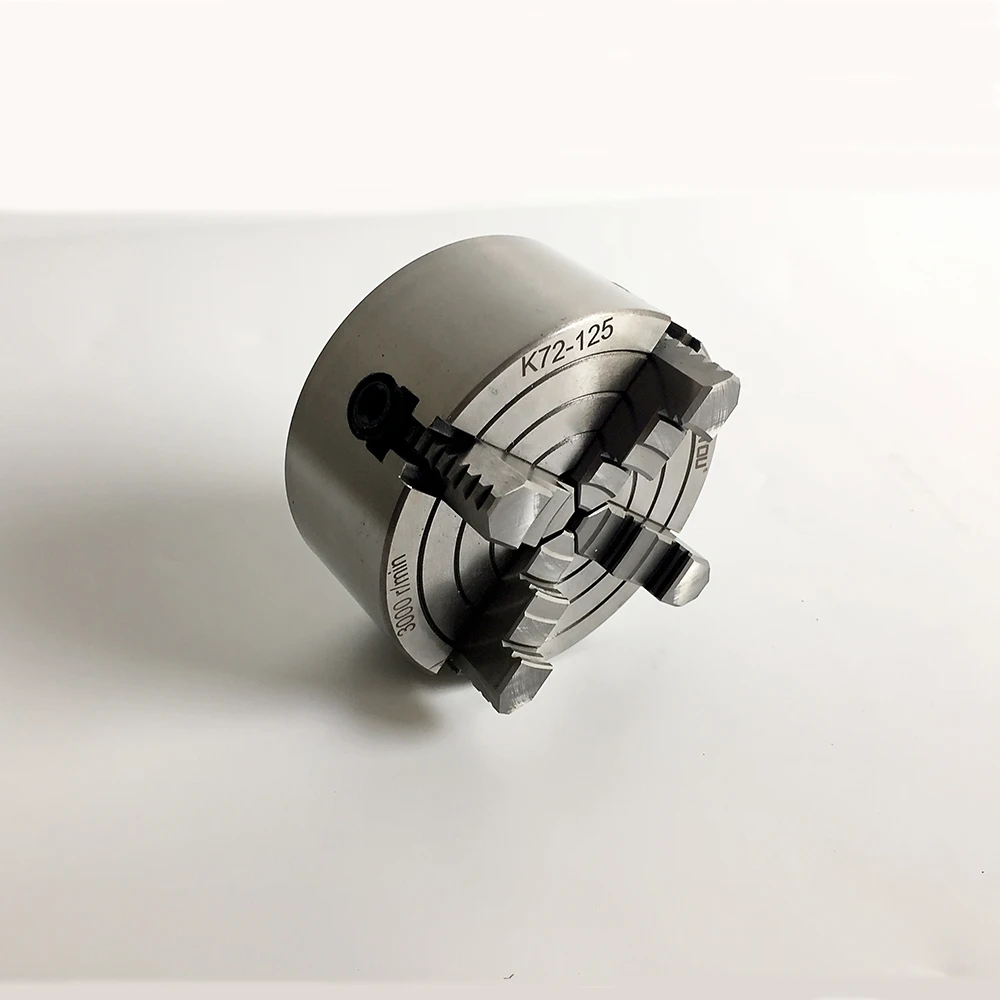

K72-125 four jaw independent chuck 125mm 5 inch lathe chuck for mini lathe

Supplier: Shenzhen Dijin Machine Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Thomas Ban
Price: $37.80 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	four jaw chuck diameter:	125mm;
Model Number:	K72-125;	Place of Origin:	Guangdong China;
Packaging Detail:	Carton;	Single gross weight:	5.6 KG;
Brand Name:	SANOU;	Number of Jaws:	4;
feature:	independent chuck;	Power:	Manual;
Single package size:	18X18X17 cm;	Material:	Steel;
Package Preview:	;	material:	hardened steel;

four jaw independent chuck

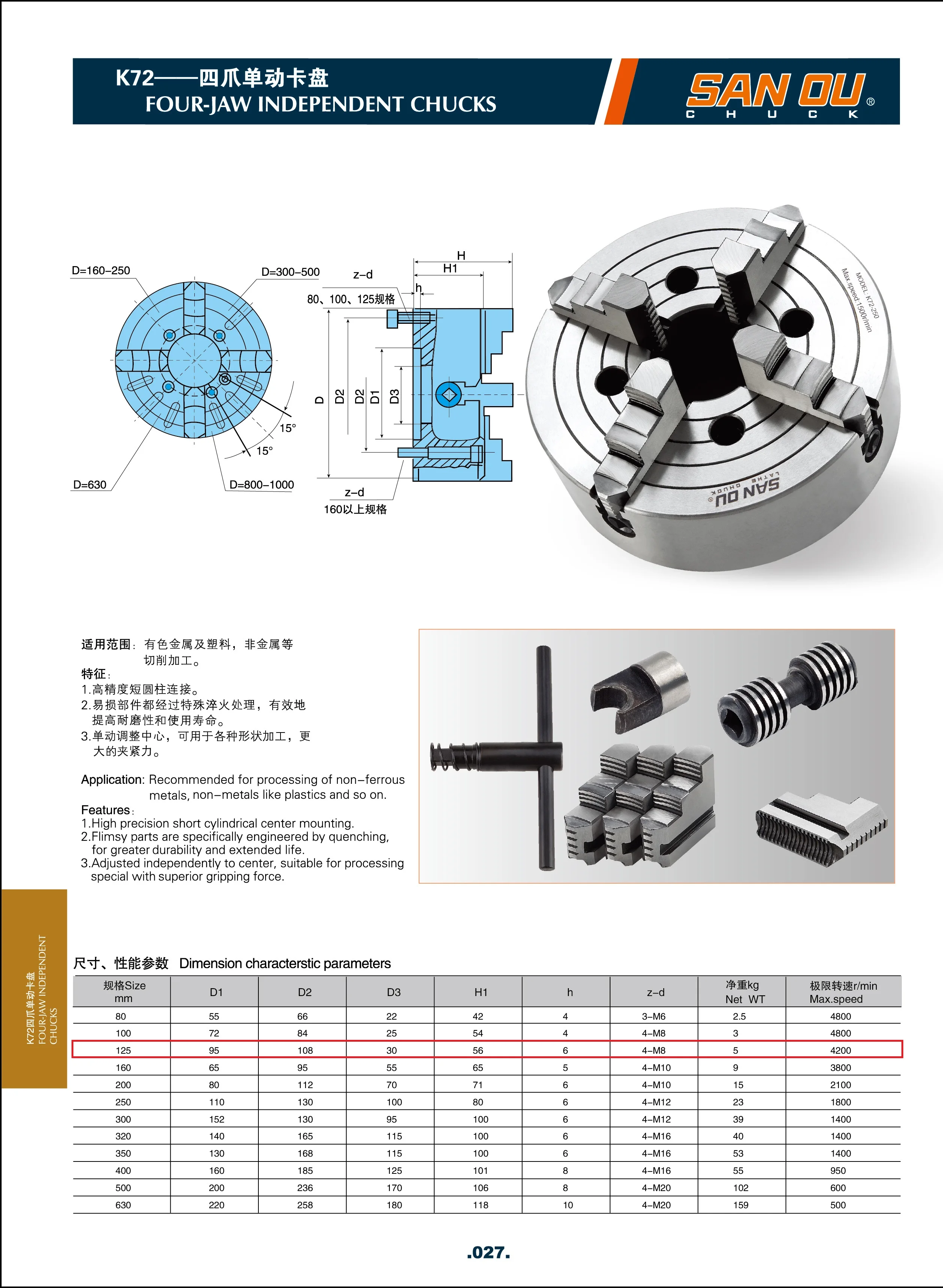

Specifications:
Jaws material: Hardened Steel
Model: K72-125
Max RPM: 3000 r/min
Jaw: 4 Jaw
Power: Manual

Features:

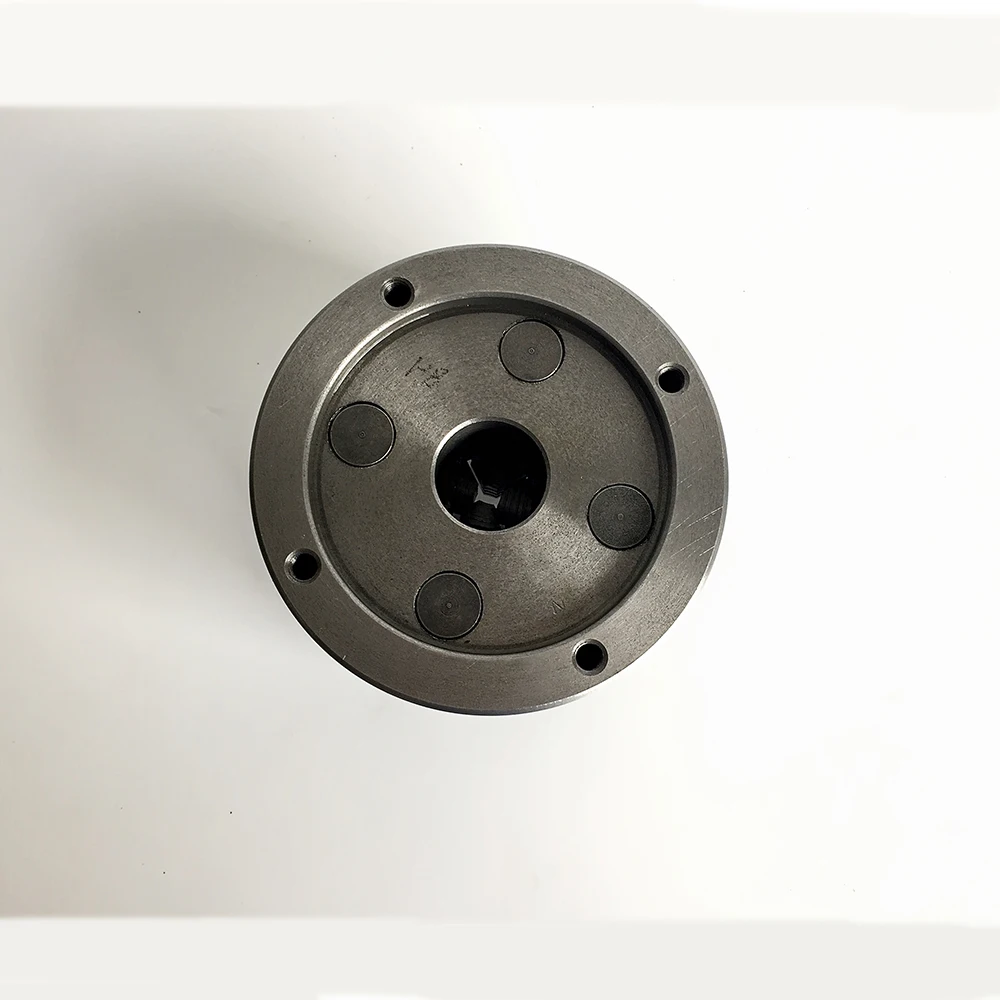

1. High precision short cylindrical center mounting .
2. Flimsy parts are specifically engineered by quenching.
3 .Adjusted indepently to center, suitable for processing special with superior gripping force.

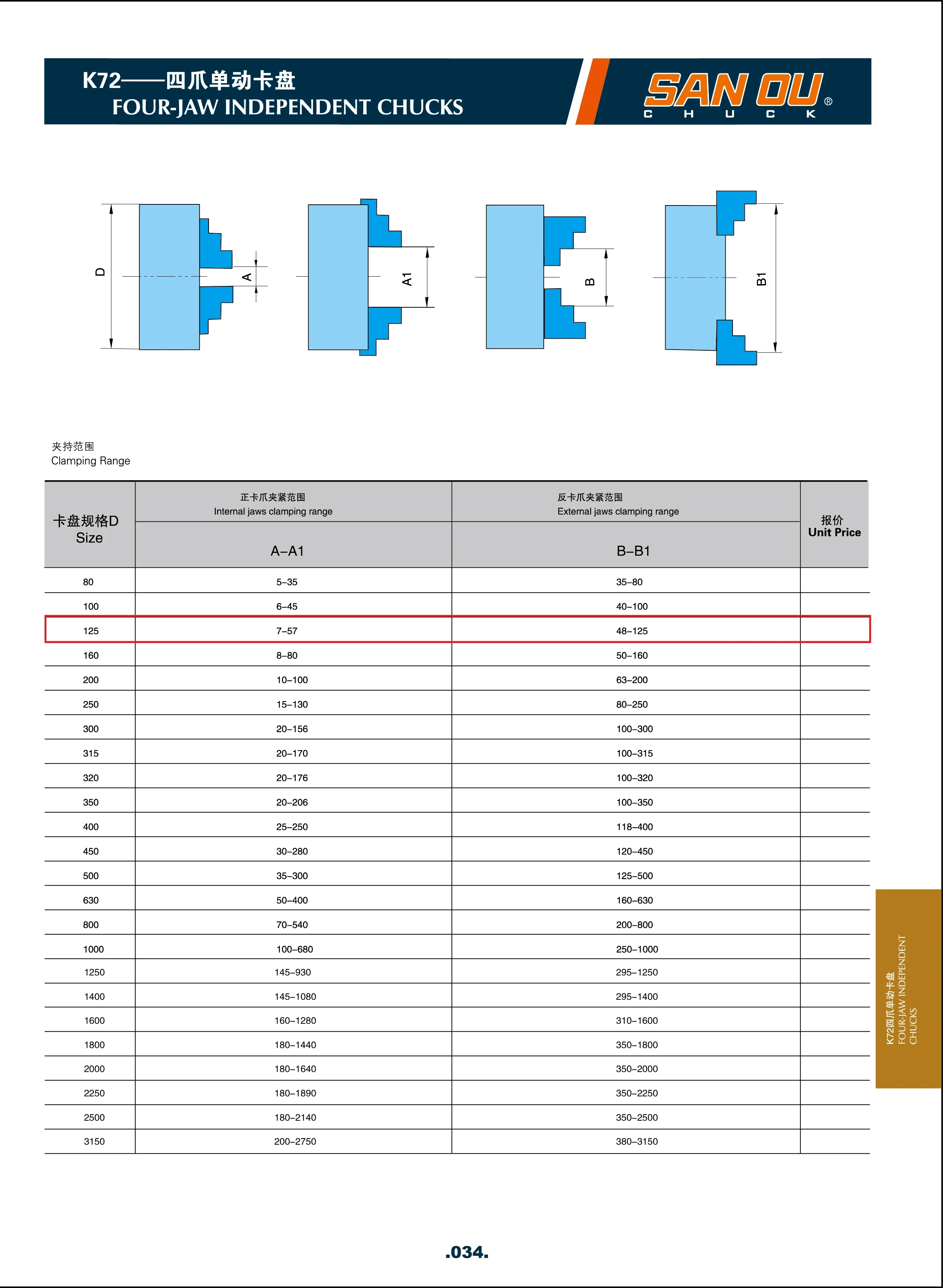

Internal Jaw:
Clamping Range A-A1: 7- 57 mm
Jamming Range B-B1: 48- 125mm

Packaged included :
Chuck body x1
Inside jaws x4
Safety chuck key x 1
Mounting bolts x 4
