K11-125 3 Jaws Self-Centering Chuck Sanou Brand 3 jaw chuck 5'' lathe chuck self centering for mini metal lathe

Supplier: Shenzhen Dijin Machine Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Thomas Ban
Price: $47.50 / 1 - 49 sets
$42.75 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Brand:	SANOU;	Size:	5'';
material:	hardened steel;	Warranty:	NO;
Single package size:	18X18X17 cm;	Place of Origin:	Guangdong, China;
Number of Jaws:	3;	Feature:	self-centering;
Brand Name:	SANOU;	Machine Type:	3Jaw Scroll Chuck;
Keywords:	lathe chuck;	Model Number:	K11125;
Packaging Detail:	Carton;	Product Name:	3 Jaw Self-centering Chuck;
Package Preview:	;	Material:	Steel;
Application:	Lathe Machine;	Power:	Manual;
Single gross weight:	5.500 KG;	Selling Units:	Single item;
three jaw chuck diameter:	125mm;	Customized support:	OEM;
Model:	K11-125;

K11125 Series three jaw self-centering chuck

Specifications:
Jaws material: Hardened Steel
Model: K11-125
Max RPM: 3000 r/min
Jaw: 3 Jaw
Power: Manual

Features:
1. Short cylindrical center mounting .
2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K11 chucks are supplied with traditional two-piece jaws.

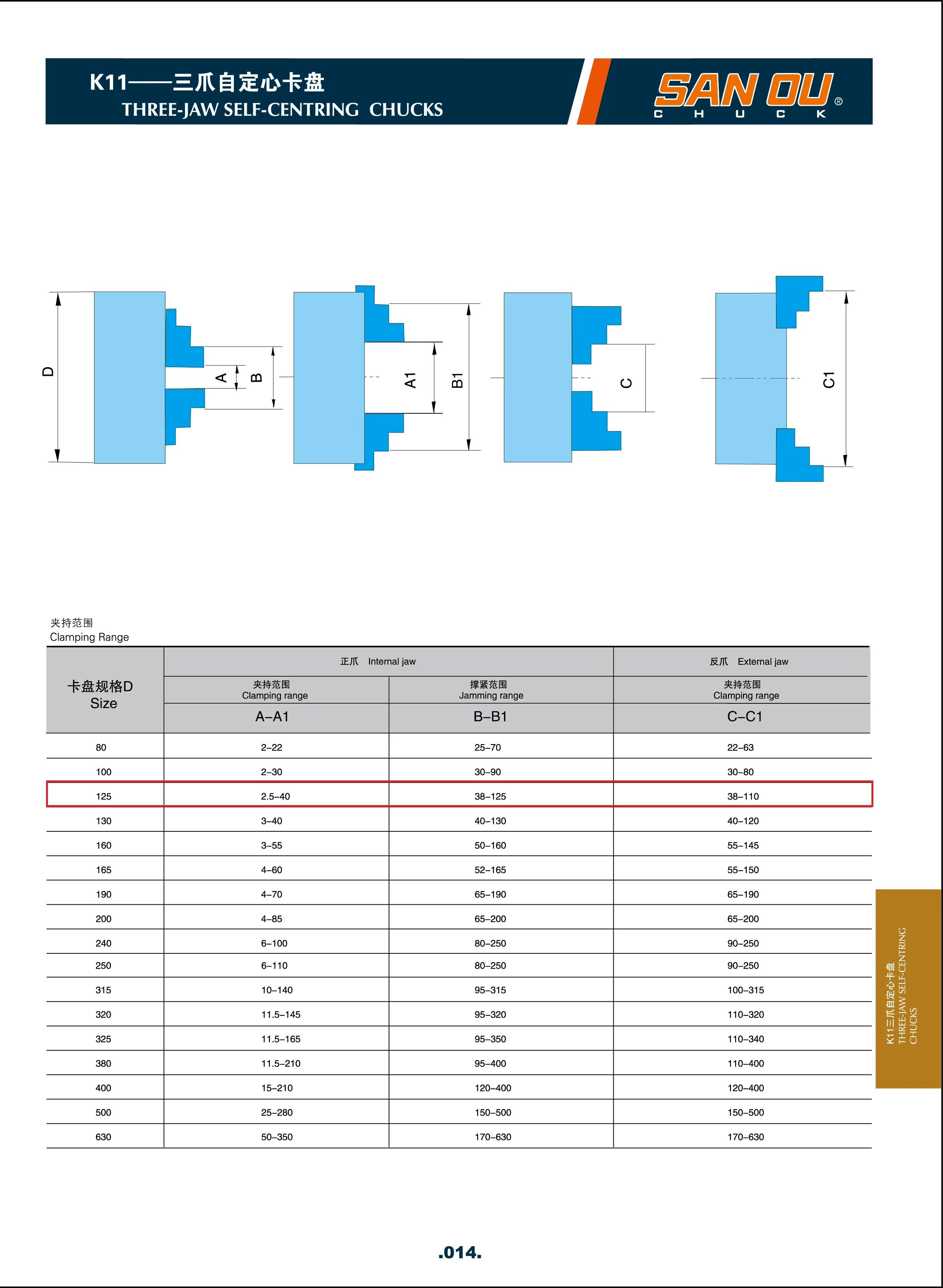

Internal Jaw:
Clamping Range A-A1: 2.5- 40mm
Jamming Range B-B1: 38- 125mm
External Jaw
Clamping Range C-C1: 38- 110mm

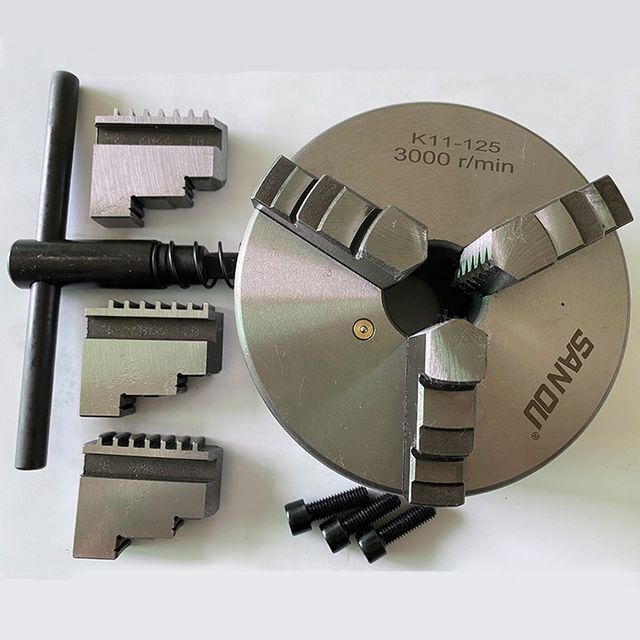

Packaged included :
Self-Centering chuck body x1
Inside jaws x 3
Outside jawslarge x 3
Safety chuck key x 1
Mounting bolts x 3
