Jaw lathe brand 3 200 mm K11-200 for jewelry lathe C6246

Supplier: Shenzhen Dijin Machine Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Thomas Ban
Price: $93.10 / 1 - 99 sets
$78.40 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Three-jaw chuck diameter:	200mm	Number of jaws:	3
brand:	Sano	pack:	carton
Packaging Preview:		Material:	hardened steel
Gross weight per piece:	16.500 kg	product name:	Three-jaw self-centering chuck
place of origin; place of origin:	Guangdong, China	Sales unit:	single product
size:	8''	Model:	K11-200
feature:	egocentric	Single package size:	21X21X20 cm
strength:	manual	Key words:	lathe chuck
Packaging Details:	carton	Advantage:	high accuracy
usage:	work holding	Custom Support:	OEM
Material:	steel	model:	K11200

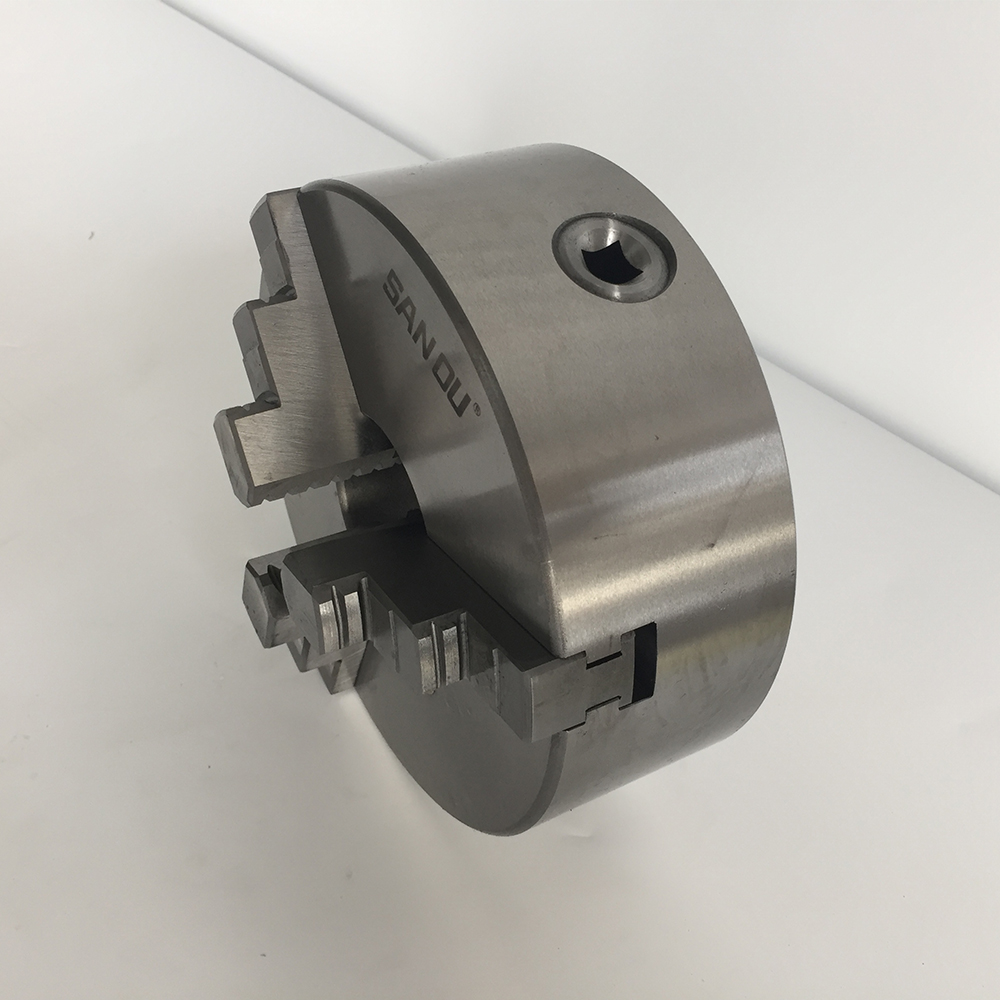

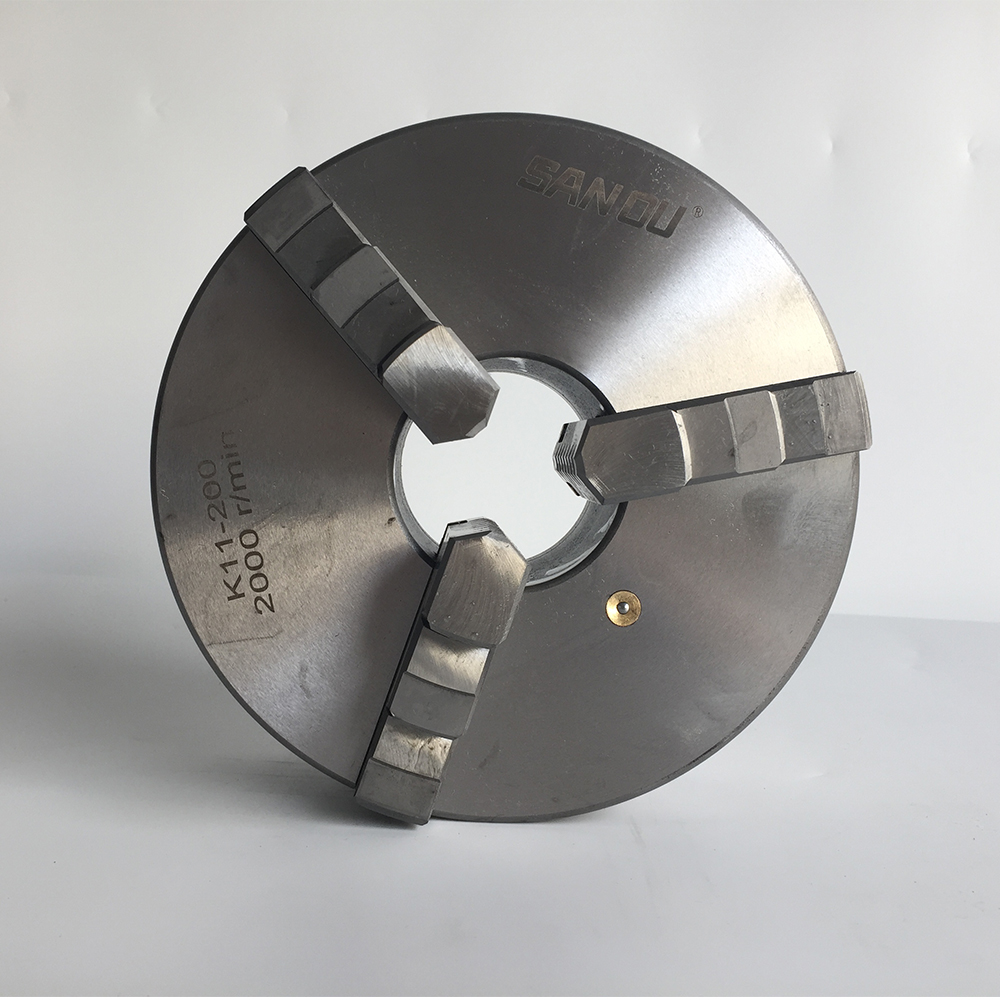

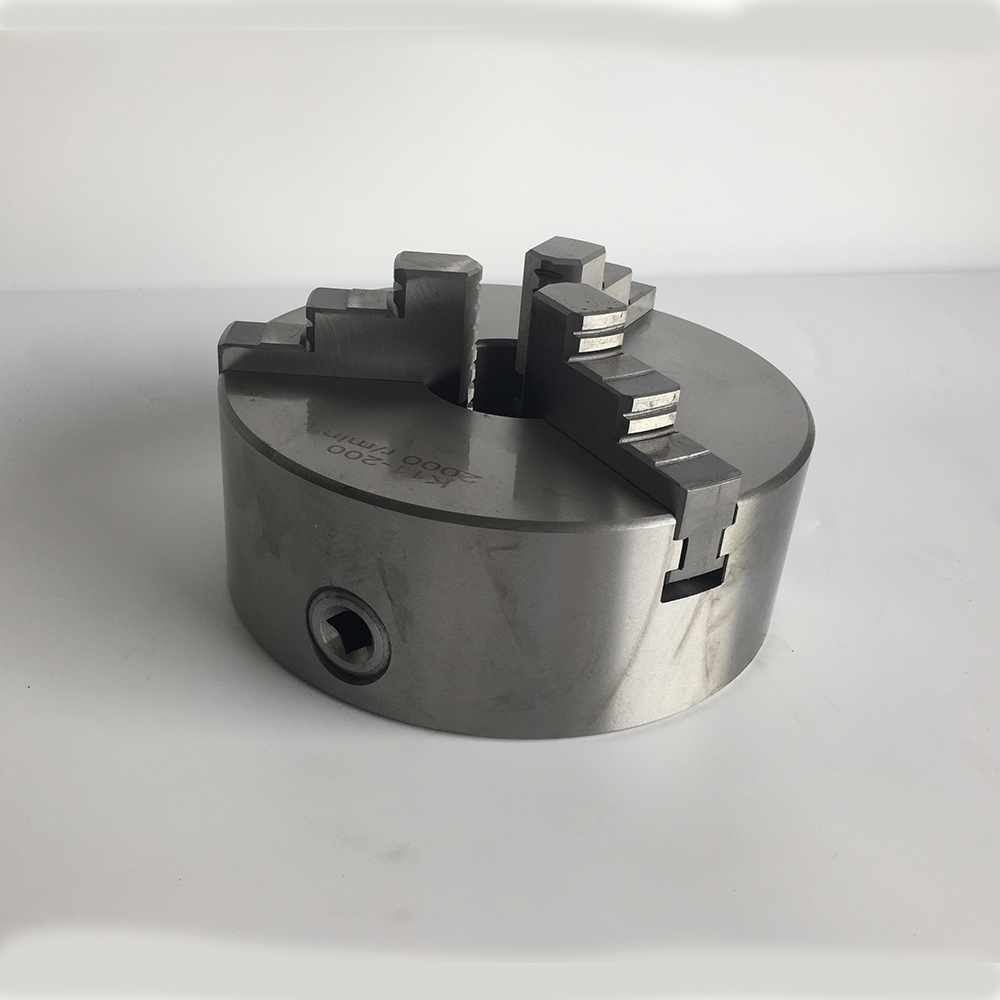

K11 series three-jaw self-centering chuck table lathe chuck

Specification:
Jaw Material: Hardened Steel
Model: K11-200
Maximum speed: 2000 rpm
Jaws: 3 Jaws
Power: Manual

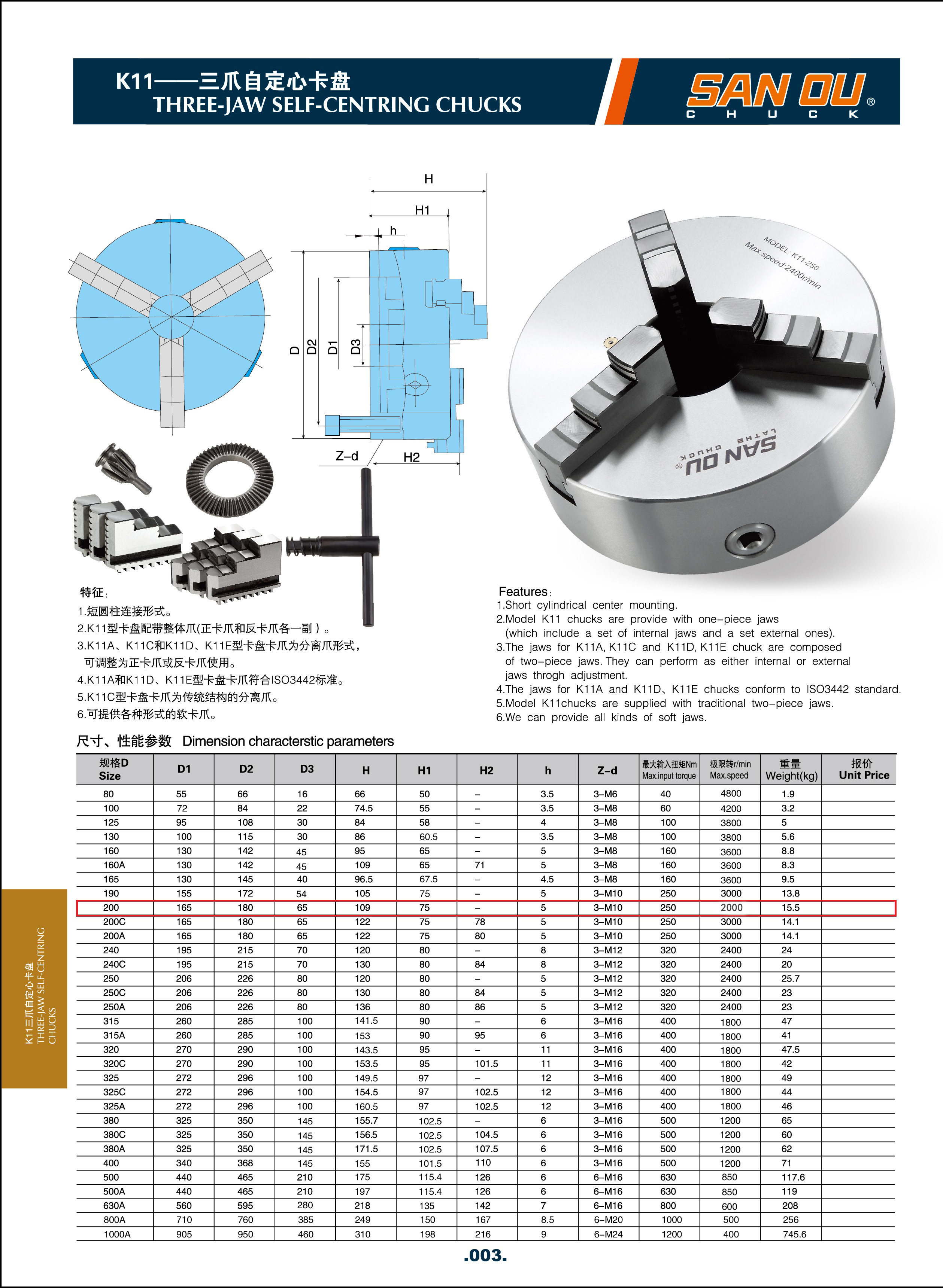

feature:
1. Short cylindrical center mounting.
2. The K11 type chuck adopts one-piece jaws (including inner jaws and outer jaws).
3. Type K11 collets have traditional two-piece jaws.

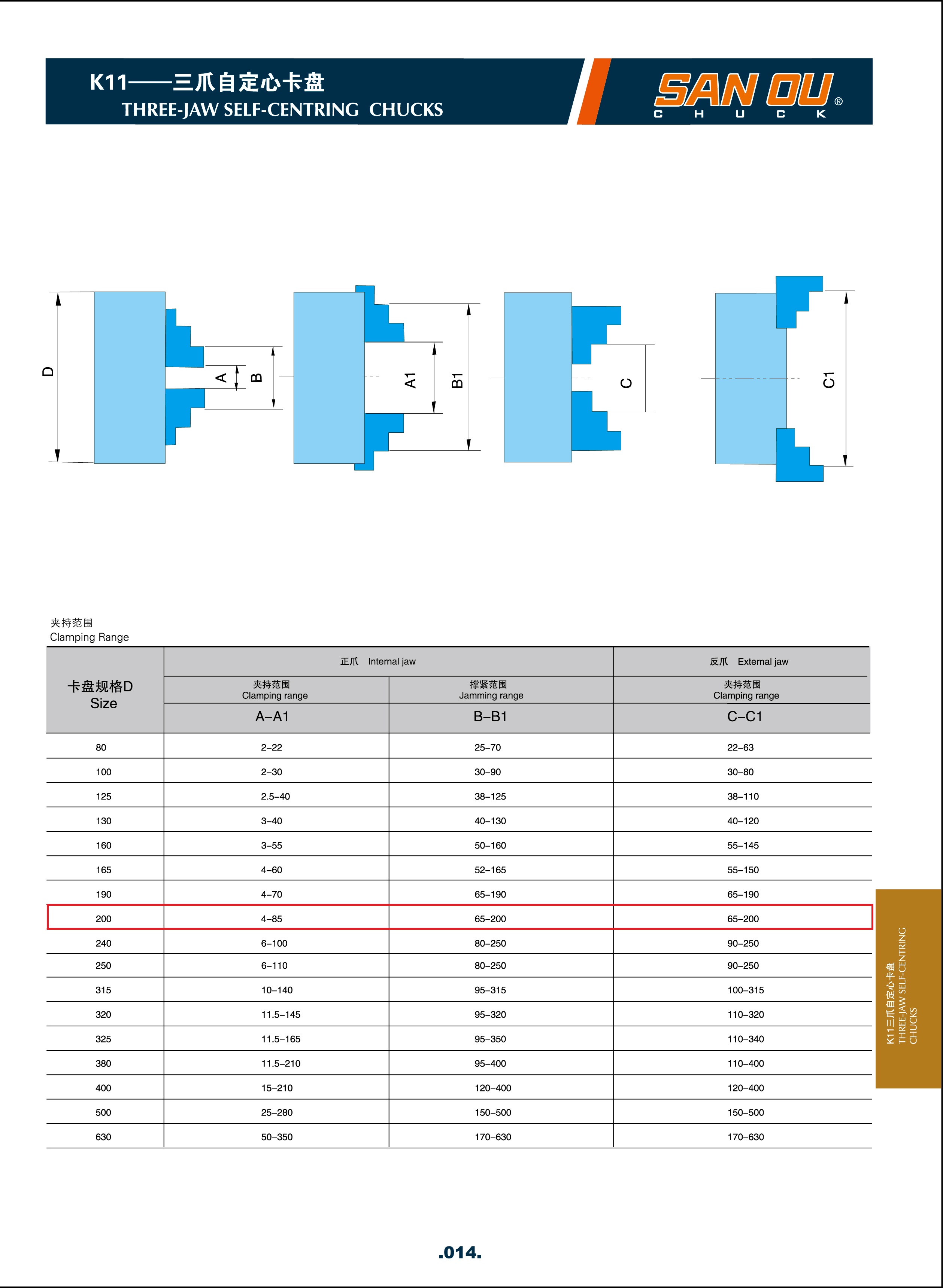

Inner jaw:
Clamping range A-A1: 4- 85 mm
Interference range B-B1: 65- 200mm
external jaw
Clamping range C-C1: 65- 200mm

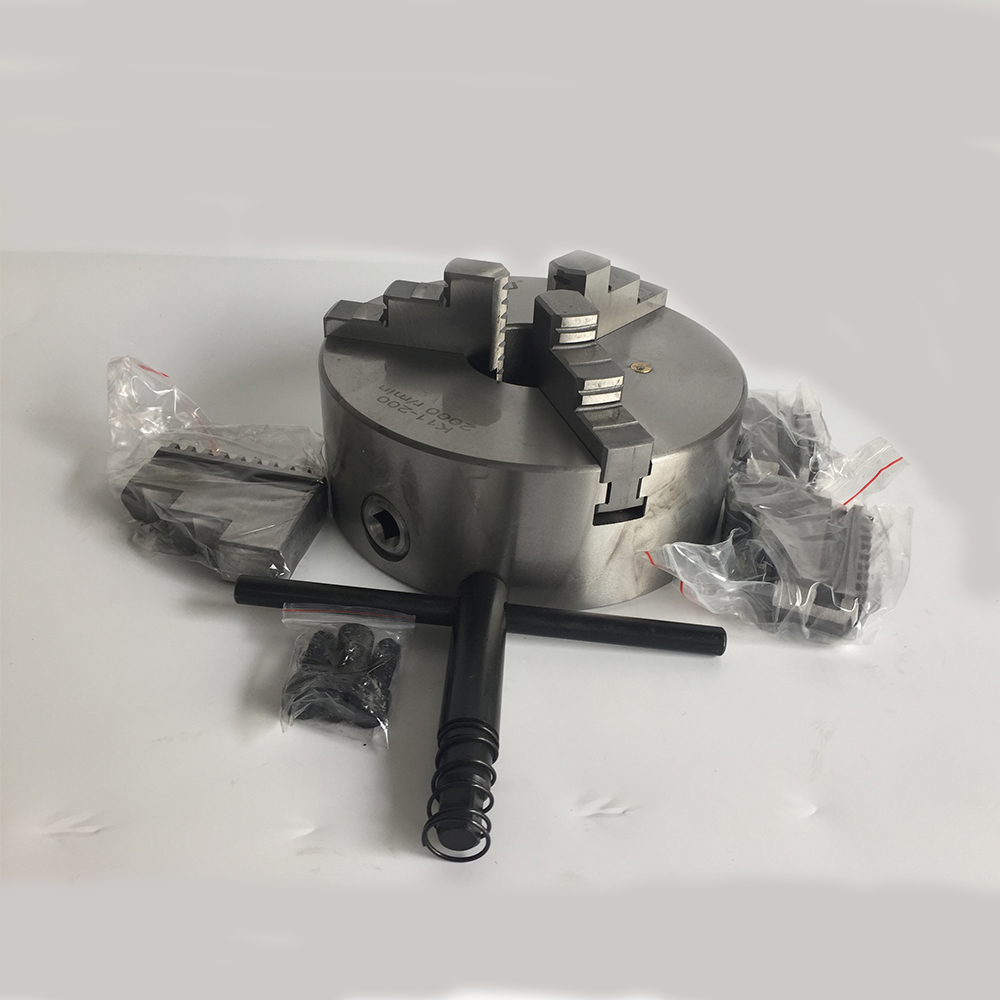

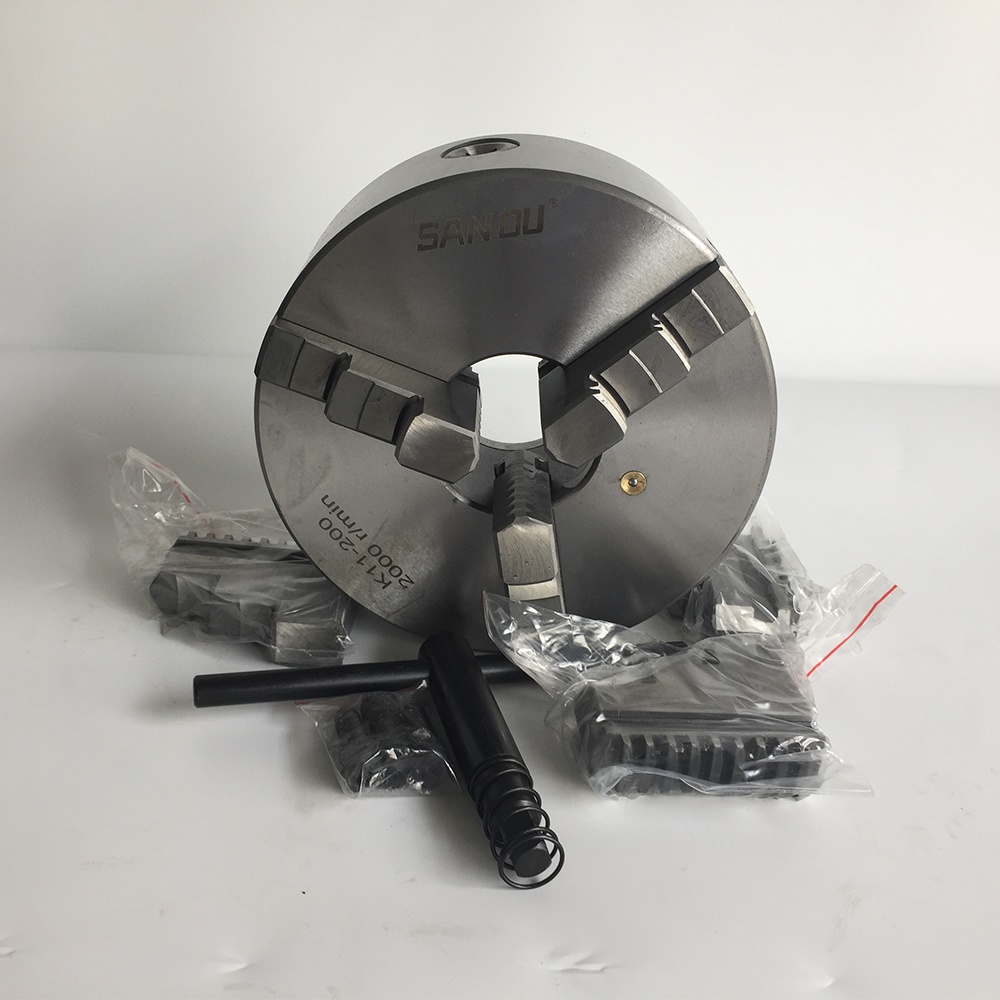

The package includes:
Self-centering chuck body x1
Inner Jaw x 3
Large outer jaw x 3
Safety chuck key x 1
Mounting Bolts x 3
