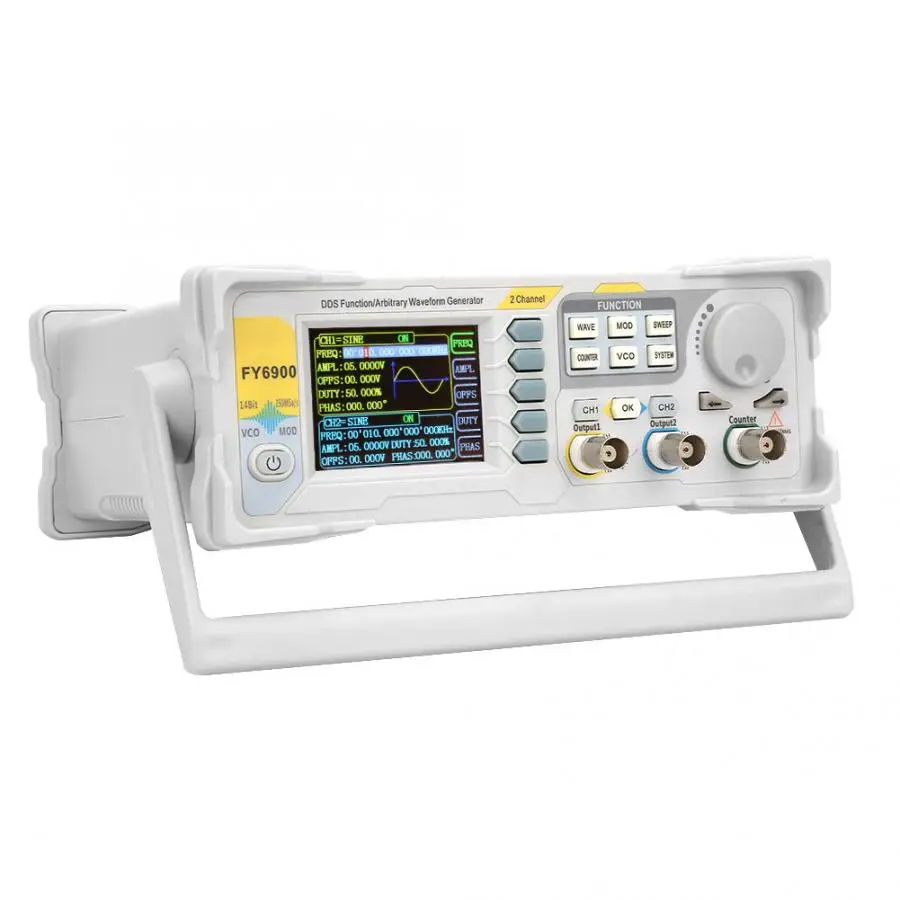

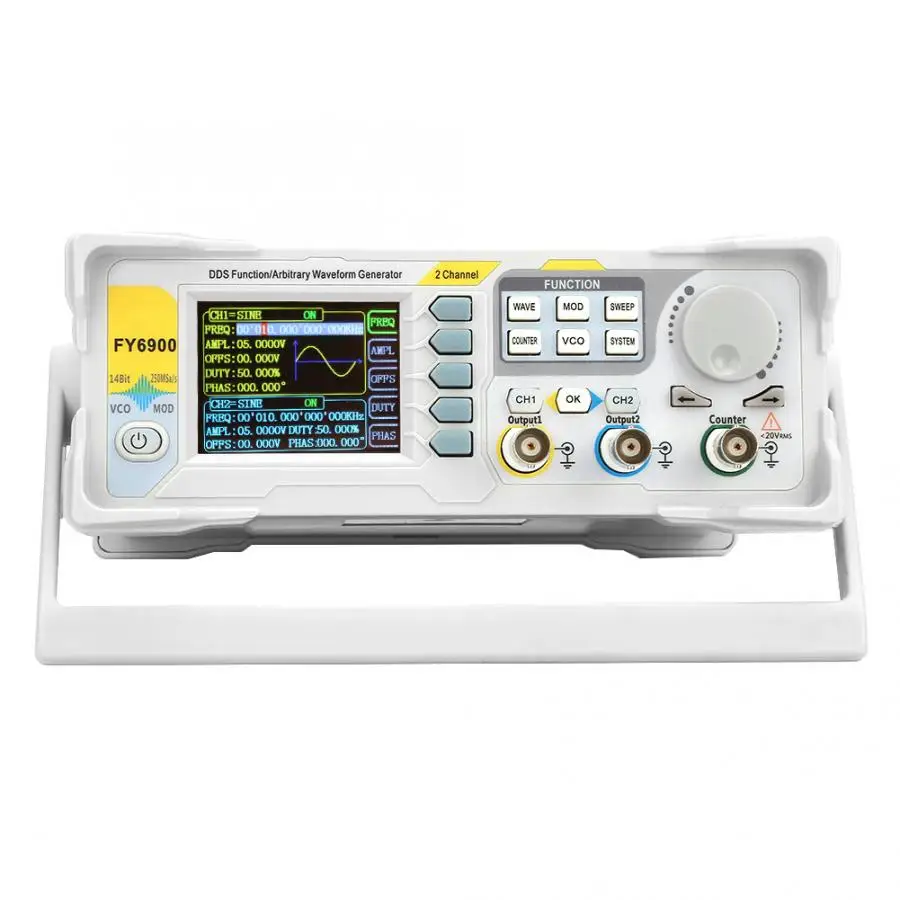

FY6900-60M Function Signal Generator High Precision Digital DDS Dual-channel Function Signal/Arbitrary Waveform Generator

Product details
WEIGHT:1.7kg;Brand Name:customlized;
nvironment: Temp:0-40℃;Packaging Detail:carton box;
Amount:20;Selling Units:Single item;
Product name:FY6900-60MHZ;Model Number:FY6900-60MHZ;
Place of Origin:Guangdong China;Single gross weight:1.7 KG;
Voltage Range:AC100V-240V;Frequency range:60mhz;
Material:Plastic;Type:Signal Generator;
Humidity:<80%;Display:2.4 inch, TFT Color Display;
Single package size:20X19X9 cm;Item Type:Signal Generator;

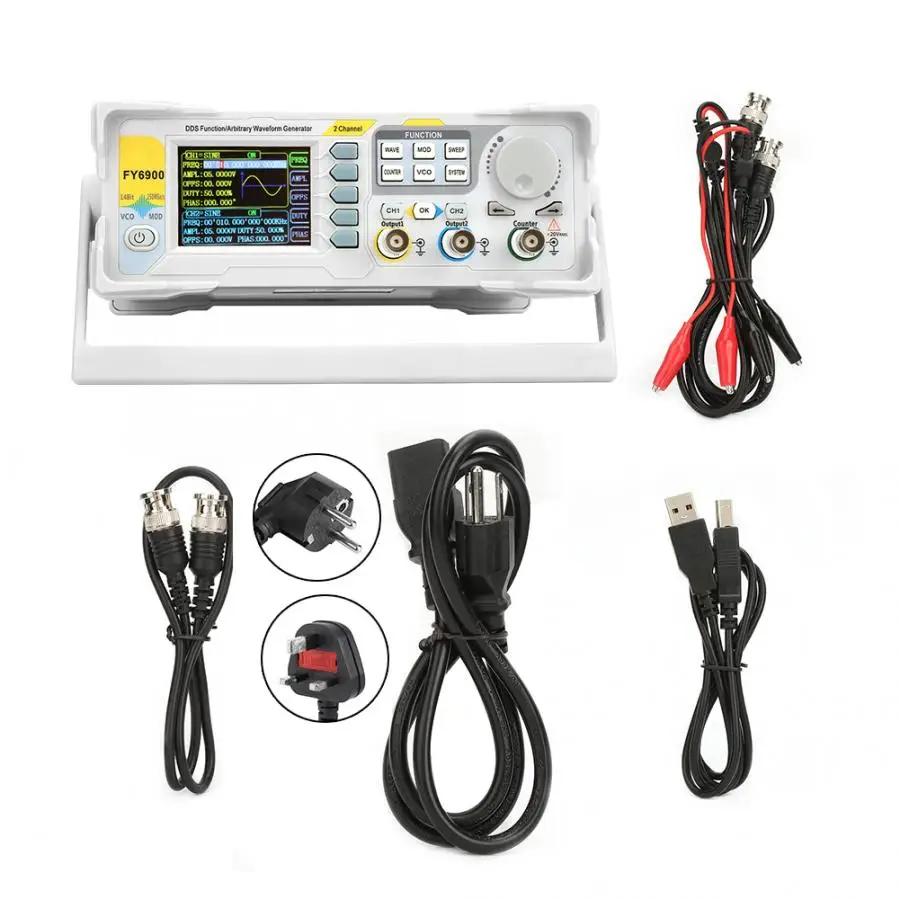

Product Description

 Specifications:
Condition: 100% Brand New
Material: Plastic
Plug: EU Plug 220V, US Plug 110V, UK Plug 240V (Optional)
Display: 2.4 inch, TFT Color Display
Save & Load:
Amount: 20
Position: 01 to 20 (01 for start default value)
Interface:
Type: USB to Serial interface
Protocol: Command line mode, providing communication protocols.
Communicating Speed: 9600bps (Industrial standard)
Power:
Voltage Range: AC100V~240V
Technic: SMD, LSI, Reliable and durable
Buzzer: Can be turned on/off by setting.
Operation: Buttons and knob continuously.
Environment: Temp.: 0~40℃, Humidity: <80%
Weight: Approx. 1075g / 37.9oz
Package Size: Approx. 25*21*10cm / 9.8*8.3*3.9in

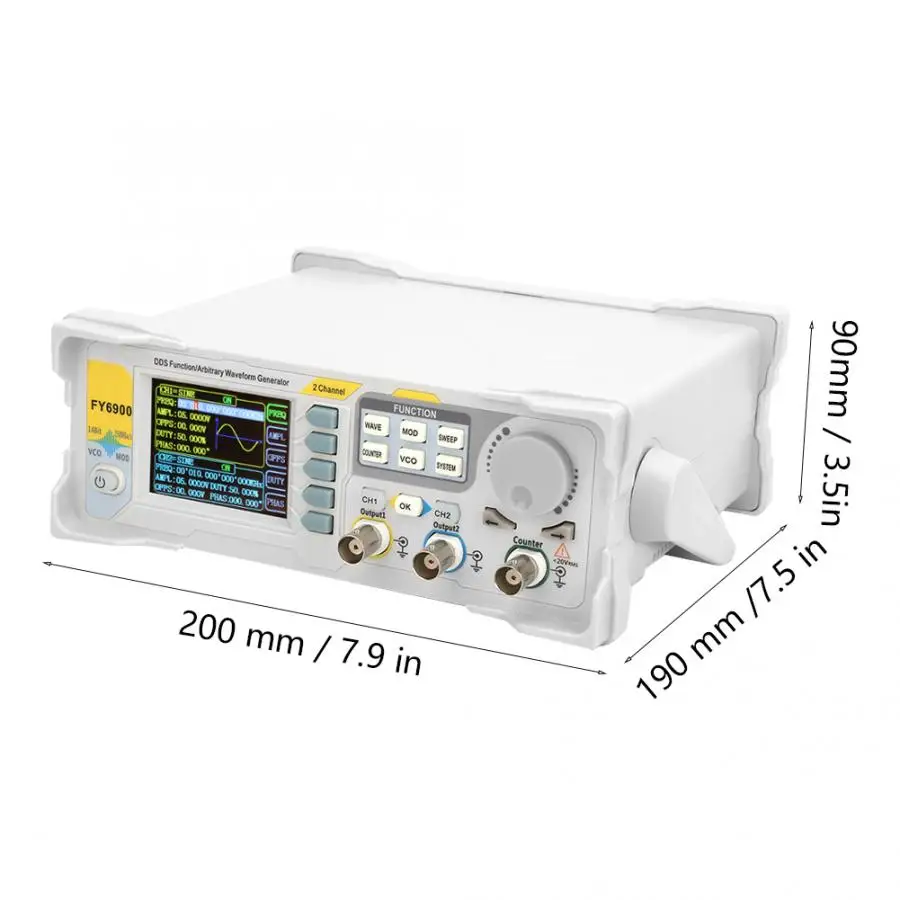

Size: Approx. 200*190*90mm / 7.9*7.5*3.5in



MaterialSineSquare
Plastic0~60MHz0~25MHz



Frequency
Sine: 0~60MHz
Square: 0~25MHz
Ramp, Triangle: 0~10MHz
Pulse: 0~10MHz
TTL/CMOS: 0~10MHz
Arbitrary Waveform: 0~10MHz
Minimum pulse width: 20ns(All models of pulse wave minimum width can reach 20ns)
Min. Resolution on all frequency range: 1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).
Accuracy: ±20ppm
Stability: ±1ppm/ 3hours

Waveform Characteristics
Waveforms: Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Waveform Length: 8192 points * 14bits
Sampling Rate: 250MSa/s
Vertical Resolution: 14 bits
Sine:
Harmonic Suppression: ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz)
Total Harmonic Distortion: <0.5% (20Hz~20kHz,0dBm)
Rectangle:
Rise/Fall Time: ≤7ns (VPP<5V)
Overshoot: ≤5%
Duty Cycle: 0.01%~99.99% (Resolution 0.01%)
Sawtooth wave:
Linearity: >99% (0.01Hz~10kHz)

Output characteristics
Amplitude(VPP)
Frequency≤5MHz: 1mVpp~24Vpp;
5MHz
10MHz
Frequency>20MHz: 1mVpp~5Vpp
Resolution: 1mV
Amplitude: Stability ±0.5%/ 5 Hours
Amplitude: flatness ±2.5%(<10MHz);±5%(>10MHz)

Waveform Output
Impedance: 50Ω±10%(Typical)
Protection: All channels can work more than 60 seconds when the load is short-circuited.

DC Offset
Offset Range: Frequency≤20MHz: ±12V; Frequency>20MHz: ±2.5V;
Offset Resolution: 1mV

Phase Feature
Phase range: 0~359.99°
Phase resolution: 0.01

TTL Output
TTL Level Amplitude: >3Vpp
Fan-out: >8 TTL LOAD
Rise/Fall Time: ≤10ns

CMOS Output
Low Electric Level: <0.3V
High Electric Level: 1V~12V
Rise/Fall Time: ≤18ns

External Measurement
Function: Frequency, Period, Positive/Negative Pulse Width, Duty Cycle
Input Voltage Range: 1Vpp~20Vpp
Frequency Meter:
Resolution: 0.01Hz (Gate Time = 100S)
Range: 0.01Hz~100MHz
Sensitivity: Gate Time 3 grades (1S, 10S, 100S) adjustable
Counter:
Range: 0-4294967295
Coupling: DC, AC
Working Mode: Manual
Period:
Measurement Range: 5ns ~ 20s
DC coupling measurement
Pulse Width:
Measurement Range: 0ns ~ 20s
Resolution: 5ns
Duty Cycle:
Range (Display): 0% ~ 100%

Sweep
Carrier Waveform: Sine, Square, Ramp, Arbitrary (except DC)
Sweep Type: Linear or Logarithm
Sweep Direction: Up, Down and roundtrip sweep directions;
Sweep Objects: Frequency, Amplitude, Offset, Duty Cycle
Sweep Time: 0.01S~999.99S/Step
Setting range: Starting position and Finishing position can be set arbitrarily.
Sweep Range: Decided by Parameters setting.

VCO (Voltage Control Output)
Modulation signal range to input: 0~5V
VCO signal frequency range: 0-2000Hz
VCO control object: voltage controlling frequency (VCF), voltage controlling amplitude (VCA), voltage controlling offset, voltage controlling duty cycle.
VCO special function: Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal.

Modulation
Modulation Type: AM, FM, PM, ASK, FSK, PSK
Carrier Waveform: Sine, Square, Triangle, Ramp, Arbitrary waveform (Except DC)
AM
Source: Internal (CH2) / External (VCO IN Port)
Modulating Waveform: Sine, Square, Triangle, Ramp, Arbitrary waveform
Depth: 0% to 120%
Modulating Frequency: Internal : 1μHz~1MHz; External: 1μHz~2KHz;
FM
Source: Internal (CH2) / External (VCO IN Port)
Modulating Waveform: Sine, Square, Triangle, Ramp, Arbitrary waveform
Modulating Frequency: Internal : 1μHz~1MHz; External: 1μHz~2KHz;
PM
Source: Internal (CH2) / External (VCO IN Port)
Modulating Waveform: Sine, Square, Triangle, Ramp, Arbitrary waveform
Phase Deviation: 0° to 360°
Modulating Frequency: Internal : 1μHz~1MHz; External: 1μHz~2KHz;
ASK
Source: Internal (CH2), External (ASK IN Port), Manual
Modulating Waveform: Square with 50% duty cycle.
Key Frequency: 1μHz~10MHz
FSK
Source: Internal (CH2), External (FSK IN Port), Manual
Modulating Waveform: Square with 50% duty cycle.
Key Frequency: 1μHz~10MHz
PSK
Source: Internal (CH2), External (PSK IN Port), Manual
Modulating Waveform: Square with 50% duty cycle.
Key Frequency: 1μHz~10MHz
Burst Function
Carrier Waveform: Sine, Square, Ramp, Arbitrary (except DC)
Burst Count: 1~1048575
Trigger Source: Manual, Internal, External (AC/DC)
