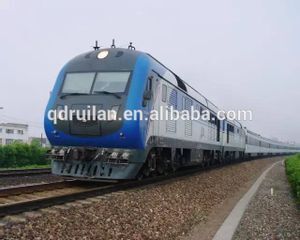

DMU, 5000HP mix traffic diesel electric railway locomotive, coal hopper wagon,flat wagon

Product details
Place of Origin:Shandong China;Speed(km/h):120;
Port:Qingdao or other ports;Material:Steel;
Type:Hopper Wagon,Hopper Tank Wagon;Delivery Detail:within 90 days;
Packaging Detail:as your demonds;Volume (m3):85;
Distance between bogie pivot centers(mm): 10430;Tare weight (T):23.8;
Preload:> 50T;Minimum curve radius (m):145;
Loading capacity (T):60;Axle load (T):21;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Model Number:L18;
Supply Ability:2400 Set/Sets per Year;
Product Description

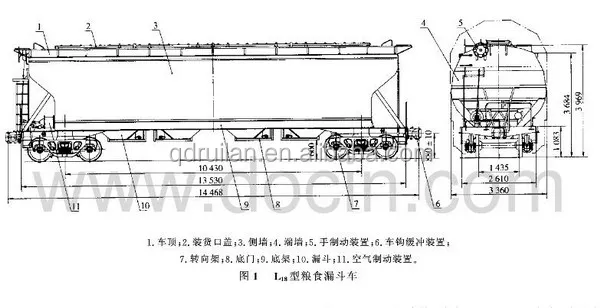

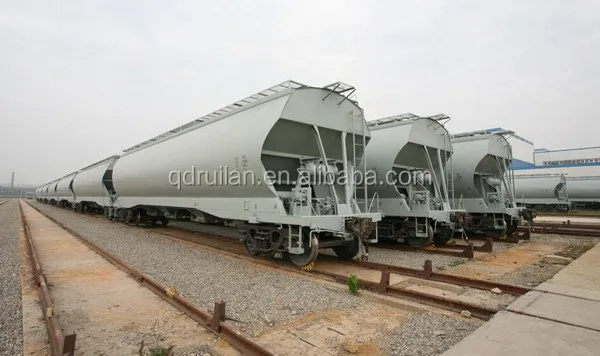

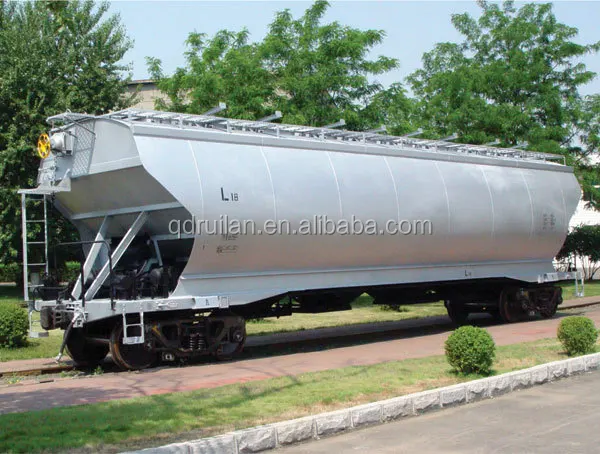

Type L18 hoppor wagon for delivering grain is mainly used to deliver bulk grain such as wheat,corn and soybean.

The wagon's body is welded loading structure fully made of monobloc steel plate with big arc shape, And without middle beams,consists of underframe,side frame,end walls,doors,hopper,wagon top,cap for loading goods,etc.

Adopting type 120 control valve,spinning sealed brake cylinder of 2545X 254,ST l-600 slack adjuster,empty and load changeover valve and 13-A coupler of C class steel and MT-3 draft gear,ETC.The wagon adopts Type K2 bogie.

Specification



Loading Capacity (t)

60

Tare Weight (t)

≤23.8

Axle Weight (t)

21

Volume(m3)

85

Gauge(mm)

1435

Max Operating Speed(km/h)

120

Min. Radius(m)

145

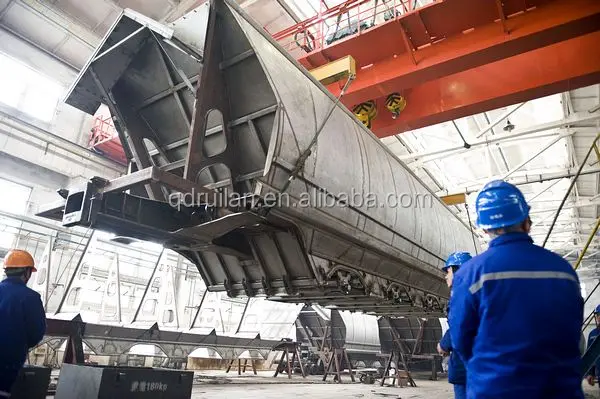

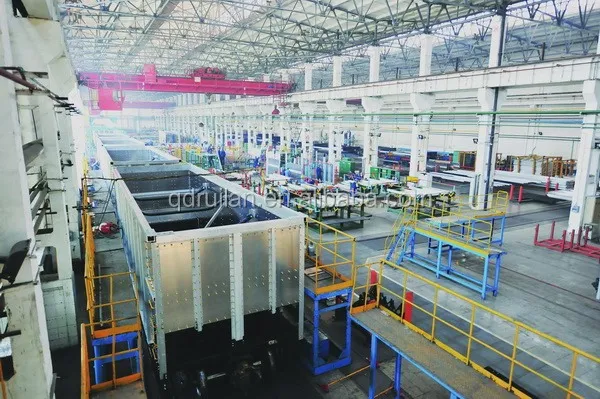

Factory
