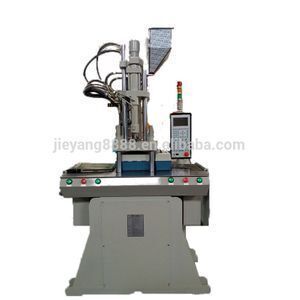

Custom Vertical Silicone Rubber PA Injection Molding Machine

Supplier: Dongguan Jieyang Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Eason Chu
Price: $3200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Ejetor Force:	1.5 Ton;	Clamping Force:	45 Tons;
Injection Weight:	2.6--3.8 OZ;	Power(W):	2.8KW;
Ejetor Stoke:	135mm;	Max.Shot Weight:	106 g;
Product name:	custom vertical injection machine;	Delivery Detail:	Within 25 days after receiving your deposit of payment;
Brand Name:	Jie Yang;	Plastic Type:	Thermoplastic;
Style:	Vertical;	Model Number:	JY-450STDM;
Place of Origin:	Guangdong China (Mainland);	Packaging Detail:	1. Standard Packing: Plastic film is wrapped on the machine; 2. Plywood Carton Package.;
Certification:	TUV, CE;	Operating Language:	English, Spanish, Japanese, Arab, etc.;
Port:	Shenzhen;	Condition:	New;
Opening Stroke:	190mm;	Type:	Preform Injection;
Supply Ability:	200 Set/Sets per Month;	Color:	Green/gray, others;
Injection Rate:	62.5--95 cm3/sec;	After-sales Service Provided:	Engineers available to service machinery overseas;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Automatic:	Yes;
Warranty:	One Year;	Screw Diameter:	30--35 mm;
Shipping weight:	2.1 Tons;	Injection pressure:	810-1171 kg/cm2;

Video of Vertical Injection Molding Machine

34. https://youtu.be/gTjqj5etwxI Jieyang Plastic Vertical Injection Molding Machine Factory Showroom

35. https://youtu.be/tj2-EhUSAEE JY-550C-2M 55 ton C Type Double Slide Vertical Injection Molding Machine

36. https://youtu.be/RWaliW6Phxw Bird Pigeon Legs Sign Board Vertical Plastic Injection Molding Making Machine

37. https://youtu.be/Vl2iwBlcz1o Electric Plug Support Double Slide Vertical Plastic Injection Molding

38. https://youtu.be/qYPT3E-TM0Q Automatic Terminal Crimping Machine
41.https://youtu.be/31gangdRIOA Medical Supplies vertical injection machines.
42.https://youtu.be/p8ouy5wkirE LED Bulb Rotary Table Vertical Injection Molding Machine

1. Highlights

1)Alternate the two lower dies of JY-ST series single-mode cross slide board on a flat surface. The lower die is used for inserted action outside. Because high working safe features, working efficiency can be advanced in a large range. The finished goods are propped up to outside for completion. (Lower die independent thimble)

2)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.

Ergonomic operations thanks to wide range of different clamping systems;
Short cycle times and high productivity thanks to machine versions with various rotary tables and sliding tables;
Servo-electric rotary tables for precise and reliable processing of delicate inserts;
Simple integration into automated production lines;
Particularly space-saving, compact design.

1)English/Arabic/Spanish LCD display, which can memorize 60 groups of mold data.

2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor.

3)It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine.

4)Adopting double(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.

2. Parameter

SPECIFICATIONS FOR Custom Vertical Silicone Rubber Injection Molding Machine (MODEL NO.: JY-350ST-D)
Injection Unit	Screw Diameter	mm	30	32	35
	Injection Pressure	kg/cm2	1171	996	810
	Theoretical Shot Volume	cm3	81	92	117
	Max. Shot Weight(PS)	g	74	84	106
	Saft Shot Weight(PS)	oz	2.6	3.0	3.80
	Max. Shot Weight(PS)	cm3/sec	62.5	71	95
	Injection Rate	mm	115
	Screw Speed Max.	rpm	0-190
	Nozzle Comtact Force	tons	4.45
	Nozzle Retraction Stroke	mm	190
	Number of Temperature Control		3

Clamping Unit	Clamping Force	tons	45
	Platen Size	mm	400 x 400
	Distance Between Tie Bere	mm	410 x 250
	Min. Mold Height	mm	200/150
	Opening Stoke	mm	200
	Max. Open Daylight	mm	400/350
	Ejetor Force	tons	1.5
	Ejetor Stoke	mm	135

Power/Heating Unit	Max. Hydaulic Pressure	kg/cm2	140
	Pump Output	l/min	37.2
	Oil Resservoir Capacity	l	130
	Cooling Water Consumption	l/hr	600-800
	Pump Motor Power	KW/HP	5.5/7.5HP
	Berrel Heating Power	KW	2.8
	Total Power	KW	9

3. Pictures

4. Application:

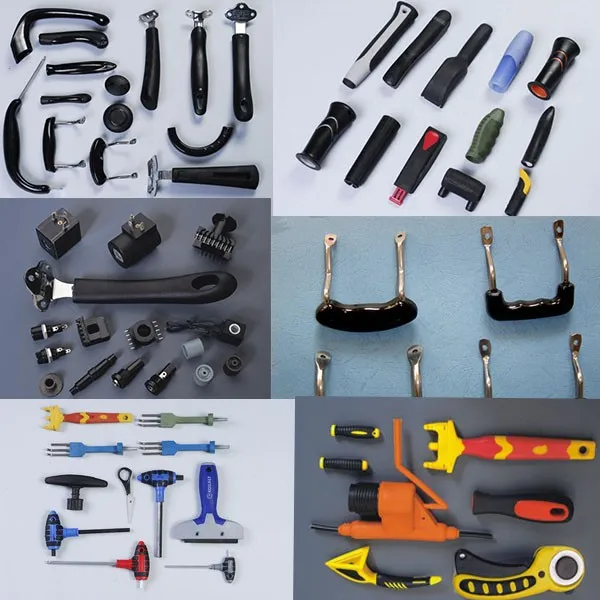

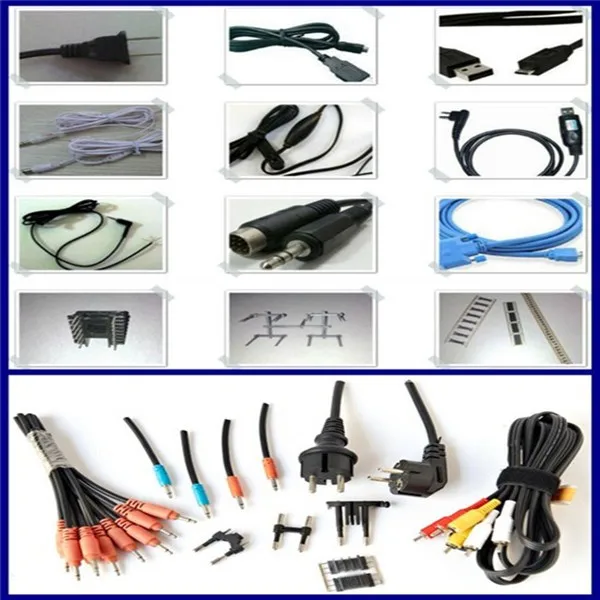

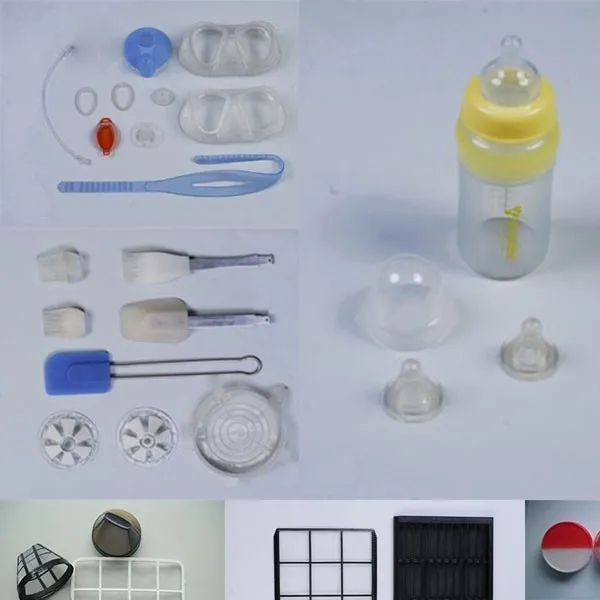

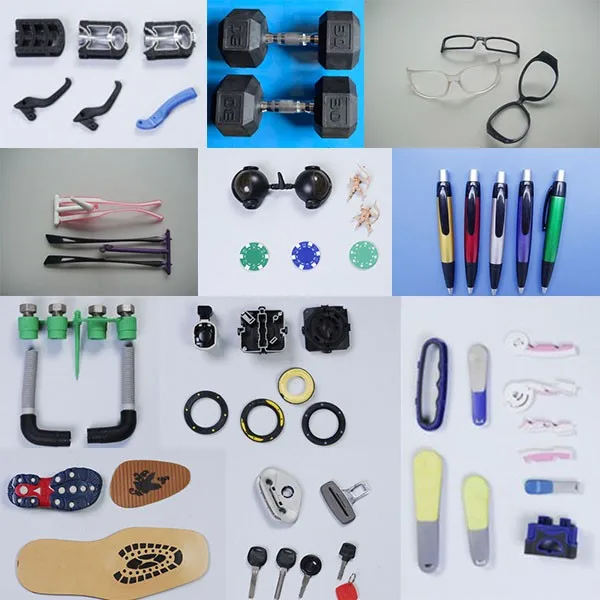

Inserts can be ergonomically encapsulated with our vertical Plastic injection molding machines. You can choose from the most extensive range of machines available in the industry, from the comprehensive spectrum of automated machine concepts to customer-specific special solutions. Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.

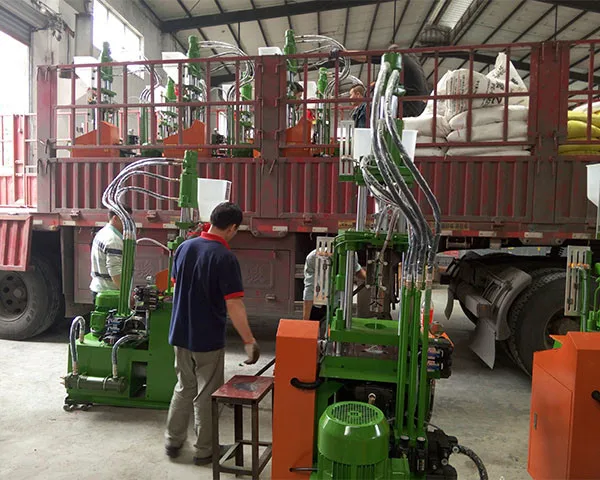

5. Packing & Shipping :
1.  Before shipping,we will check and test the machine carfully.

2.  We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.

3.  According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us

6. RFQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.

Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

7. Contact:
