Ruth IE-02 High Pressure Injection Device

Product details
MOQ:1Set;Place of Origin:Shanghai China;
Weight:9KGS;Packaging Detail:1 set per carton. Ruth IE-02 High Pressure Injection Device.;
Maximum output pressure:70Mpa;Packing:1set/carton;
Type:waterproofing tools,Electric;Usage:waterproofing;
Supply Ability:1000 Set/Sets per Week Ruth IE-02 High Pressure Injection Device;Delivery Detail:Shipped in 7 days after payment;
Port:Shanghai;Product Name:Ruth IE-02 High Pressure Injection Device;
Payment Terms:L/C,T/T,Western Union;Power:220V/110V;
Application:Waterproof use;



Product Description



Place of OriginShanghai China
Maximum output pressure70Mpa
TypeElectric
Power220V/110V
ApplicationWaterproof use
Weight9KGS
Packing1set/carton
Product NameRuth IE-02 High Pressure  Injection Device
MOQ1Set
Usagewaterproofing

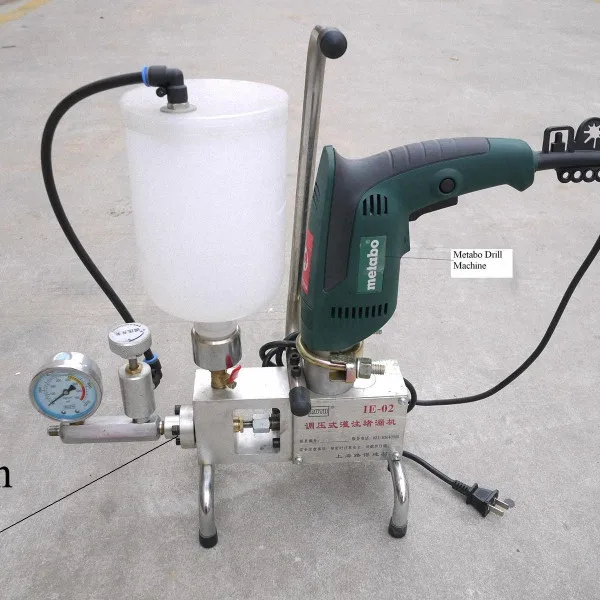

  1. Item:  Portable PU Resin Injection Machine
  2. Brand Name: Ruth Brand
  3. MOQ: 1 set
  4. Sample Time: 3 days-polyurethane Grouting Machine
  5. Package details:

    1set/Carton, Carton Size:46*22*49cm, Net Weight: 9kgs
    20 sets/Pallet, Pallet Size: 1*1*1M

  6. Easy to carry & maintain, maximum output pressure up to 70MPa.
  7. Injection pressure:0-70Mpa(8000-10000Lb)
  8. 2 ways of material feed-in: pour & suck
  9. The Drill is Matabo. The power consumption:560W/220V or 110V

 Material of application



WPU and OPU foam stop leakage agent, Concrete crack waterproofing, Epoxy resin.

Applications

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.



Specification

 IE-02 Injection Device, Ruth Injection Device, Injection Device.

Weight(Include Package)

around 10Kg

Maximum output pressure

70MPa

Pressure of restarting

less than 20 MPa

Safe range of high-pressure hose

less than 70 MPa

Safe range of switch valve

less than 50 MPa



 Materials of Application



       Hydrophilic Polyurethane (WPU) and Hydrophobic Polyurethane (OPU) foam stop leakage agent, Epoxy Resin.



Application Field



 Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement Hairline Crack, etc., water stop projects.



Notes during Applying

  1. Stop injecting if injected materials does not emit from the cracks after 5 minutes of application. Check for cross-drilled buried pipeline or other unnoticed holes.
  2.  All application process should be closely watched. If the injection machine’s pressure remained high after releasing the valve on the connector, cracks and injection packers should be checked.
Packaging & Shipping



Transportation by Air: Arrival within 2-7 days upon receipt of payment, excluding weekends and holidays.

Transportation by Ship: Delivery within 2-5 days upon receipt of payment, excluding weekends and holidays.

Packing Detail: 40 cartons per pallet (1*1 M)

Our Services

1. 24hour online service.

2. Enquiry will be replied in 2 hours.

FAQ

Q: Would you afford samples to test by ourselves?

A: Of course we can, it is our pleasure.

Q: Is samples as same as big order?

A: Keep same Quality as you saw always.

Q: What is your main Market?

A: Asia, Southeast Asia, Middle East, Oceanica.

Q: How can I get the after-service?

A:  The  service package will help, if it is man-made problems, we also send the spare parts, but you should pay.
