Substrate: | Steel; | Certification: | CE; |
Package Preview: | ; | Voltage: | 110-230VAC; |
Selling Units: | Single item; | Condition: | New; |
Dimension(L*W*H): | 37X18x11; | After-sales Service Provided: | Video technical support,Online support; |
Warranty: | 1 Year; | Spraying Guns: | Manual Powder Gun; |
Applicable Industries: | Manufacturing Plant,Home Use; | Type: | Coating Spray Gun; |
Brand Name: | OEM; | Weight: | 3; |
Single gross weight: | 4.0 KG; | Packaging Detail: | Double corrugated cardboard qty:1pcs/ctn Ctn size:42*30.5*26.5cm; |
Power: | 10w; | Single package size: | 42X31X26.5 cm; |
Product model:
Powder coating machine
STP120-9000
• Powder coating is tougher than conventional paint,easy to use and clean up and covers better
• System provides a minimum 80% transfer efficiency
• 1/4 NPS air inlet
• 10-30 PSI input air pressure
SPECIFICATIONS
Item | Description |
Power Consumption | 120 -240VAC,50-60HZ |
Output high pressure | 15KV |
Line Cord | 6 feet long,16 AWG,3-prong grounded plug |
Air Supply Pressure | 10 to 30 PSI |
Cubic Feet Per Minute | 3.5 CFM at 30 PSI |
Air Inlet Size | 1/4 inch |
Remote Activation Switch | 10 feet long |
Gun Power Lead | 8 feet ,high voltage lead |
Grounding Cable | 8 feet long with ground clamp |
Control Box Fuse | 0.5 amps |
Paint Curing Temperature | 400 degrees F. for 15 minutes(recommended) |
Weight | 6.35 lbs |

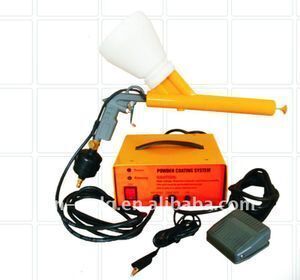

PARTS LIST AND ASSEMBLY DIAGRAM
Part | Description | Q’ty |
1 | Control Box | 1 |
2 | Spray Gun | 1 |
3 | Scatter Tips | 3(Small,Medium,Large) |
4 | Powder Cups | 2 |
5 | Pressure Reducer Valve | 1 |
6 | Disposable Moisture Separator | 1 |
7 | Quick Adapter | 1 |
8 | Foot Switch | 1 |
9 | Power Cord | 1 |
10 | Ground Wire and Clip | 1 |
√It is suitable for plastic coating on the surface of all kinds of metal parts. Characteristics: The surface treatment is beautiful and coating finishing rate is high and quick. It also has overload protection. Performance is consistent, operation is simple and safe.
