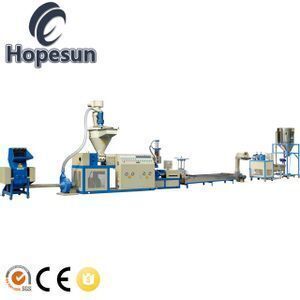

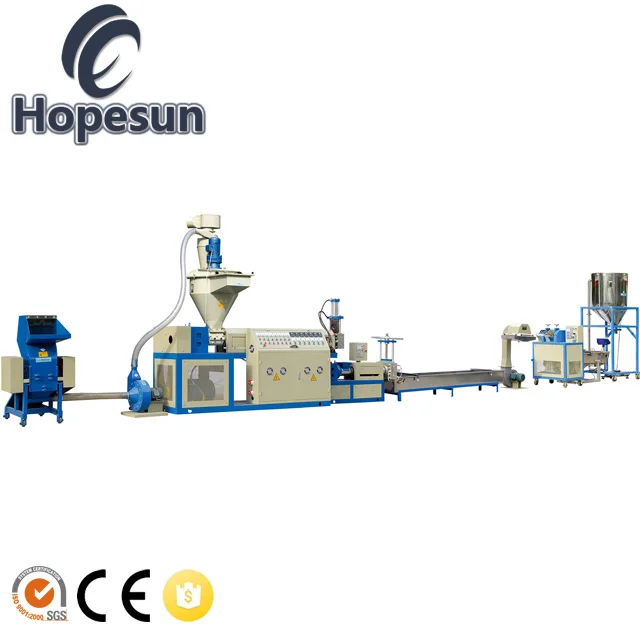

PP HDPE LDPE PE Garbage PVC EPS PET PP Nylon Plastic Bags Film PS Bottle Washing Waste Plastic pelletizing machine Price

Product details
Selling Units:Single item;Type:Recycling Granulator,recycling and pelletizing;
Certification:CE ISO9001;Brand Name:hopesun;
Output (kg/h):50 - 800;Dimension(L*W*H):950x800x1350;
Material Processed:Plastic Pp Pe Film;Applicable Industries:Manufacturing Plant;
Single gross weight:50.0 KG;Packaging Detail:export packing for plastic pellet cutting machine;
Local Service Location:Brazil,Peru,Mexico,Argentina,Sri Lanka;Single package size:50X60X30 cm;
TEST RUN:INSPECT;Final product:granule;
Name:platic pelletizing machine;Screw Design:cutting machine;
Plastic Processed:HDPE/PP,PA,PE/PP,ABS/PP;After Warranty Service:Field maintenance and repair service;
Place of Origin:Zhejiang China;Warranty:1 Year;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;Showroom Location:Brazil,Peru,Saudi Arabia,Pakistan,Mexico,Argentina,Sri Lanka;
Material:PP/PE;Voltage:220V/380V/415V;
Condition:New;Capacity:100-800kg/h;
Weight:300kg;Power:1.5-11kw;
Keywords:Recycling Plastic Pelletizing Machine;





Application:

Applicable materials: PP,PE, LDPE, LLDPE, HDPE, BOPP etc.

Material shape: Woven bags, pp pe film, printed LDPE film (rolls, loose, bundled), agriculture film etc.



Advantages:

  1.  Equipped with the vertical and horizontal force-feeding device to ensure high output.

  2.  Vent design on the barrel to evaporate the volatiles form the recycling material.

  3.  Hydraulic screen change unit and pressure gauge for easy operation and safety.

  4.  The vertical centrifuge separates and dry the pellets faster.

  5.  High-efficient force-feeder ensures high capacity feeding, low energy consumption

  6.  Plastic pelletizer style: water-ring cutting with extrusion die or strand cutting



Detailed specification :

Model



LD



 Output(kg/h)



 speed(r/min)

 Power(kw)

Center height(mm)

HPA-SJP-90



25:1



80-100



70



22-30



700



HPA-SJP-100



25:1



100-120



70



30



750



HPA-SJP-120



25:1



130-150



70



37-45



750



HPA-SJP-130



25:1



150-170



70



45-55



800



HPA-SJP-140



25:1



180-220



70



55-75



800



HPA-SJP-150



25:1



240-300



70



75



800





For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks .

1.what material you will process(PP PE film , or PET bottle , or other material)

2.what output per hour(kg/hour) do you need ?

3.Other requirements about the machine you want.

Some machines video :

 1. https://youtu.be/J3NaPy5E3Gc

 2. https://youtu.be/4-ia8W4-UGg

3.  https://youtu.be/ViyP9ZdSvmU

4. https://youtu.be/aXvgME_Y7Ls

5. https://youtu.be/nKb9iMj1LZg



Contact with us for more video and idear for different kinds of plastic pelletizing machine .

Mobile&whatsapp&wechat : 008615888181919

SPECIFICATION OF THE MAIN MACHINE

Item

Specification

Screw and barrel

l  made of high grade 38CrMoAIL

l  hardening& tempering hardness : HB270-300

l  Nitrided hardness: HV850-1000

l  Nitrided depth:0.45-0.7 mm

l  Screw straightness  : 0.015 mm

Gear box

l  Gear made of 20CrMnTi

l  Hard teeth surface

l  Hardness : HRC54-62

l  Bearing  : ZHJ and DYZV

l  Sealing:TAIWAN TTO

Motor

l  Beautiful profile

l  High efficiency and energy saving

(IE2 of IEC60034-30 and level 3 of GB18613-2012)

l  Class F VPI insulation

l  Low noise

l  Little vibration

l  Reliable performance

l  High lock rotor torque

l  Junction box equipped with glands

Screen changer

l  Option : Hydraulic , motor , manual etc

l  Filter material : 38CrMoAl nitrition treatment

l  Convenient and high efficient

Electrical parts

l  Option : chnt , siemens , schedule brand etc ;

l  Stable and high performance

Pelletizer

l  Horizontal or vertical pelletizer according to the use

l  Option : strand pelletizer , water ring , under water cutting ;

l  Rotary blade design and blade teeth made of tungsten steel

l  Stable and cutting in uniform
