high quality portable CNC plasma plate and pipe cutting mach

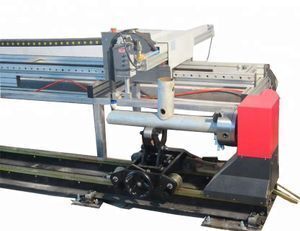

Portable CNC Pipe Plasma Cutting Machine SNR-KB-XG

Product Main Features

 1) Equipped with “Three-Axis, Two-Axis Linkage Control” intersection NC system, and the 7 inch color LCD screen, Fit for pipe cutting without beveling.

 2) Standard version not only can both flame cutting and plasma cutting, but also can cut both pipe and steel plate.

3) Using AC 3 phase high voltage step motor drive technology, the motors get more power but less noisy.

4) Can make intersecting pipe hole cutting in different directions and different diameters. Can make branch pipe and main pipe vertical or cross in some angle

5) Can cut oblique section of the pipe.

6) Can cut branch intersecting pipe's end socket for main pipe.

7) Can cut square and slotted hole and all shapes on the pipe.

8) Can cut off the pipe.

9) Can cut dual bending ends for bending of the pipe after welding.

Technical Parameter

Machine Details and Install

Nesting Software: SNR FreePipe

1. support many kind of tubes

2. Adjust parameters and angle freely.

Applications

1. Material: for cutting pipe of stainless steel, carbon steel, aluminum, copper, or other metal materials.

2. Industry: Especially for steel construction, shipbuilding, marine engineering, the elevator industry, building walls, bridges, towers and mechanical engineering industries.

Cutting link:

http://v.youku.com/v_show/id_XMTI3MDc1NzAwMA==.html

Cutting Samples

Our Service

1. 12 months of warranty for the whole machine except for wearing parts.

2. Provide liftime free technical service by email or phone.

FAQ:

For offering you the most suitable machine and favorable price, please kindly confirm with us the below questions:

1. The tube diameter?

2.  The pipe Length?

3. The thickness?

After receive your comments, we will provide you with more informations about the machine and price. Thanks!
