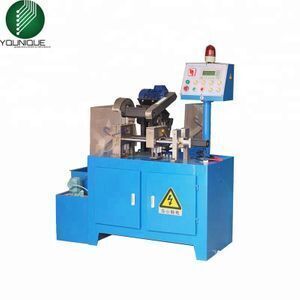

Automatic Cable Lugs Aluminum Pipe Copper Tube Cutting Machi

Supplier: Wenzhou Unique Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Jane Zhang
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	YQUNIQUE;	Usage:	metal cutting;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Product name:	Tube Cutting Machine;
Packaging Detail:	woodencase with pallent;	Port:	shaghai or ningbo;
Rated Capacity:	punching cutting;	Weight:	350;
Model Number:	YE-Q1;	Certification:	ISO;
Dimension(LWH):	85016001600;	Supply Ability:	200 Set/Sets per Month;
Weight:	350kgs;	Condition:	New;
Rated Power:	500W/800W/1000W;	Application:	metal tube or pipe cutting;
Place of Origin:	Zhejiang China (Mainland);	Warranty:	1 Year;
Voltage:	380V 50HZ;	After-sales Service Provided:	Engineers available to service machinery overseas;
Item:	1.5sqmm to 300sqmm;	Delivery Detail:	Shipped in 45 days after payment;
Warranty:	One Year;	Voltage:	380V;

Product Description

Product Application

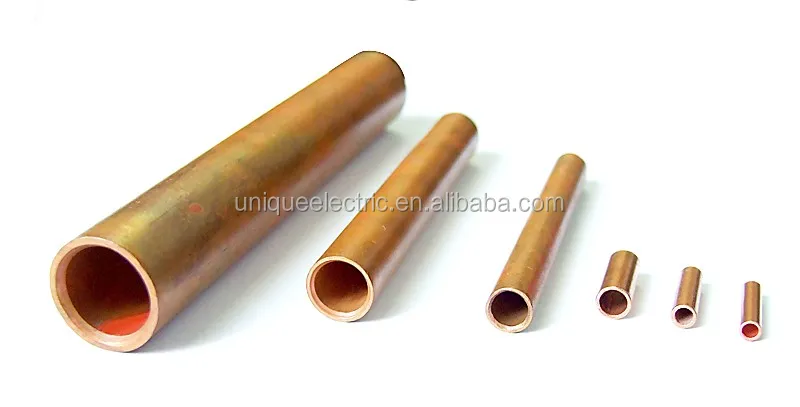

FULLY-Automatic copper tube cutting machine are for the copper lugs cut in bunch

1,Machinery main circuit is controlled by imported PLC computer,the operation is on simple,sensitive,easy

2.Servo motors is used to automatic feeding,precision lead screw,linear bearings,cutting accuracy ±0.03mm

3.Counters can be set the number of processing,automatic stop when it completely.

4.Counters can be accumulated record of work a day.

5.When the processing size changed,you only need to change the size in the text display to work,without manual positioning or handware positioning;

SPECIFICATIONS FOR YE-Q1 AUTOMAITC PIPE CUTTING MACHINE
Electric	Voltage	V	380
	Frequency	HZ	50
	power	W	500
Main performance parameters		AWG	7-5
	work speed (max. & min.)	pcs/min	10
	Tube SIZE	SQMM	1.5-300
Pneumatic system	Pneumatic system	MPa	0.6-0.8
Tube range	copper	brass	aluminum

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Application

Detailed Images

Machine Parts

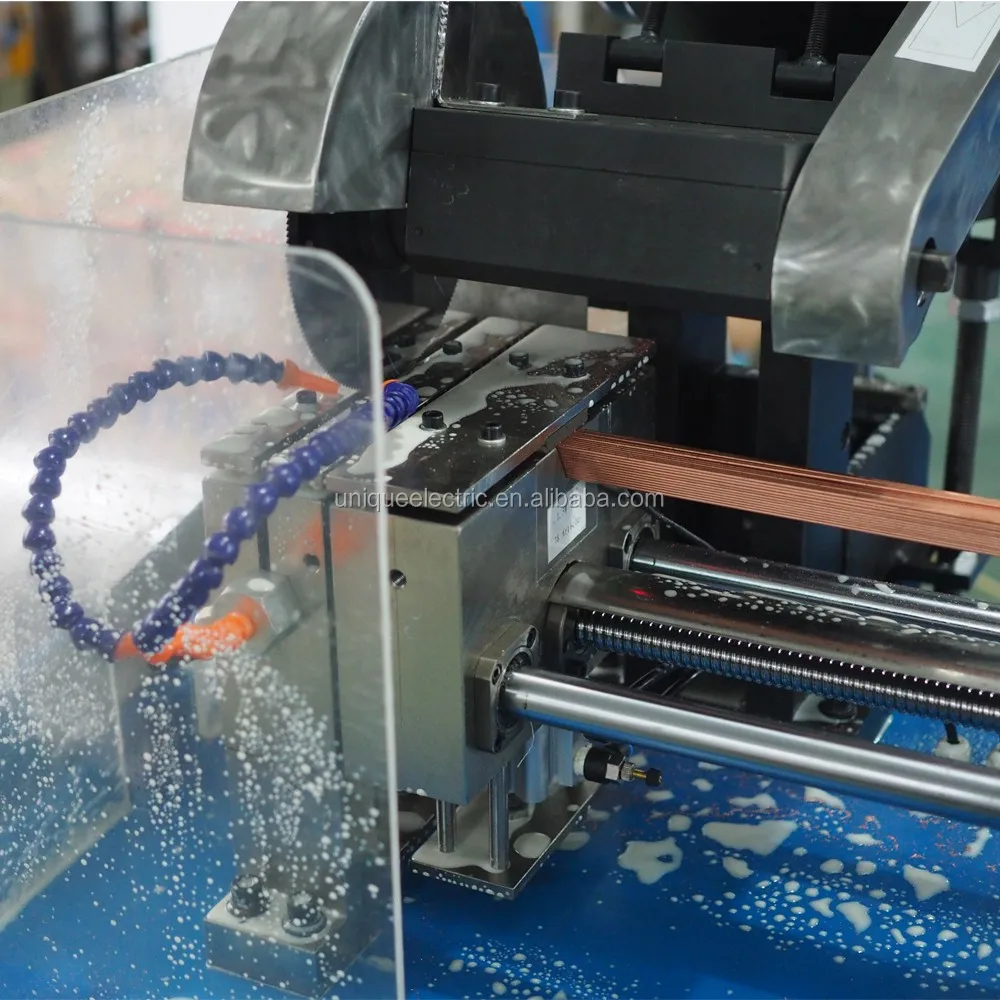

Name: TUBE CLAMP

Brand: YQUNIQUE

Original: China

CHANGEABLE CLAMP FOR DIFFERENT COPPER TUBE SIZE

Main Features

Name: TUNGSTEN BLADE
Brand: YQUNIQUE
Original:CHINA

HIGH QUANLITY TUNGSTEN BALDE TO MAKE THE TUEE CUT WITH OUT BURR

Machine Parts

Name: WATER PUMP
Brand: YQUNIQE
Original: CHINA

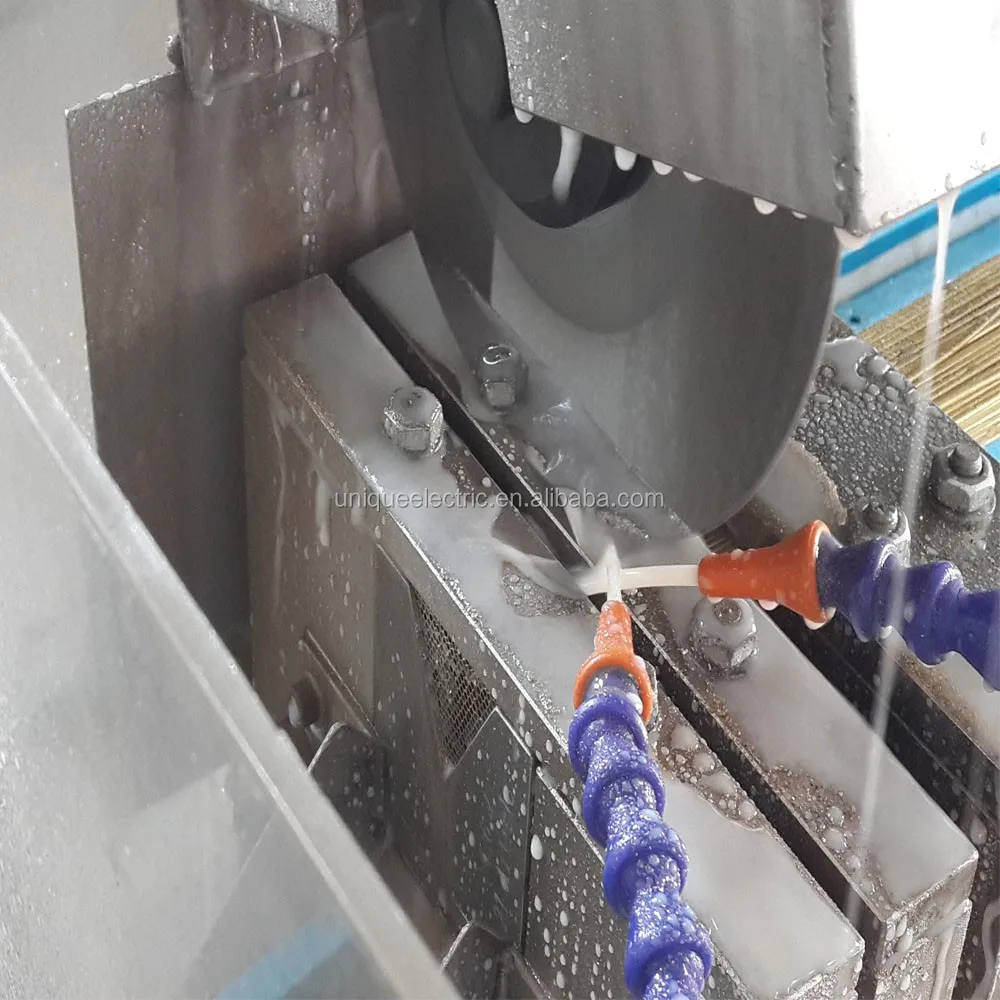

WITH WATER P PUMP TO COOL DOWN THE TUBE AND WASH OUT THE BURR

Main Features

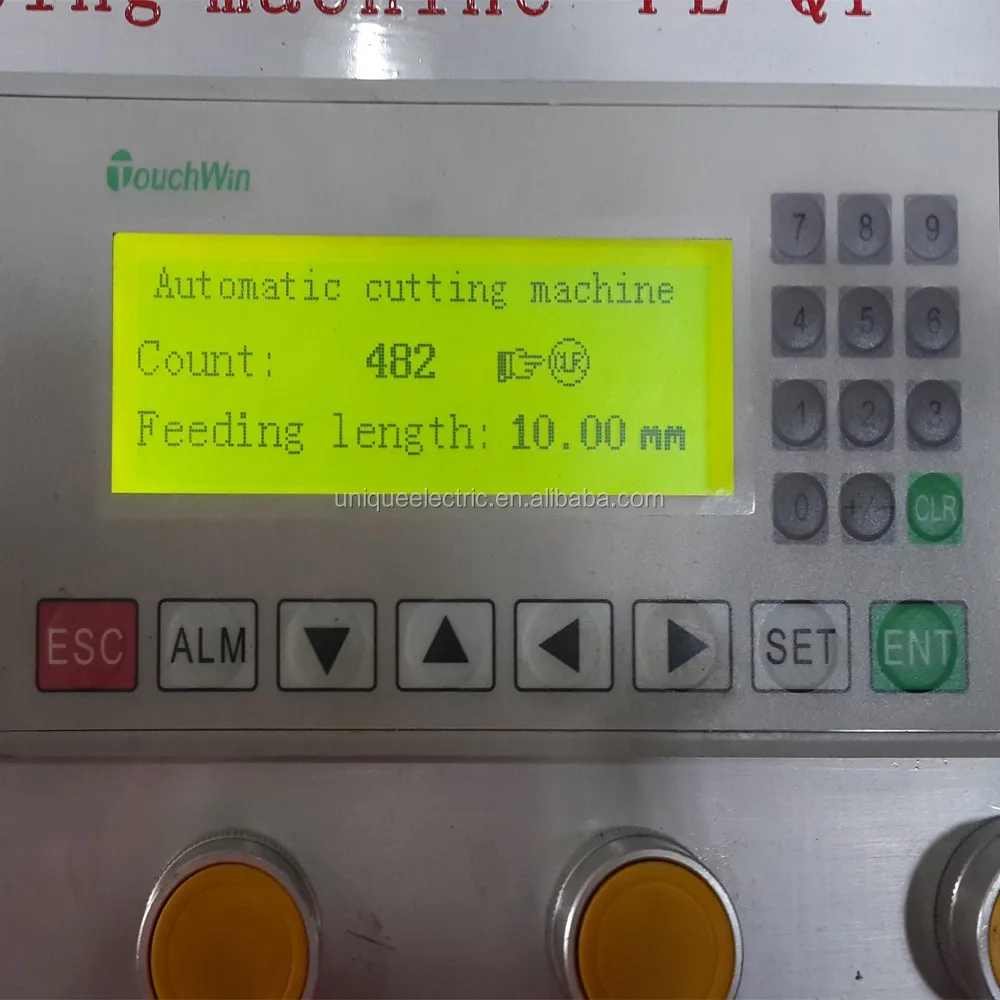

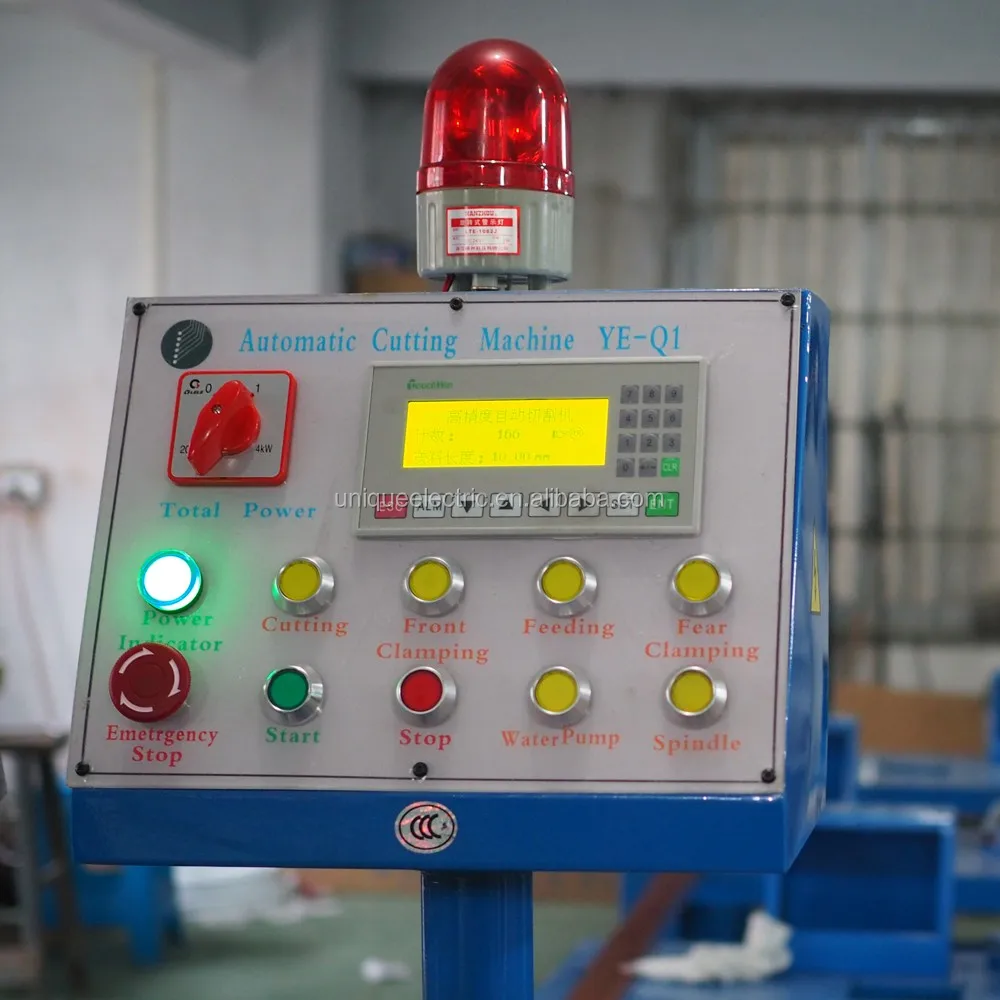

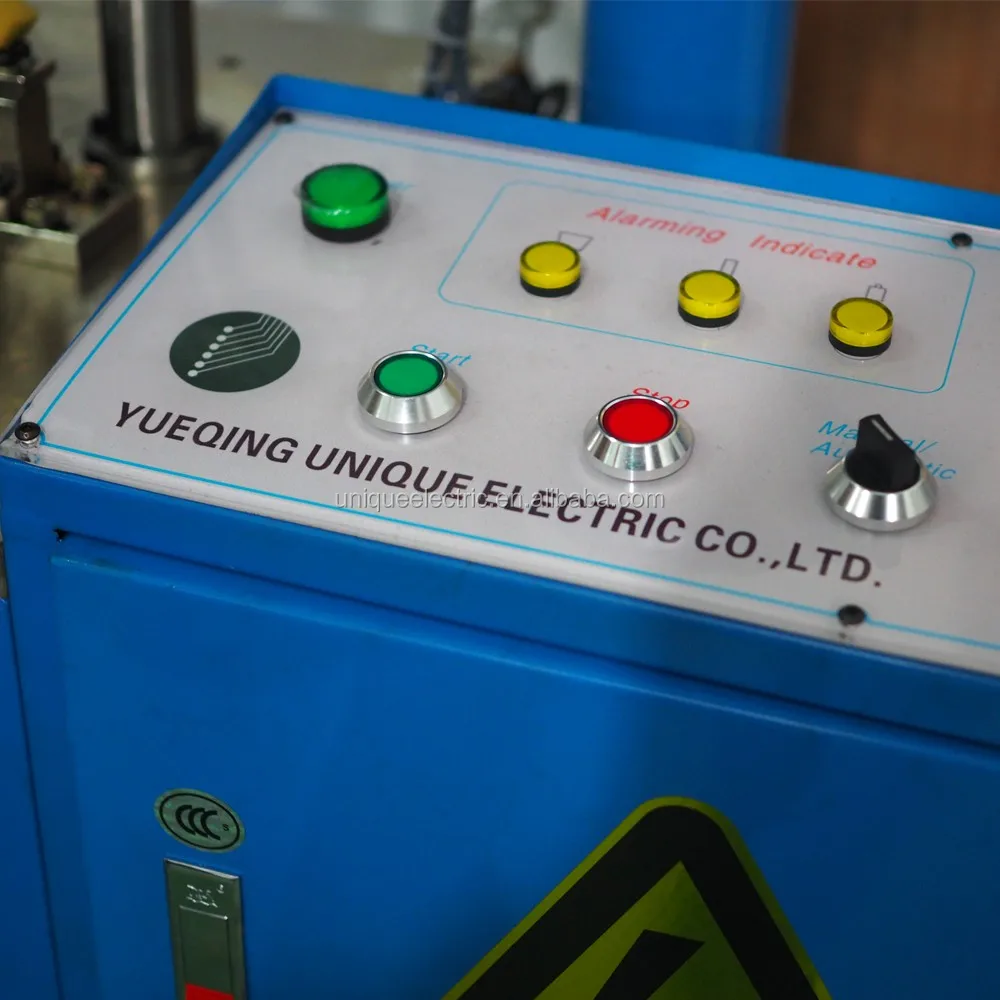

Name:Control Panel
Brand: YQUNIQUE
Original: CHINA
EASY CONTROL PANEL , WITH ENGLISH AND SCREEM TO UNDER STAND, SETTING THE TUBE LENGTH EASHY

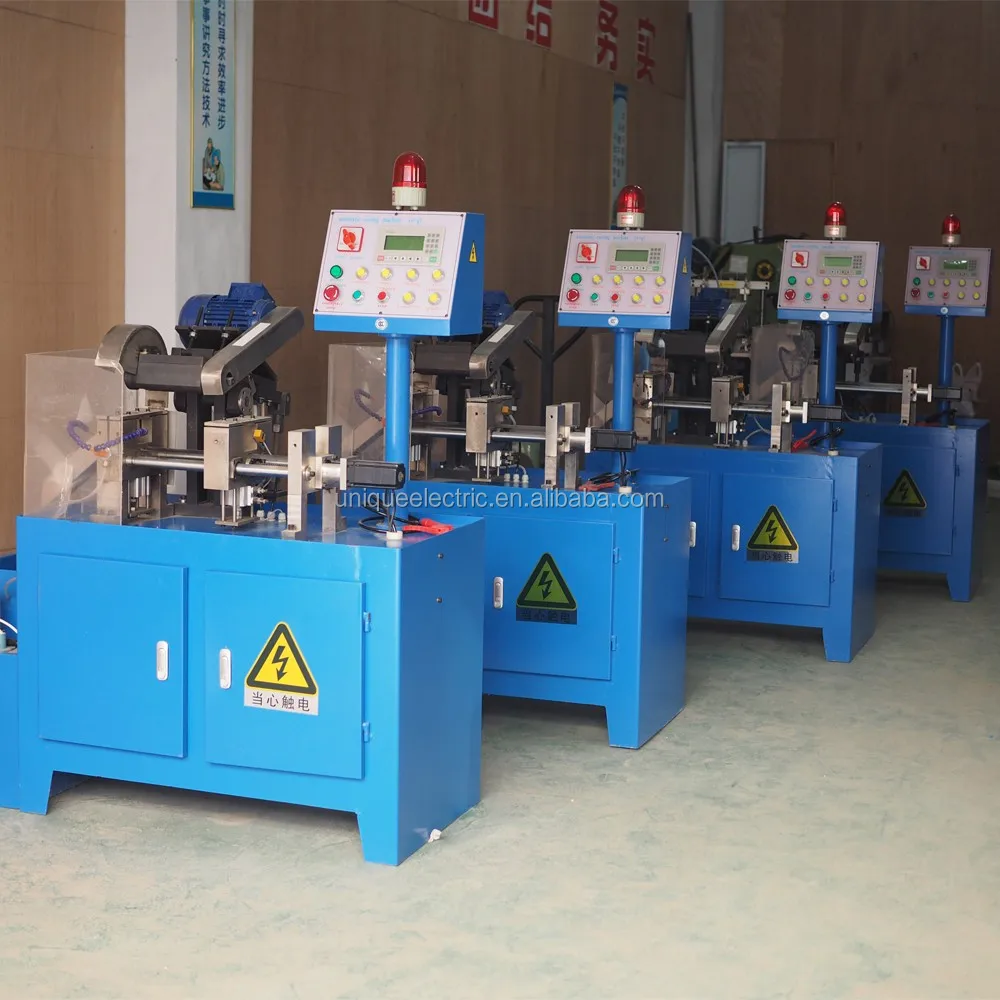

machine line

show

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	850 (L) * 1600 (W) * 1600(D)
Weight	0.4T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
