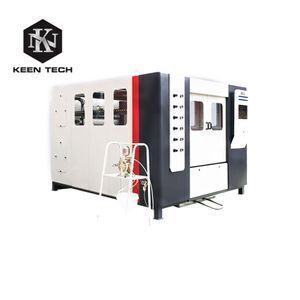

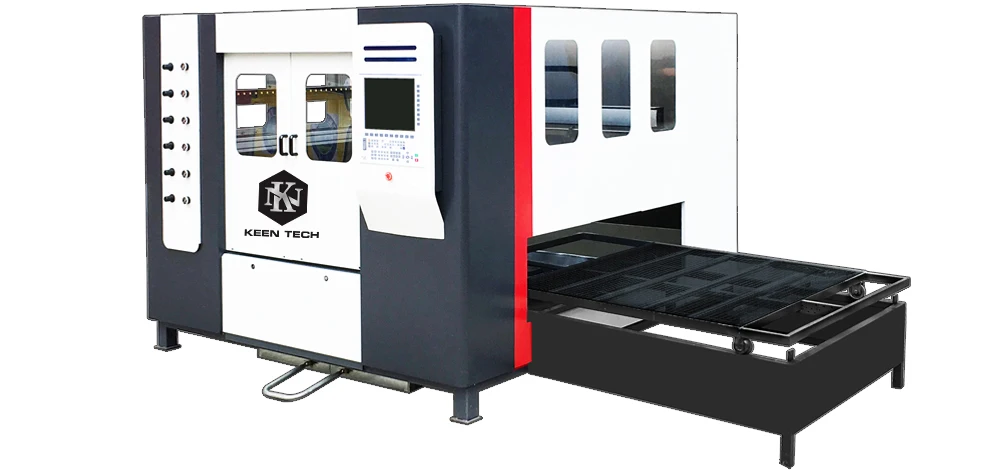

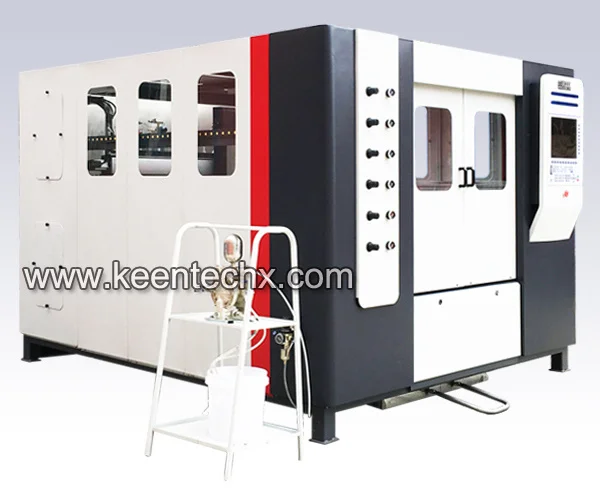

CNC Automatic paint coating machine

Supplier: Jinan Keen Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Charlie Charlie
Price: $17300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Processing width:	1200mm;	Voltage:	5KW;
Dimension(LWH):	2830*3620;	Condition:	New;
Product Name:	Intelligent visual CNC paint spraying machine;	Airbrush corner:	0-280°Automatic adjustment;
Single gross weight:	800 KG;	Brand Name:	KN;
Processing length:	1500mm;	After-sales Service Provided:	Field installation, commissioning and training;
Warranty:	3 years;	Package Preview:	https://sc02.alicdn.com/kf/HLB168KsX5HrK1Rjy0Flq6AsaFXaG.jpg_640x640.jpg;
Model Number:	KNP-F5;	Spray method:	5 axes;
Total Power:	5kw;	Delivery Detail:	0 days after payment;
Selling Units:	Single item;	Spray gun caliber:	0.5mm-1.0mm;
Weight:	800kgs;	Type:	Powder Coating Booth;
Coating:	Painting;	Power(W):	5kw;
Single volume:	6 cm;	Substrate:	Glass;
Number of spray guns:	2;	Weight:	800KGS;
Place of Origin:	Shandong China (Mainland);	Package Type:	plywood box;

CNC Automatic paint coating machine/KNP-F5 Intelligent visual CNC paint spraying machine adopts photo-oxidation, activated carbon and water curtain cabinet to solve the environmental pollution in the painting, and fully meets the environmental protection standards

Specification:

Product Name:	Intelligent visual CNC paint spraying machine
Model Number	KNP-F5
TOTAL Power	5KW
Dimension	2830mm*3620mm
Weight	800Kg

Processing length	1500mm
Processing width	1200mm
Processing thickness	20mm-140mm
Number of spray guns	2
Spray gun caliber	0.5mm-1.0mm
Spray method	5 axes
Airbrush corner	0-280°Automatic adjustment
Spray gun speed	1-30mm/s
air pressure	0.6MPa
Air flow	1800L/min
Power requirement	220v 50Hz
control method	Six-axis touch screen

Features:

Eco-Friendly: It adopts photo-oxidation, activated carbon and water curtain cabinet to solve the environmental pollution in the paint, and fully meets world’s environmental protection standards.

Control System: The six-axis linkage motion control system adopts the mechanical arm transmission mode.

It takes three years of meticulous research and development, it has completely independent intellectual property rights.

Motor: The whole machine adopts Japan Panasonic high-power servo motor, which is stable, precise, high-speed and durable.

Transmission: It adopts toothed belt type soft connection transmission, no noise, no gap.

Labor saving: It only need one common worker who know basic computer and printing to operate this machine, it is fully automatically and it can replace 2-4 printing workers

Painting saving: When the automatic painting machine sprays the surface or side of the text or object, the system precisely controls the movement path of the spray gun. If there is no need to paint, the spray gun will automatically close to saving a lot of paint.

Money Saving: It is one-time investment. In comparison, the cost of equipment operation is much lower than that of labor.

Efficiency:Do not need to hire professional painting workers, machine will follow the program and automatically paint.

Fast painting speed with uniform painting and no overlap.

Easy to operate and maintenance, stable

Applicable materials: aluminum alloy, metal, wood products, plastics, rubber, etc.;

Applicable paint types: UV paint, PV paint, water-based paint, PC paint;

Applicable industries:Advertising signs, hardware, auto parts, woodworking, ceramics, etc. Round, cylindrical, square, shaped products

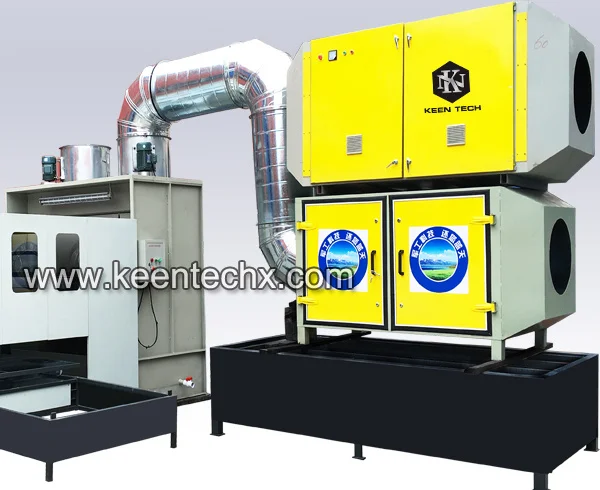

Optional paint smell activated carbon treatment device

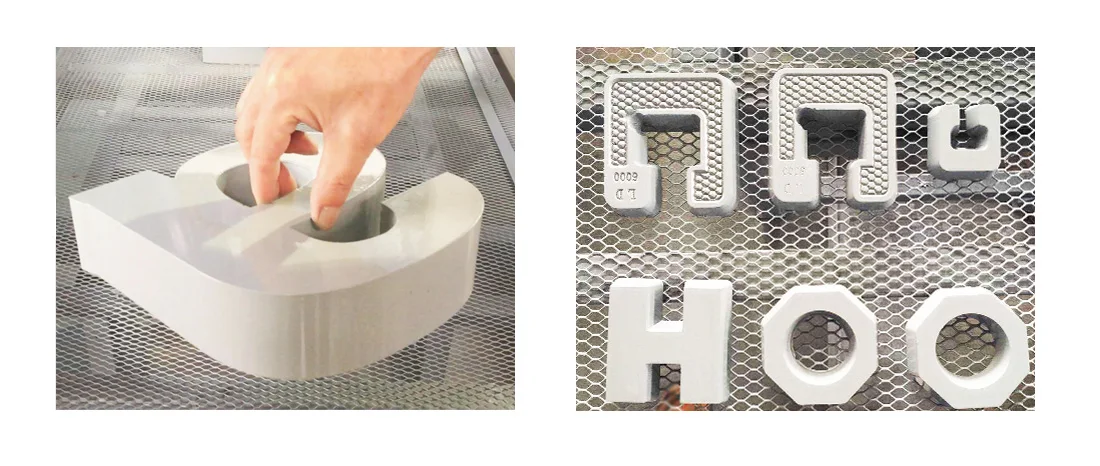

Letters after painting
