2020 lowest price factory direction Full auto Rotary Tablet Pill Medicine Powder Pressing machine

Supplier: Zhengzhou Jinhe Machinery Manufacture Co., Ltd.
Region: Henan, China
Contact: Mr Tyler Liu
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	5000 Set/Sets per Month tablet macking machine;	Material:	Stainless steel;
Warranty:	1 Year;	Max. filling depth:	15mm;
Brand Name:	JINHE;	Place of Origin:	China;
Application:	Tablet,pharmaceutical/food/chemical;	Product name:	medicine tablet press machine;
Applicable Industries:	Food & Beverage Factory,Farms,Food Shop,Construction works ,Food & Beverage Shops;	Max. Tablet Thickness:	6mm;
Production Capacity:	9000pcs/12600pcs/16200pcs;	Packaging Detail:	High pressure automatic rotary drugs tablet press machine wooden case;
Local Service Location:	United States;	After Warranty Service:	Video technical support,Online support,Spare parts;
Weight (KG):	180 KG;	Max. Tablet Diameter:	12-18mm;
Showroom Location:	United States;	After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Video technical support,Online support;
Weight:	180-260KG;	Condition:	New;
Key Selling Points:	Low Noise Level;	Port:	Shanghai/qingdao;
Power:	0.37kw-1.5kw;	Type:	Press machine,Multiple punch;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram,TRADE ASSURANCE;

TDP tablet press

Automatic Price For Small Mini Rotary Tablet Pill Candy Salt Press machine Pharmaceutical Making Packing Machine

Product Description

This small rotary tablet press is the lightest and smallest rotary tablet press in China.The whole machine is made of precision machining of stainless steel materials.The support frame is made of aluminum alloy, which can be disassembled from top to bottom for easy transportation.The work chamber is covered with fully transparent plexiglass, which can effectively prevent mosquitoes, dust, clean, beautiful, and work at a glance,waste is easy to clean and fully meets national GMP standards. You can remove the glass cover when removing residual powder and waste,its very convenient.

This machine can press powder and small particles into round or shaped tablets of less than 12 mm.The output is 9000-15000pcs per hour,The thickness of the tablet, the pressure and the tableting speed can be adjusted according to the customer's requirements.The machine appearance simple, size is small, light and easy to operate.

Product Advantage:

The rotary tablet press is equipped with an overload protection device that automatically shuts down when the pressure is overloaded. Electromagnetic brake motor and other safety devices that can be adjusted and operated even during operation.

Technical Parameters:

Model	ZP-5/7/9	ZP-5/7/9B
Max.Pressure(KN)	50	60
Max.dia.of table(mm)	12	18
Max.Depth of fill(mm)	15	15
Thickness of largest table(mm)	6	6
Production capacity(pcs/h)	9000/12600/16200PCS	9000/12600/16200PCS
Motor(KW)	220V/1.5KW	220V/1.5KW
Overrall size(mm)	480×630×1100	480×660×1100
Weight(kg)	180	260

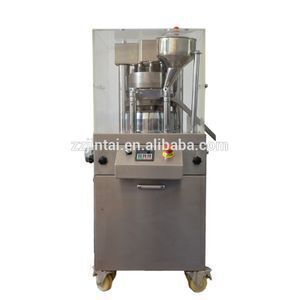

Pictures:

Features:

1. Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP standard.
2. Only a pair of punch and die can be erected on this machine, both filling depth

of materials and thickness of tablet are adjustable.

3. Larger diameter tablets up to 18mm (YDP-6T).

4. Press both round and irregular tablets.
5. Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase or customization.
6. Free with a pair of punch and die.
7. High precision of filling, lower consumption of materials, the minimum consumption of lab materials is just 200 g.
8. Small volume, light weight, works smoothly and low noise.
