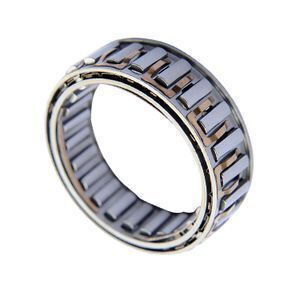

Overrunning Clutch DC4127(3C)-N Sprag Type One Way Freewheel Clutch Bearing

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $4.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining;	Packaging Detail:	White box + Carton Box;
Package:	single box;	OEM Service:	Accept;
Single package size:	29X28X20 cm;	Race Material:	GCr15;
Port:	Shanghai, Ningbo;	Market:	Worldwide;
Product name:	DC4127(3C)-N sprag type one way freewheel clutch bearing;	Place of Origin:	Jiangsu China;
Package Preview:	;	Torque (N.m):	224;
Stock:	Rich;	Single gross weight:	0.3 KG;
Selling Units:	Single item;	Height (mm):	13.5;
Precision Rating:	P6;	After-sales Service:	Availiable;
Seals Type:	No-sealed;	Brand Name:	OEM or SUMA;
Model Number:	DC4127(3C)-N;	Type:	sprag;

Product Overviews

Model		DC4127(3C)-N
Material		GCr15
Type		sprag
Inner Diameter		41.275mm
Outer Diameter		57.935mm
Weight		0.09kg
Width		13.5mm
Overrunning speed	Inner race	4600r/min
	Outer race	2300r/min

Description of DC4127(3C)-N Sprag Type One Way Freewheel Clutch Bearing

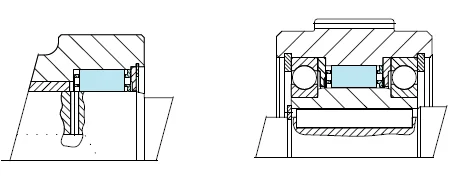

1.Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

2.The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.
3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly .

4.Alternatively, races can be made in case hardened steel shafts, or housings,
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
5.Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races:0,007 mm for 25 mm width.

Specifications of DC4127(3C)-N Sprag Type One Way Freewheel Clutch Bearing

Size		Overrunning speeds		Øa	Øc	Sprag space	emin	Ø dmin	Ø bmax	No.of clips	No.of sprags	Weight
				+ 0,008	± 0,013
				- 0,005
	TKN1 [Nm]	nimax [min-1]	Namax [min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]
DC2222G	63	8600	4300	22.225	38.885	8.33	10	50	15	-	12	0.03
DC2776	119	6900	3400	27.762	44.422	8.33	13.5	58	18	-	14	0.055
DC3034	124	6300	3100	30.34	47	8.33	13.5	62	20	-	14	0.06
DC3175(3C)	159	6000	3000	31.75	48.41	8.33	13.5	63	24	3	16	0.06
DC3809A	275	5000	2500	38.092	54.752	8.33	16	71	29	-	18	0.085
DC4127(3C)	224	4600	2300	41.275	57.935	8.33	13.5	75	32	3	18	0.09
DC4445A	363	4300	2100	44.45	61.11	8.33	16	79	34	-	20	0.095
DC4972(4C)	306	3800	1900	49.721	66.381	8.33	13.5	86	38	4	22	0.1
DC5476A	525	3500	1700	54.765	71.425	8.33	16	92	42	-	24	0.11
DC5476A(4C)	525	3500	1700	54.765	71.425	8.33	16	92	42	4	24	0.13
DC5476B(4C)	769	3500	1700	54.765	71.425	8.33	21	92	42	4	24	0.18
DC5476C(4C)	990	3500	1700	54.765	71.425	8.33	25.4	92	42	4	24	0.2
DC5776A	604	3300	1600	57.76	74.42	8.33	16	98	44	-	26	0.11
DC6334B	806	3000	1500	63.34	80	8.33	21	104	50	-	26	0.175
DC7221(5C)	675	2600	1300	72.217	88.877	8.33	13.5	115	56	5	30	0.14
DC7221B	1279	2600	1300	72.217	88.877	8.33	21	115	56	-	30	0.185
DC7221B(5C)	1279	2600	1300	72.217	88.877	8.33	21	115	56	5	30	0.21
DC7969C(5C)	2038	2400	1200	79.698	96.358	8.33	25.4	124	61	5	34	0.28
DC8334C	2055	2300	1100	83.34	100	8.33	25.4	132	65	-	34	0.27
DC8729A	1250	2200	1100	87.29	103.96	8.33	16	134	67	-	34	0.165
DC10323A(3C)*	1612	1800	900	103.231	119.891	8.33	16	155	80	3	40	0.205
DC12334C*	4800	1500	750	123.340	140	8.33	25.4	184	96	-	50	0.4
DC12388C(11C)	4875	1500	750	123.881	142.88	9.5	25.4	196	96	11	44	0.4
