DN100 COVNA Wafer Type Stainless Steel Motor Driven Gas Electric Actuator Motorized Control Butterfly Valve

Supplier: Wenzhou COVNA Valve Co., Ltd.
Region: Zhejiang, China
Contact: Ms COVNA Echo
Price: $93.44 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Pressure:	Wafer Butterfly Valve PN16;	Temperature of Media:	-10° to 180°C with PTFE Sealing,High Temperature,Low Temperature,Medium Temperature,Normal Temperature;
Single gross weight:	5.0 KG;	Sealing Material:	PTFE Lined Butterfly Valve;
Selling Units:	Single item;	Brand Name:	COVNA;
Media:	Water,Oil, Steam, Air etc.;	Single package size:	20X15X20 cm;
Structure:	BUTTERFLY;	Model Number:	HK60D-S Wafer Butterfly Valve;
Packaging Detail:	COVNA 2 inch Electric Actuator Wafer Type Stainless Steel Motorized Butterfly Valve packed with foam in carton;	Package Preview:	;
Voltage:	Electric Actuator 12V;	Port Size:	DN50 Butterfly Valve,2 inch - 16 inch;
Type:	Wafer Butterfly Valve,Butterfly Valves;	Application:	General;
Power:	Electric Butterfly Valve,Electric;	End Connection:	Wafer Type Butterfly Valve;
Place of Origin:	Zhejiang China;	Material:	Stainless Steel Butterfly Valve;
Actuation:	Electric Actuated Butterfly Valve;

Our Advantages

Wenzhou COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.

• 19 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.

• OEM / ODM service available. Can do JIS 5K / 10K standard.

DEFAULT PRODUCT, specification see below

Electric Wafer Butterfly Valve, Cast Iron, PTFE Seat

Electric Lug Type Butterfly Valve, Cast Iron, NBR Lined

Electric Flange Butterfly Valve, EPDM Seat

Electric Flange Ball Valve, ANSI Class 150

HK60-Q-3PS Electric Ball Valve, 3PC, NPT Threaded

HK60-Q-PT Electric Ball Valve, PVC, True Union

CWX-15N Mini Spring Return Electric Ball Valve, CR02

GET A QUICK QUOTE

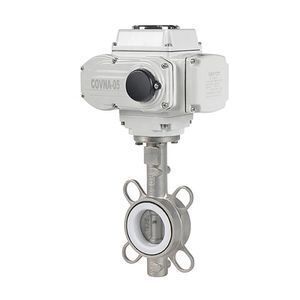

COVNA 2 inch Electric Actuator Wafer Type Stainless Steel Butterfly Valve
Model	HK60-D-C	Voltage	220V AC
MOQ	1 Set	Actuator Type	On Off Control
Applicable Standard	GB	Structure	Centerline
Port Size	2 inch	End Connection	Wafer
Operating Pressure	PN16	Media	Water, Air, Gas
Body Material	Stainless Steel	Temp. of Media	-10°C to 180°C
D Ball	Stainless Steel	Certification	ISO 9001, CE, TUV, SGS
Sealing Material	PTFE	Warranty	1 Year (12 Months)

316 S.S Wafer butterfly valve, electric actuation. 50mm, PTFE seat. 1.6MPa pressure range, media temp -40°C to 180°C. Common applications include food industry, chemicals, pharmaceuticals and other industrial applications. If sizes above 300mm are required please contact us.

Dimension

Click to enlarge

Explosion-proof

With handwheel

Multiturn

IP68 Water-proof

ISO 5211 Mounting Pad

GET A QUICK QUOTE

C-05 Electric Actuator

Specification of COVNA C-05 On/Off Electric Actuator
Model	C-05 \| C-10 \| C-16 \| C-30 \| C-60 \| C-125
Output Torque	50Nm \| 100Nm \| 160Nm \| 300Nm \| 600Nm \| 1250Nm
Cycle Time	20s \| 30s \| 30s \| 30s \|60s \| 100s
Rotation	0-90°
Rated Current	0.25A \| 0.48A \| 0.68A \| 0.8A \| 1.2A \| 2A
Motor Power	10W/F \| 25W/F \| 30W/F \| 40W/F \| 90W/F \| 100W/F
Weight	3.0KG \| 5.0KG \| 5.5KG \| 8.0KG \| 8.5KG \| 15.0KG
Voltage Options	AC110V/220V/380V, AC24V, DC24V
Insulation Resistance	DC24V: 100MΩ/250V; AC110V/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V/Minute; AC110/220V: 1500V/Minute; AC380V: 1800V/Minute
Protection Class	IP65
Electrical Connection	G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Ambient Temp.	-30°C~+60°C
Control Circuit	A: On/Off type with light indicator signal feedback B: On/Off type with passive contact signal feedback C: On/Off type with resistance potentiometer signal feedback D: On/Off type with resistance potentiometer and neutral position signal feedback E: Modulating type with servo control module F: 12V DC / 24V DC direct on-off type G: AC380V three-phase power supply with passive signal feedback H: AC380V three-phase power supply with resistance potentiometer signal feedback

Wiring Diagram

The left is On/Off type with passive contact signal feedback (B) while the right is Modulating type with servo control module (E).

GET A QUICK QUOTE

Actuator Selection Guide

Model Number	Ball Valve (Metal Seated)	Ball Valve (Soft Sealing)	Butterfly Valve (Metal Seated)	Butterfly Valve (Soft Sealing)
C-05	DN15-DN25	DN15-DN40	DN50	DN50-DN65
C-10	DN32-DN40	DN50-DN65	DN65-DN80	DN80-DN125
C-16	DN40-DN50	DN65	DN100-DN125	DN125-DN150
C-30	DN65-DN80	DN80-DN100	DN125-DN150	DN150-DN200
C-60	DN80-DN100	DN100-DN125	DN200-DN250	DN250-DN300
C-125	DN125	DN150	DN250-DN300	DN300-DN400
C250	DN150-DN200	DN200-DN250	DN300-DN400	DN400-DN500

For larger size, please contact us! Our professional team will get back to you within 3 hours!

About Wenzhou COVNA

Wenzhou COVNA Valve Co., Ltd.

Wenzhou COVNA is one of the top manufacturers of quarter turn actuators and actuated valve products in China with 19 years experience. All COVNA products are designed and manufactured by experienced engineers to provide safe and reliable valves, actuators and solutions. COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.

Our Certificates

Global Trusted

Packing Details

Packing details: each valve will be packed with foam in carton or in pallet to keep it safe during shipment.

Shipping method: we offer a variety of fast shipping methods, including DHL, Fedex, TNT, UPS, EMS, Airway, etc.

Delivery time: within 15 working days after payment due, stocking items same-day shipping.

GET A QUICK QUOTE

FAQs

1. When can I get the price?

We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.

3. How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

4. How long does the whole procedure being worked out?

After you place a order,the production handling time is about 45-60 days. We need 15 days to prepare all the stuff then 30 days for manufacturing.

5. What about the transportation and delivery date?

Normally we use shipment to transprot the goods.It is about 25-40 days. It also denpends on which coutry and port you are. It could be shorter if you need to send the goods like Asian.

If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
