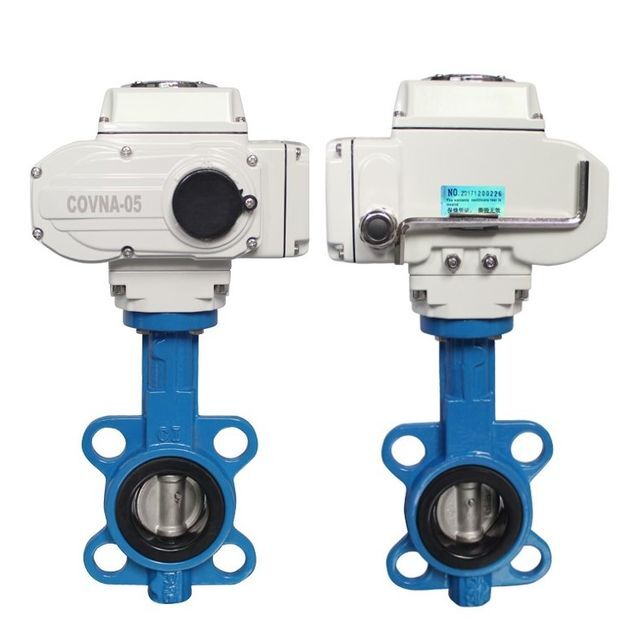

Advanced waterproof 2 inch DN50 3 inch DN80 cast iron wafer type motor control actuator electric butterfly valve

Product details
Gross weight per piece:7.000 kgPackaging Details:valve carton packaging foam
application:generalPackaging Preview:
model:HK60D butterfly valve electrictype:Wafer type electric actuator butterfly valve, butterfly valve
strength:electricalstructure:Butterfly
brand:Kaufnerplace of origin; place of origin:Guangdong, China
Medium temperature:-10° to 120°C, sealed with FKM, ambient temperatureWarranty:1 year
Material:Cast Iron Butterfly Valve, SS, Forged, PVC Availablecontrol method:On Off Control or Regulate Actuator, Intelligent Electric Actuator
Custom Support:OEM, ODM, OBMPort size:2 inch ~ 16 inch butterfly valve
Voltage:24V DC Electric Actuator ValveTermination:Wafer Type Butterfly Valve
Sealing material:FKM Seat Butterfly ValveSales unit:single product
pressure:Wafer butterfly valve PN16Certification:arrival
Single package size:25X20X25 cmmedia:Oil, natural gas, liquid, alkali

Our advantage




Wenzhou COVNA aims to provide our customers with the highest quality products, the most competitive prices, on-time delivery and comprehensive warranty services.



19 yearsdrive valve manufacturers,mass customizationacceptable.



• 3 production bases, large inventory,short delivery time, same day delivery.

• Germany imported manufacturing equipment, 100% QC before shipment, quality is guaranteed. industry standard1 year (12 months)Warranty.



• ISO 9001 certification, additional certifications includeCE, TUV, RoHS, SGS, BV, explosion-proof and fireproof.

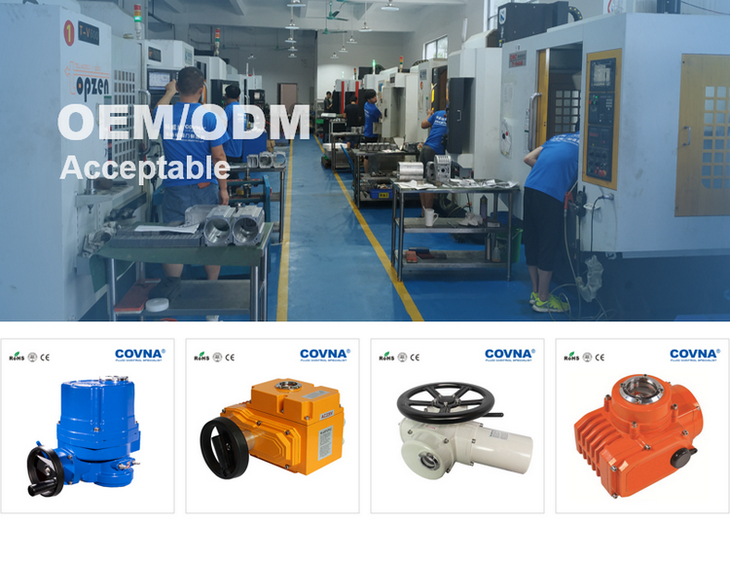

OEM/ODMProvide services. can doJIS 5K/10Kstandard.

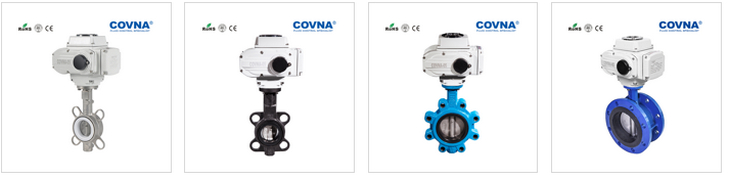

Electric Wafer Butterfly Valve, Stainless Steel, PTFE Seat
Electric Wafer Butterfly Valve, Cast Iron, FKM Seat
Electric lug butterfly valve, cast iron, lined with nitrile rubber
Electric flanged butterfly valve, EPDM seat



Electric Flanged Ball Valve, ANSI Class 150
HK60-Q-3PS Electric Ball Valve, 3PC, NPT Thread
HK60-Q-PT Electric Ball Valve, PVC, True Union
CWX-15N Miniature Spring Return Electric Ball Valve, CR02





Get a quick quote



Model
HK60D
Voltage
220V AC
Minimum order quantity
1 set
Actuator type
switch control
Applicable Standards
GB
structure
center line
Port size
3 inches
termination
wafer
operational pressure
PN16
media
water, air, gas
Body material
cast iron
temperature. media
-10°C to 120°C
Disc material
cast iron
Certification
ISO 9001, CE, TUV, SGS
Sealing material
fluororubber
Warranty
1 year (12 months)

Cast iron wafer butterfly valve, electrically actuated. 50mm, FKM seat. 1.6MPa pressure range, medium temperature -40°C to 120°C. Common applications include the food industry, chemicals, pharmaceuticals and other industrial applications. Please contact us for sizes above 300mm.

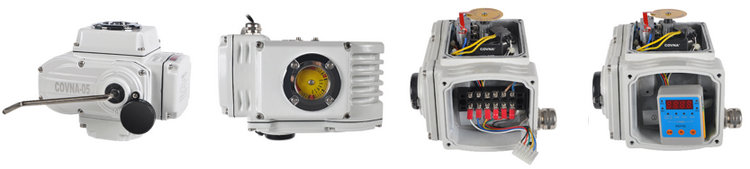

aspect










Click to enlarge



Explosion-proof
with handwheel
multiple laps
IP68 waterproof





ISO 5211 Mounting Pad












Get a quick quote







C-05 Electric Actuator










COVNA C-05 On/Off Electric Actuator Specifications
Model
C-05 | C-10 | C-16 | C-30 | C-60 | C-125
output torque
50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm
cycle
20s | 30s | 30s | 30s | 60s | 100s
turn around
0-90°
Rated current
0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A
Motor Power
10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F
weight
3.0KG | 5.0KG | 5.5KG | 8.0KG | 8.5KG | 15.0KG
Voltage options
AC110V/220V/380V, AC24V, DC24V
Insulation resistance
DC24V: 100MΩ/250V; AC110V/220V/380V: 100MΩ/500V
Pressure resistance
DC24V: 500V/min; AC110/220V: 1500V/min; AC380V: 1800V/min
Protection class
IP65
Electrical connections
G1/2 waterproof cable connector, power line, signal line
ambient temperature.
-30°C~+60°C
Control circuit

A: On/Off type with indicator signal feedback

B: On/Off type with passive contact signal feedback

C: On/Off type with resistance potentiometer signal feedback

D: On/Off type with resistive potentiometer and neutral signal feedback

E: Modulation type with servo control module

F: 12V DC / 24V DC direct switch type

G: AC380V three-phase passive signal feedback power supply

H: AC380V three-phase power supply with resistance potentiometer signal feedback

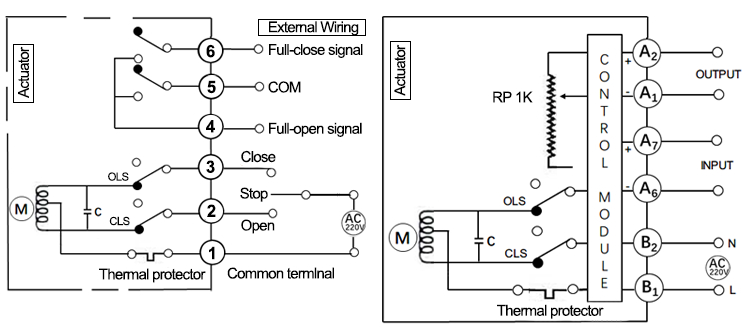

Wiring diagram










left isOn/Off version (B) with passive contact signal feedbackand the right isModulation type (E) with servo control module.





Get a quick quote





Actuator Selection Guide








Model
number
Ball valve
(metal seat)
Ball valve
(soft seal)
Butterfly valve
(metal seat)
Butterfly valve
(soft seal)
C-05
DN15-DN25
DN15-DN40
DN50
DN50-DN65
C-10
DN32-DN40
DN50-DN65
DN65-DN80
DN80-DN125
C-16
DN40-DN50
DN65
DN100-DN125
DN125-DN150
C-30
DN65-DN80
DN80-DN100
DN125-DN150
DN150-DN200
C-60
DN80-DN100
DN100-DN125
DN200-DN250
DN250-DN300
C-125
DN125
DN150
DN250-DN300
DN300-DN400
C250
DN150-DN200
DN200-DN250
DN300-DN400
DN400-DN500



For larger sizes, please contact us! Our professional team will get back to you within 3 hours!





About Wenzhou COVNA










Wenzhou Keweiner Valve Co., Ltd.

Wenzhou COVNA is one of the top manufacturers of quarter-turn actuators and actuated valve products in China with 19 years of experience. All COVNA products are designed and manufactured by experienced engineers to provide safe and reliable valves, actuators and solutions. COVNA aims to provide our customers with the highest quality products, the most competitive prices, on-time delivery and a comprehensive warranty.





our certificate












Global trust












Packaging Details












Packaging Details: Each valve will be packed in a carton or pallet with Styrofoam to ensure safety during shipping.

Mailing method: We offer a variety of express shipping methods, including DHL, Fedex, TNT, UPS, EMS, Airway, etc.

delivery time: Within 15 working days after the payment is due, the goods will be shipped on the same day.





Get a quick quote





common problem






1. When can I get the price?

We usually quote within 3 hours after receiving your inquiry. If you are in a hurry to get a price, please call us or let us know in your email so we can prioritize your inquiry.

2. How can I get samples to check your quality?

After the price is confirmed, you can ask for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you the sample for free as long as you can afford the express shipping cost.

3. How soon can I receive the samples?

The samples will be ready for delivery within 3-7 days after you pay for the samples and send us confirmation documents. Samples will be sent to you by courier and arrive within 3-5 working days. If you do not have an account, you can use your own courier account or prepay to us.

4. How long does the whole process take?

After placing the order, the production processing time is about 45-60 days. We need 15 days to prepare everything and then 30 days to manufacture.

5. How about the shipping and delivery date?

Usually we use shipping to transport goods. It takes about 25-40 days. It also depends on your country and region. It may be shorter if you need to send as in Asia.



If there is some emergency we can send the goods by air express, as long as you can afford the transportation.

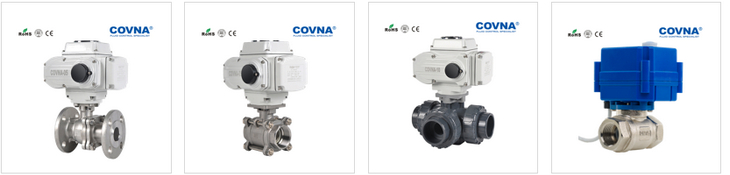

Related Products
