ASL650-T8 asl brand wet&dry multi-functional concrete floor surface grinding and buffing machine with planetary disc

Product details
Packaging Detail:EXPORT WOODEN CASE High quality ASL-650 T8 floor marble polishing machine;Type:Smooth Concrete Floor;
Payment Terms:L/C,T/T;Condition:New;
Brand Name:ASL;Application:Planetary Concrete Floor Grinder;
Weight:270KG/260KG;After-sales Service Provided:Video technical support,Online support,Field maintenance and repair service;
DISC DIAMETER:250mm*3/250mm*4;Item:4 Head Marble/epoxy/stone/granite/concrete Floor Grinder;
Working Width:650mm;Dimension(L*W*H):970*650*950;
Keyword:Marble Concrete Polishing Pads Machine;Function:Surface Grinding Polishing;
Port:SHANGHAI High quality ASL-650 T8 floor marble polishing machine;Power:7.5kw;
Product name:Hand Held Concrete Stone Floor Grinder;Certification:ISO CE;
INVERTER:11KW(15HP);DISC SPEED:0-1500RPM;
Supply Ability:10000 Set/Sets per Week High quality ASL-650 T8 floor marble polishing machine;Automatic Grade:Manual;
Place of Origin:Shanghai China;Warranty:1 Year;
Voltage:220V-240V, 380V-440V;

ASL650-T8 asl brand wet&dry multi-functional concrete floor surface grinding and buffing machine with planetary disc



Product Description

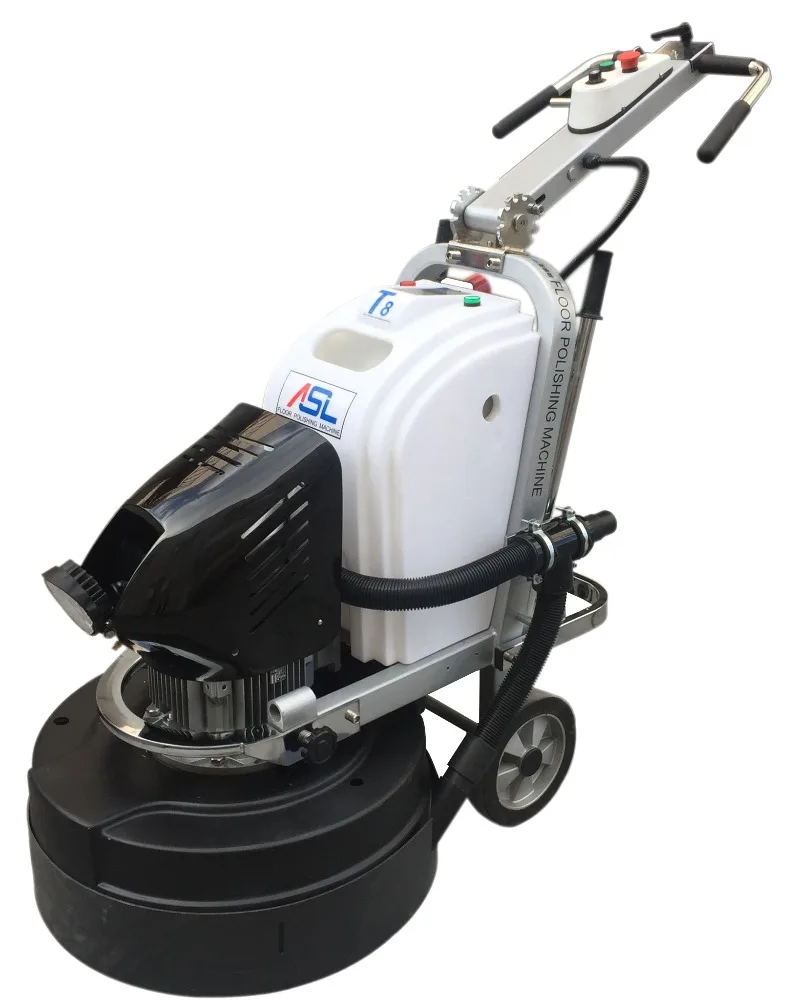

The ASL T8 is an impressive 25Inch floor grinding machine that has the option of having 3 or 4 heads, depending on your needs. It has an aluminum alloy gearbox and planetary gear driver that is capable of reaching a remarkable flat grind to produce smooth, polished surfaces.
The magnetic plates make tool changing quick and efficient. There is a folding handle and split body design for a more convenient way to carry and transport the machine. The qutomatic leveling system has excellent flexibility to evenly touch the floor and perfectly balance the machine. With the integrated vacuum port, the machine can grind and polish wet and dry.
ModelT8A1T8A2T8B1T8B2
Voltage

220V-240V

(1&3phase)

380V-440V

(3phase)

 220v-240v

(1&3phase)

380V-440V

(3phase)

Current 24A40A  24A 40A
Motor10HP(7.5KW)10HP(7.5KW)  10HP(7.5KW)10HP(7.5KW)
Inverter15HP(11KW) 15HP(11KW)15HP(11KW)  15HP(11KW)
Frequency50/60HZ 50/60HZ 50/60HZ50/60HZ
Disc speed300-1200rpm 300-1200rpm300-1200rpm  300-1200rpm
Grinding width650mm 650mm 650mm650mm
Disc diameter250mm*3250mm*3 250mm*4  250mm*4
Water tank 30L 30L 30L30L
Weight295KG 295KG 312KG 312KG



The T8 is an impressive floor grinding/polishing machine that is portable size yet big enough for large job.

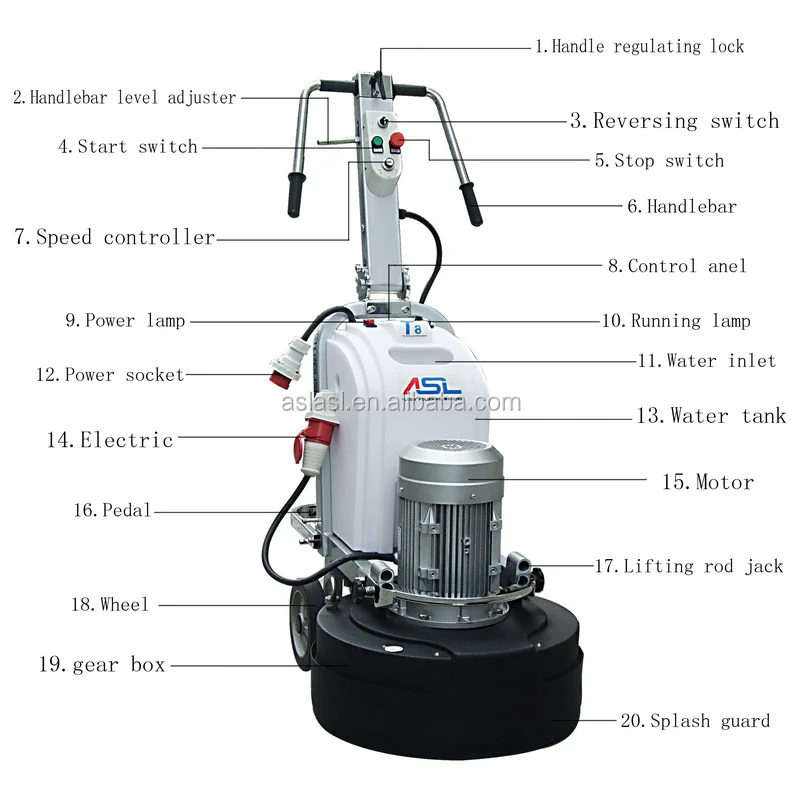

-The Grinder can be operated through the control panel on adjustable handle

-Planetary gear driver

-Gearbox and motor are made out of  aluminum for steadiness and durability

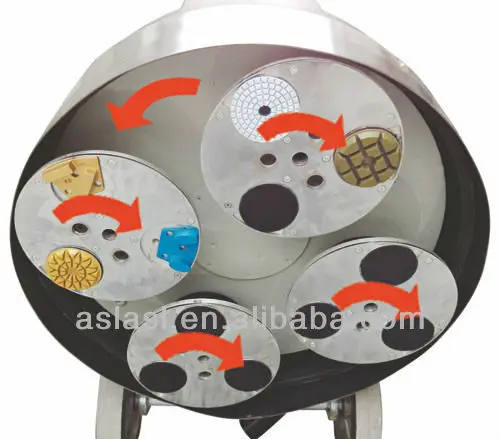

-There is the option of having 3 or 4 magnetic plates that each hold 3 diamonds (9 or 12 total)

-The handle can be rotated 360 degrees to adjust to fit each operator comfortably

-Can handle jobs wet and dry

-The vacuum port is located on the bottom left of the grinder

-Can run forward or reverse

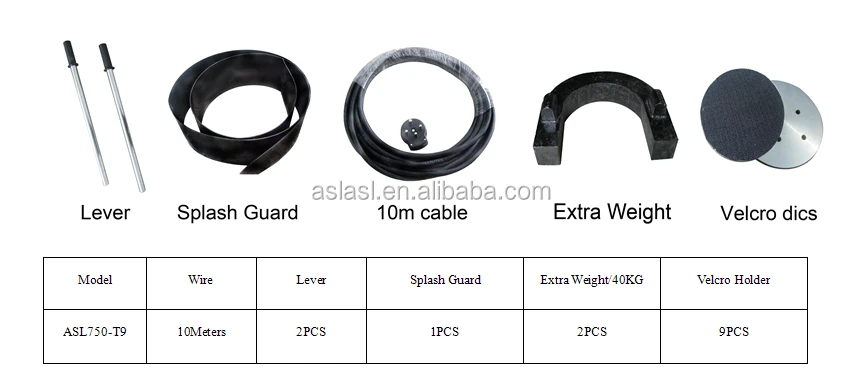

Accessories



Detailed Images











Company Information



       Our Brand  ASL  has been well known in the worldwide and get very good reputation. Herein, many thanks to our customers for the always support and trust to our company. However, recently we find out there are some companies who use our ASL brand and pictures to sell the different equipment in the market. In order to protect customers legal right, we hereby state that  SHANGHAI QIHENG MACHINERY CO., LTD.  is the only one company to manufacture and sell ASL products in China,  no any other third party agent. Please kindly pay much attention to it.

Certifications
Product Application





Exhibition

FAQ

 1:How to know our machines' quality before we  order the product

More and more people to use Chinese brand product because the high quality and very good competive price in the world,we are the specialized in producing floor grinding machines over 13 years.comfiring our machines' quality ,we welcome you to visit our facctory or buy a trial order to test the quality.



2:if we make the payment to you but you don't send the mahcines' to me ,what should I do ?

To be frank,there is no need to worry about this ,you can see our trade insurance and export data,if we get the payment but we don't send the goods to you ,alibaba will refound the money,in floor grinidng machines business,we are the frist to produce it and use alibaba





3:what's is our payment ?

L/C,T/T,West union are availavle for us,you can choice the most convenient  for you



4:What should we do if our machines don't work very good?

at frist ,Pls check everything is installed as right way,second ,the worker operate the machine in right way.if every thing is right but machines is also don't work very good ,Pls contact me ,we will check the proble ASAP and solve the proble for you
