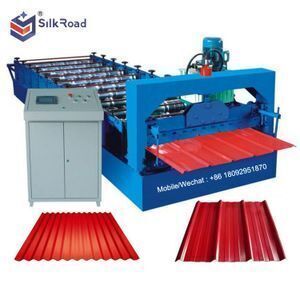

Factory Supply steel roof tile roll forming machine

Supplier: Xinyang Silk Road Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Chris Zhang
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Service:	24hours on line;
Marketing Type:	Ordinary Product;	Video outgoing-inspection:	Provided;
Feeding width:	1220mm,915mm,900mm,1200mm,1000mm,1250mm;	Supply Ability:	100 Set/Sets per Year roof tile roll forming machine;
Tile Type:	Steel;	Product name:	roof tile roll forming machine;
Local Service Location:	None;	Mobile/Wechat/WhatsApp:	0086 18092951870;
Dimension(LWH):	5m1.3m1.3m-15m1.3m1.4m;	Raw material:	Steel Sheet;
Press thickness:	0.2-1mm;	Weight:	900kg;
Port:	Qingdao port,Shanghai port,Tianjin port or any other China port;	Showroom Location:	None;
Control system:	PLC;	Place of Origin:	Henan China;
Brand Name:	SR;	Packaging Detail:	roof tile roll forming machine standard wooden case for export 20ft container or 40ft container;
Machinery Test Report:	Provided;	Rolling thinckness:	0.3-0.8mm;
Skype:	amysilkroad;	Condition:	New;
Voltage:	380V 50Hz 3phases customized;	Operation:	so easy;
Advantage:	high efficient;	Type:	Tile Forming Machine;
Use:	ROOF;	Package Preview:	;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash,credit card,paypal,trade assurance or other payment ways;	After Warranty Service:	Video technical support,Online support,Spare parts;
Core Components:	Motor;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Certification:	ISO9001:2008;	Warranty of core components:	1 Year;
Quality:	top level;	Production Capacity:	8-10m/min;
After-sales Service Provided:	Online support,Video technical support;	Key Selling Points:	Easy to Operate;

Factory Supply steel roof tile roll forming machine

Contact Information:

Contact Person: Ms. Amy

Mobile/WhatsApp/Wechat/Line: 0086-18092951870

Skype: amysilkroad

Product Description

Introduction of color steel tile forming machine :

Different Good quality glazed steel roof tile making machine with different rolls can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, recycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.

The chart of process flow: Decoiling→active feeding→roll forming → measuring length → cutting to length → product to stand.

Equipment parts:roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,product supporter .

Feature of color steel tile forming machine :

1, this equipment using high level automatic control software, the realization of information management.
2, the automation control system USES high integration of network, the automation system performance is superior.
3, This machine also has the operation, maintenance, maintenance and debugging machinery, mold the advantages of easy replacement.

4, pressure plate, solemn elegant, beautiful novel, and smooth appearance, uniform corrugated, utilization rate is high, strength, producing a high degree of automation, low cost, durable.

Parameter of color steel tile forming machine :

Dimension	5800mm1300mm950mm
Forming shaft	45# tempering, solid shaft
Forming wheel	45# forging, hard chromium plating
Transmission type	Link chain
Motor	3kw
Forming rows	9 rows
Cutting system	Automatic length adjustable cutter
Pump station motor	3KW
Cutting mould	Gr12
Forming speed	8-10m/min
Press thickness	0.2-1.0mm
Press width	1000mm
Total equipment	Decoiler+rolling machine+2m receiving table

Usage of Color steel tile :

The products of color steel tile has light weight, high strength, bearing great, good vibration resistance characteristics, are widely used in high-rise steel structure building. Widely used in large and medium-sized enterprises and civil construction, such as workshop, locomotive shed, hangar, stadiums exhibition hall, theater, etc.
