Get Star Weld CUT-100 portable air Plasma Cutting Machine

Supplier: Foshan Get Star Industrial Group Co., Ltd.
Region: Guangdong, China
Contact: Ms Sandra Zhao
Price: $324.00 /set
Min. Order: 1 set

Click here to contact

Product details

No-load voltage:	320V;	Use plasma gas:	air cooled;
Rated Output Current:	120A;	the qulity tickness of cutting:	0.5-27;
Dimension (L x W x H):	600 300 530;	Packaging Detail:	Standard Export Carton with Foamed board;
Phase:	Three phase;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Port:	Guangzhou or Shenzhen;	the range of Output voltage adjustment:	90~128V;
Rated load duration:	60%;	Supply Ability:	3000 Set/Sets per Day;
Model Number:	CUT-100;	After-sales Service Provided:	No overseas service provided;
Brand Name:	GET STAR WELD;	Weight:	32kg;
the maximun tickness of cutting:	45;

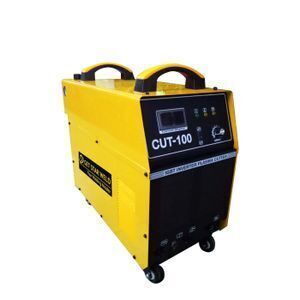

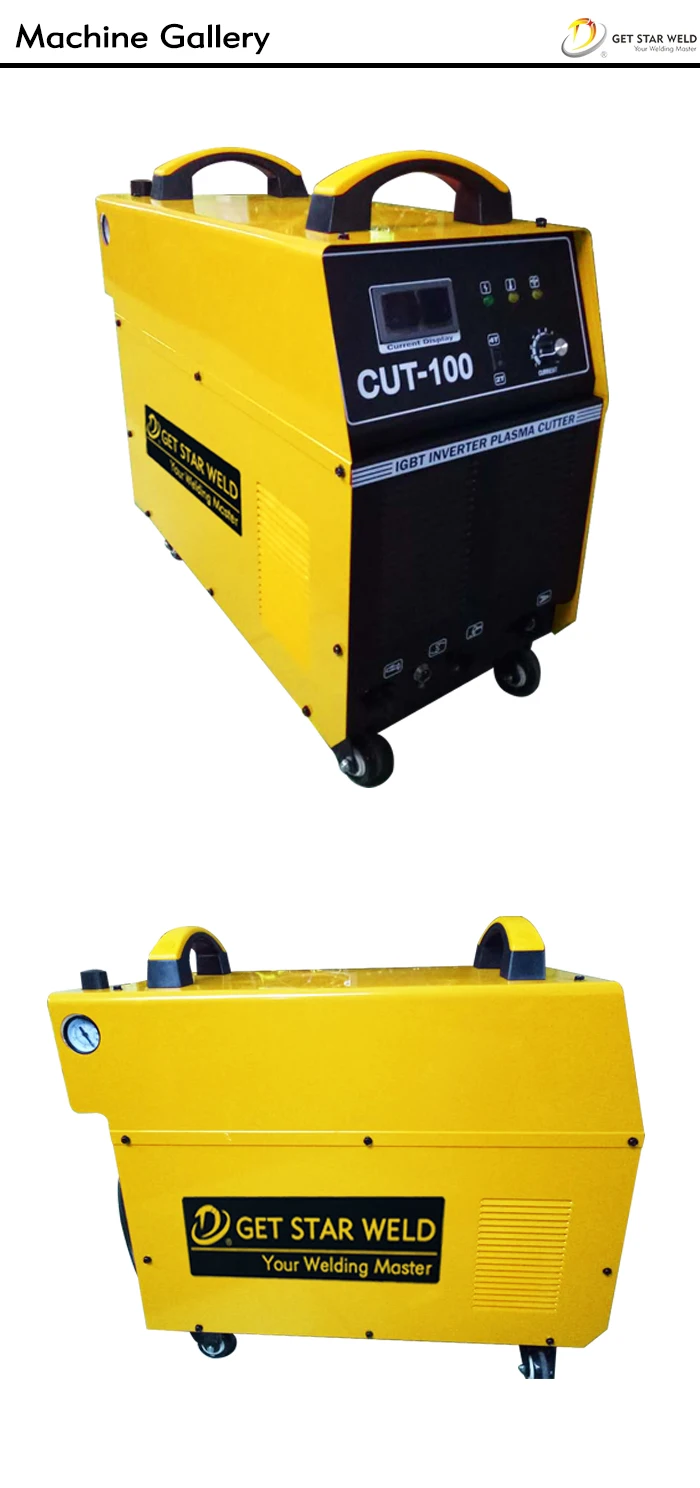

CUT-100 portable air Plasma Cutting Machine

Use high power IGBT module,have muture technology,have Stable performance

Narrow and elegant kerf,Without distortion of work piece,the matal plate is highly

have arc protection device, can be used for automatic cutting equipment

Machine have arc protection device, can be used for automatic cutting equipment.

Suitable for discretionary cutting in different metal panels like ordinary steel ,stainless steel,aluminum.

Non-high frequency arcing,can easy to carry

when the external pressure is high,can use this machine .because it using a gas pressure regulator (can reduce the pressure )

Cutting current is continuously adjustable,Accurate and intuitive

Built-in overcurrent, overheating, overvoltage, undervoltage and other protection circuits, safe operation

The new inclined plane shell, humanized design

Input power voltage	three phase 380V±10%/50Hz
Rated input power	17.2KVA
Rated load duration	60%
the range of output current adjustment	25~120A
the range of Output voltage adjustment	90~128V
No-load voltage	320V
the qulity tickness of cutting	0.5-27
the maximun tickness of cutting	45
Use plasma gas	Compressed air
Working gas pressure range	0.4~0.5MPa
Torch cooling method	air cooled
Arc start mode	Non-conctact
Machine Weight	35Kg
Overall dimension	600×300×530

Q 1: Do you have English Operation Manual ?

A:Yes, each machine has English Operation Manual with clear instruction ,to assist you connect and operate the machine.

Q 2: What kinds of services you will provide to us?

A: 1 year warranty ,free components, life-long technical support and design service.

Q 3: How is your quality control?

A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.

Q 4: Are you a manufacturer ?

A:Yes, our factory established since 1987.

Q 5: Can I change the volatage of the machine?

A:Yes, except 220V 1phs, 380 3phs . 110V ,440V could also be done.

Machine could be customized according to your country local envirement.

Q 6: Do you have any MOQ limit for machine order,Can I get some samples before the orders ?

A:Low MOQ, 1pc for sample checking is available .

Q 7: How can I get the warranty of your machines?

"A: warranty is 1 years which machine are not being damaged by any man-made, We would request detailed images of any problems or warranty claims - provided emails with detailed pictures are sent, we will dispatch replacements at our cost to repair the products or alternatively

supply replacements in subsequent orders. In some special cases we may turn to a discount as a solution."

Q 8:How long is the production lead time?

A:After receiving your 30% deposit ,generally it is 5-10days if the goods are in stock, or 25-30 days if not .

Q 9:What is your payment terms?

A: 30% deposit,70% balance, you could pay by T/T, L/C,PAYPAL,WESTERN UNION,MONEYGRAM Trade Assurance is recommended ,you could pay through Trade Assurance on alibaba, and you could get compensation if any dispute occurs.

Q 10:How do you ship the goods and how long does it take to arrive ?

A:Usually ship by sea and takes 30days. airline or express also optional for small order and 3-5days arrival, shipping time differs for different countries

Q 11:Where is your location ?

A:Our sales office in Foshan City , machine factory in Guangzhou city , both city are near Canton Fair and Hongkong.

welcome to visit us , we offers pick-up service .

Q 12:Which port is the nearest from your company ?

A:The Huangpu port in Guangzhou city is the nearest

Q 13: Is OEM and ODM service available ?

A:Yes, product could print your logo , or customized by your design .

Q 14:How can I take to a live person and get a quotation ?

A:You can contact sales master with contact information below , or send inquiry through alibaba

↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
