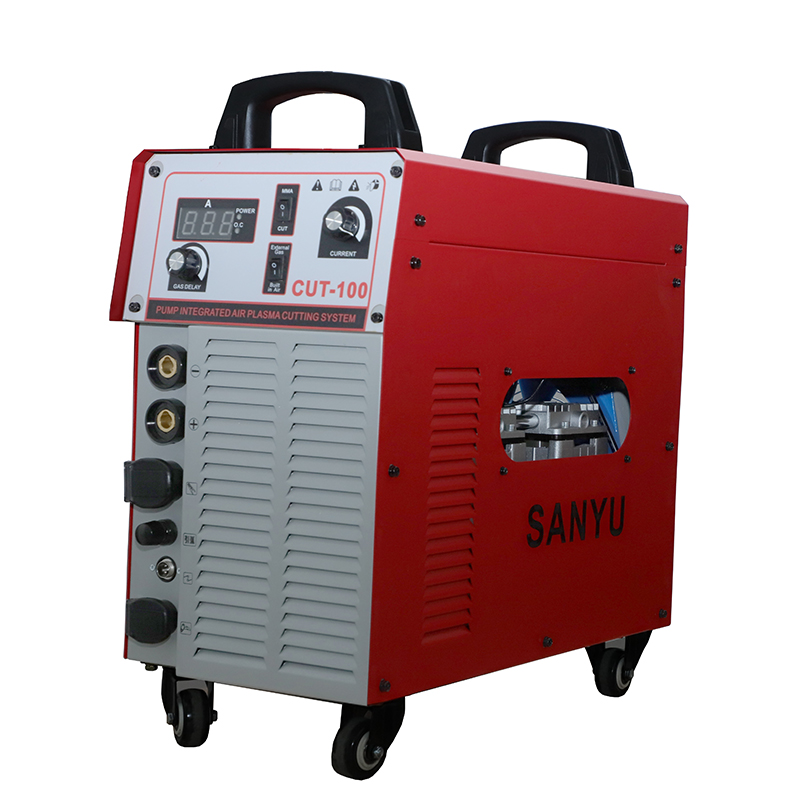

Air plasma cutting machine with built-in air compressor

Supplier: Shanghai Sanyu Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Alan Ji
Price: $240.00 / 1 - 99 sets
$200.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Shanghai	model:	Cut-60
Dimensions (length x width x height):	540X280X580mm	Warranty:	12 months
secluded:	Yes	stage:	Three phases
Customization support:	Processing	Place of origin:	Shanghai
Supply capacity:	1000 sets per week	After-sales service provided:	Overseas service center
Certification:	CE	Rated output current:	11A
Packaging details:	carton	payment terms:	L/C, Western Union, T/T
weight:	38	color:	Red
brand:	Mitama

Air plasma cutting machine with built-in air compressor

main feature:

Our plasma power supply is designed with advanced inverter technology and is suitable for plasma cutting systems that use compressed air for cutting. The emergence of variable welding and cutting equipment benefits from the emergence of inverter power supply theory and devices:
1) LGK-40/60/80/100/160 variable frequency cutting power supply uses high-power device IGBT to convert 50/60Hz power frequency into intermediate frequency. Subsequently, the voltage is reduced and the current is regulated. Pulse width modulation technology (PWM) is also used. Can generate powerful large power, which can be used for cutting.
Compared with traditional rectifier and conversion technology, the advantages of inverter technology are mainly manifested in obvious low energy consumption, light weight, smaller and more compact structure, and better performance. With built-in air compressor plasma cutting machine, you can work anytime and anywhere.
Our range of plasma cutting power supplies provide a stronger, more focused and more stable arc. The air in the arc is almost always charged
The arc temperature can reach 10000-16000℃, reaching a high degree of ionization and forming a powerful plasma arc. This means that the plasma arc can be used to cut metal quickly, with as little heat-affected zone as possible, and the energy can be used efficiently.
It can be used to obtain an extremely smooth cutting surface, which brings convenience to subsequent processing.
Compared with other cutting power supplies, our series of inverter plasma cutting power supplies can provide fast power through advanced electronic circuits.
Source conditioning and control, with best-in-class cutting operating characteristics and extremely high conversion efficiency.
Our range of plasma cutting power supplies serve a variety of purposes. They are mainly used for cutting sheet metal. It can be used when the equipment cannot cut, and can be used for various metal materials with different properties, including stainless steel, alloy steel, and carbon steel.
Steel, copper and other non-ferrous metal materials. This machine can cut sheets into complex shapes as needed.

Specifications:

Model	Cut-45	Cut-63	Cut-80	Cut-105	cut-130
Input voltage(V)	AC220V±10%	AC380V±10%	AC380V±10%	AC380V±10%	AC380V±10%
Frequency (Hz)	50	50	50	50	50
Rated input current CUT(A)	20	11	16	21.3	27.3
Rated input current MMA(A)	/	10	11	13.3	15.5
Output current CUT(A)	25-40	25-60	25-80	25-100	25-120
Output current MMA(A)	/	30-200	30-220	30-250	30-280
Rated output voltage CUT(V)	88-96	88-104	88-112	88-120	88-128
Rated output voltage MMA (V)	/	21-28th	21-28.8	21-30 days	21-31.2
Duty cycle (%)	60	60	60	60	60
efficiency(%)	85	85	85	85	85
Rated capacity (KVA)	5	8	10	13.3	number 17
Air pressure (KG)	4-5	4-5	4-5	4-6	4-7
Cutting thickness(mm)	1.0-12	1.0-20	1.0-25	1.0-30	1.0-40
Enclosure grade	IP21	IP21	IP21	IP21	IP21
Insulation level	Second	Second	Second	Second	Second
Net weight/kg)	20	35	49	62	62
Dimensions (mm)	440X280X290	465X280X510	540X280X580	585X315X650	585X315X650
