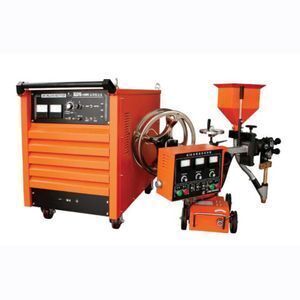

MZ 630/ 1000/1250 Automatic submerged arc welding machine

Supplier: Shanghai Sanyu Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Alan Ji
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension:	11402590920;	Packaging Detail:	Carton;
Usage:	SAW;	Duty cycle:	60%;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Supply Ability:	1000 Set/Sets per Week;
No load voltage:	60-70;	Insulation class:	F;
Brand Name:	SANYU;	Motor Type:	IGBT;
Voltage:	3 PH 380V;	After-sales Service Provided:	Online support;
Weight:	370;	Name:	Submerged arc welding machine;
Rated Duty Cycle:	60%;	Dimensions:	1140590920MM;
Arc Current:	250A~1250A;	power factor:	0.73;
Pilot Arc Current:	250A~1000A;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Construction works ;
Pulse Frequency:	100HZ;	Showroom Location:	Egypt,ITALY;
Port:	Shanghai;	IP:	21;
Warranty:	1 YEAR;	Key Selling Points:	Easy to operate;
current:	250-1250;	Certification:	CE,CCC, ISO;
Power(W):	99VA;	Place of Origin:	Shanghai China;
Local Service Location:	Egypt,ITALY;	Weight (KG):	365 KG;
After Warranty Service:	Online support,Spare parts;	Condition:	New;

MZ 630/ 1000/1250 Automatic submerged arc welding machine

Product Description

1.Power source adopts powerful thyristor, used for automatic submerged welding

2.For butt welding, fillet welding with groove or without groove in horizontal or 10 degree angle slope.

3. Wide adjustment range of welding current, stable arc, low noise

4. Double wire drivers and powerful wire feeding function

5. Stepless adjustment of wire feed and welding speed;

6. Suitable for circumferential welding, filler welding, butt welding, lap welding and fillet welding in flat position;

MZ 630/ 1000/1250 Automatic submerged arc welding machine

Item/Model	MZ-630	MZ-1000	MZ-1250
Input Voltage(V)	380V/50HZ	380V/50HZ	380V/50HZ
Phase Number	3	3	3
Rated input capacity(KVA)	48.3KVA	86KVA	99KVA
Open circuit Voltage	76V	76V	76V
Welding Current	120-630A	150-1000A	250A-1250A
Duty Cycle	60%	60%	60%
Wire Diameter	2-3mm	3-5mm	3-6mm
Welding Speed	15-70cm/min	30-120cm/min	30-120cm/min
Tractor Weight	60kg	60kg	65kg
head Lateral Bevel Angle	30°	30°	30°
Vertical Adjust Range	85mm	85mm	85mm
Level Adjust Range	60mm	60mm	60mm
Head Rotary Angle	±180°	±180°	±180°
Power Source Weight	290kg	335kg	370kg
Power source Dimension	960490800mm	1140590920mm	1140590920
