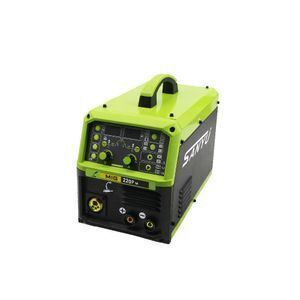

Mini Type Cheaper High Speed Pulse MIG Welding Machine /CO2 and Argon Gas Shield welder MIG 220P-m

Supplier: Shanghai Sanyu Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Alan Ji
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Welding Process:	Stick,MIG;	Brand Name:	SANYU;
Dimension (L x W x H):	602864CM;	Packaging Detail:	1pcs/box;
Phase:	1 phase;	Rated Output Current:	220A;
For Material Type:	Steel,Mild Steel,Stainless Steel,Aluminum,Copper Alloys,Brass;	Weight:	25KG;
Model Number:	MIG 220P-M;	Welding Method:	DC Inverter;
Color:	Green or Red;	Max Material Thickness:	12mm;
Place of Origin:	China;

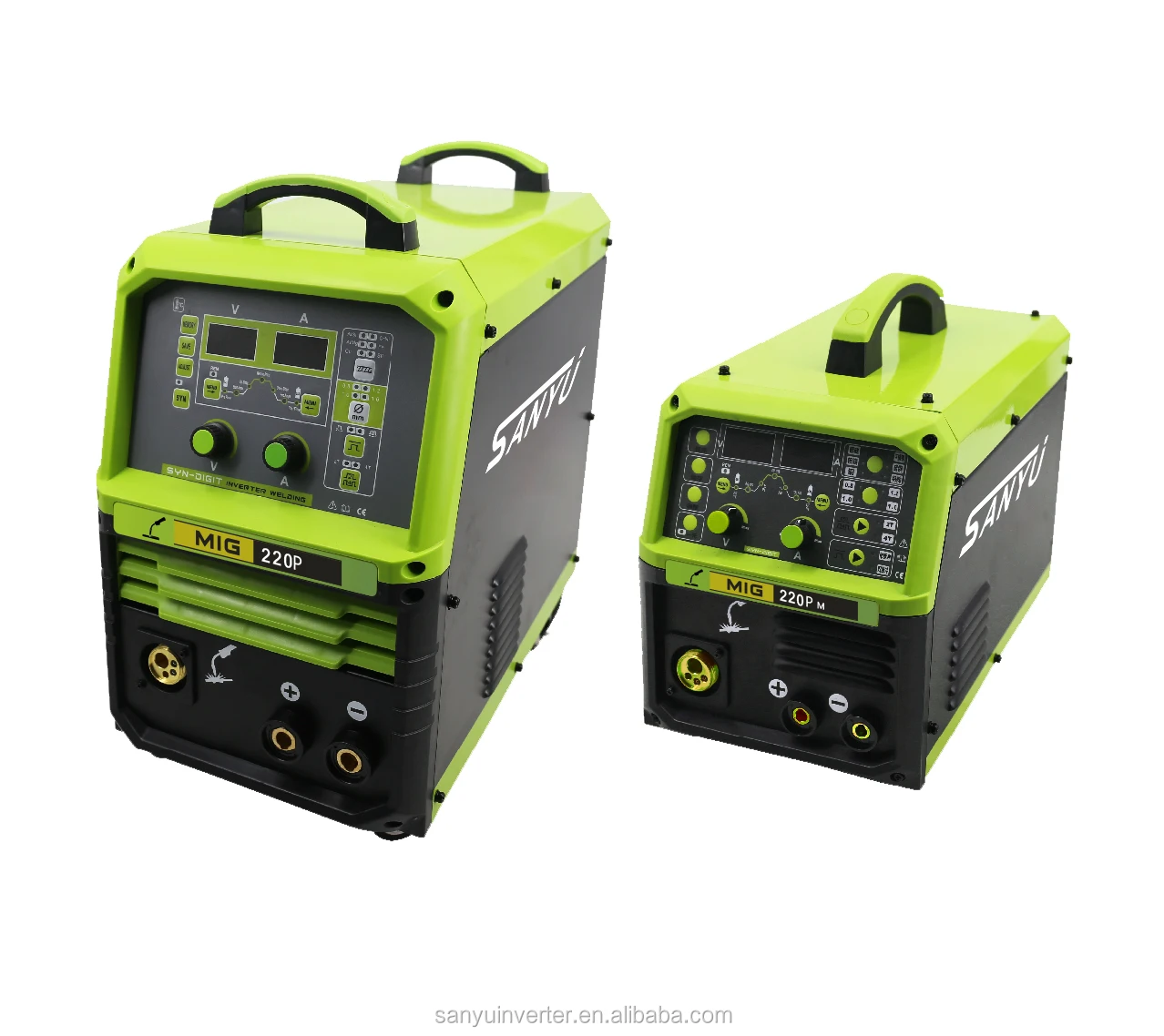

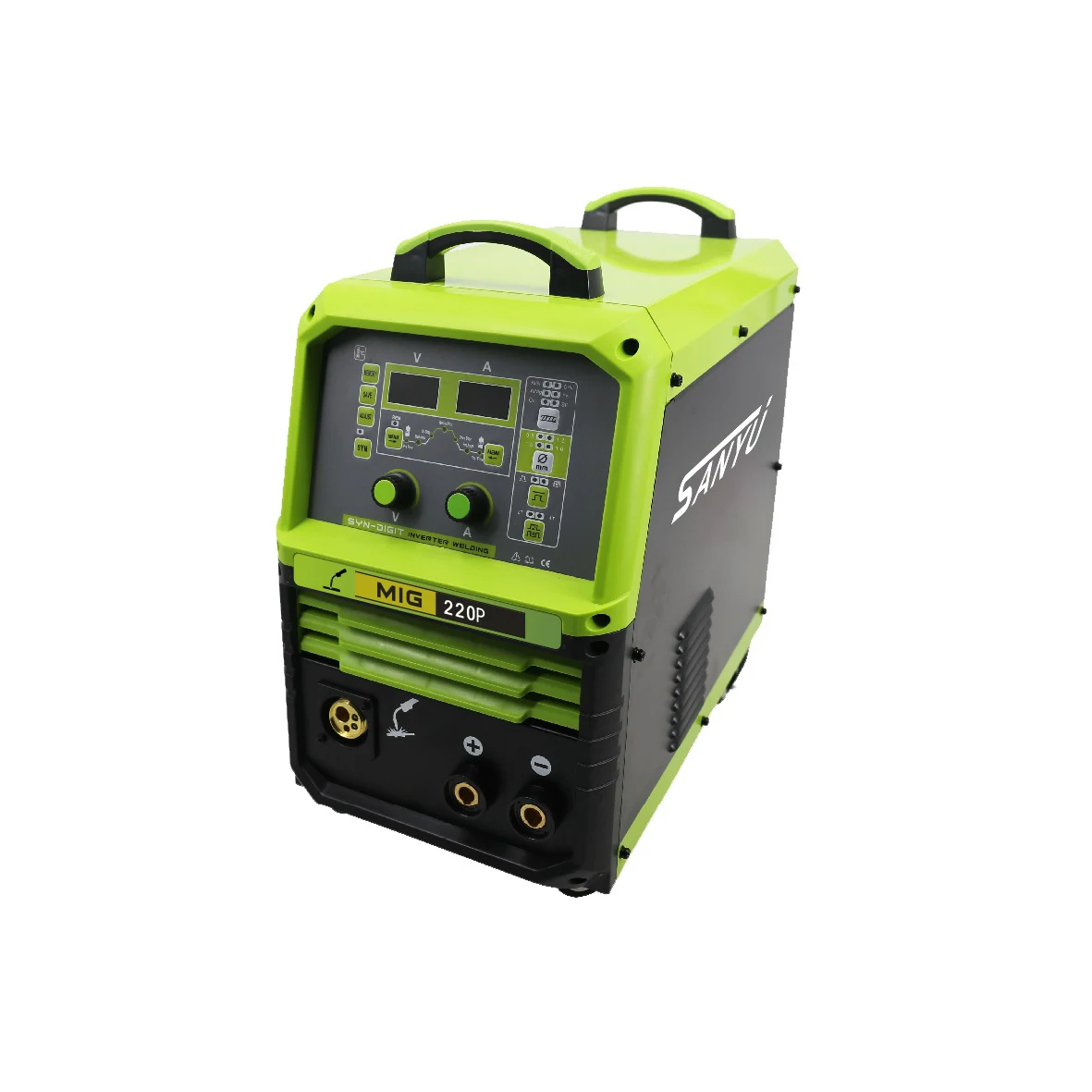

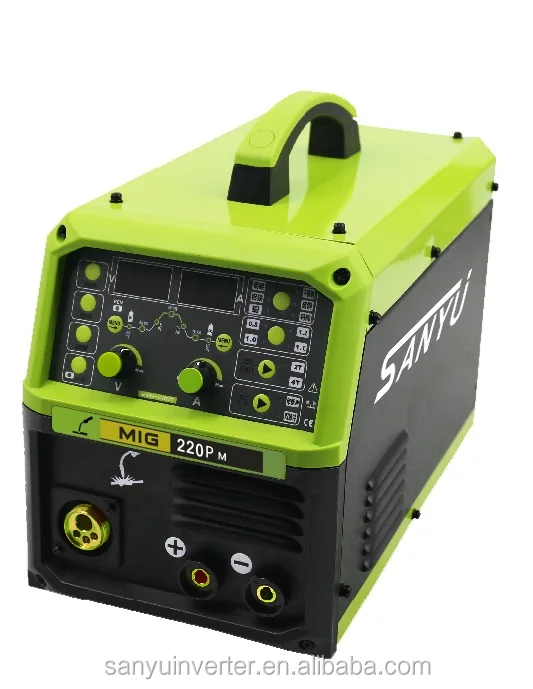

High Speed Pulse MIG (Melt Inert-Gas) Welding Machine
MIG 220P/MIG 220P-M

Inside Wire Feeder

Functions & Features

1.New Appearance Design, Compact Digital Control Panel, SYN Adjustment;
2.Integrated Wire Feeder With Single Drive Wire Feeder,Ensure Wire Feeding Stable;
3.Single Pulse and Double Pulse Can Be Chosen, Suitable For Welding Super-thin 0.45mm Aluminum Plate, Carbon Steel, Stainless Steel;
4.With Wheels, Easy To Move, High Convenience For MIG Welding;
5.International Brand IGB35KHZ And Rectify Tube;
6.Quick Welding Speed, Little Splash,Deep Pool,Good Welding Appearance;
7.High Duty Cycle,Efficiency Is 3 Times Of Traditional Argon Welding, Energy Saving,High Reliability.

Technical Specifications

Model	MIG220P	MIG-220P M
Input Power Voltage(VAC)	1PH AC 220V/ 3 PH AC 380V	1PH AC 220V
Rated Input Capacity(KVA)	6.4	6.4
Rated Input Current(A)	29/9.8	29/9.8
No-load Voltage(V)	65	65
Output Current Range(A)	50-220	50-220
Rated Duty Cycle(%)	60	60
Diameter Of Rod(mm)	0.8-1.2	0.8-1.2
Insulation Class	F	F
Protection Class	IP21	IP21
Efficiency(%)	85	85
Power Factor( cosφ)	1.93	1.93
Weight(kg)	25	25
Packing Dimensions(cm)	603864	603864

Service

1. SANYU focus on the welding field for 20 years, familiar with the welding industry, provide pre-sales technical consultation, and welding solutions.
2.18 months warranty period, feedback within 24 hours, lifetime after-sales service.Spare parts will be provided free of charge for any problem during the warranty period
3. The product can be customized according to customer requirements, such as the functions, logo,color and so on.
4.CE,3C,ISO certification, strict testing and packing before shipping, to ensure product in good quality.
5.SANYU provide a variety of delivery methods for customers, such as sea, air, express and self-pick for customers to choose.

FAQ

1.Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.

2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.

3.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.

4.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality
makes us who we are today. We focus on the quality from the very beginning to the end.

5.Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
