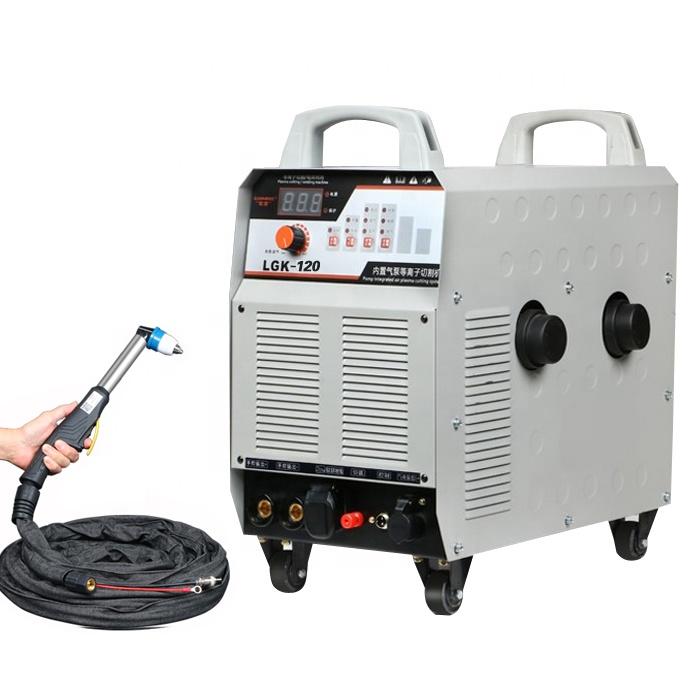

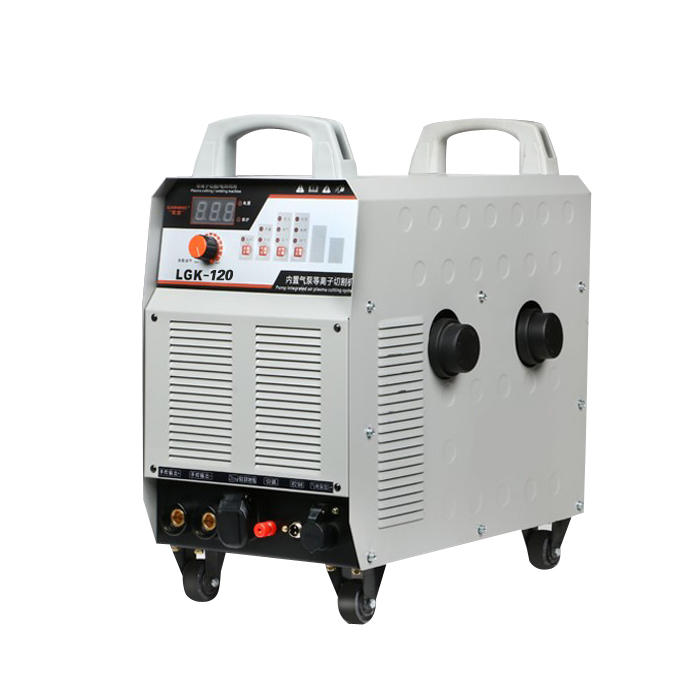

LGK-120 Desktop CNC Plasma Cutting Machine LGK-120 Plasma Power Three-in-one Function Plasma Cutting+MMA

Supplier: Foshan Deshi Electric Appliance Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Cindy Wu
Price: $835.00 / 1 - 299 pieces
$750.00 / 300 - 999 pieces
$675.00 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Gross weight per piece:	43.000 kg	Rated power (kW):	16.5 kW
product name:	LGK-120	model:	LGK-120
Frequency Hertz:	50/60	Package preview:
Rated input voltage V:	380V+-15%	weight:	51 kg
Sales unit:	single product	Current adjustment range A:	20-120
Single pack size:	60X45X60 cm	technology:	External / internal air compressor
Origin:	China	Effective cutting thickness MM:	1-45MM
DimensionsMM:	60x40x60 cm	Cutting method:	Plasma cutting + MMA

Product Description

Title goes here.

Technical features: New technology. Built-in air compressor. Suitable for outdoor work. The power supply works.
Plasma cutting + MMA manual welding

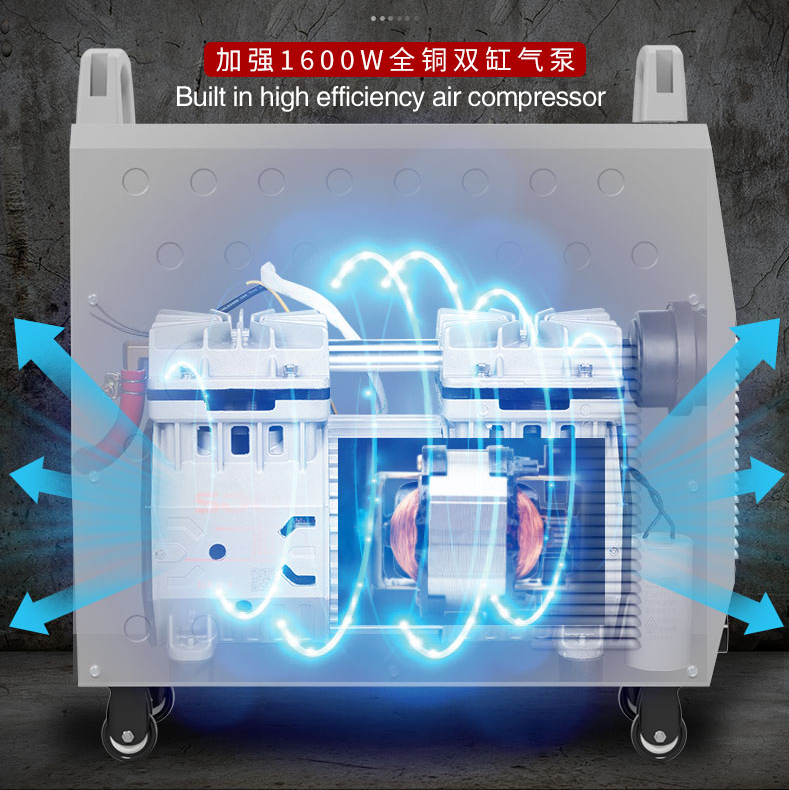

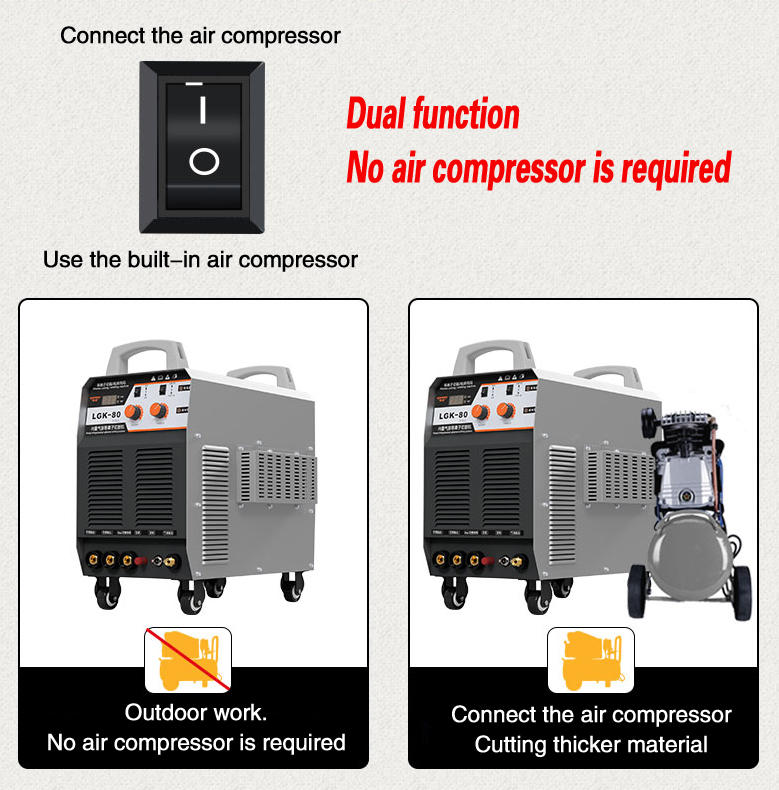

Built-in air compressor + external air compressor

No air compressor is required. Improve work efficiency. convenient. portable.
Suitable for a variety of working environments. Efficient. Strong cutting ability.

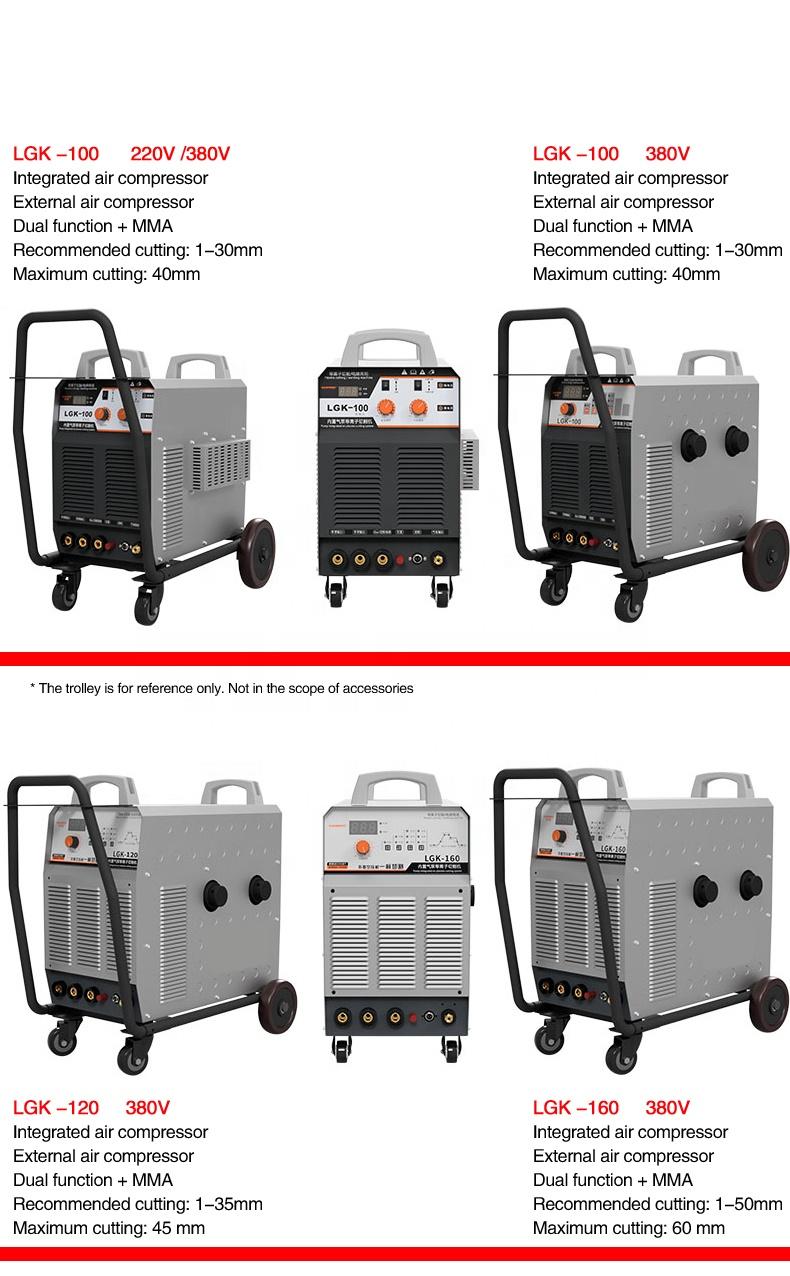

Product number	LGK-100	LGK-100	LGK-120	LGK-160	LGK-200
Rated power (kW)	~16.5	~16.5	~23W	~29
power cord (A)	3x6 square meters	3x6 square meters	3x6 square meters	3x10 square meters	3x10 square meters
Current range (A)	20-100	20-100	20-120	20-160	20-120
Input voltage (V)	220 V 50/60 Hz	380 volts	380 volts	380 volts	380 volts
weight kg	41 kg	41 kg	54 kg	60 kg	80 kg
Applicable material						Stainless steel, carbon steel, alloy copper, copper, titanium
Arc mode	contact/non-contact	contact/non-contact	contact/non-contact	contact/non-contact	contact/non-contact
Dimensions (mm)	540x310x560mm	540x310x560mm	610x330x650mm	610x330x650mm	610x330x650mm

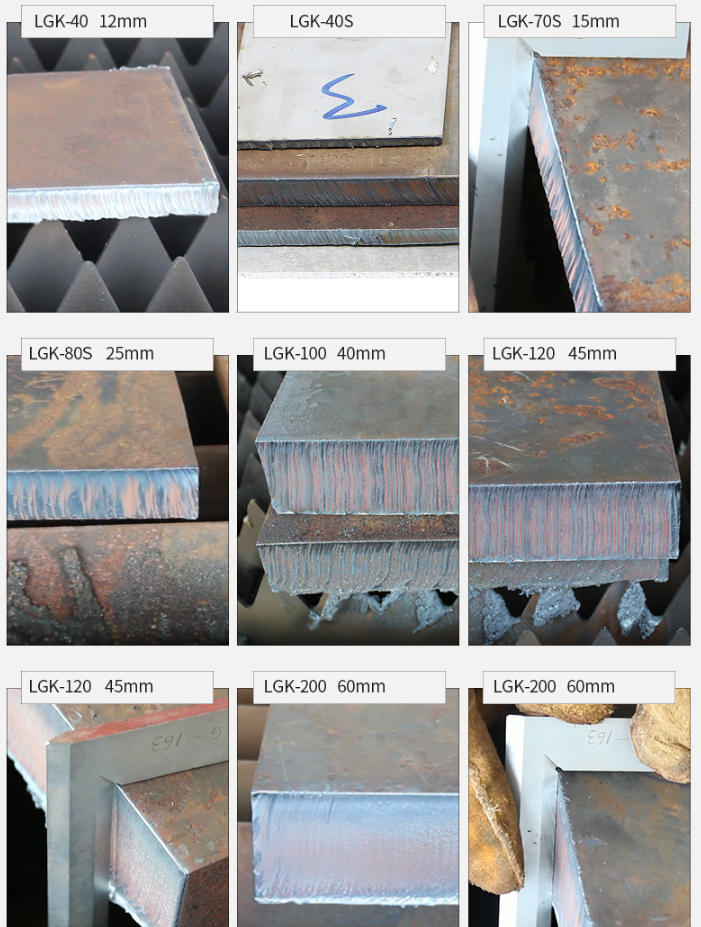

Cutting limit (MM)	40mm	40mm	45 mm	60mm	70 mm
Built-in cutting (MM)	1-30 mm	1-30 mm	1-35 mm	1-50 mm	1-55 mm
External cutting	1-35 mm	1-35 mm	1-40mm	1-55 mm	1-60 mm
manual welding	1-20 mm	1-20 mm	1-25 mm	1-30 mm	1-30mm
