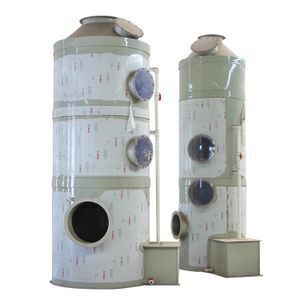

High quality waste gas treatment wet scrubber dust collector

Product details
ODM:yes;Material:polypropylene;
Packaging Detail:1.Main part of Spray tower are loaded into container . 2.Spare parts are packed by wooden box. 3. necessary protection for insulating layer.;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Port:Tianjin port;Brand Name:YITE;
Air flow:2000-3000 m3/h;Condition:New;
Color:grey;Package Preview:;
Product Name:air scrubber;Showroom Location:None;
Warranty of core components:1 Year;Power of water pump:0.75 KW;
pump out pipe diameter:25 mm;Warranty:1 Year;
OEM:yes;After-sales Service Provided:Video technical support,Free spare parts,Online support;
Machinery Test Report:Provided;pump in pipe diameter:32 mm;
Supply Ability:500 Piece/Pieces per Year;After Warranty Service:Video technical support,Online support,Spare parts;
Local Service Location:None;Customized:accept;
Video outgoing-inspection:Provided;Marketing Type:New Product 2020;
Core Components:Pressure vessel,Pump;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;
Purify Efficiency:99.9%;Place of Origin:Hebei China;

High quality waste gas treatment wet scrubber dust collector



All of our products can be customized. Any sizes, shapes, designs,logos meet your requirement,before quote you the price ,we will be appreciated if you can provide the information below:


1.Are you dealing with dust or waste gas?
2. the air volume;
3. Composition and concentration of waste gas;
4. Dust type and particle size;
5. Temperature of working environment;

6.Please provide the working condition and scheme on site,lf you are not clearly , we will recommend for you.



With above information we can quote exact price immediately.









The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.





Product Description



material classification:





Specification sheet:

model Air volume(m³/h)  tower size(mm)  water tank size(mm)  thickness(mm) pump power(kw)  tuyere size(mm)
YT-04PL600  1500  φ600*2800  500*400*450  PP-A/6  0.75  φ200
YT-04PL650  2000  φ650*3000  500*400*450  PP-A/6  0.75  φ250
YT-04PL800  3000  φ800*3600  500*400*450  PP-A/6  1.5  φ315
YT-04PL900  4000  φ900*3600  500*400*450  PP-A/6  1.5  φ315
YT-04PL1000  5000  φ1000*3600  600*400*450  PP-A/6  1.5  φ400
YT-04PL1100  6500  φ1100*3800  600*400*450  PP-A/8  2.2  φ400
YT-04PL1200  8000  φ1200*4200  600*400*450  PP-A/8  2.2  φ450
YT-04PL1400  10000  φ1400*4200  600*400*450  PP-A/8  2.2  φ500
YT-04PL1500  13000  φ1500*4200  600*400*450  PP-A/8  3  φ500
YT-04PL1650  15000  φ1650*4200  600*500*450  PP-A/8  3  φ600
YT-04PL1800  18000  φ1800*4500  600*500*450  PP-A/10  5.5  φ650
YT-04PL2000  20000  φ2000*4500  700*500*500  PP-A/10  5.5  φ700
YT-04PL2200  22000  φ2200*4500  800*600*500  PP-A/10  7.5  φ800
YT-04PL2400  25000  φ2400*5000  1000*600*500  PP-A/10  7.5  φ800
YT-04PL2600  30000  φ2600*5000  1000*600*500  PP-A/10  7.5  φ1000
YT-04PL2800  35000  φ2800*5000  1200*600*500  PP-A/10  11  φ1000
YT-04PL3000  40000  φ3000*5000  1200*600*500  PP-A/12  11  φ1000
YT-04PL3300  45000  φ3300*5500  1500*600*500  PP-A/12  15  φ1200
YT-04PL3600  50000  φ3600*6000  1500*600*500  PP-A/12  15  φ1200





Application pictures:





Adventages:

1.The efficiency of dust removal and desulfurization is high and the efficiency of desulfurization can reach 85% when using alkaline washing water.
2.The wet scrubber dust collector is small and easy to install.
3.Low water consumption and low power consumption.
4.The equipment is reliable, simple and convenient to maintain.
