Oven Thickness: | 150 mm; | Condition: | New; |
Brand Name: | FANGDA; | Dimension(L*W*H): | 18.7*16.5*5.6 m; |
Weight: | Customized; | Certification: | CE,ISO9001; |
Product Type: | Mass Production; | Voltage: | Customized; |
Supply Ability: | 5 Set/Sets per Month; | Place of Origin: | Shandong China (Mainland); |
Electrical Components: | Schneider; | Power(W): | Customized; |
Oven Inner Dimension: | 4.6*4.6*4.6m; | Applicable Industries: | Manufacturing Plant; |
Max. Temperature of Oven: | 350 ℃; | Warranty: | 1 Year; |
Delivery Time: | Wthin 60 Days; | OEM Service: | Available; |

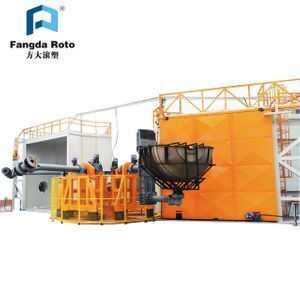

Key Selling Points: | Automatic; | Name: | Rotomolding Machine; |
After-sales Service Provided: | Field installation, commissioning and training; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Packaging Detail: | Control Apparatus--------packed in plywood case; Rotomolding Machine Frame--------packed by rag-rugs and pvc film.; | Port: | Qingdao; |
Control Apparatus: | Siemens; | Function: | Plastic Products Making; |

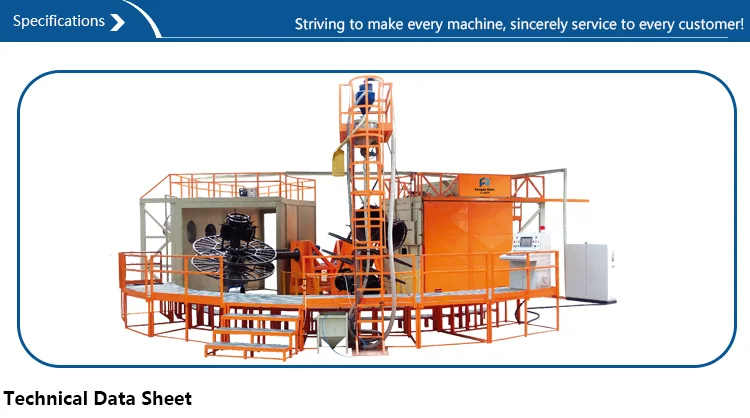

Model No. | Machine Dimension(m) | Oven Inner Dimension(m) | ||||
3 arms 5 stations | 4 arm 6 stations | L(m) | W(m) | H(m) | ||
FD3-2600 | FD4-2600 | 12.7 | 11.1 | 4.0 | 2.6*2.6*2.6 | |
FD3-3100 | FD4-3100 | 14.8 | 13.1 | 4.5 | 3.1*3.1*3.1 | |
FD3-3600 | FD4-3600 | 16.3 | 14.0 | 5.0 | 3.6*3.6*3.6 | |
FD3-4100 | FD4-4100 | 18.7 | 16.5 | 5.6 | 4.1*4.1*4.1 | |
FD3-4600 | FD4-4600 | 20.7 | 17.6 | 6.1 | 4.6*4.6*4.6 | |
FD3-5100 | FD4-5100 | 21.7 | 18.6 | 6.6 | 5.1*5.1*5.1 |

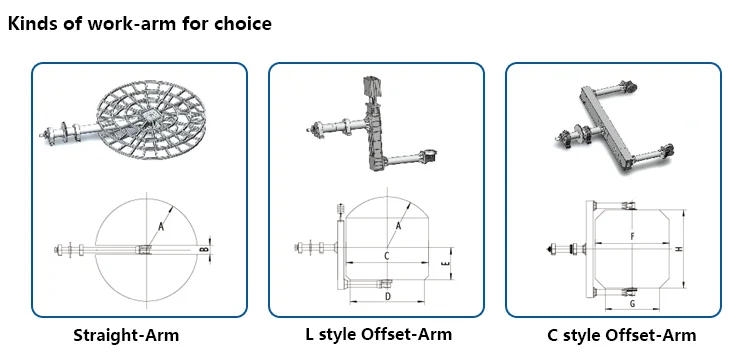

Working arm paramenters | Max.load | |||||||||
A | B | C | D | E | F | G | H | Straight Arm | L offset Arm | C offset Arm |
R1200 | 350 | Φ1900 | Φ1800 | 600 | \ | \ | \ | 900 | 700 | \ |
R1400 | 360 | Φ2300 | Φ2100 | 800 | \ | \ | \ | 1300 | 900 | \ |
R1700 | 360 | Φ2800 | Φ2600 | 910 | \ | \ | \ | 1500 | 1000 | \ |
R1900 | 400 | Φ3160 | Φ3000 | 1100 | \ | \ | \ | 2000 | 1200 | \ |
R2150 | 420 | Φ3500 | Φ3200 | 1300 | \ | \ | \ | 2500 | \ | 1600 |
R2400 | 420 | Φ3900 | Φ3500 | 1530 | 3750 | 2750 | 3974 | 3000 | \ | 2000 |
