Inverter Efficiency: | 93%; | Input Voltage: | 12V; |
Model Number: | SKN-HDS 1500VA; | Output wave: | Modified Sine Wave; |
Selling Units: | Single item; | Size: | 351*289*137mm; |
Output Voltage: | 220V/230V/240VAC; | Transfer Time: | 10 Ms (For Personal Computers); |
Single gross weight: | 5.0 KG; | Input AC Range: | 177-280V(Narrow Range) or 90-280VAC (Wide Range); |
Brand Name: | SAKO; | Input Voltage(Vdc): | 12V; |
Output Type: | Single; | Output Current: | 4.5A; |
Single package size: | 35X50X20 cm; | Warranty: | 1year,1Year; |
Packaging Detail: | Standard international paper box packing.; | Output Frequency: | 50Hz/60Hz; |
Certificate: | CB,CE,IEC,IECEE,CB,TUV,ISO; | Solar controller: | 50A/24V; |
Place of Origin: | Guangdong China; | AC Efficiency: | > 97%; |
Power factor: | 0.8; | Type: | DC/AC Inverters; |
Display: | LCD+LED Display; | Weight: | 5kg; |

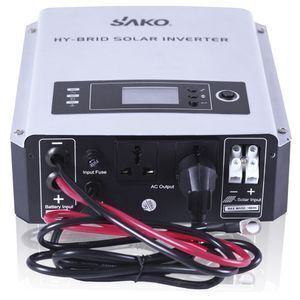

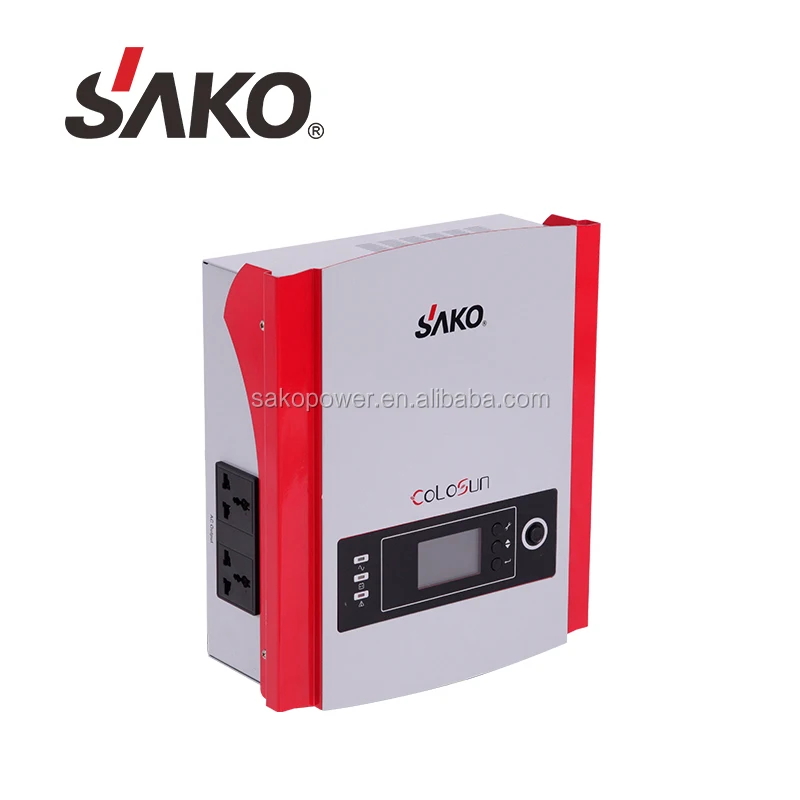

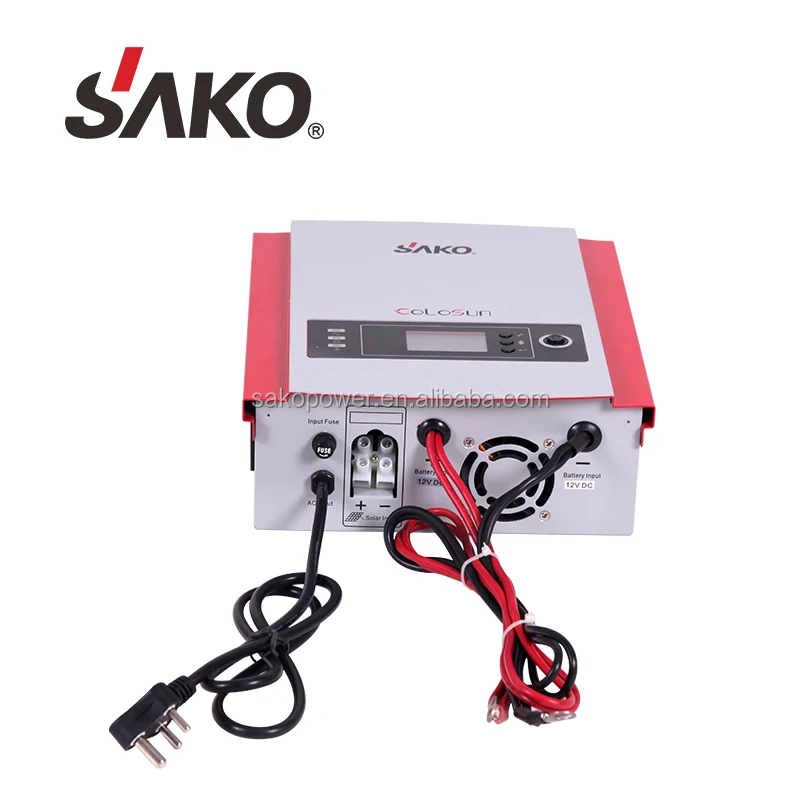

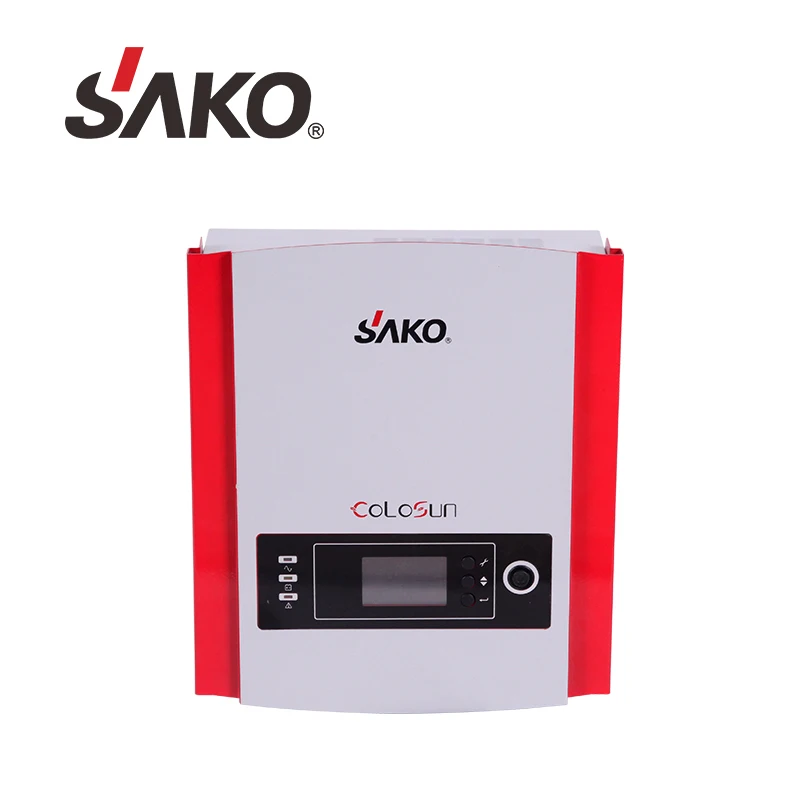

SAKO Wholesale Built-In PWM Solar Charge Controller 1KVA~2.4KVA Hybrid Solar Inverter
Main Features:
1.Built-in 50A PWM solar charger
2.Configurable AC/Solar input priority via LCD setting

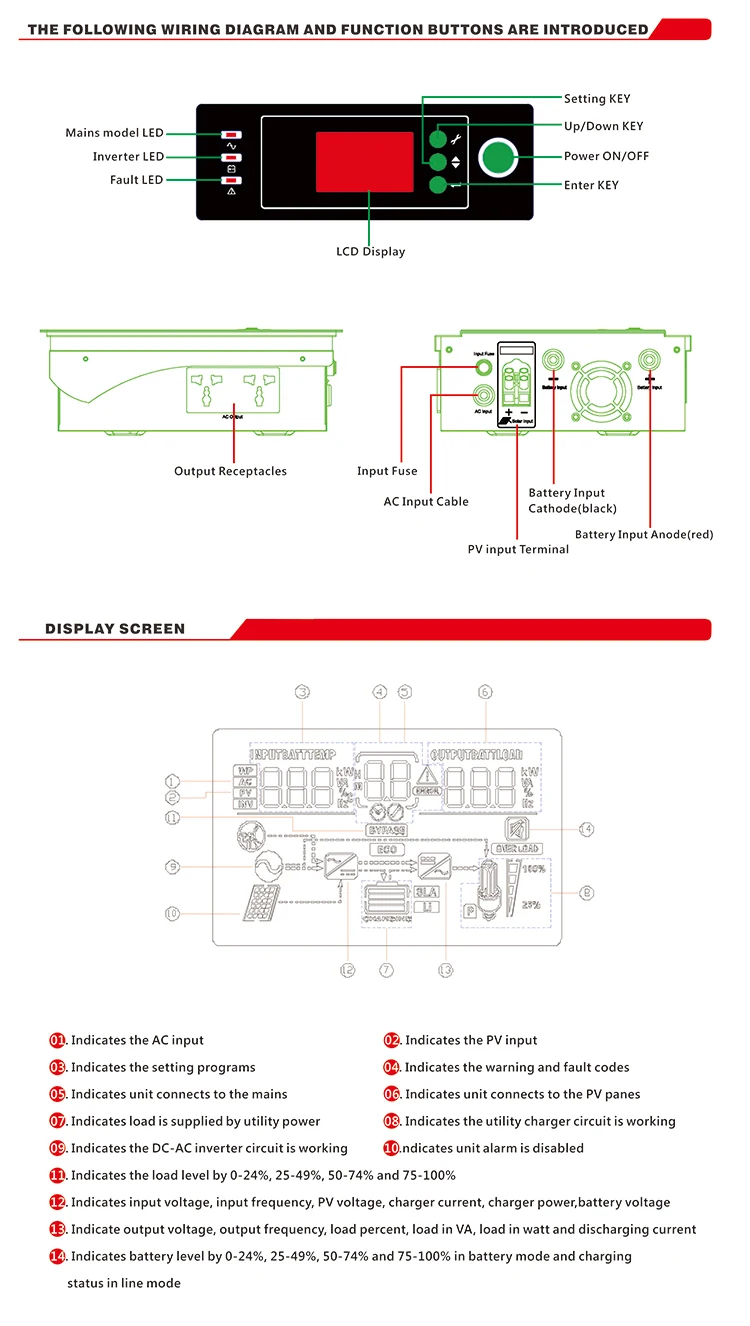

3.Multi-function LED&LCD Display and buzzer alarms.
4.Selectable input voltage range for home appliances and personal computers
5.Selectable charging current
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Smart battery charger design for optimized battery performance
9.Overload, Overcharge and short circuit protection

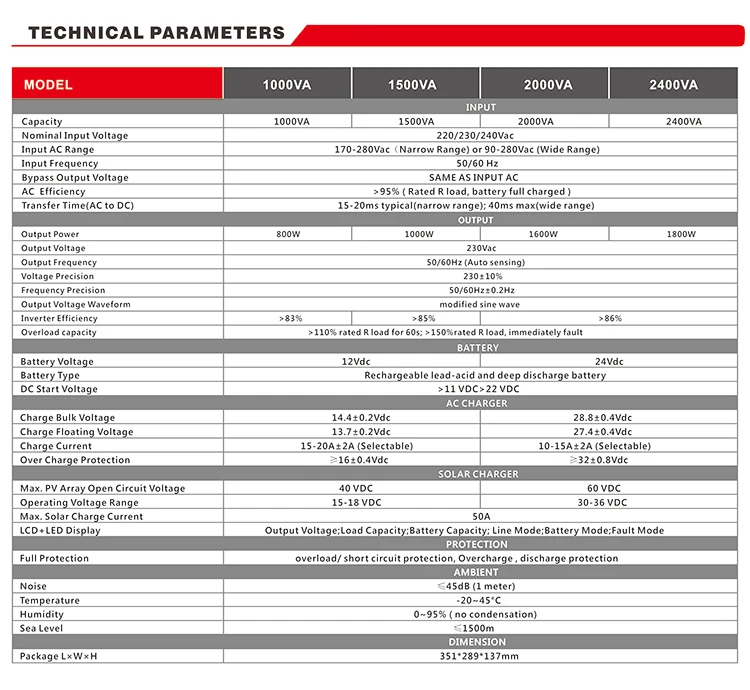

MODEL | SKN-HDS3 1KVA/12V | SKN-HDS3 1.5KVA/12V | SKN-HDS3 2KVA/24V |
SPECIFICATION | |||
Recommended Poly-crystalline solar panels | |||
The Maximum Power Of Solar Panels (W) | 150W/18VDC*3PCS | 150W/18VDC*6PCS | 300W/36VDC*6PCS |
Recommended Solar Battery Bank | |||
The Storage Battery Bank (AH) | 200AH/12VDC*1PCS | 200AH/12VDC*2PCS | 200AH/12VDC*4PCS |
DC INPUT | |||
Input Voltage(Vdc) | 12 | 12 | 24 |
Input DC Range(Vdc) | 10~15 | 10~15 | 20~30 |
AC Bypass in “on/off” switch off mode | |||
Input AC Range(Vac) | 220/230/240VAC | ||
177-280V(Narrow Range) or 90-280VAC (Wide Range) | |||
Input Frequency(Hz) | 50/60 HZ | ||
Bypass Output Voltage(Vac) | SAME AS INPUT AC | ||
Bypass Output Frequency(Hz) | SAME AS INPUT Frequency | ||
Charge Current(A) | 15A/20A Selectable | 15A/20A Selectable | 10A/15A Selectable |
Charge Floating Voltage(V) | 13.75±0.2V | 13.75±0.2V | 27.5±0.4V |
Over Charge Voltage(V) | 15.0V±0.4V Charge stop | 15.0V±0.4V Charge stop | 30.0V±0.8V Charge stop |
AC Efficiency | > 97% | ||
Transfer Time(ms) | Typical 15ms | ||
SOLAR CONGTROLLER | |||
Solar controller | PWM 12V /50A | PWM 12V /50A | PWM 12V /50A |
AC OUTPUT (INVERTER) | |||
Capacity(VA) | 1000VA | 1500VA | 2000VA |
Output Power(W) | 800W | 1000W | 1600W |
Output Voltage | 220VAC | ||
Output Frequency | 50/60HZ | ||
Output Current(A) | 4.5/3.6 | 6.8/4.5 | 9.1/7.2 |
Voltage Precision(VAC) | 220±10% | ||
Frequency Precision(HZ) | 50/60Hz±0.1HZ | ||
Wave | modify sine wave | ||
Power Factor(PF) | 0.8 | ||
Inversion Efficiency | >90% | ||
Bypass Transfer time(ms) | <=8 ms | ||
Over load capacity | over load 110%,60s later shut offer | ||
PROTECTION | |||
Protection | over load/ short circuit protection, Over charge and discharge protection | ||
AMBIENT | |||
Noise(dB) | <=40 (1 mter) | ||
Temperature | -20~45 degree | ||
Humidity | 0~95% ( no condensation) | ||
Sea Level(m) | <=1500 | ||
DIMENSION | |||
Package L×W×H(mm) | 385*570*1290 | ||
QTY per CTN (pcs) | 4PCS | ||
GW. Weight(Kg) /Carton | 21KGS |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
