Chassis brand: | Dongfeng,foton,howo and so on; | Gross Vehicle Weight: | 15800; |
Color: | As customer's request; | Fuel type: | Diesel; |
Fuel Type: | Diesel; | Drive type: | 4*2; |
Single gross weight: | 68.0 KG; | Selling Units: | Single item; |
Package Preview: | ; | Single package size: | 82X21X36 cm; |
Place of Origin: | Hubei China; | Horsepower: | 190hp; |
车身尺寸: | 8500*2500*3600mm; | Product name: | DONG FENG sewage suction truck; |
Condition: | New; | Tank Volume: | 12000L; |
Steering wheel: | Right hand drive,left hand drive; | Brand Name: | CLW; |
Emission Standard: | Euro 3; | Packaging Detail: | naked,waxing of High Pressure Sewer Scavenger vacuum suction sewage tank truck; |
Tire Specification: | 10.00-20; | Tank material: | Carbon steel; |
Transmission Type: | Manual; | Warranty: | 12 Months; |
Tire No.: | 6; |
Sewage Suction truck used to collect and transfer sewage and sludge, it is the new sanitation vehicles can avoid the secondary pollution.
Sewage suction truck is suitable for the collection and transportation of feces, mud, crude oil and other liquid substances, sewage sludge, can finish loading and unloading.
Features:self-suction and self-discharge, fast working speed, large capacity, convenient transportation, sewage suction truck adopt domestic advanced suction truck vacuum pump, great suction, long-distance suck, especially can suck sewage mud, stones, bricks and other large objects.
Working principle: vacuum pump is used to pump the tank into a vacuum state. The external atmospheric pressure is greater than the internal atmospheric pressure of the tank. The liquid material pressed into the tank through the rubber tube.
We can produce 3-16m3(3000 liter- 16 000 liter) suction sewage truck, both left and right hand drive for customer to select, and we cooperate with many famous chassis suppliers,like the HOWO,Foton,Dongfeng,etc.We can provide the customized-designing product meeting with any of your demand.Welcome to contact with us!
VEHICLE MAIN TECHNICAL INFORMATION | |
ITEM | DESCRIPTION |
Product Name | DONG FENG sewage suction truck |
Overall Size(mm) | 8500×2500×3600(mm) |
Sewage suction tanker | 12CBM |
Gross Weight(kg) | 15800 |
Curb Weight(kg) | 7700 |
Approaching/Departure Angle(°) | 20/13(°) |
Front/Rear suspension(mm) | 1430/2370 |
Max.speed(km/h) | 98 |
Standard Configuration | 1.Sewage suction tank volume 12m3,6mm carbon steel; 2.equipped with looking sewage window,self fow exit,cleaning device,Oil water separator, overflow valve, Hydraulic lifting sewage tank. 3.8m sewage suction pipe. 4. Vertical suction range: 9m,pumping full tank time: 10 min, discharging full tank time: 8min. |
Chassis Parameters | |
Chassis Brand | Dongfeng |
Chassis Model | DFL1160BX1V |
Drive Type | 4*2, 2 axles |
Transmission | 8-speed, manual |
Cab | One and a half cabin,3 passengers. |
Tire Specification | 10.00-20 |
Tire No. | 6 |
Wheelbase(mm) | 4700 |
Leaf Spring No. | 9/12+10 |
Front Trend/Rear Trend(mm) | 1880/1800 |
Axle Loading(kg) | 5600/10200 |
Engine Parameters | |
Engine Brand | Chaochai |
Engine Model | B190 33 |
Engine Type | Diesel, 6 cylinder, turbocharged, inter-cooled. |
Horse Power(hp) | 190 |
Displacement/Power | 5900ml/140kw |
Emission Standard | Euro 3 |

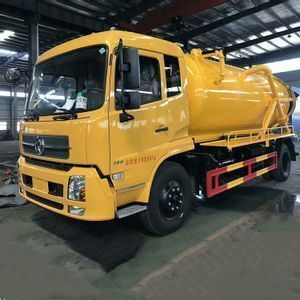

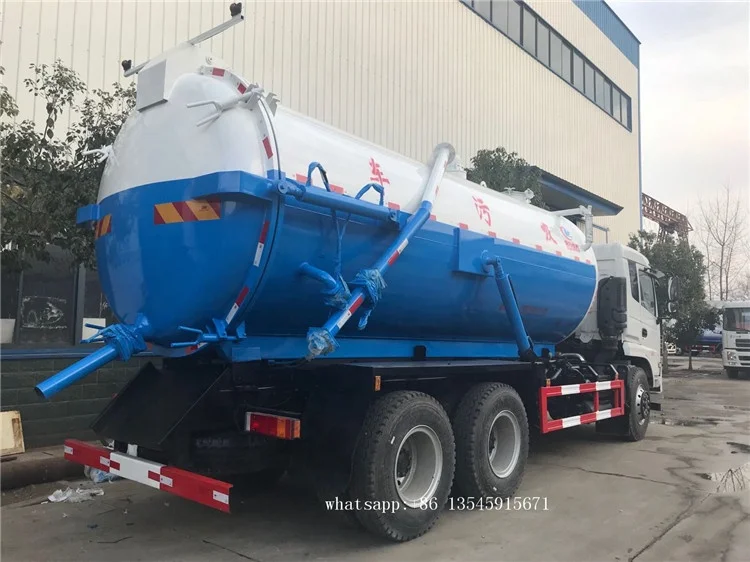

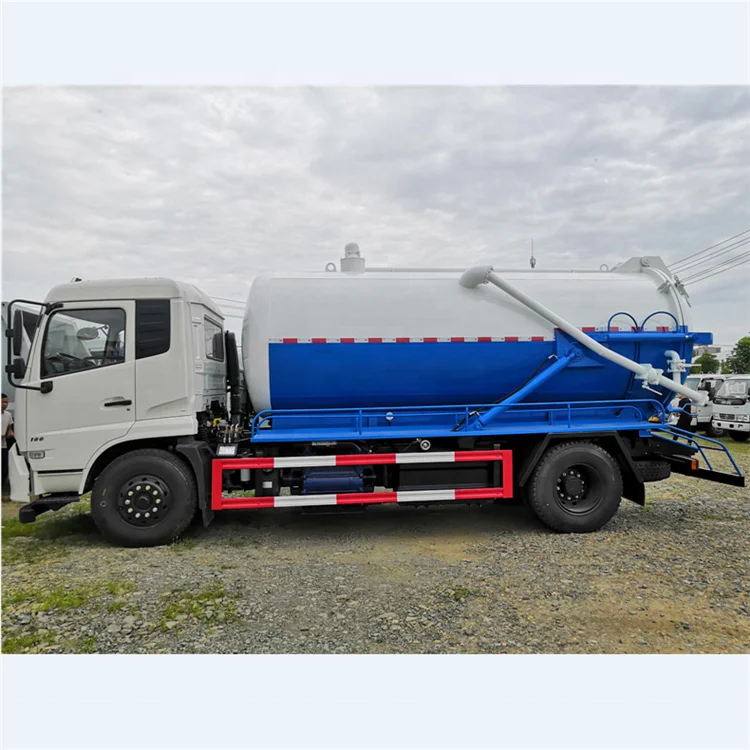

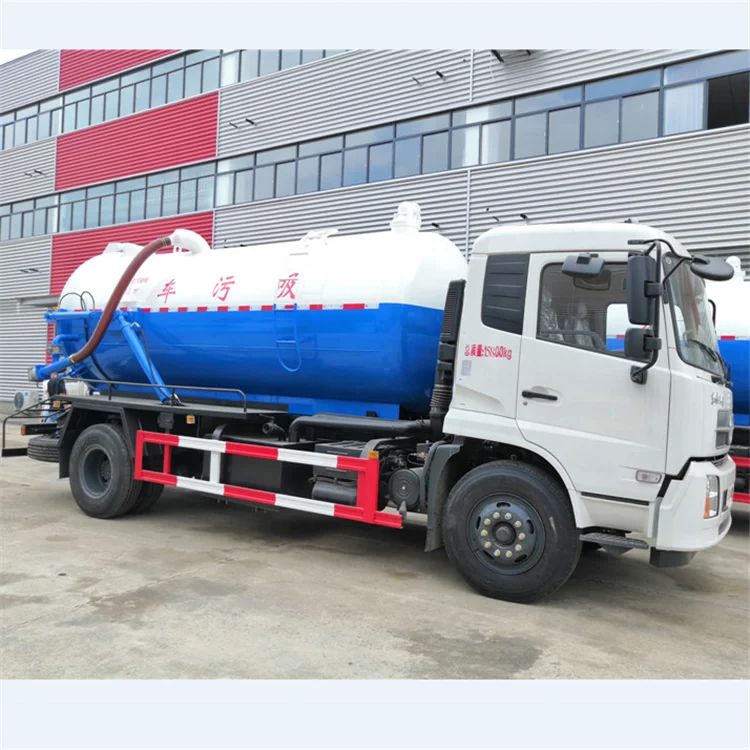

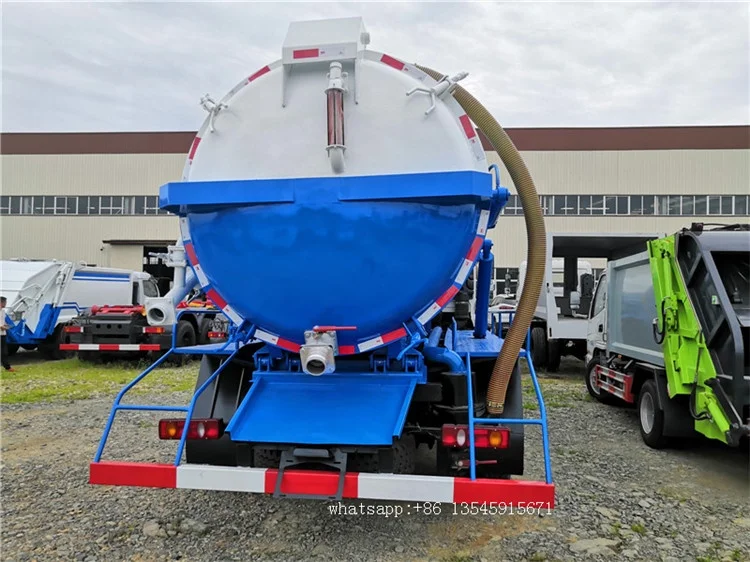

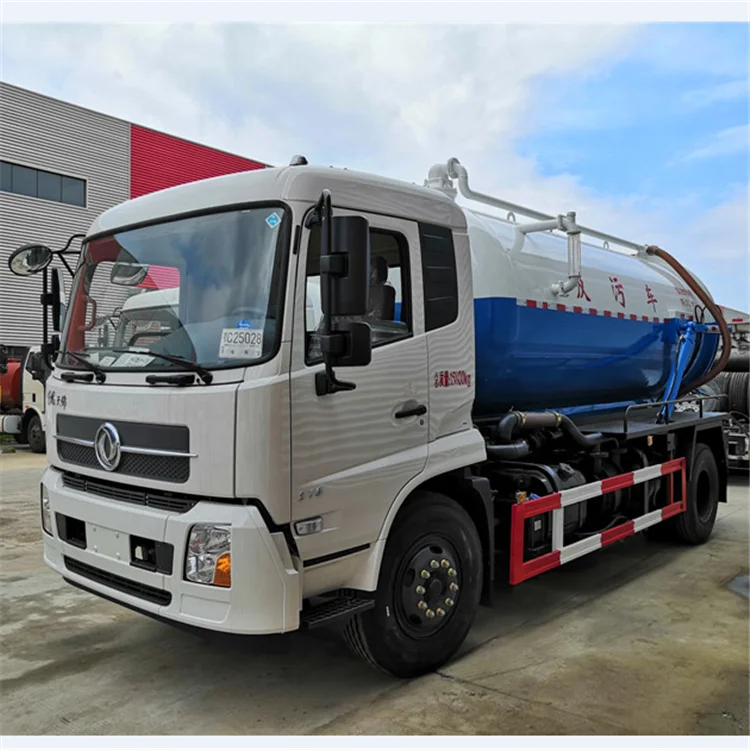

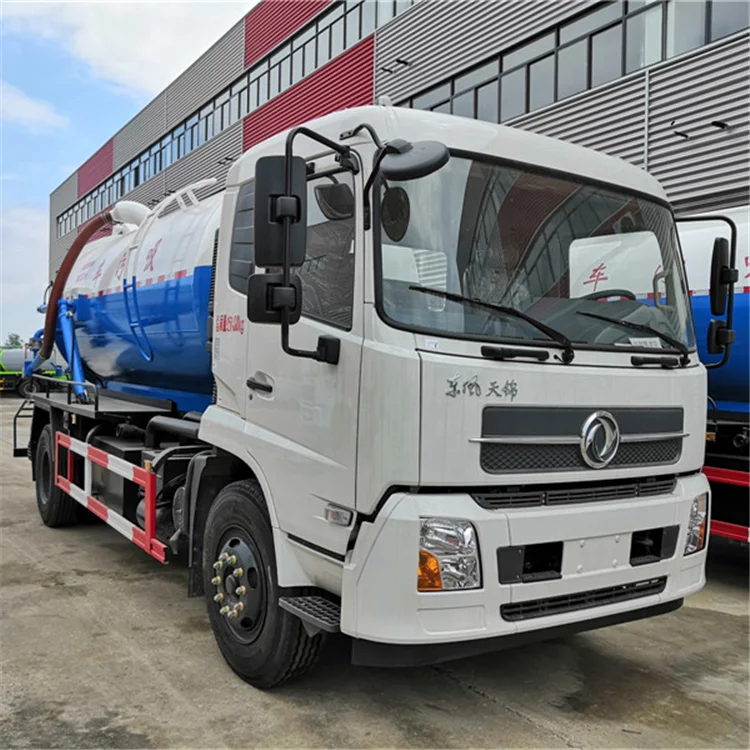

Details of sewage suction trucks :
High Pressure Sewer Scavenger vacuum suction sewage tank truck: naked,waxing
Welcome To Visit Chengli Special Automobile Co.,Ltd !
Chengli Special Automobile Co.,LTD is a big manufacturer of special trucks with well-equipped facilities and strong technical force,located in Suizhou City,Hubei Province,China.
At the end of 2015,the company's total assets attained RMB 2 billion,annual production value reached 100 thousand units. Within just 10 years,Chengli from a name without the propagation of local private enterprise has developed into a famous private-owned enterprise group with employs more than 8000 people and area of more than 2000 acres.
Our products are widely used in municipal virescence,environmental sanitation,petrochemical industry and pressure vessel. It has registered trademark"CHENGLIWEI" abbreviated to CLW. Our factory cooperates with famous chassis manufacturers,such as DONGFENG,FAW,SINOTRUK,ISUZU,FOTON,JAC,JMC and etc. Our main business includes special truck producing and selling.We have the right of dealing self-managed export business.Our main products includes more than 300 types,such as water truck,sewage suction truck,garbage truck,road sweeper truck,fuel tank truck,aerial bucket truck,truck with crane,dump truck,semi-trailer,fire fighting truck,van truck,chemical liquid truck,bulk cement truck,concrete mixer truck,wrecker truck,pressure vessel etc.
With a wide range,good quality, reasonable prices and 5-star after-sales service, our products are widely recognized and trusted by the customers at home and abroad.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Our Workshop:
Certification:
Our Partners:
Oversea Customers:
Q1: Are you manufacturer or trading company?
A:We are direct manufacturer with more than 10years experiences.
Q2:What is your terms of payment?
A:T/T 30% as deposite,and 70% before delivery,we will show you the photoes of the products and packages before you pay the balanc.
Q3:What is your terms of delivery?
A:EXW,FOB,CFR,CIF,DDU.
Q4:Could your company totally customize products for me?
A:Yes,we can provide the customized-designing product meeting with any of your demand.
Q5:How about the delivery time?
A:It depends on the product you ordered and quantity you need,usually produce one unit truck only need 15days.
Q6:What is your terms of packing?
A:Nude with waxing by roro ship or bulk ship or use containe.
Q7:Do you test all your goods before delivery?
A:Yes,we will 100% test before delivery.
Q8:How about the quality of your product?
A:Our truck are brand new truck,our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
