Frequency: | AC50Hz; | Size: | 35*35mm; |
Model Number: | VU-34; | Supply Voltage: | *; |
Accuracy Class: | 2.5%; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Brand Name: | Huapu; | Packaging Detail: | Standard export packing, 200 pcs each carton; |
Shell color: | white; | Display Type: | Analog Only; |
working temperature: | -10~55°C; | Operating Temperature: | -10~55°C; |
Dimensions: | 35*35mm; | Certificate: | CE PSE RoHS SGS; |
Direct Current: | DC 0~1mA; | Measuring Range: | DC 0~1mA; |
Accuracy: | 2.5; | Place of Origin: | Zhejiang China; |
Pointer Color: | white; | Movement structure: | Moving Coil; |

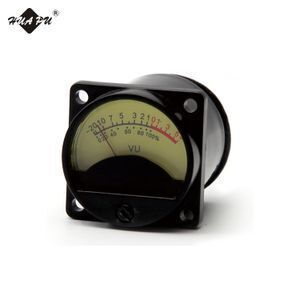

Product name: | VU-34 meter; |

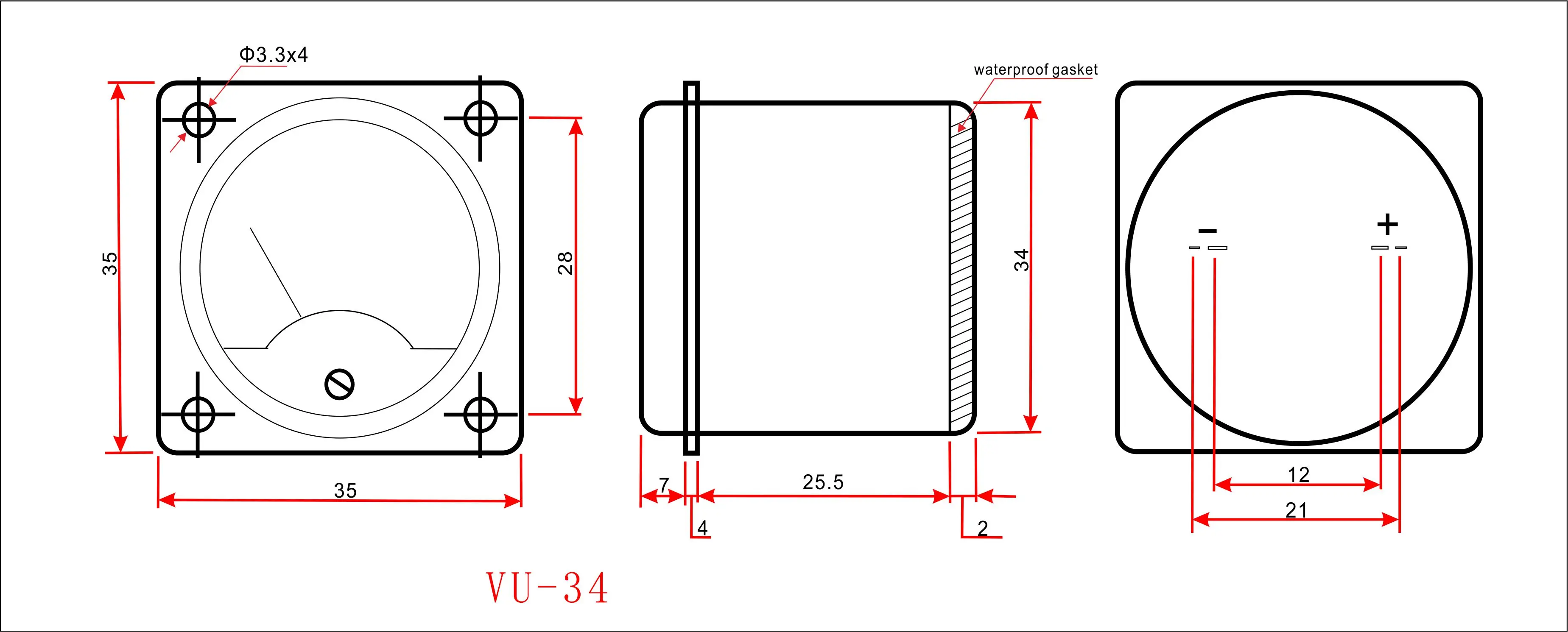

Shape and dimensions unit: mm
Summarization

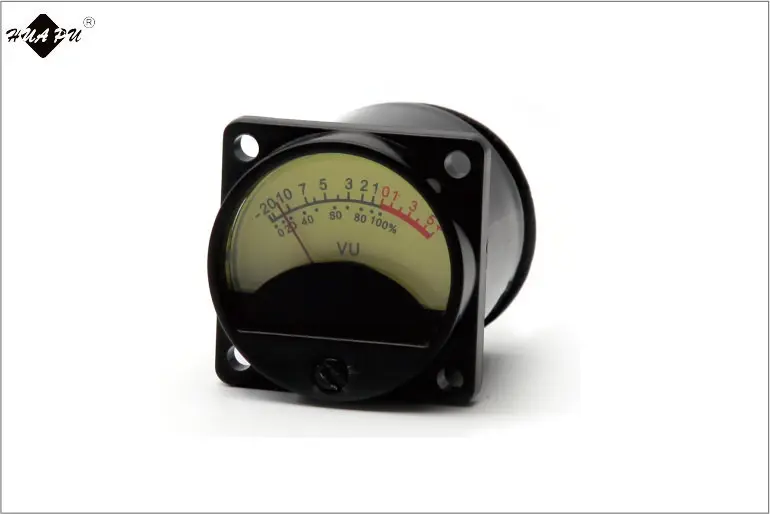

Product name | VU-34 meter |
Input | DC 1 mA ±10% |
Internal Resistance | 600Ω±10% |
Accuracy | 2.5 |
The scale display | can be customized |
Shape size | 35*35mm |
Back Shell color | White |
Certification | CE PSE RoHS SGS |
Inner structure | Moving Coil |
Working temperature | -10~55°C |
Basic Specification
Resistance (Ω) ±10% | 1000 | 650 | 450 | 165 | 110 | 11 |
Sensitivity (uA) ±10% | 250 | 500 | 1000 | 2500 | 5000 | |
DC Voltmeter | 40~1000mV 1~1000V | Direct connection | ||||
DC Ammeter | 1~1000mA | Direct connection | ||||
AC voltmeter | 1~500V | Direct connection |
