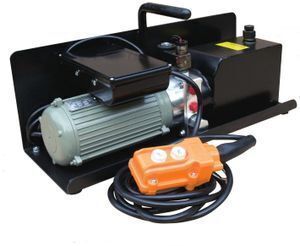

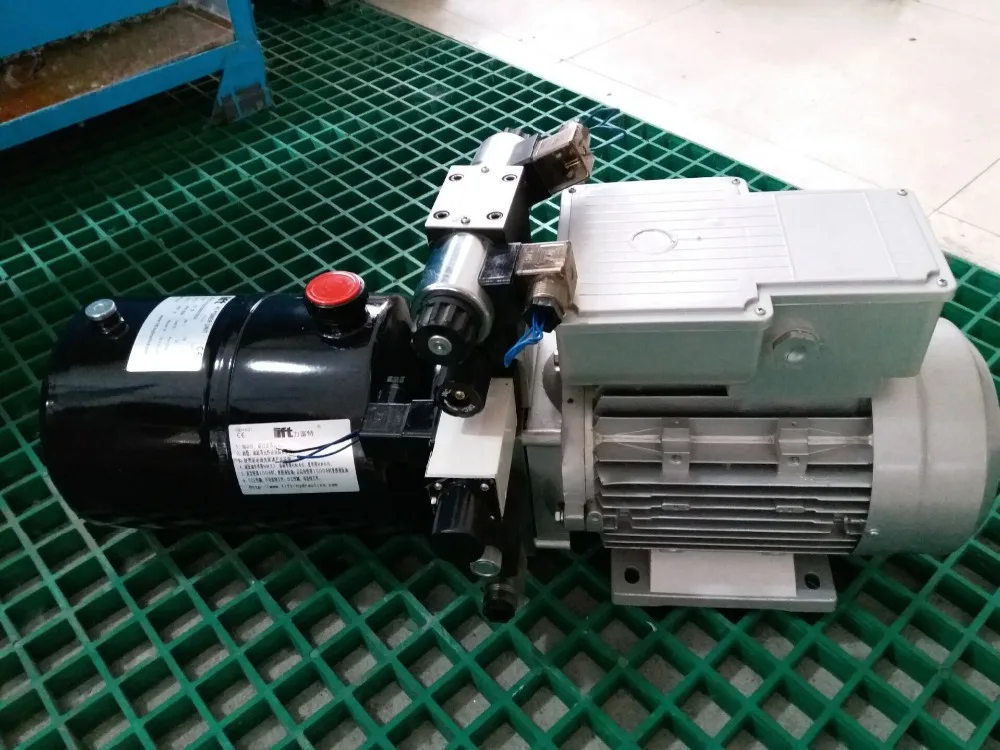

LIFT professional portable scissor lift mini hydraulic power unit

Supplier: Huaian Lift Hydraulic Co., Ltd.
Region: Jiangsu, China
Contact: Mr Miya
Price: $150.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Payment Terms:	L/C;	Color:	Black;
Dimension(LWH):	511mm278mm181mm;	After Warranty Service:	Video technical support,Online support;
Pressure:	16.5Mpa,Internal pressure;	Packaging Detail:	LIFT professional hydraulic power pack unit scissor lift mini hydraulic power unit are packed in Carton,then pallets.;
Name:	LIFT professional portable scissor lift mini hydraulic power unit;	Brand Name:	LIFT;
Displacement:	0.6cc/r;	Showroom Location:	None;
Material:	Steel;	Speed:	2850rpm;
Warranty:	1 Year;	Condition:	New;
Local Service Location:	None;	After-sales Service Provided:	Video technical support;
Type:	Hydraulic Power Units;	Voltage:	220V AC;
Tank:	2L;	Weight:	22KG;
Power:	0.55kw,0.55KW;	Structure:	None;
Certificate:	ISO9001 CE;	Certification:	CE;
Place of Origin:	Jiangsu China;

Product Application

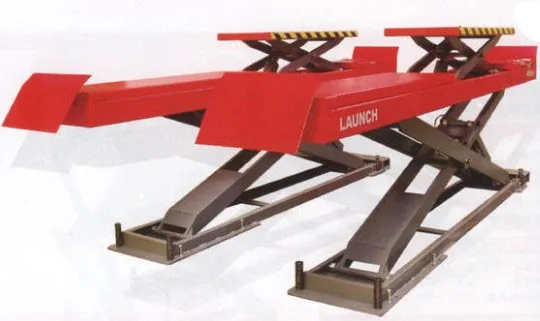

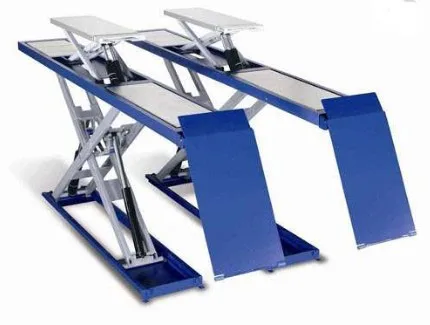

LIFT professional portable scissor lift mini hydraulic power unit,consisting of high pressure gear pump,AC or DC motor,multi-functional manifold,valves,tank etc.This power unit features typical power up,gravity down function.The lowering movenment is controlled by the solenoid valve.The high precision flow divider/combiner valve enables the synchronization of the 2 cylinders of the lift.

SPECIFICATIONS FOR LIFT professional portable scissor lift mini hydraulic power unit
Motor Volt	Motor Power	Rated Speed	Displacement	System pressure	Tank Capacity	Solenoid Valve Volt
110VAC	550W	3450RPM	0.32ml/r	22Mpa	2L	110VAC
			0.75ml/r	14Mpa		24VDC
			0.6ml/r	16.5Mpa
220VAC		2850/3450RPM
240VAC		2850RPM
12VDC	800W	3450RPM	0.38ml/r	18Mpa		12VDC

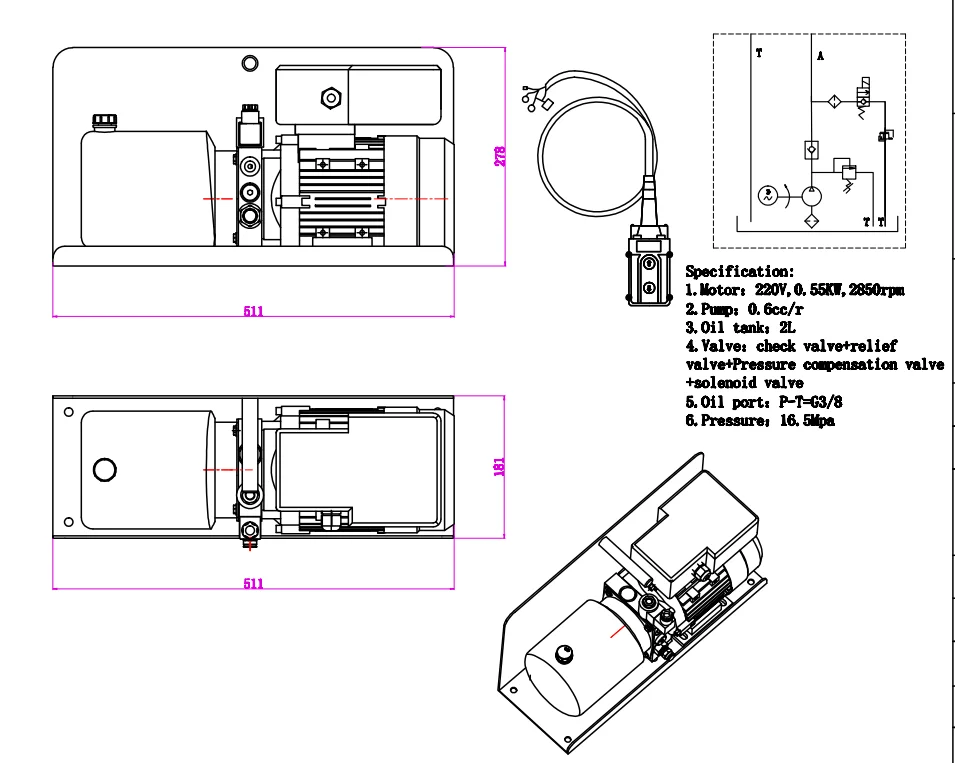

Outline drawing

Special Notes

1) The duty if this hydraulic power unit is S3.I.E.,30 seconds on and 270 seconds off.

2) Clean all the hydraulic parts concerned before mounting the power unit.

3) Viscosity of the oil should be 15-68cst.

4) This power unit should be horizontal.

5) Check the oil level in the tank after the first star of the power unit.

6) Change the oil after the first 100 hours of using the power unit,then change the oil every3000 hour.

Certifications

Detailed Images

Hydraulic power unit Parts

Name: Motor

Brand: LIFT

Original: China

AC motor,International standard steel casting motor with CE & SA certificntion.

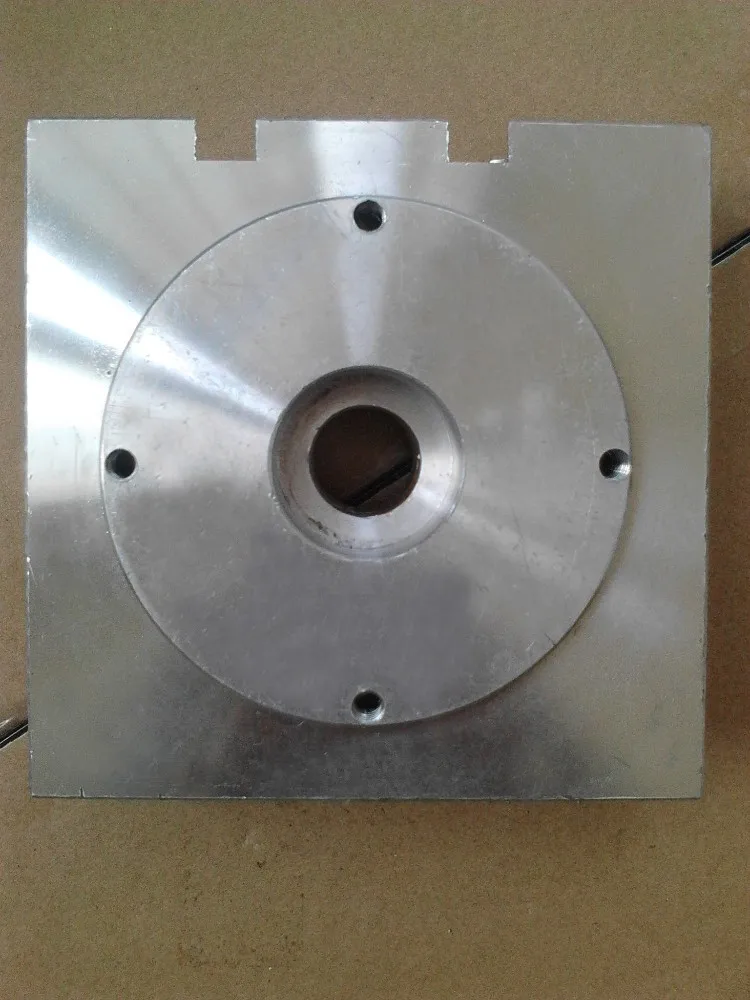

Center Manifold Features

Name: Center manifold
Brand: LIFT
Original: China
According to customers requirement,We designed for the usages in different flow and mounting condition.

Hydraulic power unit Parts

Name: Spare part
Brand: FELIFT
Original: China
Solenoid valve: Max pressure:300bar

Max flow:20L/min

Coil power:18W

Oil Tank Main Features

Name: Oil tank
Brand: LIFT
Original: China

International standard palstic tank

Colour:Black

"W" type:Horizontal "L" type:Vertical

Our Service

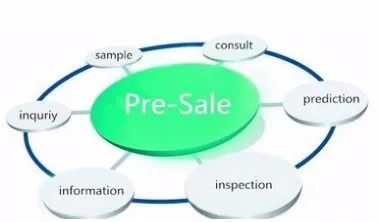

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

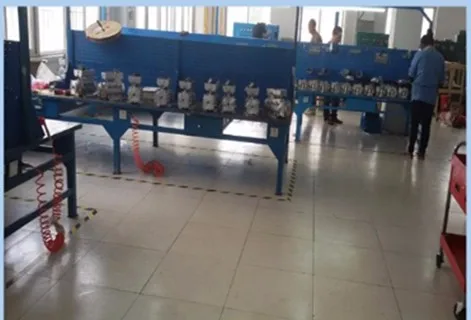

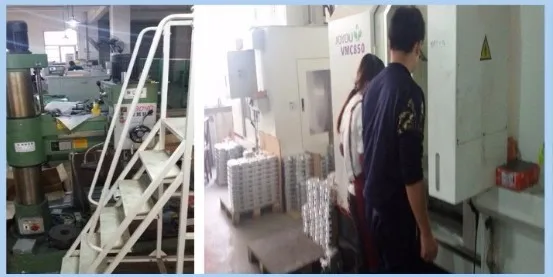

* View our Factory.

After-Sales Service

* One year warranty

* Our experienced engineers would give you the best technical support as they can

Packing & Delivery

Packaging
Size	1100 (L) * 1000(W) * 1200(D)mm
Weight	1.2 T
Packaging Details	The normal package is pallets(Size:1100 (L)*1000(W)mm).

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
