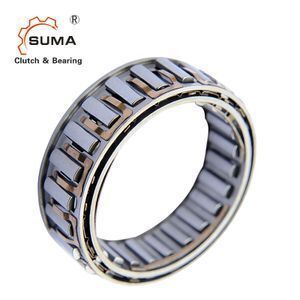

BWX133339 DC4972(4C) Counterclockwise One Way Sprag Type Overrunning Clutch Bearings

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Shanghai ; Ningbo;	Brand Name:	SUMA;
Package:	Carton Box;	Packaging Detail:	Carton Box / Wooden BoX;
Weight:	90g;	Place of Origin:	China;
Thickness:	13.5mm;	Single gross weight:	0.3 KG;
Seals Type:	non-sealed;	Model Number:	BWX133339 / DC4972(4C);
Outer Diameter:	66.383mm;	Single package size:	19X18X10 cm;
Selling Units:	Single item;	With Clips:	YES;
Delivery:	in stock;	Type:	Sprag Type,CAM TYPE;
Inner Diameter:	49.721mm;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining;
Precision Rating:	P0;	Package Preview:	;

BWX133339 DC4972(4C) Counterclockwise One Way Sprag Type Overrunning

Clutch Bearings

Product Description

Description of BWX 133339 Sprag clutch

Type BWX is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

The BWX type version-N accepts all types of lubricants currently used in the power transmis-sion equipement. The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly.

Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness : HRC 60 to 62, for a depth of 0, 6 mm minimum.

Core hardness to be HRC35 to 45.

Surface roughness not to exceed 22CLA.

Maximum taper between races: 0, 007 mm for 25 mm width.

Parameter of BWX 133339 Sprag Clutch

Type	Inside Diameter	Outside Diameter	Width	Height	Sprags	Drag	Brake	Weight	Nominal
	0.008-0.005	±0.013	Width	Height	Quantity	Strips	Clips	Weight	Torque
	(mm)	(mm)	(mm)	(mm)		Quantity	Quantity	(g)	(N.m)
BWX133590A	22.225	38.887	10	44	12			30	63
BWX13143A	27.0767	44.425	13.5	51	14			60	120
BWX133392	38.092	54.75	16	71	18			90	280
BWX1310145	41.275	57.937	13.5	74.2	14		3	70	180
BWX132909A	44.45	61.112	16	78.5	20	2	3	10	360
BWX 133339	49.721	66.383	13.5	85	22	2	4	90	310
BWX1310003	49.721	66.383	13.5	85	22		4	90	310
BWX 137222	49.721	66.383	19	85	22			120	570
BWX1310445	54.765	71.427	13.5	91.7	24			90	400
BWX1310172	54.765	71.427	16	91.7	24			120	540
BWX1310226	54.765	71.427	16	91.7	24	2	4	120	520
BWX 136709	54.765	71.427	21	91.7	24	3	10	160	770
BWX1310147	54.765	71.427	25.4	91.7	24	2	8	200	1000
BWX136324	57.76	74.427	19	95	26			140	600
BWX1310080	72.217	88.882	13.5	115	30		4	120	670
BWX13168	72.217	88.882	21	115	30			20	1300
BWX134012	72.217	88.882	21	115	30	4	10	20	1300
BWX137322	79.6982	96.363	25.4	124	34	5	12	280	2000
BWX138316	83.5972	102.596	25.4	131.6	34	5	12	300	2960
BWX13261A1	103.2312	119.893	16	154	40	6	10	190	1600
BWX13236	117.3912	136.391	16	175.3	30	5	6	250	1700
BWX133403B	123.8812	142.88	25.4	188	44		11	460	4900
