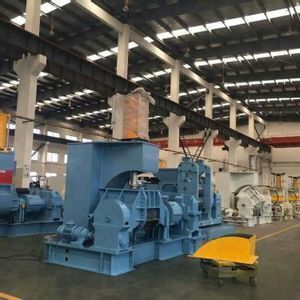

35L rubber kneader machine for mixing rubber or plastic

Supplier: Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Aldrich Zhang
Price: $19600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	QINGDAO;	Payment Terms:	L/C,T/T;
Power:	55KW;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	35 Set/Sets per Month;	Weight:	6500;
Brand Name:	QSY;	Packaging Detail:	in bulk;
Delivery Detail:	40days;	Condition:	New;
Model Number:	X(S)N-35/30;	Dimension(LWH):	320019002945;
Type:	Rubber Kneader;	Warranty:	one year;
Place of Origin:	Shandong China;	COLOR:	as customer require;
Voltage:	380V;	Certification:	CE/ISO9001;

35L rubber kneader machine for mixing rubber or plastic

Features for Kneader for Mixing Rubber :

1.With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellentstable quality.

2.Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.

3.Surface where is contacted with the materials are all platedwith hard chromium and polished, which is corrosion-resistantand wear-resistant.

4.Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.

5.Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the front rotors to discharge and is easy for changingpigments and cleaning the chamber.

6.Programmable logic controller(PLC) is adopted in theelectric-control system, which has reliable control function andalarm function, and interlock safety-protection function and itis provided with serial interface of net.

rubber kneader machine Main Application:

Rubber & TPR,EVA,Rubber sole, Rubber Roller, Hoses Belts, Sponges, Vibration Insulator, Elastic Cord, Sealing Materials, Tire, Tapes, Master Batches, Pigment Ink, Automobile Electric Rubber Parts, Chemical Industry Compounds.

rubber kneader Main Technical Parameter:

Model	X(S)N-20*34	X(S)N-35*30	X(S)N-55*30	X(S)N-75*30	X(S)N-110*30
Total Volume of Kneading Chamber (L)	45	75	125	175	250
Total Volume of Mixing Chamber(L)	20	35	55	75	110
Driving Motor Power(KW)	30	55	75	110	185
Tilting Motor Power(KW)	1.5	2.2	2.2	3.0	7.5
Tilting Angle	140°	140°	140°	140°	140°
Rotational Speed of the Rotor (Front/Rear)(r/min)	34/28	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Flow Rate of Compressed Air (m³/min)	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5
(Rubber Mixing)Pressure of Cooling Water(Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
(Plastication)Pressure of Heated Steam(Mpa)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Overall Dimension(LWH)(mm)	31001300 2450	320019002945	330019002900	376021433135	407527123580
Gross Weight(kg)	4500	6500	7800	10.23	14.97
