VEVOR 50cm x 60cm Screen Printing Machine Precise 20" x 24" Vacuum UV Exposure Unit

Supplier: Shanghai Sihao Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Sihao Sihao
Price: $450.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Manual;	Brand Name:	VEVOR;
Dimension(LWH):	30"28"7" (767218cm);	Weight:	29.66kg;
Vacuum Degree:	-0.08MPa;	Exposure area:	20" * 24" (50*60cm);
Type:	Plate Exposure;	After-sales Service Provided:	Video technical support;
Selling Units:	Single item;	Vacuum Pump Power:	60W;
Optimum screen exposing size:	15.7"19.7"1.6" (40504cm);	Single package size:	76X76X24 cm;
Illumination Uniformity:	85%;	Place of Origin:	China;
Exposure Time Setting Range:	0-999s;	Package size:	33"32"10" (838128cm);
Lamp Power:	160W;	Vacuum Time Setting Range:	0-999s;
Voltage:	220V/50HZ OR 110V/60HZ;	Single gross weight:	32.0 KG;
Product name:	Screen Printing Machine Precise 20" x 24" Vacuum UV Exposure Unit;	Certification:	CE Certificate;
Warranty:	2 years;	Condition:	New;

VEVOR 50cm x 60cm Screen Printing Machine Precise 20" x 24" Vacuum UV Exposure Unit

Product Description

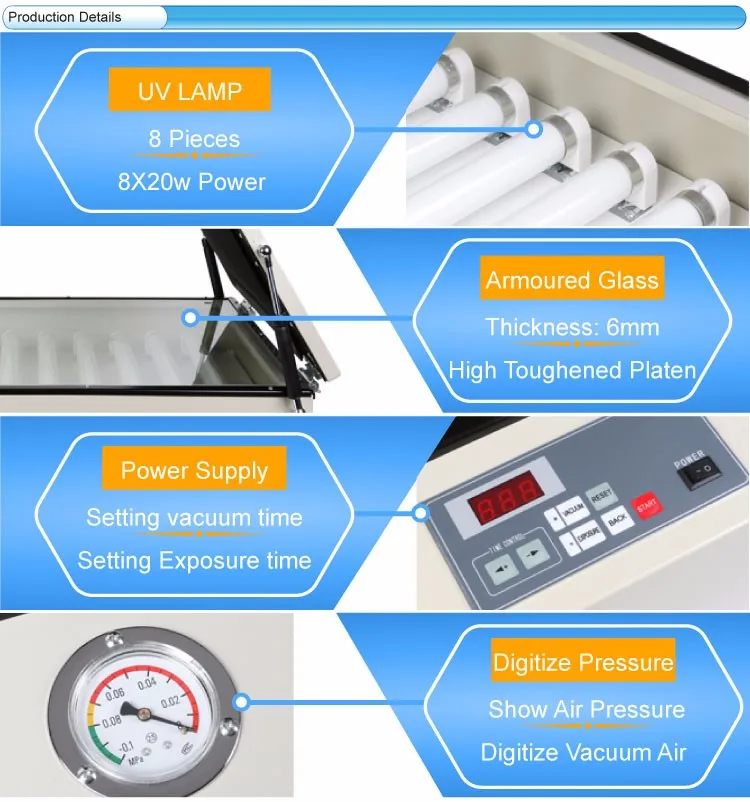

1.Our Precise Vacuum UV Exposure Unit is equipped with special UV lamps and auxiliary vacuum suction device.

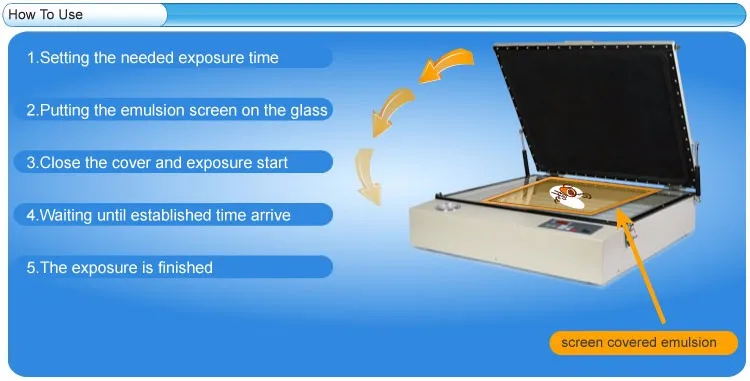

2. After putting the screens and well printed transparency film on the glass, close its cover and let it work after set the needed vacuum and exposure time.

3.Then it will make the screens and transparency film close on the glass tightly by evacuating the air of the vacuum chamber emerging from the rubber blanket.

4.When the set time is up, it will deflate automatically, then the exposure is finished.

5.Please cut off the power supply.

6.It has the same exposure effect with the exposure unit exposed of iodine gallium light.

Working Principle

Screen printing screens are coated with a light sensitive emulsion using a scoop coater. When the emulsion is dry, place a positive print of your image on the screen. Once you burn the screen, the emulsion that did not get any UV will wash out of the screen exposing the tiny pin holes. The surrounding areas that were exposed to UV will be cured. Hence the ink will pass through screen onto your substrate.

Technical Parameters

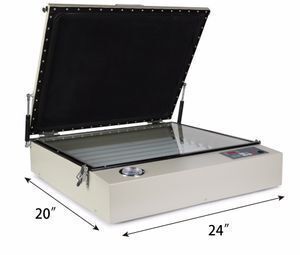

Exposure area: 20” * 24” (50*60cm) (Optimum screen exposing size is within 15.7”*19.7”*1.6” (40*50*4cm) by the outer sizes.)
Vacuum Degree: -0.08MPa
Illumination Uniformity: 85%
Lamp Power: 160W
Vacuum Pump Power: 60W
Input Voltage: 220V,50HZ OR 110V,60HZ
Vacuum Time Setting Range: 0-999s
Exposure Time Setting Range: 0-999s
Machine Size: 30”*28”*7” (76*72*18cm)
Package size: 33”*32”*10” (83*81*28cm)
Net weight: 51Lb / 23kg
Gross weight: 75Lb / 34kg

Package Content

Vacuum UV Exposure Unit x1
User‘s Manual x 1
