Vacuum UV Exposure Unit Screen Printer 50 X 60cm Curing 8 UV LED Lamps

Product Details:

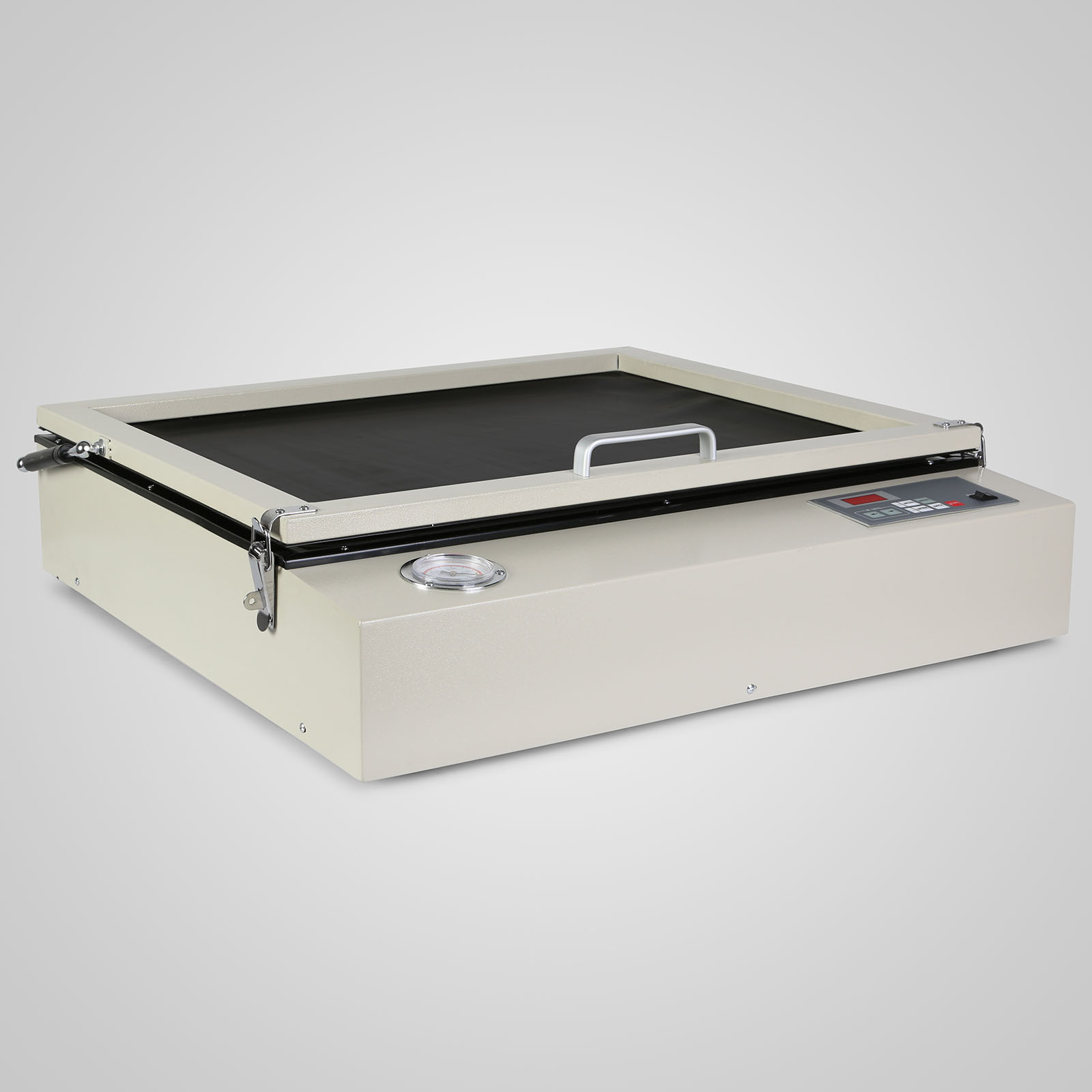

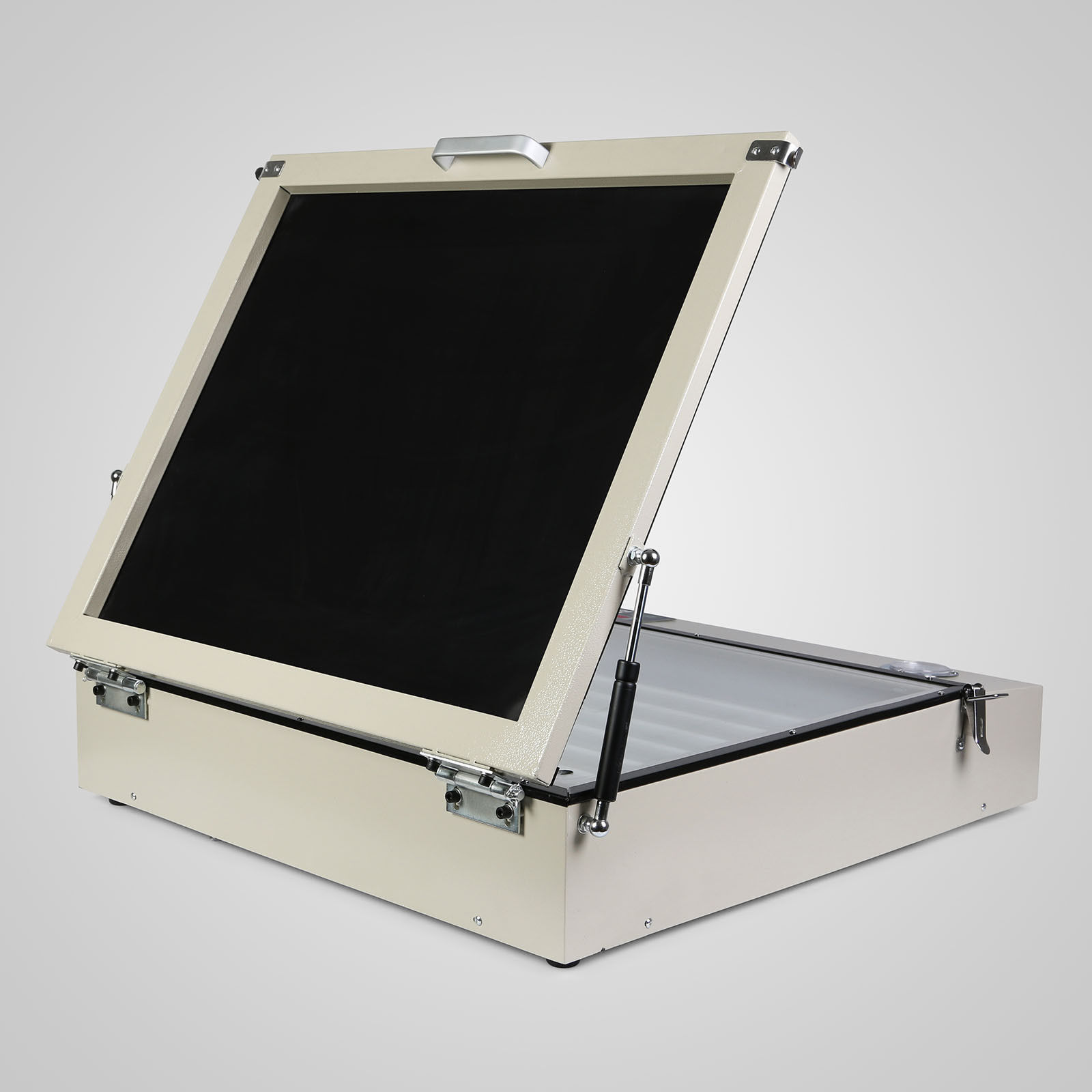

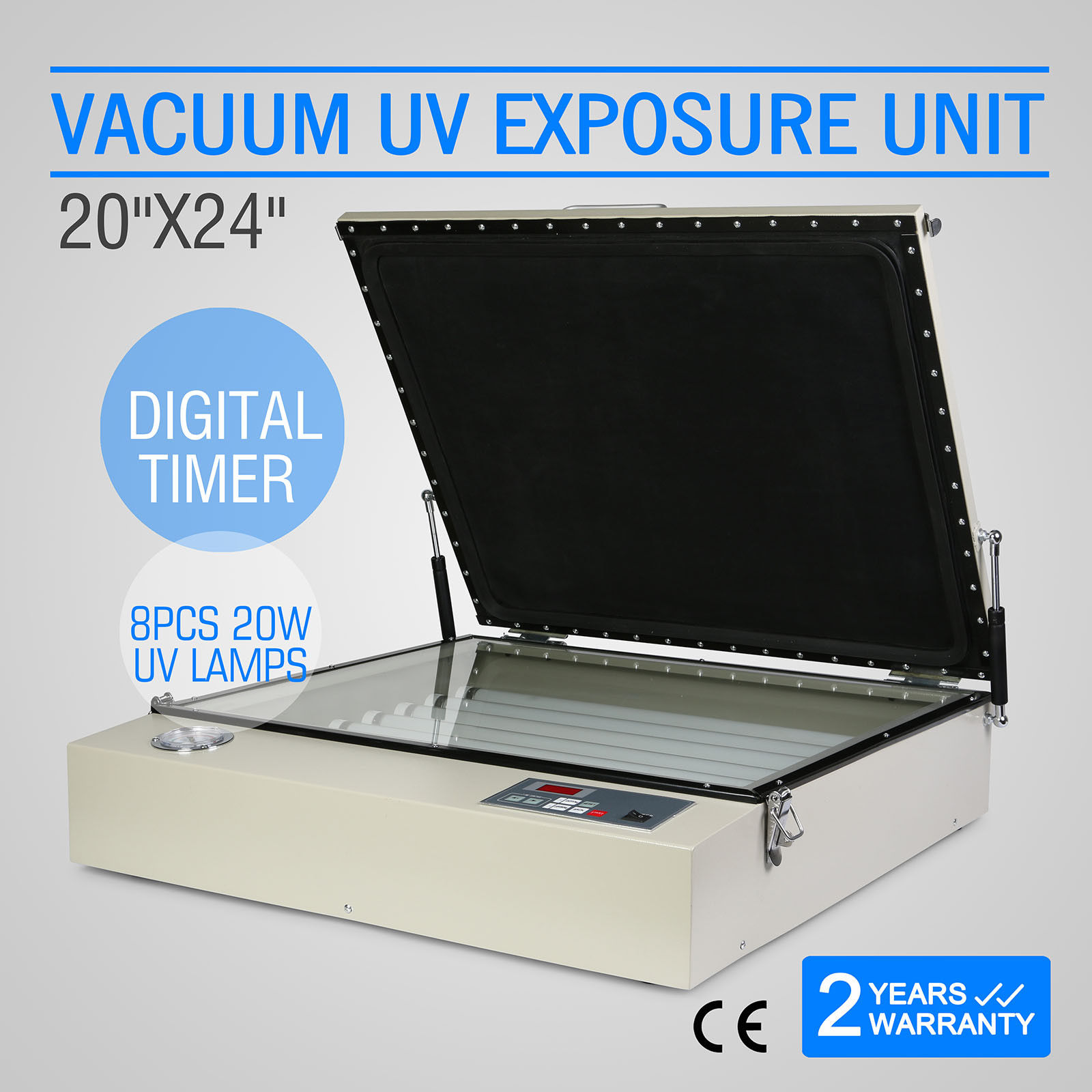

Vacuum UV Exposure Unit Screen Printer 50 X 60cm Curing 8 UV LED Lamps

•

  Product Description





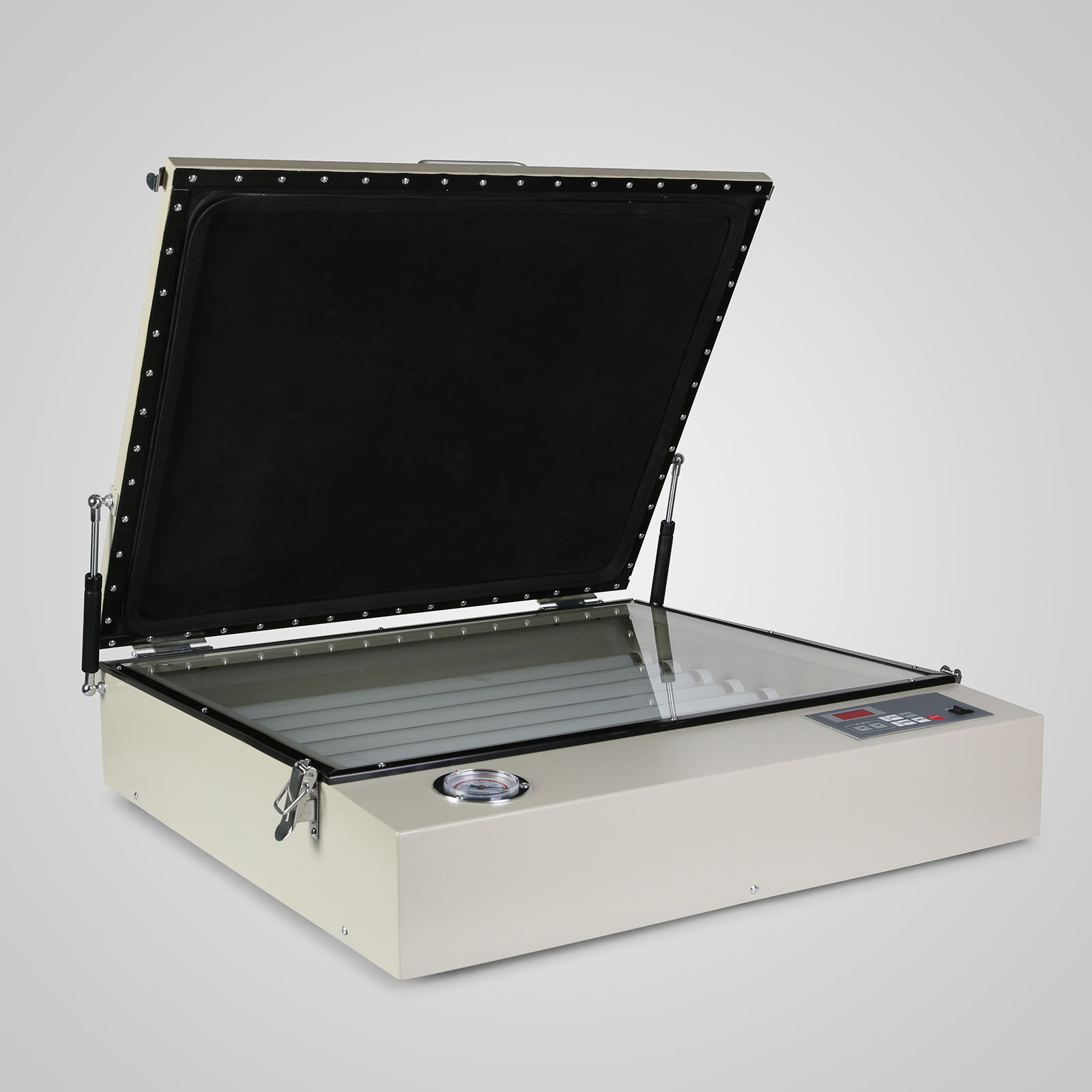

  Our precision vacuum UV exposure units are equipped with special UV lamps and auxiliary vacuum suction. After placing the screen and the printed clear film on the glass, close the lid, set the desired vacuum and exposure time and let it work, then make the screen and clear film stick tightly to the glass by vacuuming air The chamer that appears in the rubber blanket. After the set time is up, it will automatically deflate and the exposure will end. Please cut off the power.
  The exposure unit for iodine gallium light exposure has the same exposure effect. Although it has a slightly longer exposure time, due to its small size, light weight, low cost and easy transportation, it is very suitable for small businesses and home workshops to make high-precision screens.


  working principle

  The screen printing screen is coated with a photosensitive emulsion using a scoop coater. After the lotion dries, place the positive of the image on the screen. Once you burn the screen off, the emulsion that doesn't get any UV light washes off the screen, revealing tiny pinholes. Surrounding areas exposed to UV light will be cured. Therefore, the ink will pass through the screen to your substrate.


  Instructions

  1. Connect the power supply;

  2. Turn on the "POWER" switch;

  3. Set the vacuum time

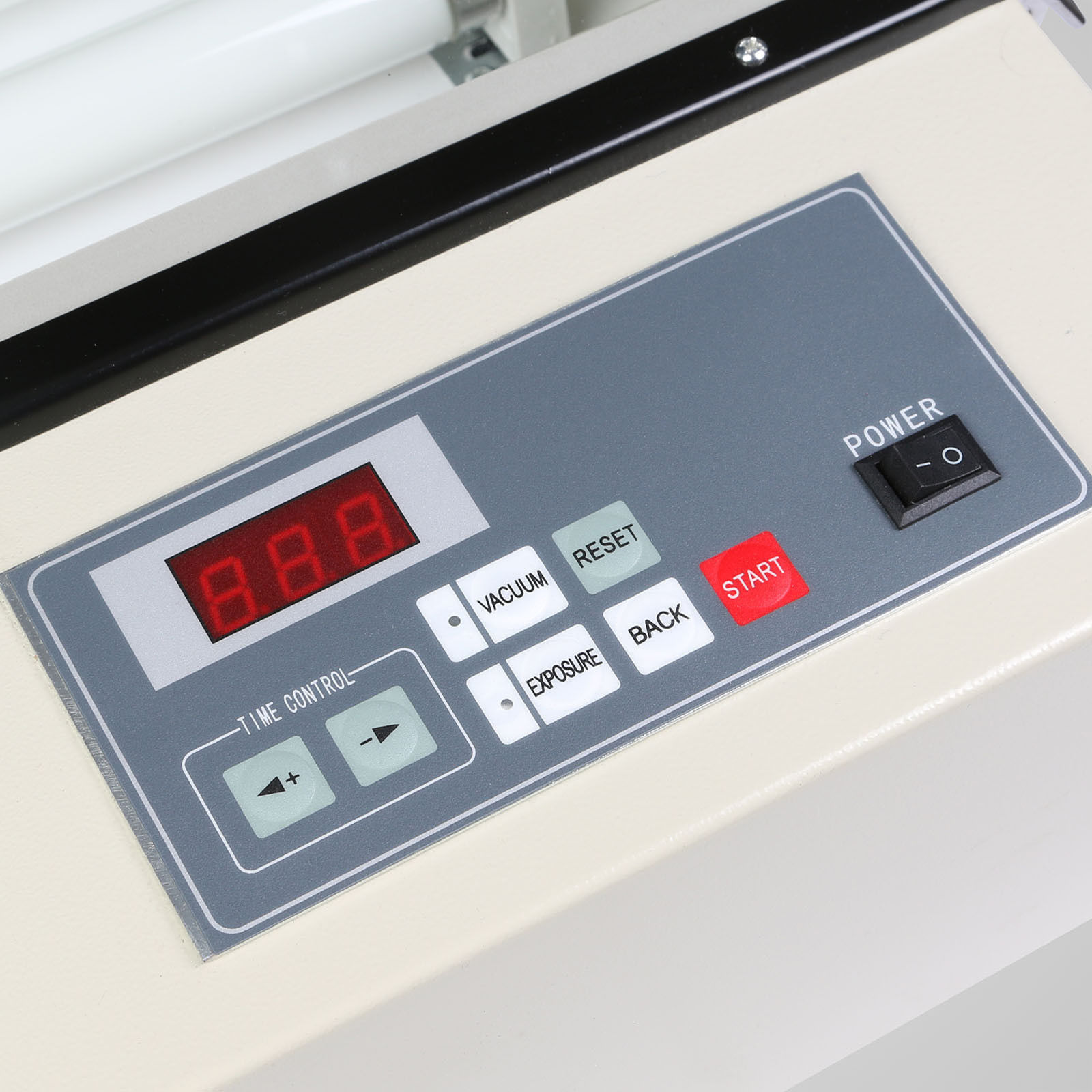

  1) Press "VACUUM", the left indicator light (yellow) is on;

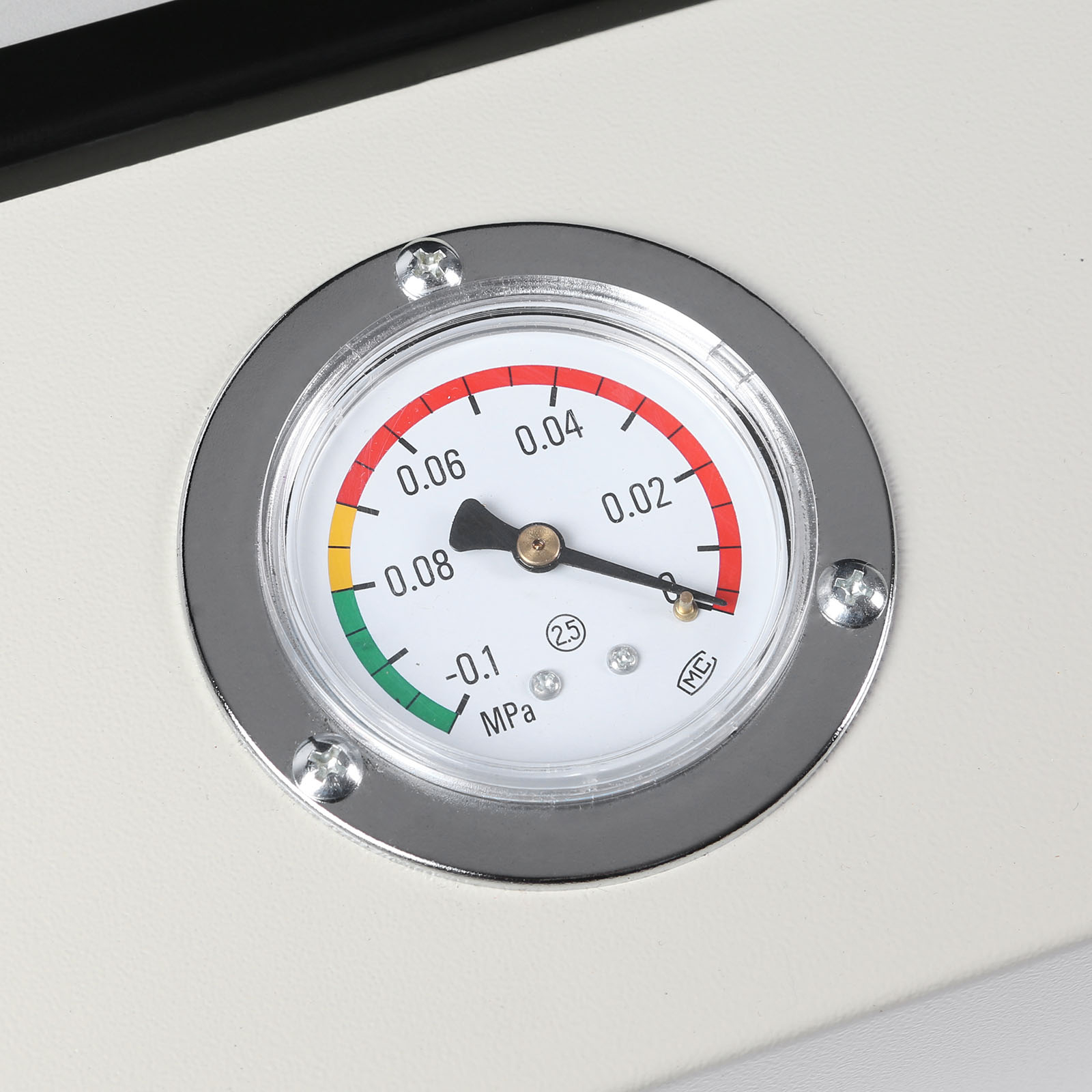

  2) Press "+" or "-" in the "Time Control" area to set the vacuuming time as required. (First-time users, please put an empty sieve in the middle of the rubber inner cavity, just set the test for 40 seconds, if the needle of the vacuum gauge can reach or pass the middle of the green area, that's ok. If not, please extend the time to retest, until the requirements are met.)


  4. Set the exposure time:

  1) Press "EXPOSURE", the left indicator light (red) is on;
  2) Press "+" or "-" in the "Time Control" area to set the exposure time as required. (The exposure time varies depending on the coating of the photosensitive emulsion, please set 300 seconds for testing, and then reset the appropriate time according to the exposure effect.)


  5. After completing the above settings, you can start exposure, as follows:

  1) Put the screen plate coated with photosensitive emulsion and the printed light-transmitting sheet on the glass;
  2) Insert the suction pipe into the screen;
  3) Close the lid, click the "Start" button, vacuuming and automatic exposure will be performed according to the settings;
  4) Automatically deflate after the set time; open the cover and the exposure is completed. Please cut off the power.


  6. Other key functions:

  1) "RESET" cancels the previous setting: if you want to reset the vacuum/exposure time, just press "VACUUM"/"EXPOSURE", the left indicator light is on; then press "RESET", the original setting will become "0" ; Next, you can set it according to your needs.
  2) "BACK" stop working: If you want to stop vacuuming or stop exposure, just press the "BACK" button.



  feature





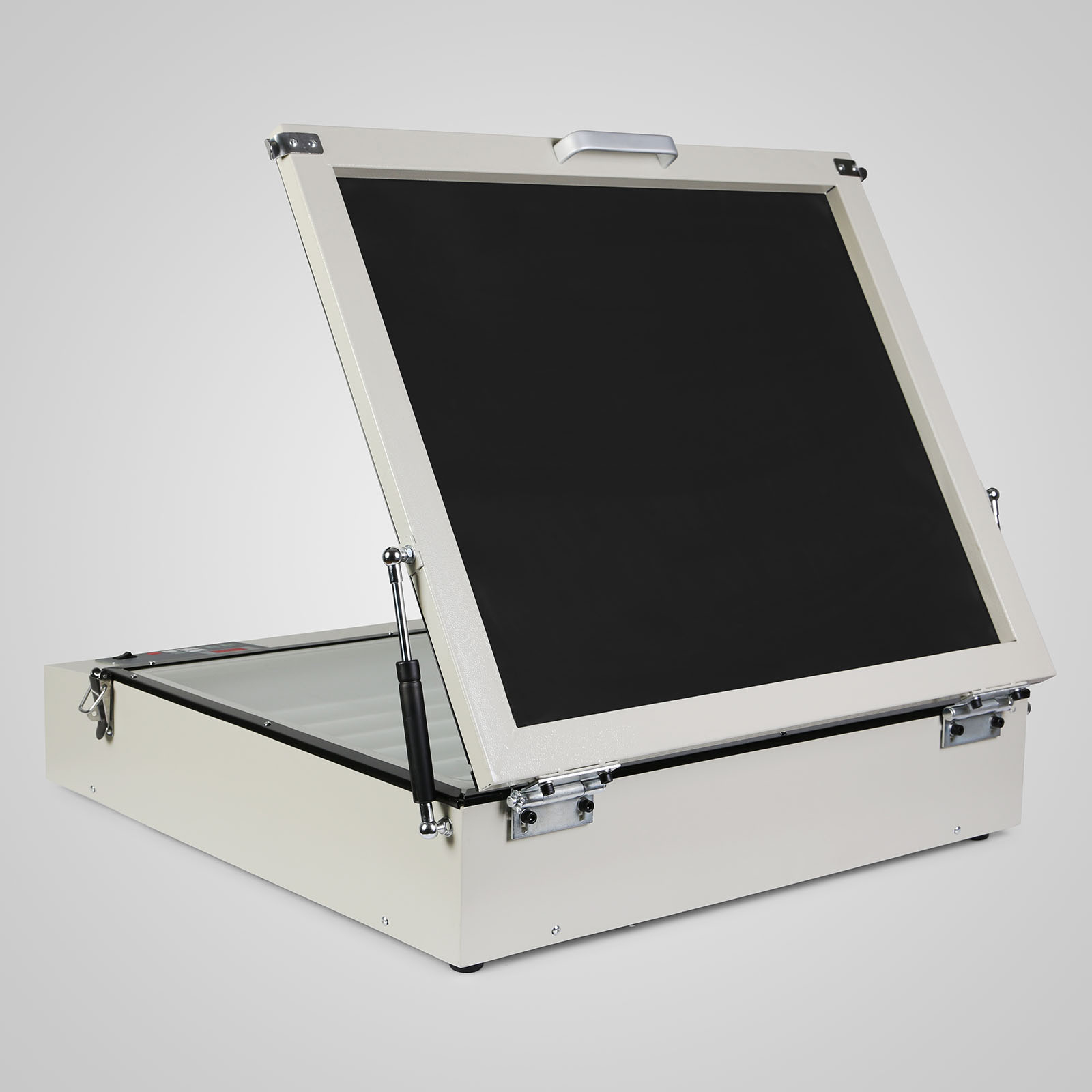

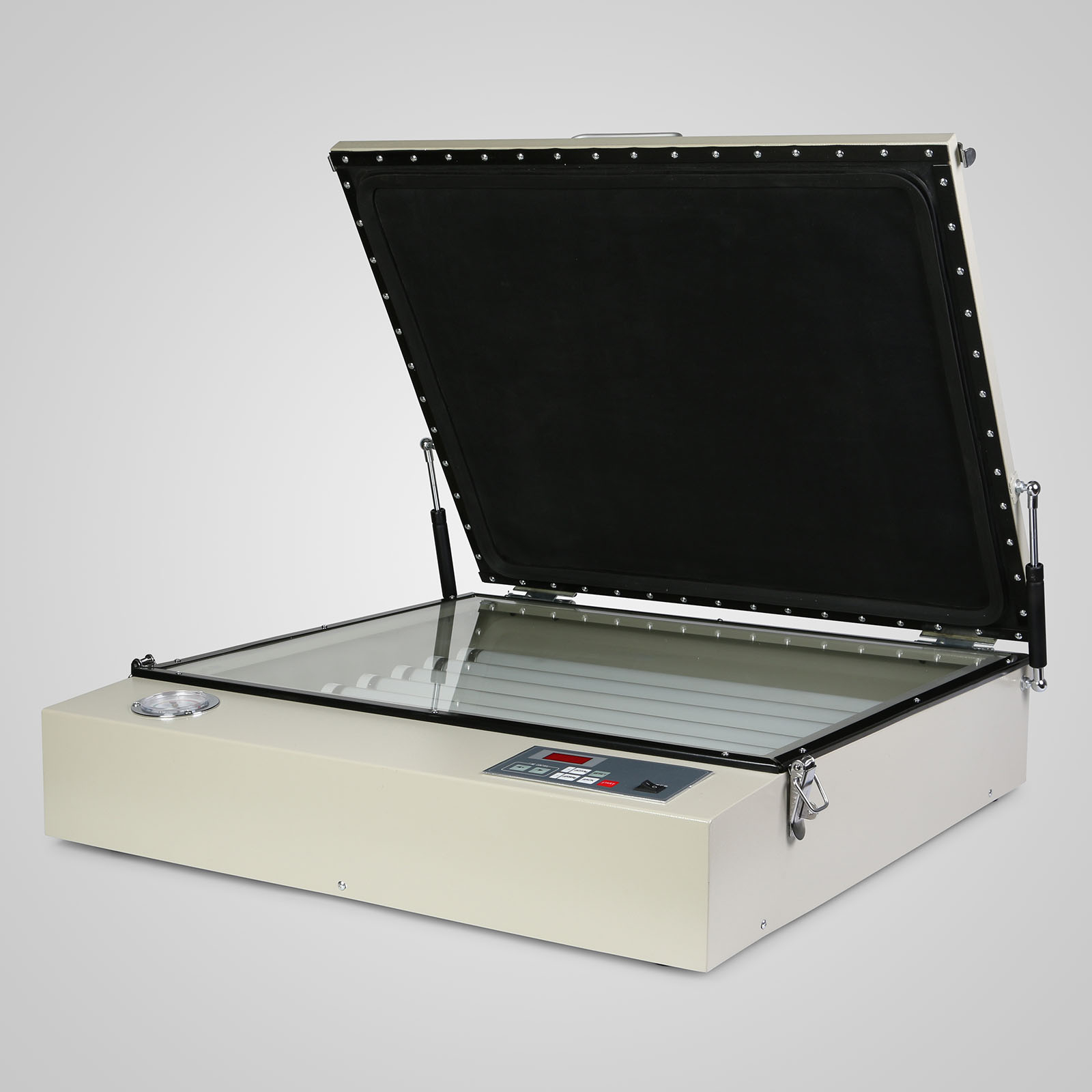

  • Reasonable design and simple operation: Based on the principle of humanization and practicality, the well-designed desktop structure makes it easier to achieve high-precision screen exposure.
  • Independent setting of vacuum and exposure time, with automatic memory function: vacuum time and exposure time can be set independently according to actual needs (setting range: 0-999 seconds); after exposure is completed, the lamp power will be automatically cut off, it will deflate itself and emit a beep beep, then turn off. When you need to expose again, just connect the power and it will work automatically according to your previous settings thanks to the automatic memory function.
  • High-quality oil-free vacuum pumps are durable and require no oil filling.

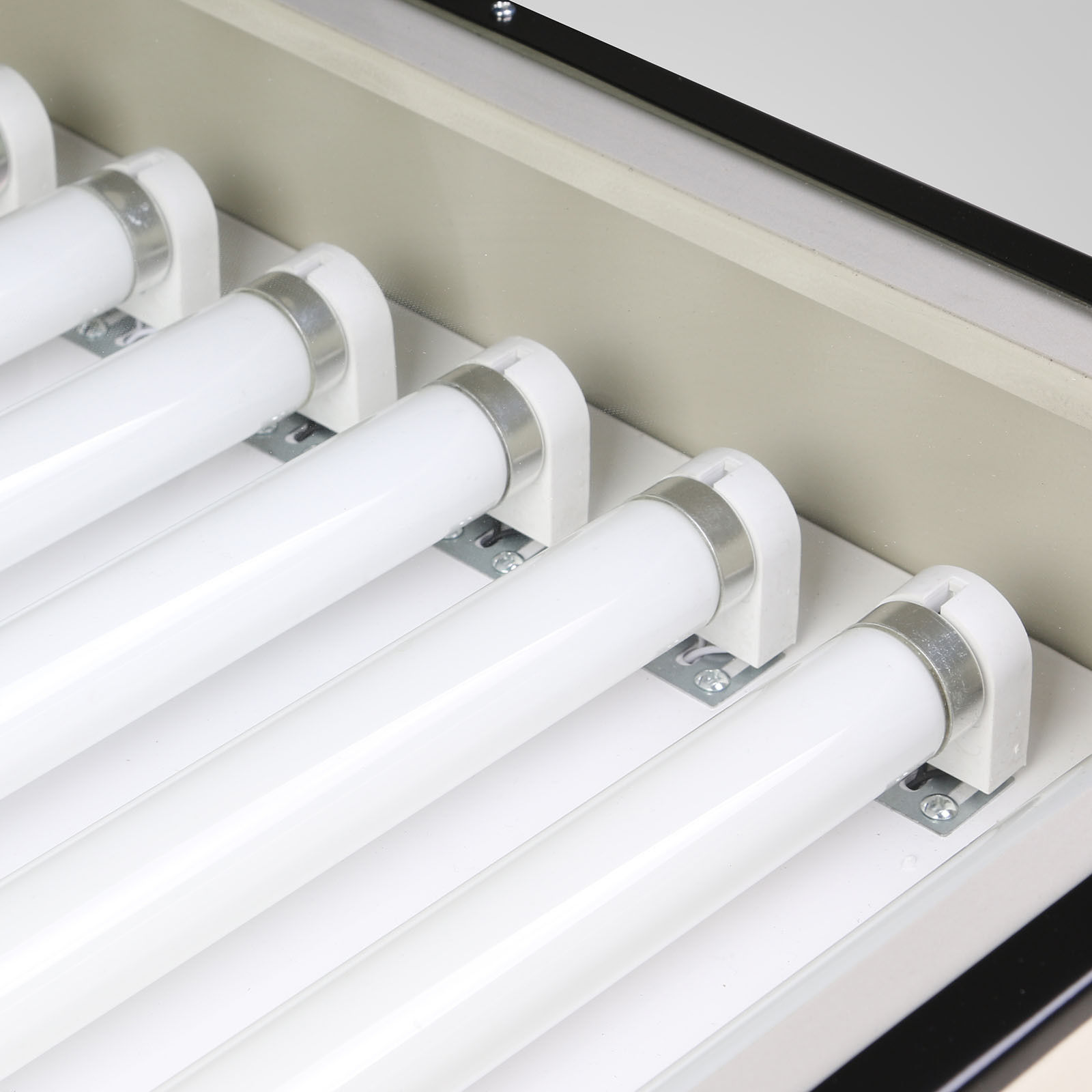

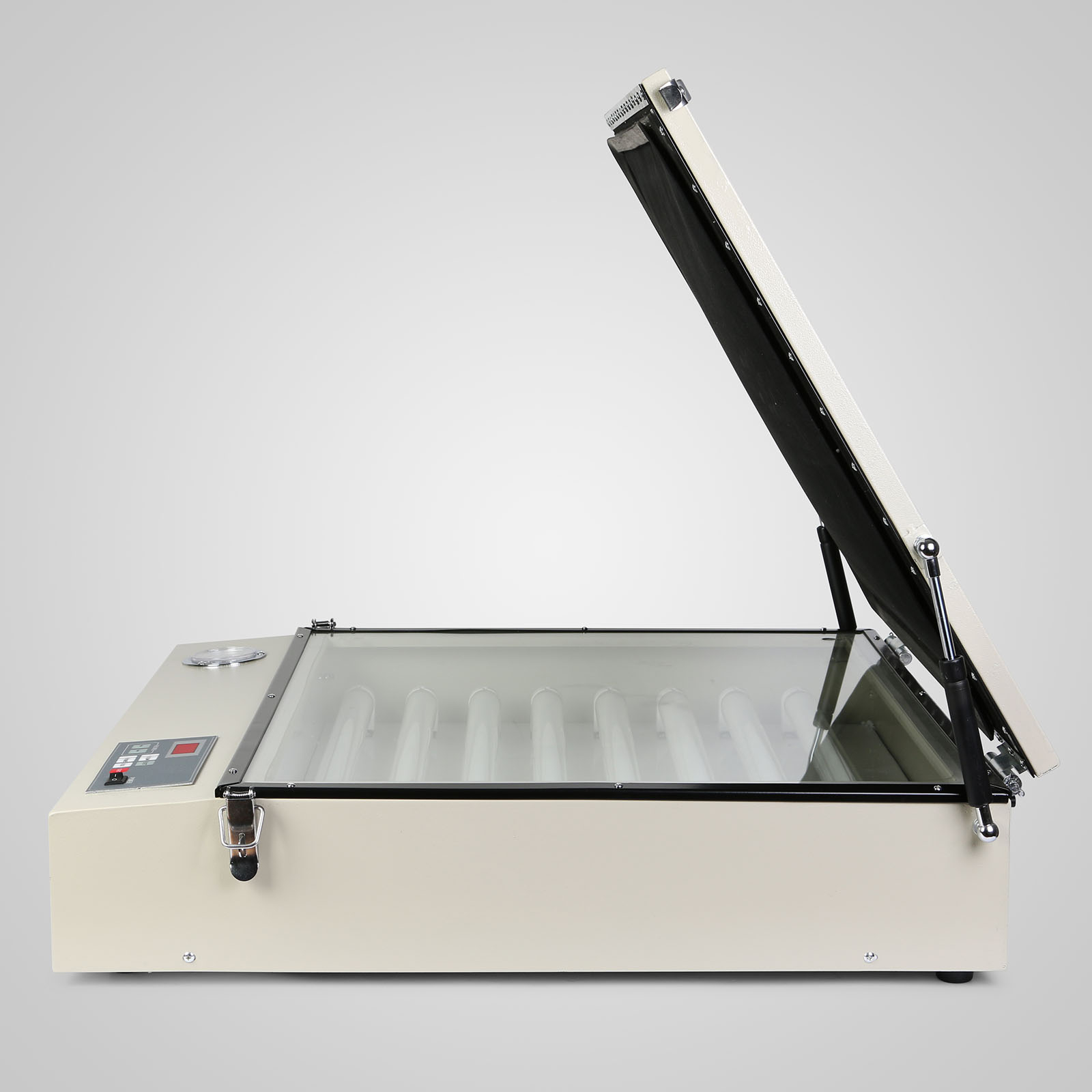

  • 8 special UV exposure lamps to ensure accurate and uniform exposure.
  • High-strength tempered glass (thickness: 0.24”/6mm) has high compression resistance and is not easy to be scratched. Also, once broken, it will become pieces without sharp edges, so as not to hurt the user.

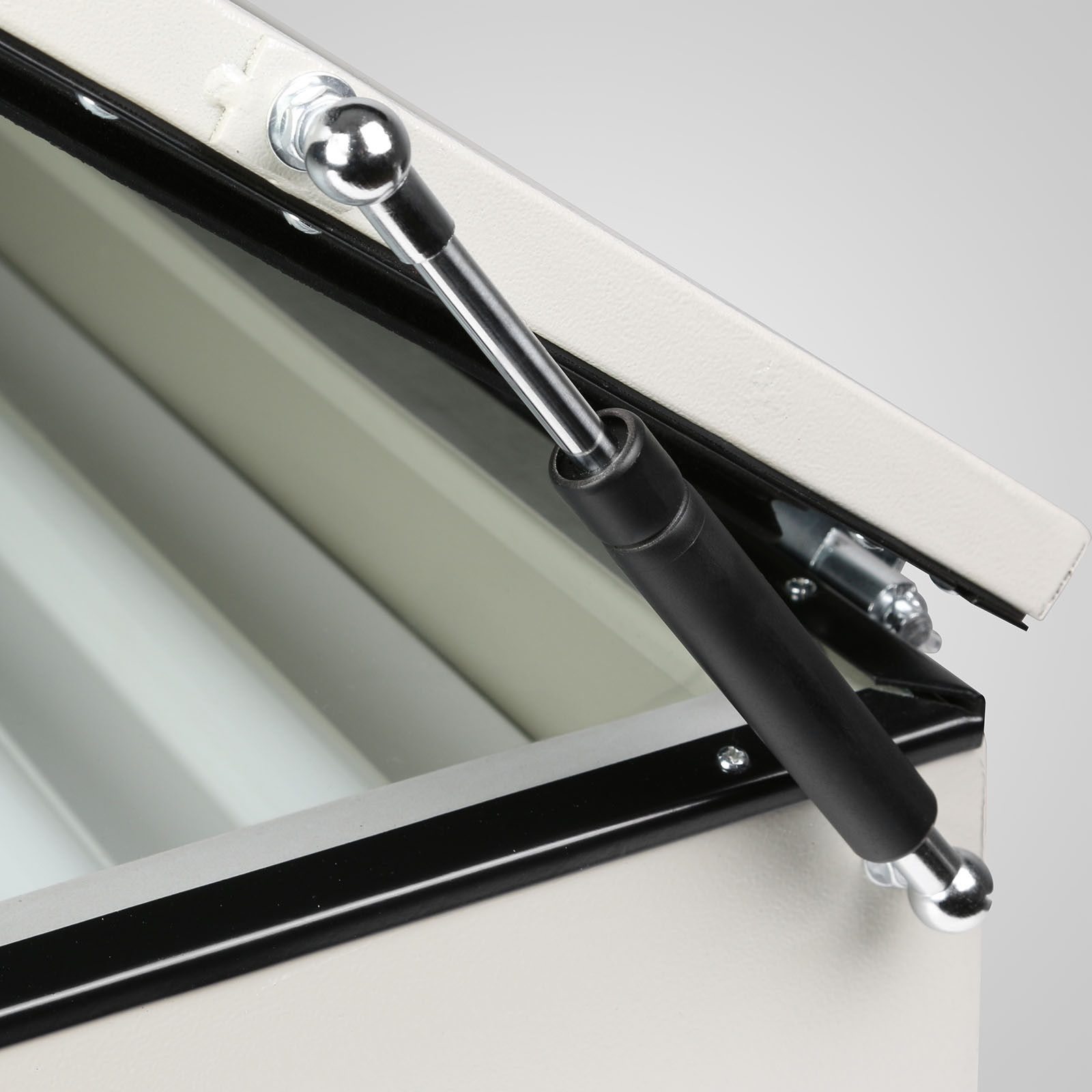

  • All-metal structure, beautiful appearance, advanced electrostatic spray paint, easy to clean, no rust.
  • The study wooden box is beautifully packaged as a whole to ensure convenient and safe transportation.
  • Equipped with vacuum pump.



  Specification





  • Exposure area: 20"* 24" (50* 60 cm) (best screen exposure size is within 15.7"* 19.7"* 1.6" (40* 50* 4 cm))
  • Lamp power: 160W
  • Input voltage: 220V, 50Hz
  • Vacuum time setting range: 0-999s
  • Exposure time setting range: 0-999s
  • Gross Weight: 65.4 lbs (29.7 kg)
  • Package size (L*W*H): 30.7"* 29.9"* 9.4" (78* 76* 24 cm)



  Package Contents





  • 1 X Vacuum UV Exposure Unit(with vacuum pump)
