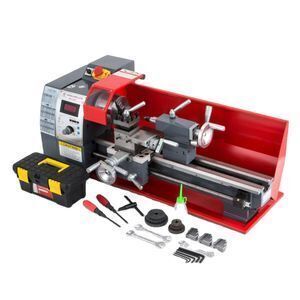

750w Mini Lathe 8x16 Inch Metal Processing Variable Speed Lathe

Product details
Power(W):750w;Single package size:92X49X47 cm;
Warranty of core components:1 Year;Place of Origin:Shanghai China;
Spindle Motor Power(kW):0.75;Type:Horizontal;
Video outgoing-inspection:Provided;Applicable Industries:Building Material Shops,Machinery Repair Shops,Retail,Energy & Mining;
Key Selling Points:Competitive Price;Selling Units:Single item;
Max. Length of Workpiece (mm):400 mm;CNC or Not:Normal;
Weight:74KGS;Voltage:220V/110V;
Warranty:1 Year;Condition:New;
Showroom Location:United States,Germany,Russia;Weight (KG):74;
Machinery Test Report:Provided;After-sales Service Provided:No overseas service provided,Online support,Free spare parts;
Machining Capacity:Heavy Duty;Automatic Grade:Semi-automatic;
Marketing Type:Ordinary Product;Single gross weight:74.0 KG;
Dimension(L*W*H):82*46*38cm;Packaging Detail:82 Centimeters * 46 Centimeters * 38 Centimeters;
Power:750w;Max. Turned Length (mm):100;
Local Service Location:United States,Germany,Russia;Brand Name:Sihao;
Core Components:Other;Max. Swing Diameter (mm):210 mm;
After Warranty Service:Online support,Spare parts;Model Number:210MN;
Spindle Bore(mm):38 m'm;Max. Swing Diameter:400mm;
Name:Mini Metal Lathe Metalworking Digital Control Variable Speed;Certification:CE ISO9001;
Year:2020;

750w Mini Lathe 8x16 Inch Metal Processing Variable Speed Lathe

Product Description



This precision mini lathe is designed to perform various types of metal, jade and wood turning. It can be used in areas such as mini precision parts processing, sample processing and modeling works. It is both perfect for hobbyists and modelers who is looking to add finite detail to their construction project.

Application:

Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.

Product Advantages:

Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized or adjusted by lateral movement.
By adjusting the speed switch, the spindle speed can be adjusted from 50 to 2500RPM.
Equipped with gears of strong power, this machine is wear-resistant, durable, more accurate rotation and in particular, more precise, accurate and professional.
Automatic tool with multi function and usage, infinitely variable.
More accurate operation, more professional performance.

Technicals

Voltage: 220V
Motor Power: 750W
Spindle Taper: MT3
Tail Stock Taper: MT2
Range of Spindle Speeds: 50-2500RPM
Distance Between Centers: 400mm (16")
Swing Over Bed: 210mm (8")
Chuck Diameter: 125mm (5")
Hole Thru Spindle: φ21mm (0.83")
Maximum Compound Slide Travel: 55mm (2")
Maximum Cross Slide Travel: 75mm (3")
Gross Weight: 70kg (154lbs)

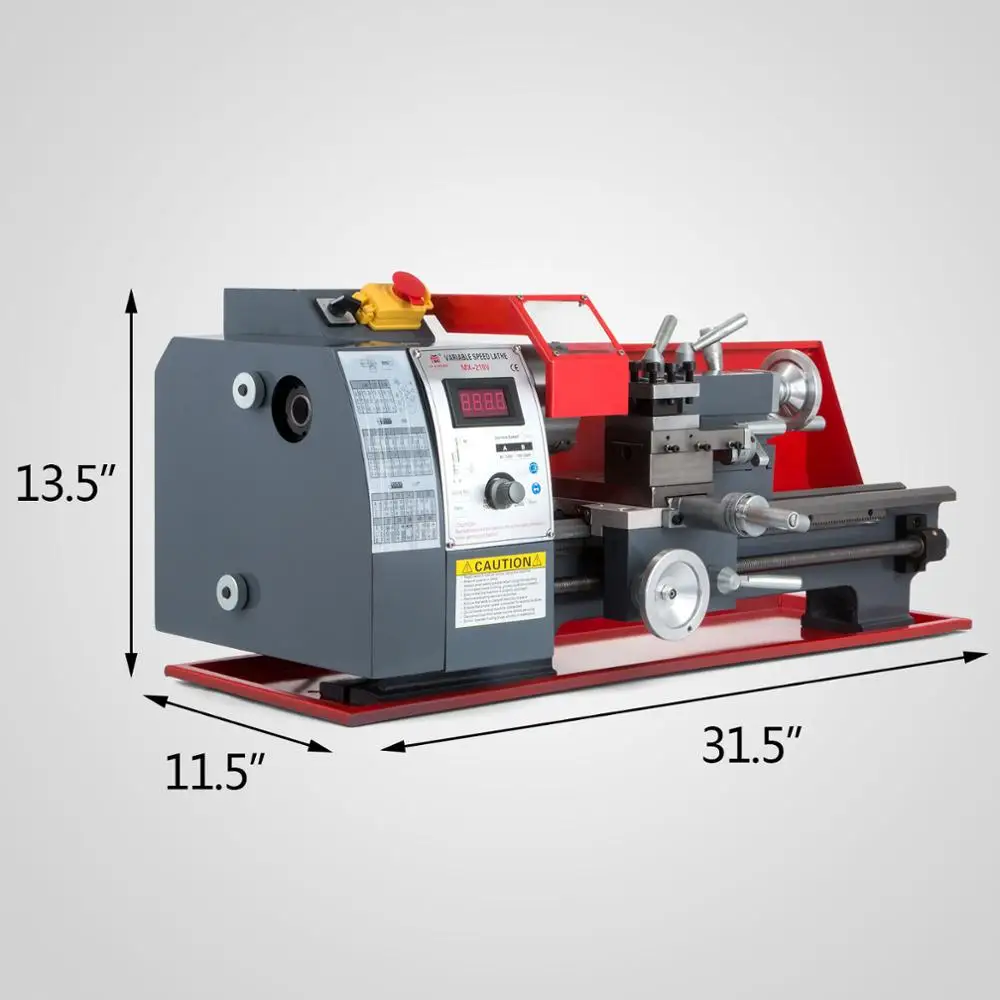

Package Dimensions (L*W*H): 920×480×460mm (37"×19"×19")

Features

  • Variable spindle speed of 50-2500RPM.

  • Spindle bearings use precise tapered roller bearings.

  • Rails have been quenched with high frequency and elaborate milling.

  • High precision, able to turn out standard qualified works.

  • 750W strong power, 400mm processing distance.

  • With high precision, can turn out the standard qualified works.

  • Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.

  • Multi-function and multi-usage, can be turned within the foreign aid, turning thread, turning taper and so on.

  • Automatic tool, Infinitely variable, professional tool post.

Packaging logistics



Customer payment



Certification



Company Information
Company name Shanghai Sihao Machinery Equipment Co., Ltd.
Business modle Manufacture&Trading
Place of origin Shanghai,China(Mainland)
Minimun order quantity 1 set
Payment L/C;T/T
