New Brand Sharp 440nm 450nm 460nm 80mw TO18 5.6mm Blue Laser Diode

Supplier: Dongguan Blueuniverse Laser Co., Ltd.
Region: Guangdong, China
Contact: Ms song song
Price: $5.00 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Single package size:	1X1X1 cm;	Single gross weight:	0.01 KG;
Power - Max:	80MW;	Voltage - Zener (Nom) (Vz):	NA;
Voltage - Forward (Vf) (Max) @ If:	NA;	Impedance (Max) (Zzt):	NA;
Current - Average Rectified (Io):	NA;	Operating Temperature:	N A;
Power Dissipation (Max):	NA;	Capacitance Ratio:	NA;
Max. Reverse Voltage:	2V;	Max. Reverse Current:	standard;
Current - Average Rectified (Io) (per Diode):	NA;	Supplier Type:	Retailer;
Cross Reference:	N/A;	D/C:	NA;
Diode Configuration:	NA;	Application:	Indicator pointer,laser light;
Max. Forward Current:	110mA;	Current - Reverse Leakage @ Vr:	N A;
Diameter:	TO18 5.6mm;	Color:	Blue;
Type:	Laser Diode;	Output power:	80mw;
Place of Origin:	Guangdong China;	Wavelength:	450nm;
Diode Type:	Semiconductor;	Tolerance:	NA;
Mounting Type:	NA;	Capacitance Ratio Condition:	NA;
Voltage - DC Reverse (Vr) (Max):	NA;	Brand:	Laser Diode;
Q @ Vr, F:	Not Applicable;	Technology:	NA;
Voltage - Peak Reverse (Max):	NA;	Current - Max:	NA;
Reverse Recovery Time (trr):	NA;	Media Available:	datasheet;
Packaging Detail:	1.100 pieces/tray, 10 trays/vacuum bag, 10 vacuum bags/carton. 2. Plastic box package , 450nm 80mw blue laser diode with 5.6mm package. 3. It based on the laser diode kind, each kind has different size.;	Package Type:	Through Hole;
Model Number:	JLD4580A-O1Y;	Speed:	Not Applicable;
Brand Name:	Sharp;	Resistance @ If, F:	NA;
Configuration:	N A;	Operating temperature:	-40~+70 degree;
Service life:	10000 hours;	Max. Forward Voltage:	5.3V;
Storage Temperature:	-40~+85 degree;	Selling Units:	Single item;
Package / Case:	NA;	Capacitance @ Vr, F:	N A;

Specification: In Stock 5.6mm 405nm 300mw Blue Violet Laser Diode

1.Wavelength:450nm Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

2.Output Power: 80mw Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

3.Can Type: 5.6 mm Floating Mounted with Protection device

Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

New Brand Sharp 450nm 80mw 5.6mm Blue Laser Diode

Product Description

Excellent beam quality High stability Advanced technology Long Lifetime

Absolute Maximum Ratings (Tc = 25℃)

Item	Symbol	Absolute Maximum Ratings	Unit
Opetical Output Power (Tc25℃)	Po	80	mW
PD Reverse Voltage	Vr(PD)	2	V
Storage Temperature	Tstg	-40~+85	℃
Oprating Case Temperature	Tc	-10~+70	℃

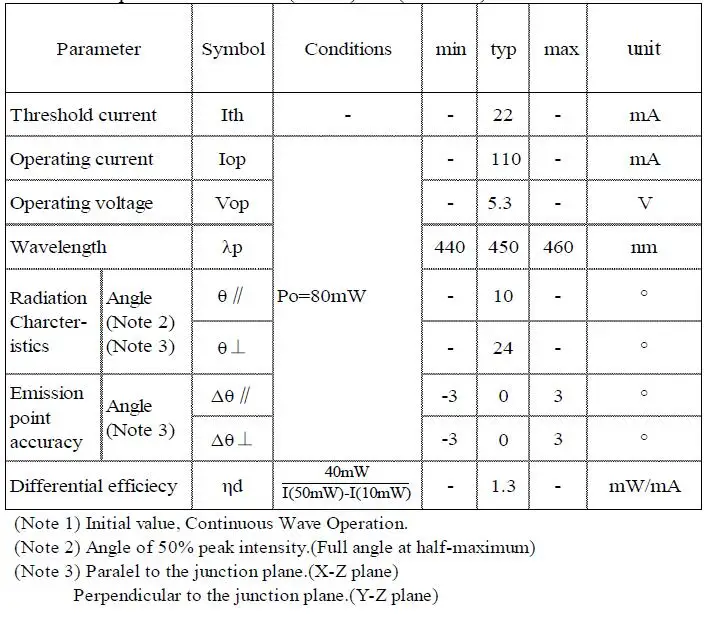

Electrical and Optical Characteristics (Tc=25℃)

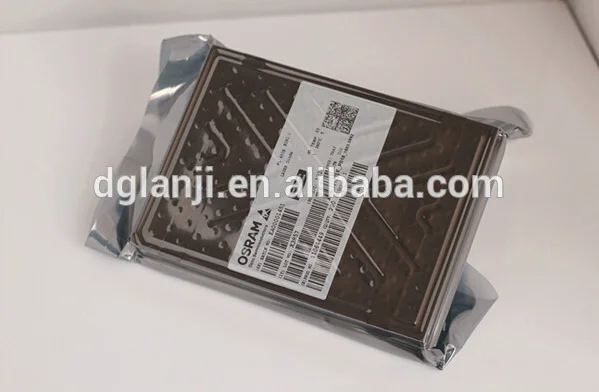

Packaging & Shipping

1.TO18-5.6mm packing. Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

2. 100pieces/box, 10boxes/ctn. Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

3. Original packaging brand new 450nm 80mw Violet laser diode.

4. This is a high-efficient semiconductor laser diode which provides emission wavelength of 450nm and stabdard light output of 80mw. Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

5. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes. Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

High Quality Openxt 0.5watt 405nm 500mw Blue Violet Laser Diode For Machine

Shipping:

*1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance. Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode

*And it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one. Trade Assurance 450nm 80mw PLT5 450B 5.6mm Blue Laser Diode
