CE/SGS prestressed concrete slab making machine GLY 300x1200

Supplier: Dezhou Haitian Electromechanical Technology Co., Ltd.
Region: Shandong, China
Contact: Ms. Haitian Machinery
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	330016301600mm;	Power:	11kw;
Port:	Qingdao,Tianjin;	Certification:	CE;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Home Use,Construction works ;	Key Selling Points:	Easy to Operate;
Voltage:	AC220/230/380V;	Supply Ability:	150 Set/Sets per Month;
Place of Origin:	Shandong China;	After-sales Service Provided:	Overseas service center available;
Condition:	New;	Packaging Detail:	standard wooden case.;
Payment Terms:	L/C,T/T,Western Union;	Production Capacity:	1-1.2m/min;
Local Service Location:	Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Thailand,Malaysia,Morocco,Kenya,Chile,UAE,Colombia,South Africa,Ukraine,Uzbekistan;	Weight:	5100kg;
Warranty:	1 YEAR;	Showroom Location:	Viet Nam,Philippines,Indonesia,Pakistan,India,Mexico,Thailand,Morocco,Kenya,Chile,Colombia,Sri Lanka,South Africa,Ukraine,Kyrgyzstan;
Brand Name:	HAIYU;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;

prestressed concrete slab making machine For Dubai

Product Description

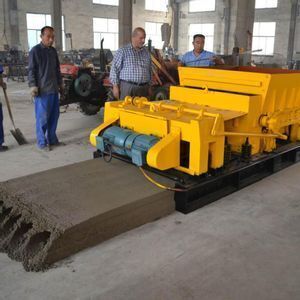

The machine works on the concrete flat platform powered by the motor. The incompact materials are pushed into the forming place by the speed reducing convening and the slider’s repeatedly moving on straight, then the materials push each other to air out.

The continuously working of vibration plate will highly classify the concrete. At the same time, the reaction of pushing materials by slider will move the whole machine go along with the steel wire overcoming the frictional resistance. The concrete slab is forming during the process behind the machine. After maintenance of a few days, it can be cut in to concrete slabs.

Haitian is a professional producer of pre-stressing concrete hollow core slab forming machine. It characters as bellow: suitable design, easy for operation and maintenance,

durable spare parts etc. With smooth surface, solid construction ,high strength and precise dimension ,the hollow core slab meets all the national specification requirements required .The dimension range of the slabs are as bellow: Length is from 4.2m to 18m, width are 600mm,900mm and 1200mm, the thickness is 120mm,150mm,180mm,200mm,250mm, 300mm and 380mm.It became the best and economical choice of the factory who produce high strength hollow core slab for workshop, school, hospital, shopping mall, office building, warehouse and residence.

POPULAR TYPES AND PARAMETERS

HTY Hollow core slab machine	Motor Power (kw)	Motor Vibrator Power (kw)	Inner vibrator power	Forming speed (m/min)	Holes no.	Hole shape	Weight (kg)
200x900	11	3.6	0.8	1-1.2	6	Peach	2600
250x900	11	4.7	0.8	1-1.2	6	Peach	3700
300x900	11	4.7	1.1	1-1.2	5	Peach	4500
200x1200	11	11	1.1	1-1.2	8	Peach	3100
220x1200	15	11	1.1	1-1.2	8	Peach	4500
300x1200	18.5	15	1.5	1-1.2	6	Peach	5100

Detailed Images

Certifications

Dezhou Haitian was founded in 1997. We have obtained 20 China national patents, products approved ISO9001:2008 certificate, CE certificate and EU Customs Union CU-TR certificate. For the past several years Haitian has been rated "AAA grade quality and integrity of Chinese brands". We are also the Vice President Enterprises of “China National Precast Concrete and Cement Products Association”
