XH Automatic 1050/1020 Double Layer Profile Cold Roll Forming Machine

Product details
Brand Name:Xinghe;Use:Roof;
Port:Tianjin;Production Capacity:6-8 m/min;
Supply Ability:30 Set/Sets per Month;Type:Tile Forming Machine;
Weight:about 4 tons;Tile Type:Steel;
Warranty:1 Year;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Voltage:380V,50-60HZ,3Phase;Packaging Detail:Main body of the machine naked into the containers,covered with plastic film,spare parts in the wooden box.;
Certification:BV;After-sales Service Provided:Online support;
Condition:New;Place of Origin:Hebei China (Mainland);
Dimension(L*W*H):6500*1300*1200 mm;

Corrugated Iron Sheet 850/1020 Roll Forming Machine Tile Making Machinery

Working process

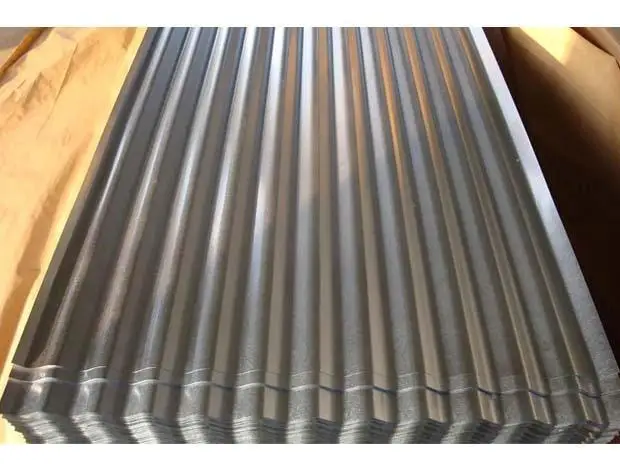

Tile drawing and tile

Machine parameter

Material Width1000mm
Effctive width850/840mm
Thicknes0.3-0.6mm
Size6500mm*1550mm*1300mm
Weightabout 4.2tons
Diameter of shaftΦ70,45#steel
Material of roller45#steel,Chrome
Main motor power4.0kw
Hydraulic station3.0kw
Number of rollers13/11 stand rollers
Control systemPLC computer controller
Speed8-12m/min
Chain1 inch

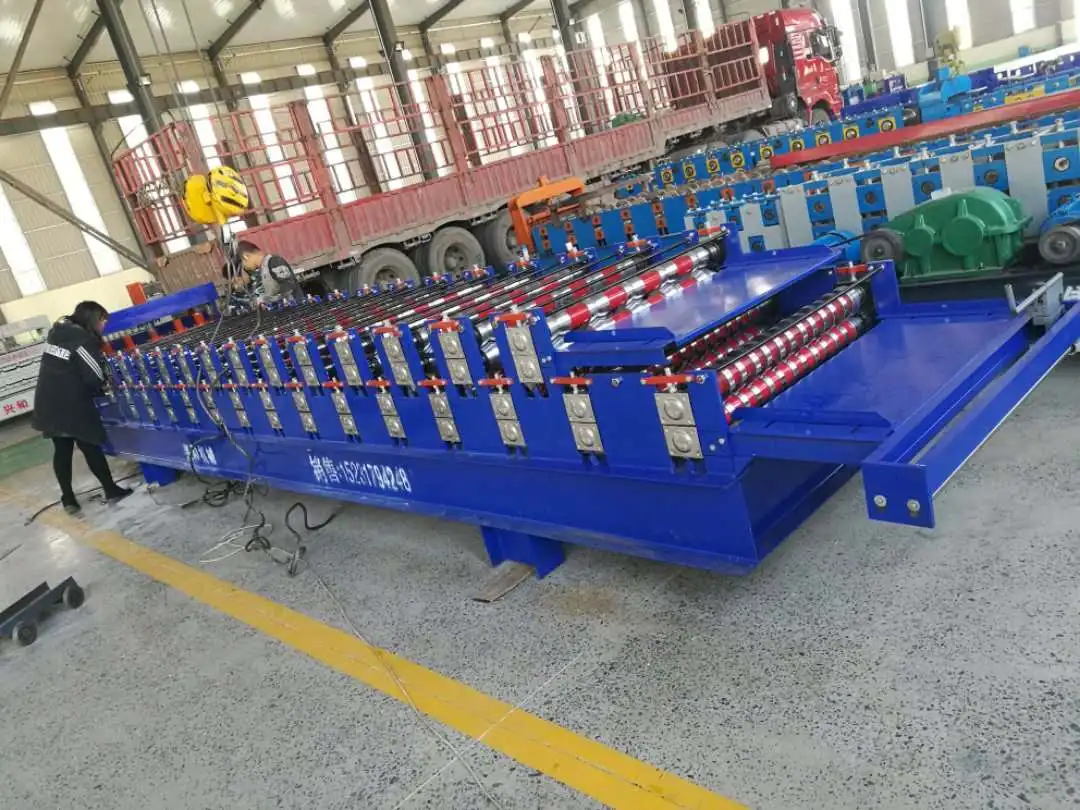

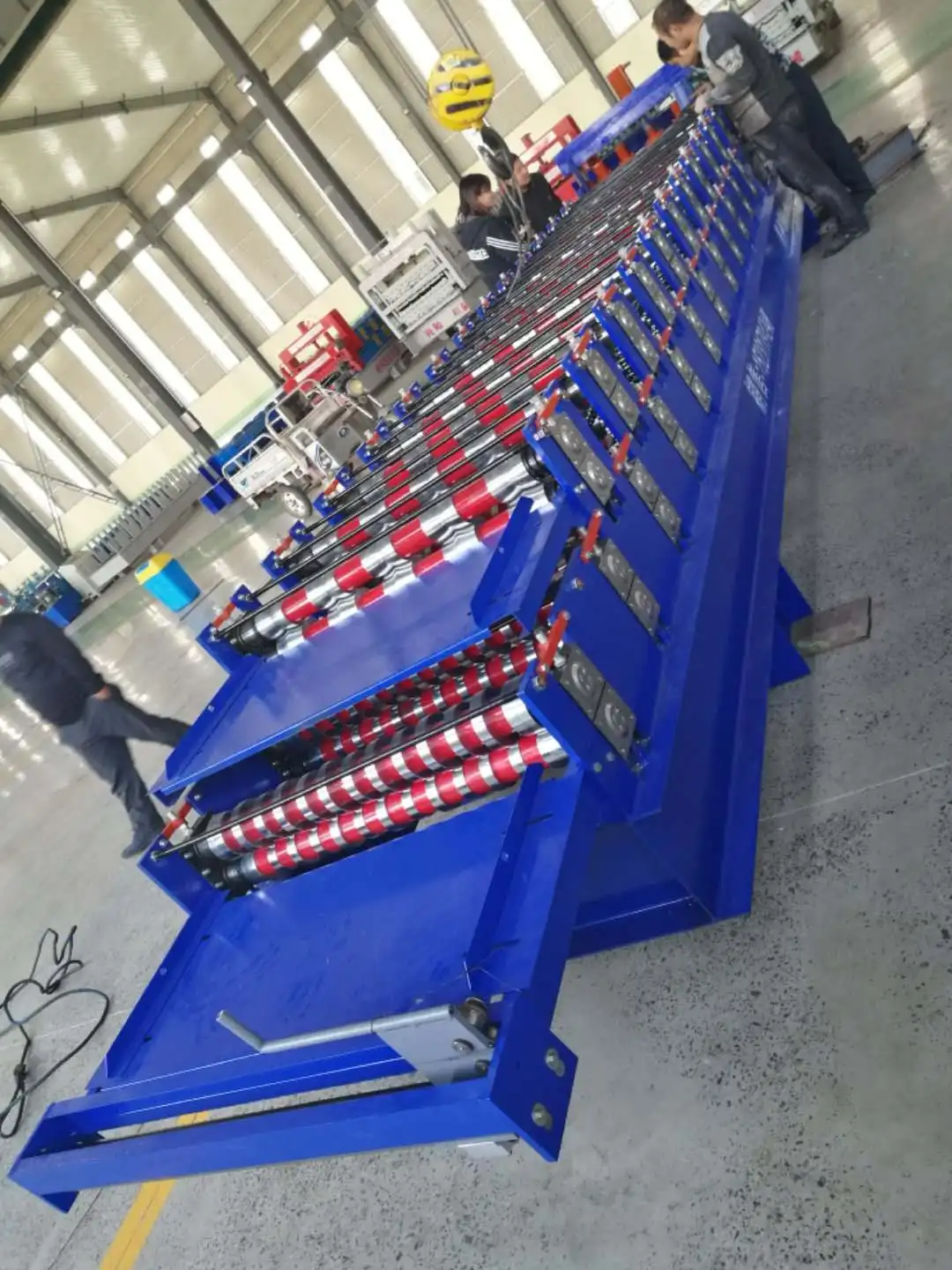

 Machine shows

Package & Payment & Delivery

1

Package details

Nude fasten up in container or under your requests

2

Payment terms

40% TT for deposit balance against copy of B/L

100% L/C at sight

3

Delivery time

Within 40 days after receipt deposit

4

Port of shipment

XINGANG TIANJIN

Our Services
+

Our Service

1

One-year quality assurance for all the machine

2

Technical staff available to service machine overseas

3

Permanent free for technical support

4

Design and produce according to your sample or drawing

Company Information



Certification

Machine Feature:

1.Precise forming

2. High-solid forming stand guarantees the goods and uniform high quality of final produced

3. The operation automatically minimizes the tolerance of cutting length

4.Machine with Draw knife that can make the last board without manual cutting and clutch,That can control the number plate.

FAQ



1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.



2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need

your machines running in order to keep your business running.



3. How to visit your company?

a.Fly to Beijing airport:   By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick

up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then

we can pick up you.



4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can    send the new parts replace the broken parts freely,but you need pay the express cost   yourself.if after warranty period,we can

through negotiation for to solve the problems,and we supply the technical support for the whole life of the

equipment.



5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.





6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting

various types of cold roll forming machines.

7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on

developing how to make machines much more automatic, accurate and high quality.
